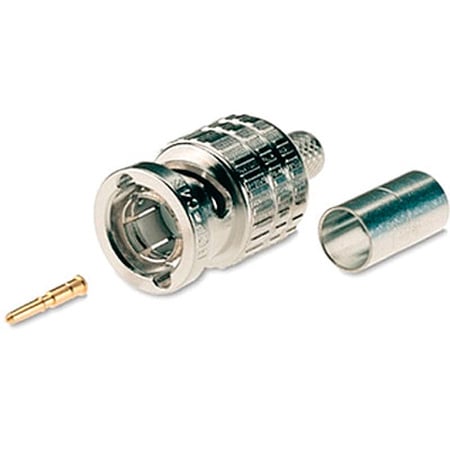

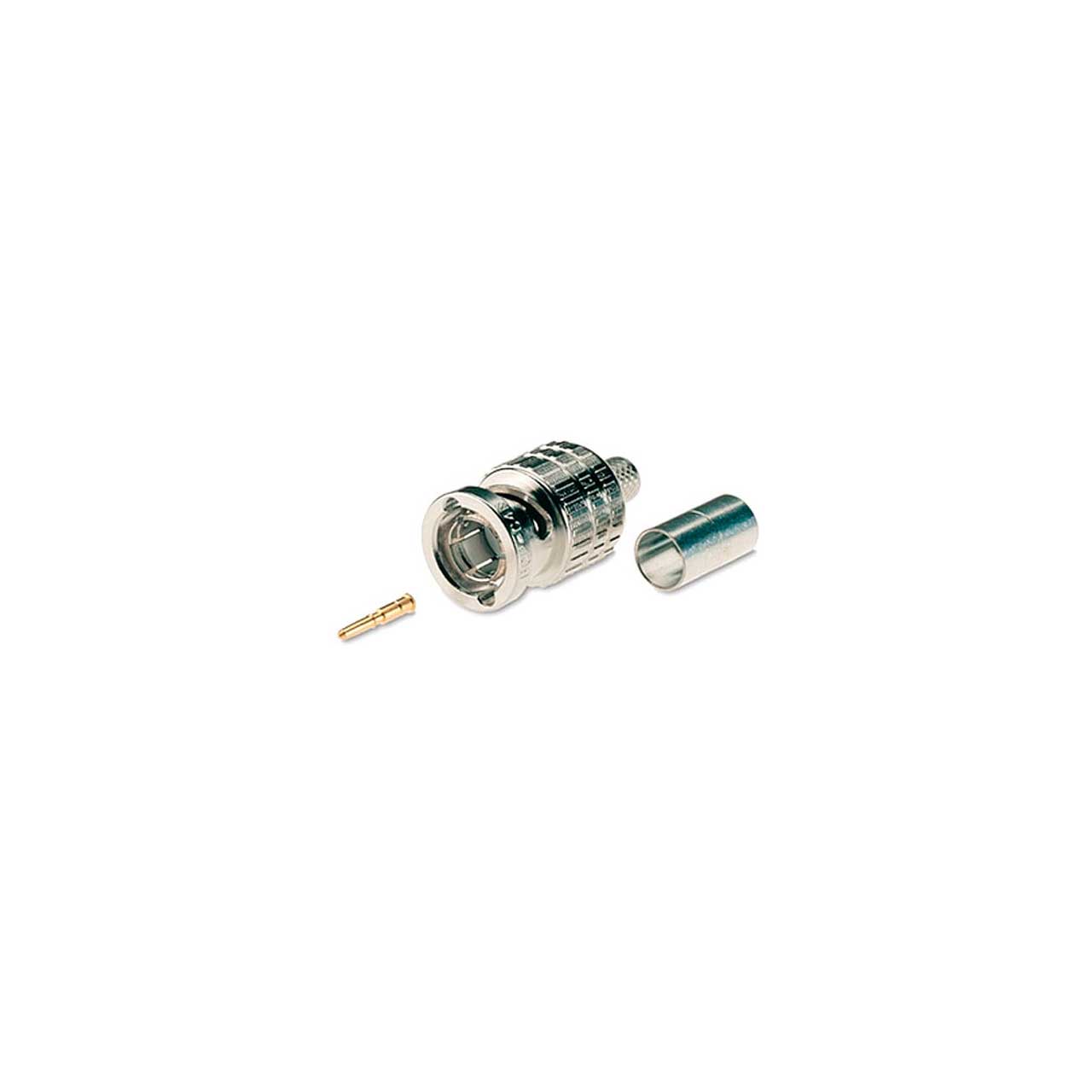

The Canare BCP-VA3 is the best fit for Canare V3-3C, V4-3C, V5-3C cabling. It features True 75 ohm construction Crimp Pin & Sleeve.
DC to 2.0 GHz >26dB Return Loss (<1.1 VSWR).
Mechanically mates with common 50 ohm BNC.
Elongated Body for better finger grip.
Superior cable pull strength.
Gold plated center pins 'snap lock' in place.
Beryllium copper outer contact.
Easy Assembly using Canare Strip & Crimp Tools.
Operating temperature -20 to +60 degrees Celsius.
Applications
SMPTE 259M & 292M Compliant
Serial Digital Video
HDTV Upgrades
NTSC Analog
Test Equipment
Satellite Headends
TELCOM
