Broadata MINI-3GHD-T/R-S-ST Mini 3G HD-SDI Video Transmitter/Receiver Kit Single Mode Fiber - ST 1

ITEM #: BD-MINI3GHDTRSST MFG #: MINI-3GHD-T/R-S-ST

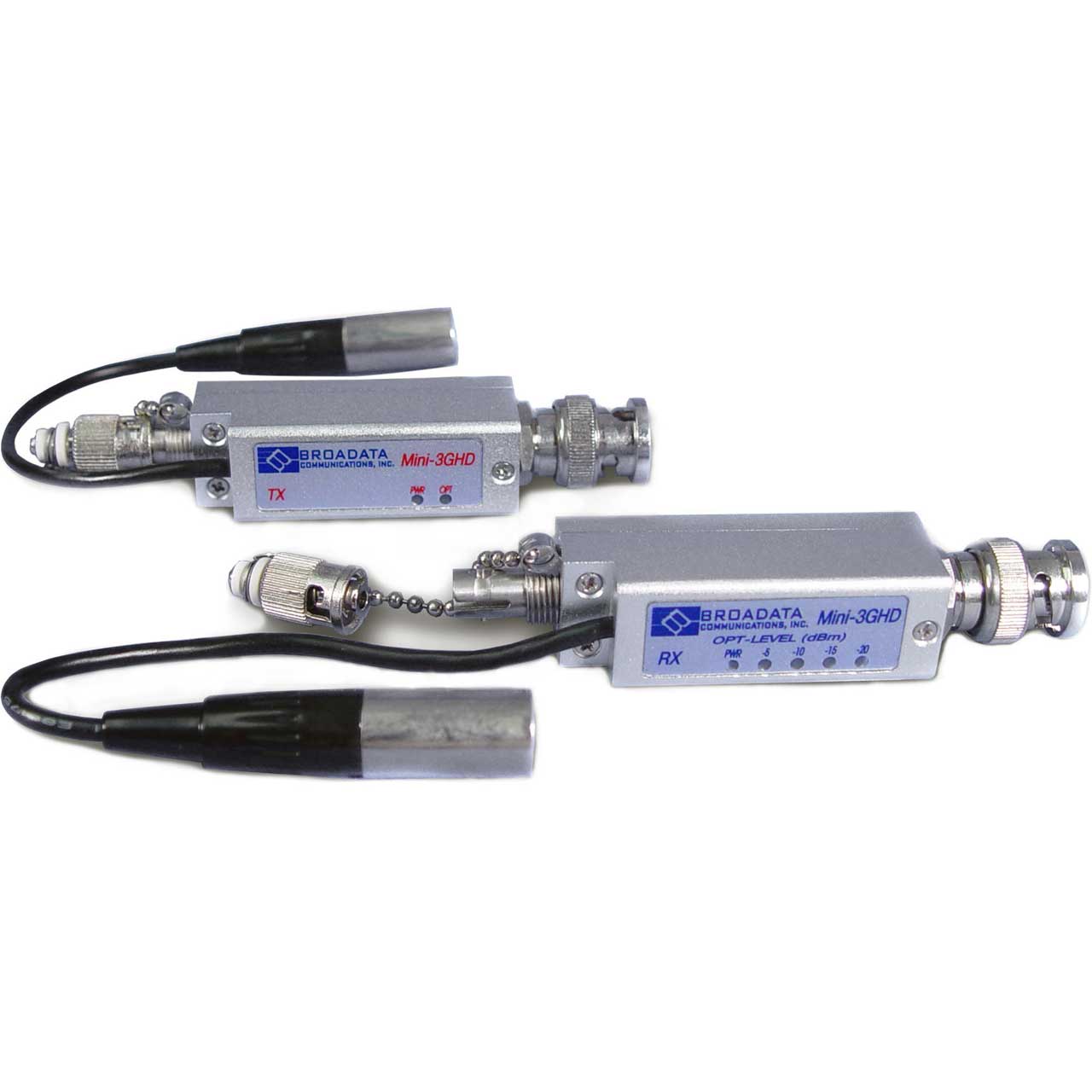

Primary Image
Broadata Communications, Inc.
Free Shipping with $49 Minimum Order

List Price:

$1,555.00

Our Price:

$1,179.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

MINI-3GHD-T/R-S-ST - Overview

The mini-3GHD series is a miniature, fiber optic 3Gb/s SDI digital video transport system, supporting the 1080p 3Gbps SDI format. The standard Mini-3GHD system is designed to transport one (1) channel SMPTE-424M 3Gb/s SDI, SMPTE-292M HD-SDI or SMPTE-259M SDI serial digital video signal over long distances. The Multimode version can travel approximately 1000 feet while the Singlemode version (featured) can travel significantly further at 22 miles. These are typical distance coverage figures. The maximum distance coverage may be greater than these typical numbers, depending on fiber type, fiber bandwidth, connector splicing losses, chromatic dispersion, environmental factors, etc.

  • Features:

    • Transport multi-rate HD-SDI digital video over fiber
    • Reliable transmission over multimode or single mode fiber
    • Video pathological test code compliant
    • Latch-locking power connector
    • Same model compatible for either multimode or single mode fiber
    • 12-slot card Chassis option


  • Specifications:

    • Data Rate: 3 Gbps
    • Signal Level: 800mVp-p +/- 10%
    • Return Loss: >15 dB
    • Connector: 75 Ohm BNC
    • Dimension (H x W x D): 0.75" x 0.65" x 2.0"
    • Power Level: +5 VDC @ 0.5 A
    • Operating Temperature: 0 to +50°C
    • Humidity: 0 to 95% RH, non-condensing
    • Fiber Type: Multimode and Singlemode
    • Number of Fibers: 1
    • Fiber Optic Connector: ST (Multimode and Singlemode)
