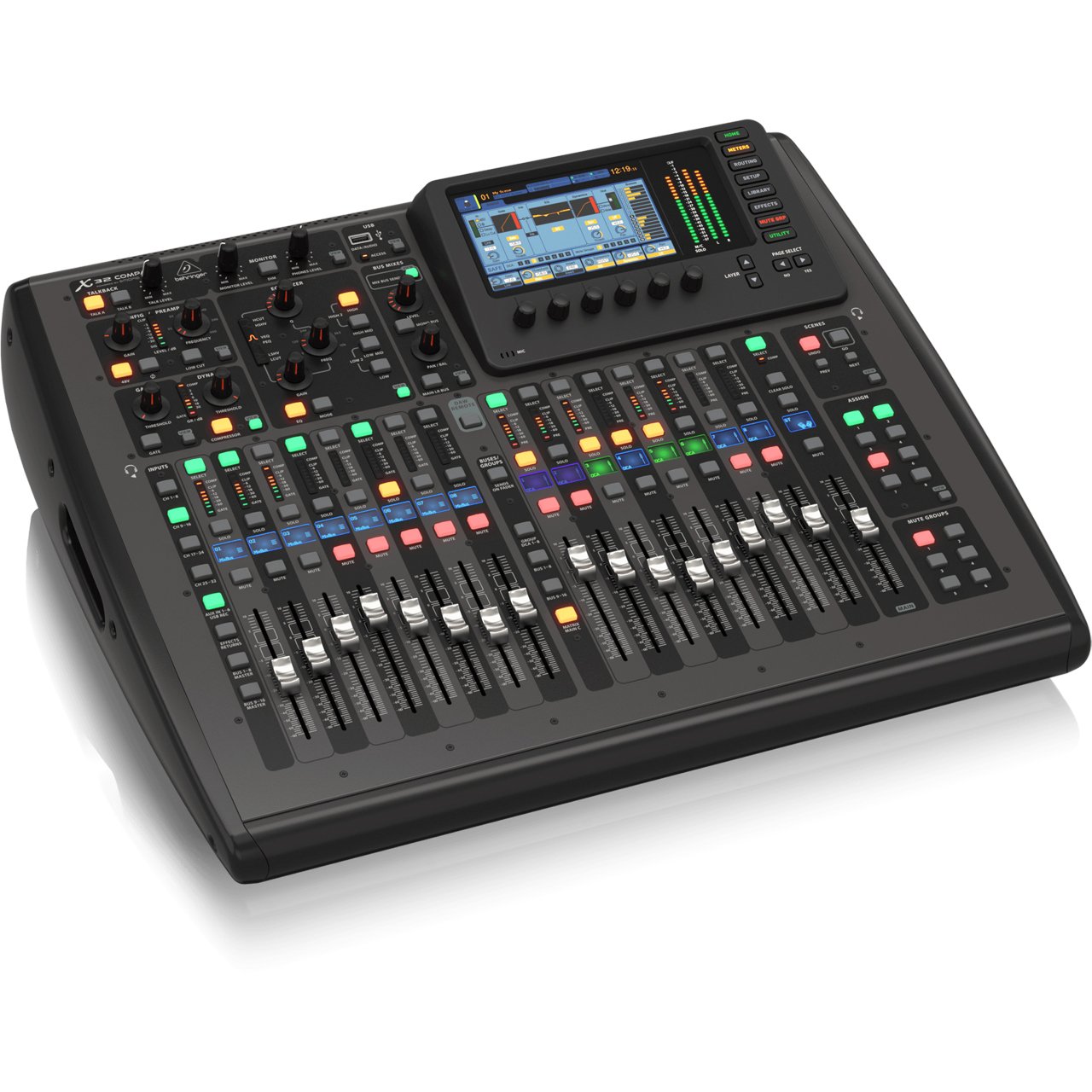

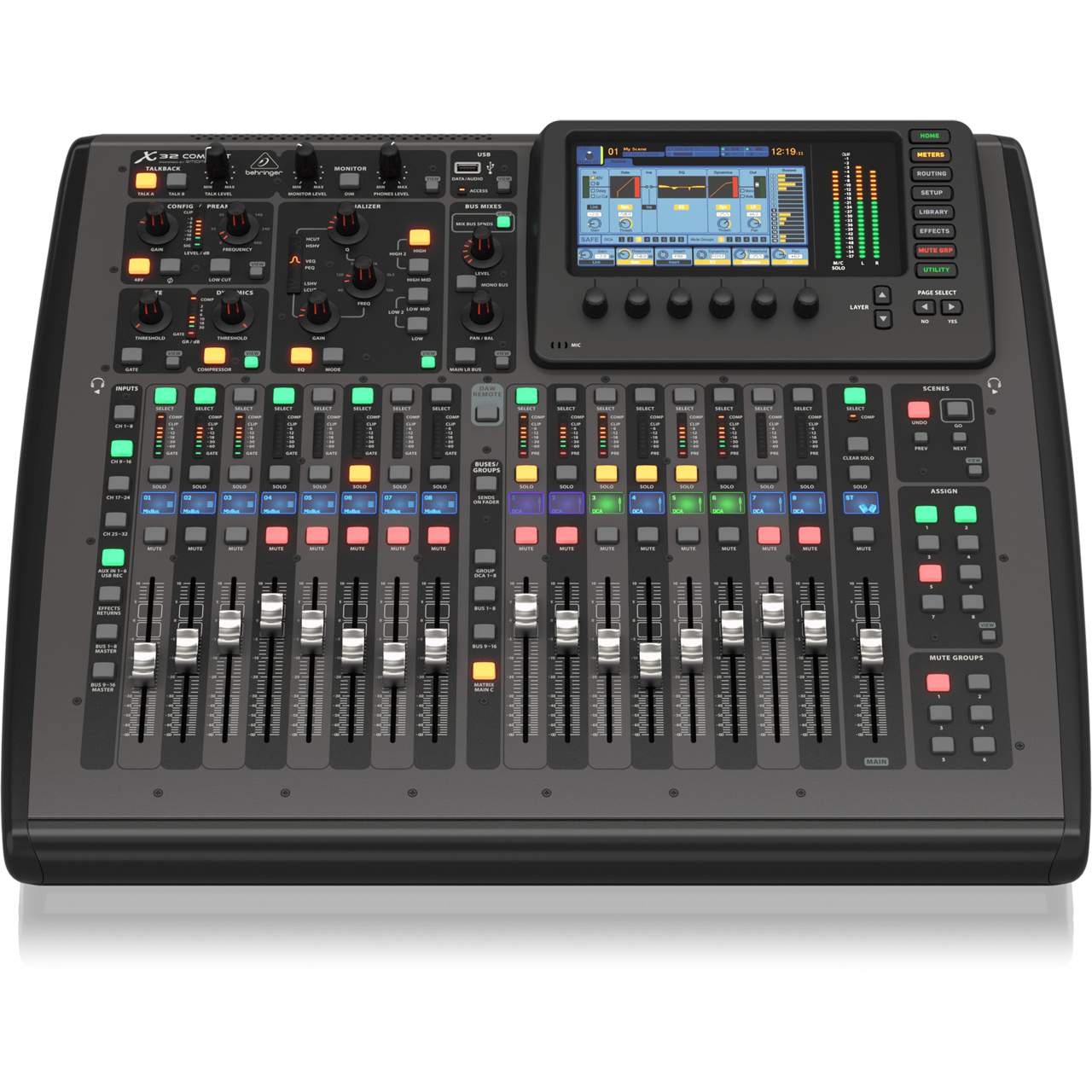

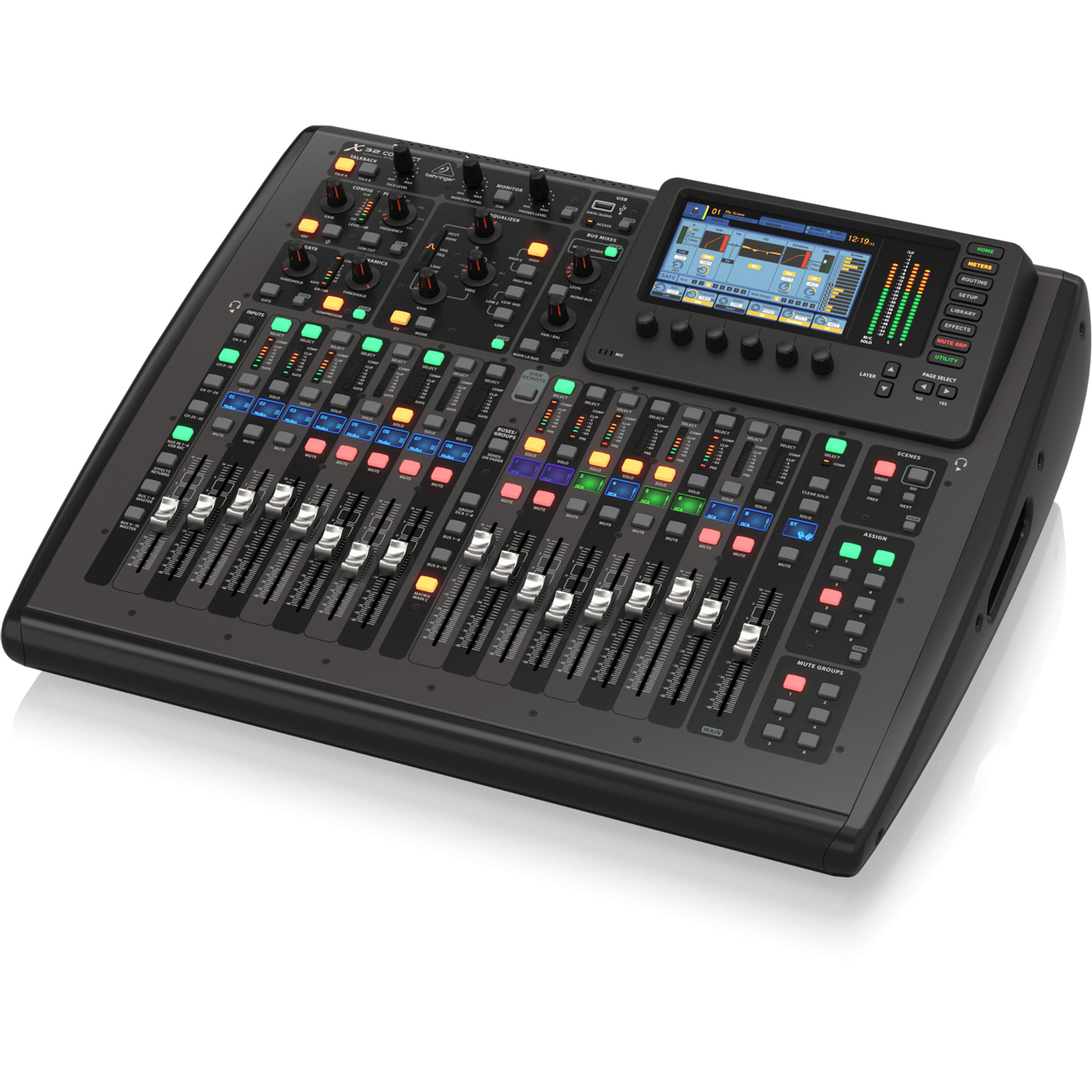

Behringer X32 Compact 40-Input/25-Bus Digital Mixing Console with 16 Programmable Midas Preamps

X32 COMPACT - Overview

Behringers Premier 40-Input Digital Mixer

• Features:

  • Compact 40-input channel, 25-bus digital mixing console for Studio and Live application
  • 16 Midas-designed, fully programmable mic preamps for audiophile sound quality
  • 17 Fully automated motorized 100 mm faders allow for instant overview, powerful scene management and DAW control
  • 8 XLR outputs plus 6 additional line in/outputs, 2 phones connectors and a talkback section with integrated or external mic
  • Individual and dynamic LCD Scribble Strips on all channels and buses creating easy assignment and intuitive channel distinction
  • 32 x 32 channel USB 2.0 audio interface, with DAW remote control emulating HUI and Mackie Control
  • iPad and iPhone apps for professional remote operation available free of charge no host PC required
  • High-resolution 7" day-viewable Color TFT for easy viewing of workflow components and parameters
  • Main LCR, 6 matrix buses and all 16 mix buses each featuring inserts, 6-band parametric EQ's and full dynamics processing, plus 8 DCA and 6 mute groups
  • Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L and PCM70, EMT250 and Quantec QRS etc.
  • 40-Bit floating-point DSP features "unlimited" dynamic range with no internal overload and near-zero overall latency (0.8 msec)
  • Powerful scene management for convenient handling of complex productions
  • 48-channel Digital Snake ready via dual AES50 ports, featuring Klark Teknik's SuperMAC networking capability for ultra-low jitter and latency
  • USB type-A connector providing file storage and uncompressed stereo recordings plus show presets and system updates
  • Dedicated and easy-to-use channel strip section with direct access controls and graphic user interface for intuitive workflow
  • Additional user-definable control section allows to set up short-cuts to your favorite views or parameters
  • ULTRANET connectivity for Behringer's P-16 Personal Monitoring System plus AES/EBU stereo digital output and MIDI


• Specifications:

  Processing
  • Processing Channels:
    - 32 Input channels
    - 8 AUX channels
    - 8 FX Return channels
    - 16 AUX buses
    - 6 Matrices
    - Main LRC
  • Internal Effects Engines, True Stereo/Mono: 8/16
  • Internal Total Recall Scenes (incl. preamp and fader): 100
  • Signal Processing: 40-bit floating point
  • A/D-D/A Conversion (Cirrus Logic A/D CS5368, D/A CS4385): 24-bit @ 44.1/48kHz, 114dB dynamic range
  • Local I/O Latency (local in > console processing* > local out): 0.8ms
  • Network I/O Latency (stagebox in > console processing* > stagebox out): 1.1ms

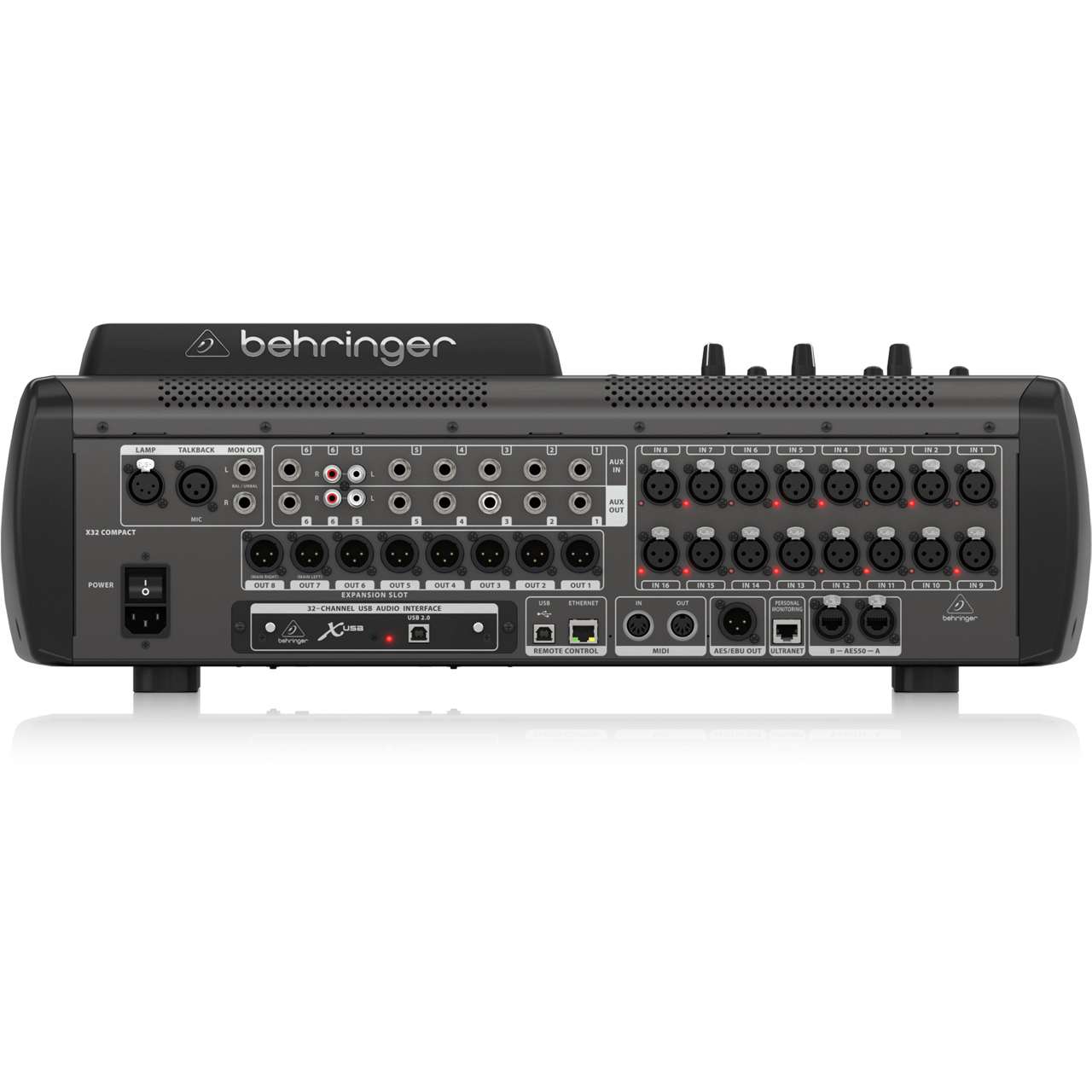

    Connectors
  • XLR Inputs, Programmable Mic Preamps, Designed by Midas: 16
  • Talkback Mic Input, XLR: 1 external (plus internal mic)
  • RCA Inputs/Outputs: 2/2
  • XLR Outputs: 8
  • Monitoring Outputs 1/4" TRS Bal.: 2
  • Aux I/O, 1/4" TRS Bal.: 6/6
  • Phones Outputs, 1/4" TRS: 2 (stereo)
  • Digital AES/EBU Output, XLR: 1
  • AES50 Ports, SuperMAC: 2
  • Expansion Card Slot: 32 ch. audio Input/Output, various standards
  • P-16 Connector, Ultranet (no power supplied): 1
  • MIDI I/O: 1/1
  • Ethernet, RJ45, for Remote Control: 1
  • USB Type A, for Audio and Data Export/Import: 1
  • USB Type B, for System Updates: 1

    Mic Input Characteristics
  • Preamp Design: Midas
  • THD + Noise, 20dB Gain, 0dBu Out: < 0.006% A-weighted
  • Input Impedance XLR Jack, Unbal./Bal.: 5kΩ /10kΩ
  • Non Clip Max Input Level, XLR: +23dBu
  • Phantom Power, Switchable per Input: 48V
  • EIN Level, XLR (input shorted): -128dBu
  • CMRR, XLR, @ 20dB Gain (typical): > 70dB
  • CMRR, XLR, @ 40dB Gain: > 80dB

    Input/Output Characteristics
  • Frequency Range, @ 48kHz Sample Rate, 0dB to -1dB: 10Hz - 22kHz
  • Dynamic Range, Analog IN to Analog OUT (typical): 106dB
  • A/D Dynamic Range, Preamp to Converter (typical): 109dB
  • D/A Dynamic Range, Converter and Output: 108dB
  • Cross Talk Rejection @ 1kHz, Adjacent Channels: 100dB
  • Output Level, XLR, Nom./Max.: +4dBu/+21dBu
  • Output Impedance, XLR, Unbal./Bal.: 75Ω/75Ω
  • Input Impedance TRS Jack, Unbal./Bal.: 20kΩ/40kΩ
  • Non Clip Max Input Level, TRS: +16dBu
  • Nominal Output Level, TRS: +4dBu/+16dBu
  • Output Impedance, TRS, Unbal./Bal.: 150Ω/300Ω
  • Phones Output Impedance/Level: 40Ω/+25dBm (stereo)
  • Residual Noise Level, XLR and TRS: -87dBu (A-weighted)

    Display
  • Main Screen: 7", 800 x 480, 262k color TFT
  • Channel LCD Screen (17pcs): 128 x 64, LCD with RGB color backlight
  • Main Meter: 24-segment (-57dB to clip)

    Power
  • Switch-Mode Power Supply: Autorange 100V - 240V (50/60Hz)
  • Power Consumption: 120W

    Physical
  • Operating Temperature: 41°F - 113°F (5°C - 45°C)
  • Dimensions: 8.5" x 24.6" x 20" (215mm x 625mm x 510mm)
  • Weight: 33.9lbs (15.4kg)
    *including all channel and bus processing, excluding insert effects and line delays


• GTIN:

  0713757162418
