PreSonus StudioLive 32SC Subcompact 32-Channel/22-Bus Digital Console/Recorder/Interface w/ AVB Networking

ITEM #: PRE-SL32SC MFG #: STUDIOLIVE 32SC

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,499.99

Our Price:

$1,999.99

After Savings:

$1,599.99

Availability: In Stock
iAvailability Description Popup
Presonus StudioLive 32SC Savings!Save $400 when purchasing the Presonus StudioLive 32SC. This is a limited time offer!


    STUDIOLIVE 32SC - Overview

    Small digital mixer. Big power.

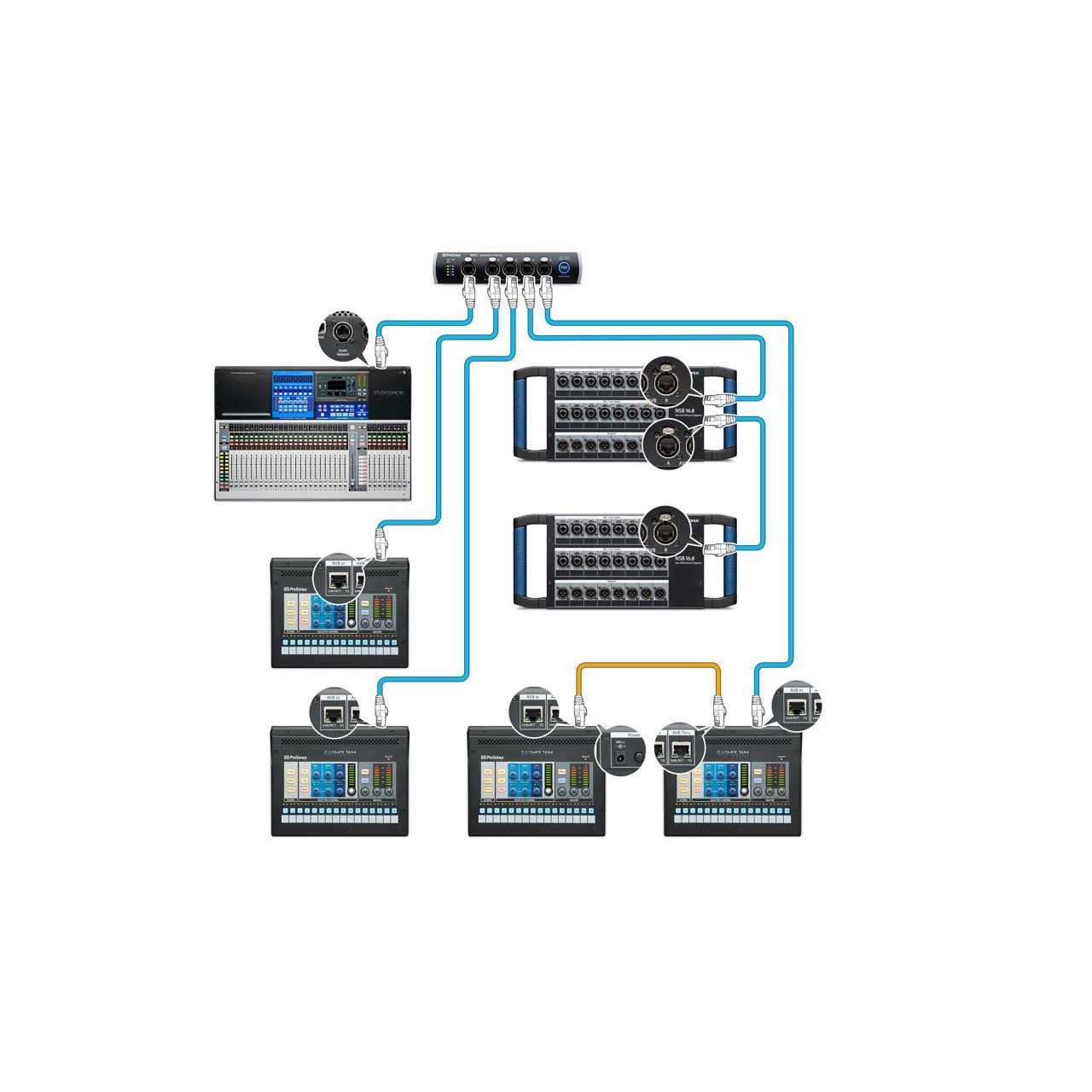

    The StudioLive 32SC is a compact, rack-mountable 32-channel digital mixer that can be quickly and easily scaled for 16-, 24-, and 32-channel applications. Don't let the road-ready size fool you; the StudioLive 32SC sports a dual-core PreSonus FLEX DSP Engine powering 40 mixing channels, 26 mix buses, and 286 simultaneous processors - including 4 stereo reverberation systems and Fat Channel plug-in models on every input channel and mix bus. With 128 (64x64) channels of USB recording and AVB network audio I/O, flexible routing options, and studio-grade audio quality, the StudioLive 32SC provides all the tools you need - whether you're building your dream studio or putting together a pro touring rig.

    Superior sound
    They built their reputation designing great-sounding analog circuits for critical studio recording environments, and they put all of that experience into designing the StudioLive 32SC digital mixer. In 1995, PreSonus patented digital control over analog circuits with their first studio product.

    The mobile music recording studio
    PreSonus Capture® recording software is an intuitive multitrack recording application with a fully integrated Virtual Soundcheck mode that runs directly on your StudioLive 32SC digital mixer or on your Mac or Windows computer. Record all 32 channels plus a stereo mix of your choosing via USB, to an SD Card, or both for the ultimate redundant live recording rig.

    Remote control your digital mixer from anywhere-on any device!
    PreSonus StudioLive Series III digital mixers are tightly integrated with an entire suite of state-of-the-art software. Mix wirelessly using UC Surface touch-control software for macOS®, Windows, iPad® and Android™. Control your monitor mixes with QMix®-UC for iPhone®, iPod® touch, and Android devices.

    PreSonus Metro
    PreSonus Metro is the latest innovation for Studio Live Series III mixers, delivering a first-to-market solution for live remote mixing overthe Internet with high-quality, low-latency audio streaming. With Metro, anyone, anywhere in the world, can connect to a StudioLive Series III mixer over the Internet and begin remotely controlling the mixer using UC Surface while listening in real-time with their local audio device.

    The first solution for live remote mixing with high-quality, low-latency audio over the Internet. MyPresonus account integration establishes a secure peer-to-peer connection between users to facilitate broadcast mixing, troubleshooting, podcast production, and more.

    -Live Stream and Podcast Production - Produce a livestream or podcast from anywhere in the world.
    -Troubleshooting - Troubleshoot StudioLive Series III mixers quickly and conveniently from your home or office.
    -Remote Recording - Ensure that a remote recording session is properly gain staged.
    -Corporate conference - Remotely mix an all-day conference panel from the comfort of your couch.
    -Professional assistance - Dial in a scratch mix remotely for a less experienced on site FOH or monitor engineer to use as a starting point

    • Specifications:

      • System Requirements
      • Mac: macOS® 10.11 or higher (64-bit only); Intel® Core™ 2 Duo processor (Intel® Core i3 or faster recommended); 4 GB RAM (8 GB or more recommended)
      • Windows: Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64; Intel Core 2 Duo (Core i3 or faster recommended); 4 GB RAM (8 GB or more recommended)
      • Mac and Windows Systems: USB 2.0 port; Internet connection; Internal or external 7200 RPM storage drive; 30 GB hard disk space; Monitor with 1366x768 resolution
      • iOS: iOS 10 or later; iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)
      • Android: Android™ 5.0 (Lollipop) or later; Android smartphone (QMix-UC); Android tablet (8-inch) with 1024x768 resolution (UC surface)

        Mic preamplifier
      • Input Type: XLR Female, balanced
      • Frequency Response to Main Output (at unity gain): 20-20 kHz, ± 0.5 dBu
      • Input Impedance: 1 kΩ
      • THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
      • S / N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
      • Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
      • Gain Control Range (± 1 dB): 0 dB to +60 dB
      • Maximum Input Level (unity gain): +12 dBu
      • Phantom Power (± 2 VDC): 48 VDC, switchable per channel

        Line Inputs
      • grade: 1/4" TRS Female, balanced
      • Frequency Response to Main Output (at unity gain): 20-20 kHz, ± 0.5 dBu
      • Input Impedance: 10 kΩ
      • THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
      • S / N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
      • Maximum Input Level: +18 dBu

        Tape Inputs
      • grade: RCA Female, unbalanced (stereo pair)
      • Maximum Input Level: +12 dBu, ± 0.5 dBu

        XLR Outputs
      • grade: XLR Male, balanced
      • Maximum Output Level: +24 dBu, ± 0.5 dBu
      • Output Impedance: 100Ω

        Line Outputs
      • grade: 1/4" TRS Female, balanced
      • Maximum Output Level: + 18 dBu, ± 0.5 dBu
      • Output Impedance: 100Ω

        Tape Outputs
      • grade: RCA Female, unbalanced (stereo pair)
      • Maximum Output Level: + 18 dBu, ± 0.5 dBu
      • Output Impedance: 100Ω

        Headphone Output
      • grade: 1/4" TRS Female, active stereo
      • Maximum Output: 100 mW / ch. @ 60Ω load
      • Frequency Response: 20 Hz - 20 kHz (± 0.5 dB)
      • THD + N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
      • S / N ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

        Digital Audio and Control
      • ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
      • DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
      • USB Recording Port: USB 2.0, Type-B
      • Bluetooth™ input: 4.1, stereo
      • AES / EBU output: XLR Male
      • Network Control Port: RJ-45
      • AVB Audio Network Port: Locking XLR Ethernet
      • Internal Processing: 32-bit, floating point
      • Sampling rate: 48 kHz, 44.1 kHz
      • A / D / A Bit Depth: 24
      • Reference Level for 0 dBFS: +18 dBu
      • Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)

        Physical
      • Power Connector: IEC
      • Input-Voltage Range: 90 to 230 VAC (± 10%)
      • Power Requirements (continuous): 85W
      • Operating Temperature: 32° to 104°F
      • Dimensions (H x W x D): 6.51" x 17.59" x 22.97"
      • Weight: 23.15 lbs

    • GTIN:

      0673454008153
