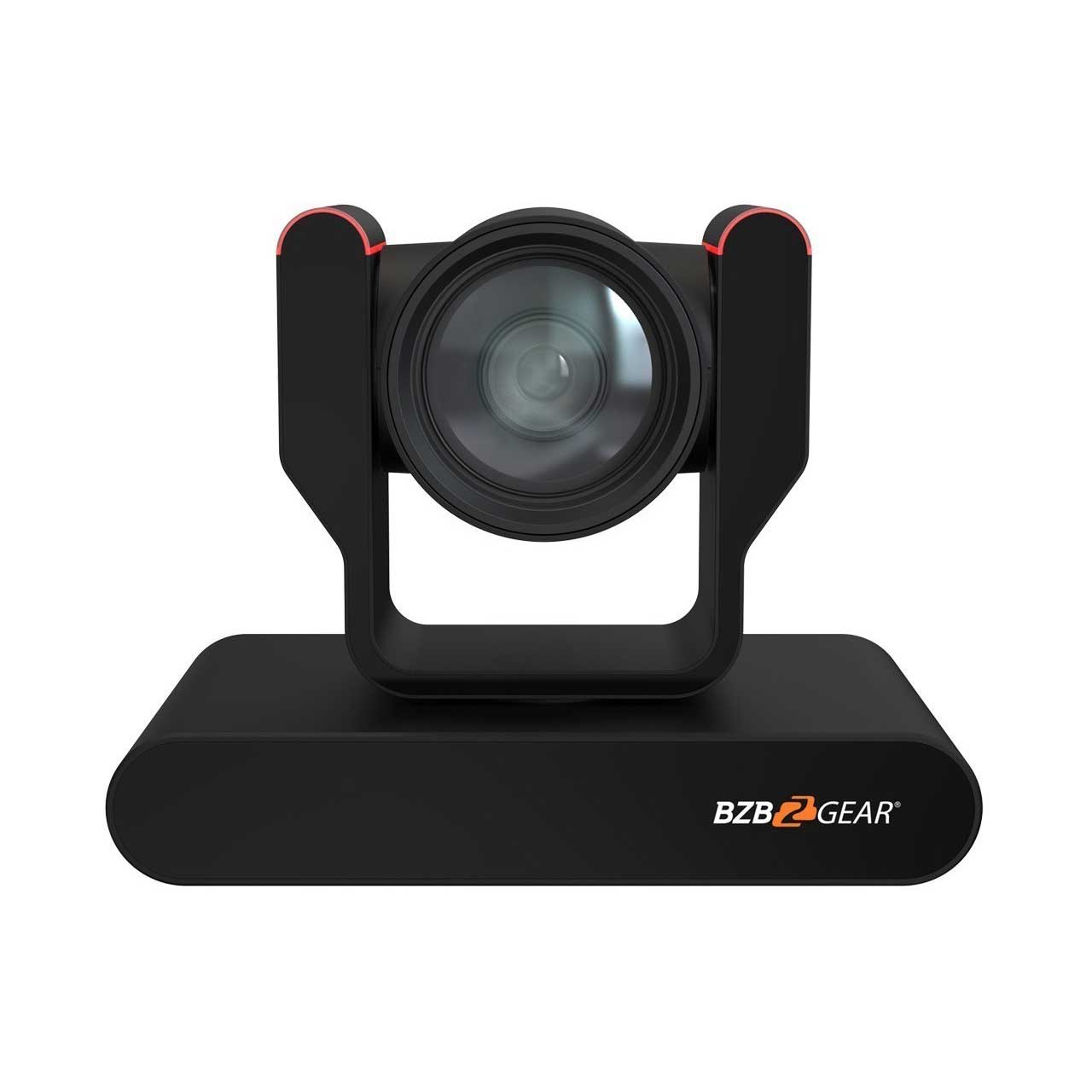

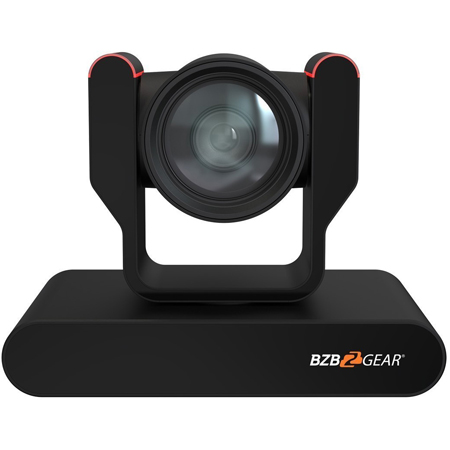

BZBGEAR ADAMO JR 12x 1080P Auto Tracking HDMI/SDI/USB 2.0/3.0/POE Live Streaming PTZ Camera with Tally Lights - Black

ITEM #: BG-ADAMO-JR12X-B MFG #: BG-ADAMO-JR12X-B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
BZBGEAR
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,499.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

BG-ADAMO-JR12X-B - Overview

The Next Generation of Full HD PTZ Cameras
The BG-ADAMO-JR is a brand-new Full HD PTZ camera with 3 types of lenses available: 12X optical zoom with 70.3 FOV, 20X optical zoom with 60.04 FOV, and 30X optical zoom with 58.1 FOV. It features smooth PTZ functions, advanced image processing features and flexible connection options.

Advanced Visual Performance
With the high quality 1/2.8-inch SONY CMOS image sensor, the resolution of this camera can get up to 1080@60fps. Additionally, the low noise 1/2.8-inch SONY CMOS guarantees high SNR and the advanced 3D noise reduction technology further reduces the noise while ensuring pristine image clarity. The advanced ISP processing technology and algorithms also allow the camera to deliver true-to-life image quality for the most natural and accurate viewing experiences.

Optical Zoom
The BG-ADAMO-JR offers three different optical zoom lenses that users can choose from: 12X optical zoom with 70.3 viewing angle, 20X optical zoom with 60.04 viewing angle and 30X optical zoom with 58.1 viewing angle.

Flexible Connections
The BG-ADAMO-JR supports HDMI, SDI, USB 2.0, USB 3.0 and LAN connections. It also supports IP streaming, offering flexible workflow options for users.

Smooth Video and Audio Processing
The BG-ADAMO-JR offers a smooth and impressively clear viewing experience. It uses advanced video and audio compression techniques to ensure the best quality content. Additionally, advanced auto focus technology allows the camera to autofocus stably, swiftly, and precisely.

Innovative Design

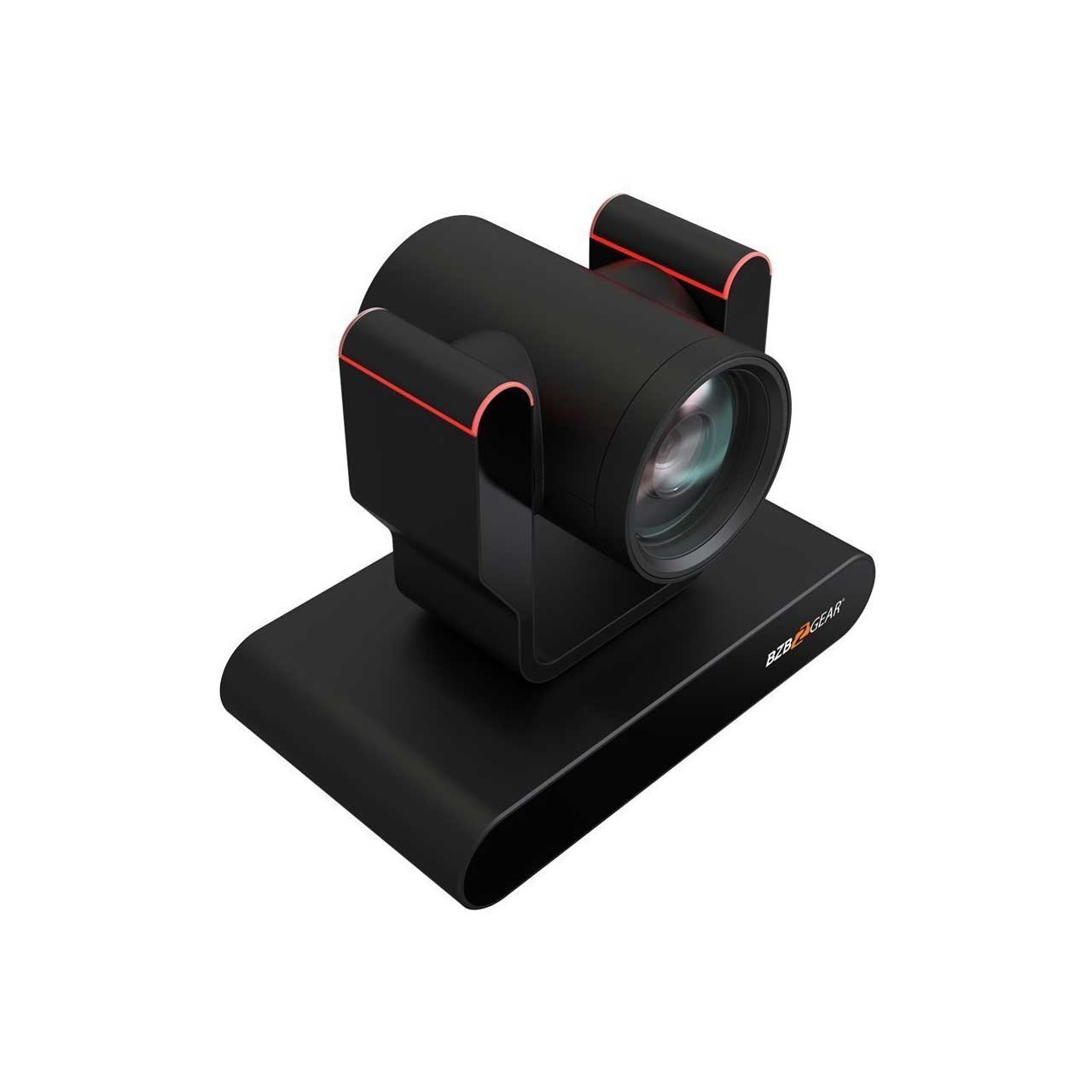

Available in either classic white or black finishes, the chassis of the BG-ADAMO is designed to be as functional and attractive as its formidable feature set. The high-stability substructure provides a solid foundation for the precision lens delivering full HD resolution video at 60fps. Eliminating the need for bulky external accessories, the control arms feature distinctive built-in tally lights that illuminate either green or red with 360-degree visibility.

Applications:
Studio Recordings
Houses of Worship
Sporting Events
Event Businesses
Doctors
Clergy

  • Features:

    • RS Communication Protocols: The BG-ADAMO-JR supports RS422 (compatible with RS485) output and RS232 input/output. RS232 supports cascading, making it easy for engineers to operate.
    • Control Protocols: Support for multiple control protocols include VISCA, PELCO-D, PELCO-P, and auto identification protocol.
    • Network Protocols: Support for multiple network protocols include ONVIF, GB/T28181, RTSP, RTMP protocols, and supports push mode in RTMP to easily link with streaming media servers. Plus, it supports RTP multicast mode and network full command VISCA control protocols.
    • BZBGEAR Camera Control Software: BZBGEAR offers a free control software available for Windows, Mac and iOS.


  • Specifications:

    • Camera/Lens
    • Optical Zoom: 12X
    • Focus Range: f=4.1 mm ~ 49.2 mm ±5%
    • FOV: Horizontal (H): 6.57°(tele) ~ 70.28°(wide) Vertical (V): 3.76°(tele) ~ 42.06°(wide)
    • Iris Value: F1.8 ~ F2.68±5%
    • Image Sensor: 1/2.8 inch SONY CMOS sensor
    • Effective Pixels 2.07 Megapixels 16:9
    • Video Signal: HDMI: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94; SDI: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
    • USB 2.0: MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30; H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30; YUY2: 800*448 /720*480P25; 640*360 /432*240P30 NV12: 800*448P25; 640*480 /640*360 /432*240P30
    • USB 3.0: YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*480P30;
    • Minimum Illumination: 0.05Lux (F1.8, AGC ON)
    • DNR: 3D
    • White Balance: Auto / Manual / One-Push / Specified Color Temperature
    • Focus Mode: Auto / Manual / One-Push
    • Exposure Mode: Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority
    • Iris Value: F1.8 ~ F11, CLOSE
    • Shutter Speed: 1/25 ~ 1/10000
    • BLC: On/Off
    • Dynamic Range: Off / Dynamic Level Adjustment
    • Video Adjustment: Brightness, Hue, Saturation, Contrast, Sharpness, WB Mode
    • SNR: ≥50dB

      Interface Parameters

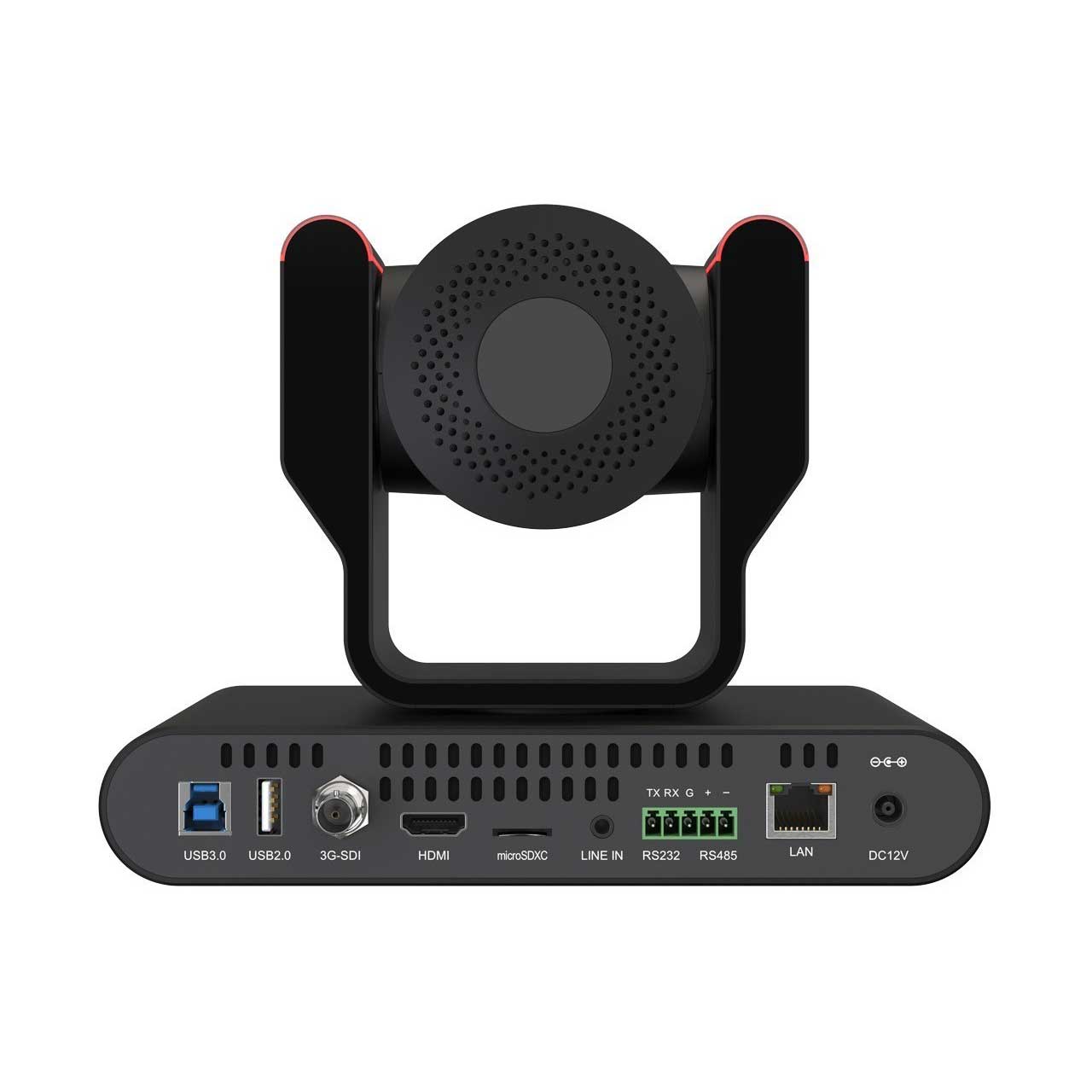

    • Interface: HDMI, SDI, LAN (POE), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch
    • Video Compression Format: LAN: H.264, H.265
    • USB 2.0: MJPG, H264, H265, YUY2, NV12
    • USB 3.0: YUY2
    • Audio Input: Dual channel 3.5mm line input
    • Audio Output: HDMI, SDI, LAN
    • Audio Compression Format: AAC
    • Network Jack: 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output
    • Network Protocols: RTSP, RTMP, ONVIF, GB/T28181; support network VISCA control protocol
    • Control Jack: RS232-IN, RS232-OUT, RS422 compatible with RS485
    • Serial Port Communication: VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400
    • USB Communication Protocol: UVC (Video Communication Protocols)
    • Power Supply: HEC3800 Power Outlet (DC12V)
    • Power Adapter: Input: AC110V-AC220V; Output: DC12V/1.5A
    • Input Voltage: DC12V±10%
    • Input Current: <1.5A
    • Power Consumption: <12W

      PTZ Parameters
    • Pan: -170° ~ +170°
    • Tilt: -30° ~ +90°
    • Pan Speed: 1.4°/s ~ 100°/s
    • Tilt Speed: 2.9°/s ~ 30°/s
    • Preset Speed: Pan (H): 78.8°/s, Tilt (V): 31.7°/s
    • Preset Quantity: 255 Presets (10 can be set via remote control)


  • Item Includes:

    • 1x BG-ADAMO-JR 12x PTZ Camera (Black)
    • 1x Power Adapter
    • 1x RS232 Control Cable
    • 1x USB 2.0 Cable
    • 1x USB 3.0 Cable
    • 1x Remote Control
    • 1x Manual
