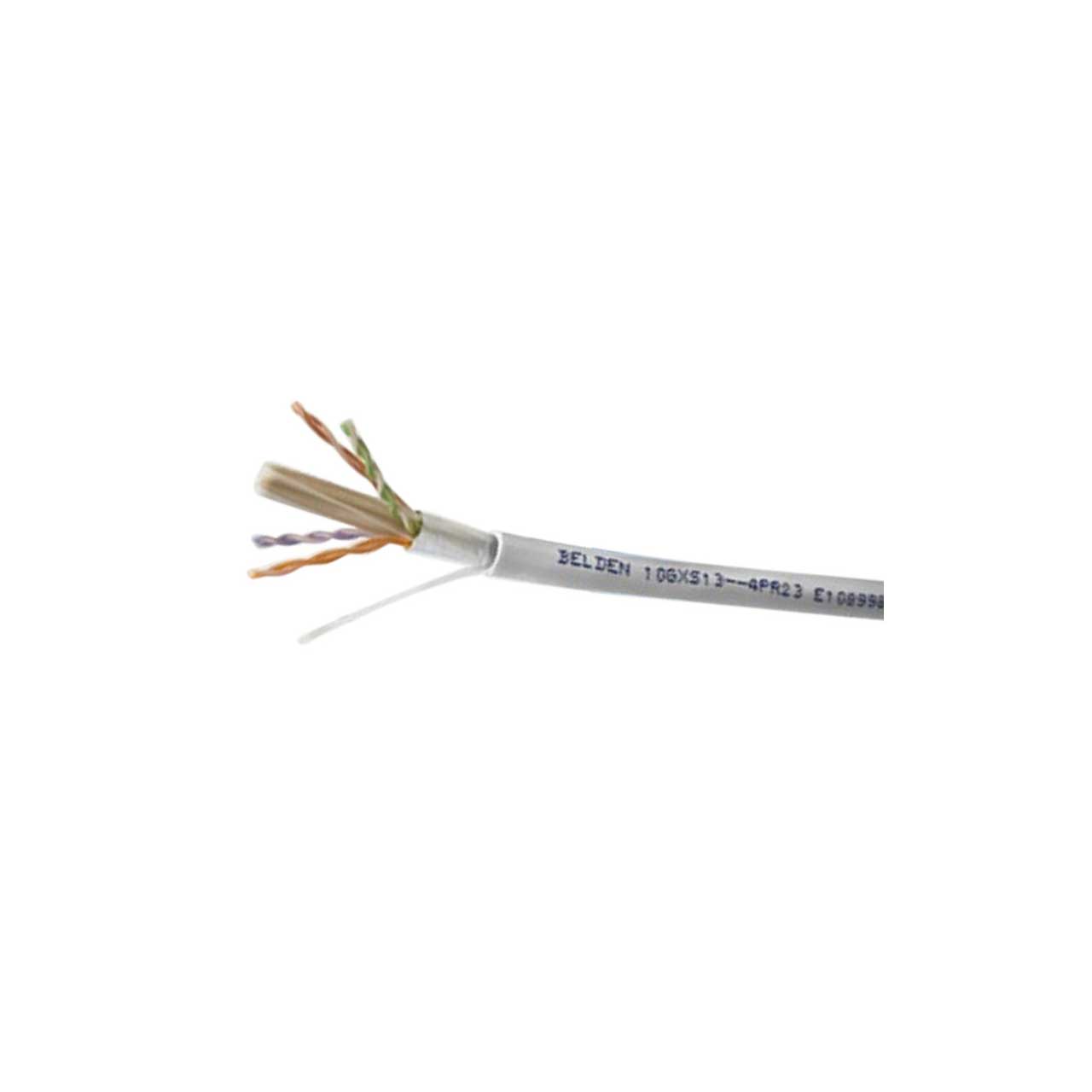

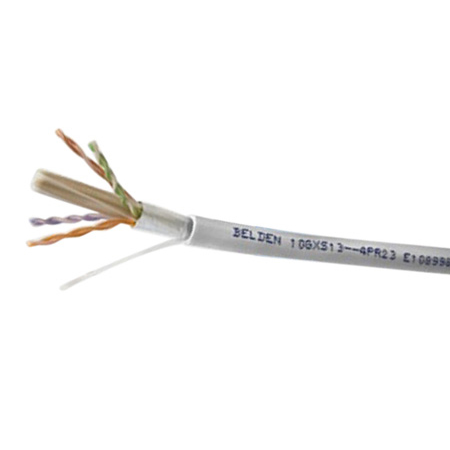

Belden 10GXS12 Category 6A Cable 625MHz 4 Pair UTP CMR-Riser - White - 1000 Foot

10GXS12 0091000 - Overview

• Features:

  • 10GXS Category 6A Enhanced Premise Horizontal Cable (625MHz)
  • 4 Pair 23 AWG Solid Bare Copper Conductors
  • U/UTP Riser-CMR with PVC Jacket
  • Up to 25% Space & Weight Savings
  • 0.265" OD Category 6A cable (CMP)
  • Improved shape for easier handling
  • Durable, lightweight round construction
  • Up to 10 dB of alien crosstalk headroom
  • Exceeds TIA standards for full 100 m channels
  • Superior crosstalk isolation and EMI suppression
  • Up to 25% Less Temperature Rise
  • Delivers more than 100W from power source for 4-pair PoE
  • More uniform heat dissipation and transfer
  • Eliminates length de-rating up to 60 Degrees C
    Key Applications:
  • 10GBASE-T Ethernet
  • 1000BASE-T as well as 2.5G and 5G Ethernet
  • PoE Type 1 (15 W), Type 2 (30 W), Type 3 (60 W), Type 4 (90 W)
  • IEEE 802.11ac Wave 1 and Wave 2 High-Throughput Wi-Fi
  • HDBaseT, Broadband (CATV) and High-Speed Internet (DOCSIS)

    Patented EquiSpline Design:
  • Maintains equal distance between pairs and outer barrier along the cable to prevent noise coupling
  • Retains more air space around individual pairs for better electrical performance
  • Improves cable roundness and flexibility for easier handing during installation
  • Ensures structural integrity for better electrical control, reliability and long-term installable performance
  • Optimizes balance and consistent cable geometry for reduced bit error rates

    Simplicity and Elegance in Design:
  • Smaller Diameter: Saves up to 25% on space and weight
  • Fewer Twists: Easier to separate pairs for faster installation
  • Round Structure: EquiSpline ensures structural integrity and maintains distance between pairs
  • Smaller Bend Radius: Accommodates tighter spaces and workstations
  • Easier Tape Removal: Easy to remove barrier tape for faster installation

    EquiBlock Barrier Technology:
  • Improves heat transfer and achieves uniform heat flow dissipation to eliminate hotspots in cable bundles when delivering remote power
  • Maintains low insertion loss at elevated temperatures to reduce length de-rating for improved PoE performance
  • Blocks noise coupling and electromagnetic radiation by effectively surrounding the conductors with a Faraday cage
  • Provides an electromagnetic barrier without concern for ground loops or needing to terminate a shield to ground
  • Suppresses antenna effect caused by common mode ANEXT and EMI


• Specifications:

  • AWG: 23
  • Stranding: Solid
  • Material: BC - BAre Copper
  • Pairs: 4
  • Max. Conductor DCR: 82 Ohm/km
  • Max. DCR Unbalance: 3%
  • Max. DCR Unbalanced Between Pairs [%]: 5%
  • Max. Capacitance Unbalance: 45 pF/100m
  • Nom. Mutual Capacitance: 17 pF/ft
  • Nom. Velocity of Prop.: 65%
  • Frequency Delay[MHz]: 100 MHz
  • Max. Delay: 537.6 ns/100m
  • Max. Delay Skew: 45 ns/100m
  • Nom. Velocity of Propagation (VP) [%]: 65%
  • Typical Delay Skew: 30 ns/100m
  • UL Voltage Rating: 300 V (CMR), 300 V (CL3R)
  • UL Rating. Temp: 90°C
  • Operating Temp: -20°C To +75°C
  • Installation Temp: 0°C To +50°C
  • Storage Temp: -20°C To +75°C
  • Max. Pull Tension: 25 lbs
  • Bulk Cable Weight: 35 lbs/1000ft
  • Environmental Suitability: Riser, Indoor
  • Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
  • Flammability / Fire Resistance: UL 1666 Riser, FT4, FT4, IEC 60332-1-2
  • NEC / UL Compliance: 800, CMR;CMR-LP (0.6A);CL3R-LP (0.6A)
  • CEC / C(UL) Compliance: CMR
  • ICEA Compliance: S-116-732-2013
  • IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
  • NEMA Compliance: ANSI/NEMA WC-66
  • Data Category: Category 6A
  • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6A
  • Cenelec Compliance: Segregation class according EN50174-2=a


• Item Includes:

  • 10GXS12 Category 6A Cable - White - 1000 Foot


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825004219
