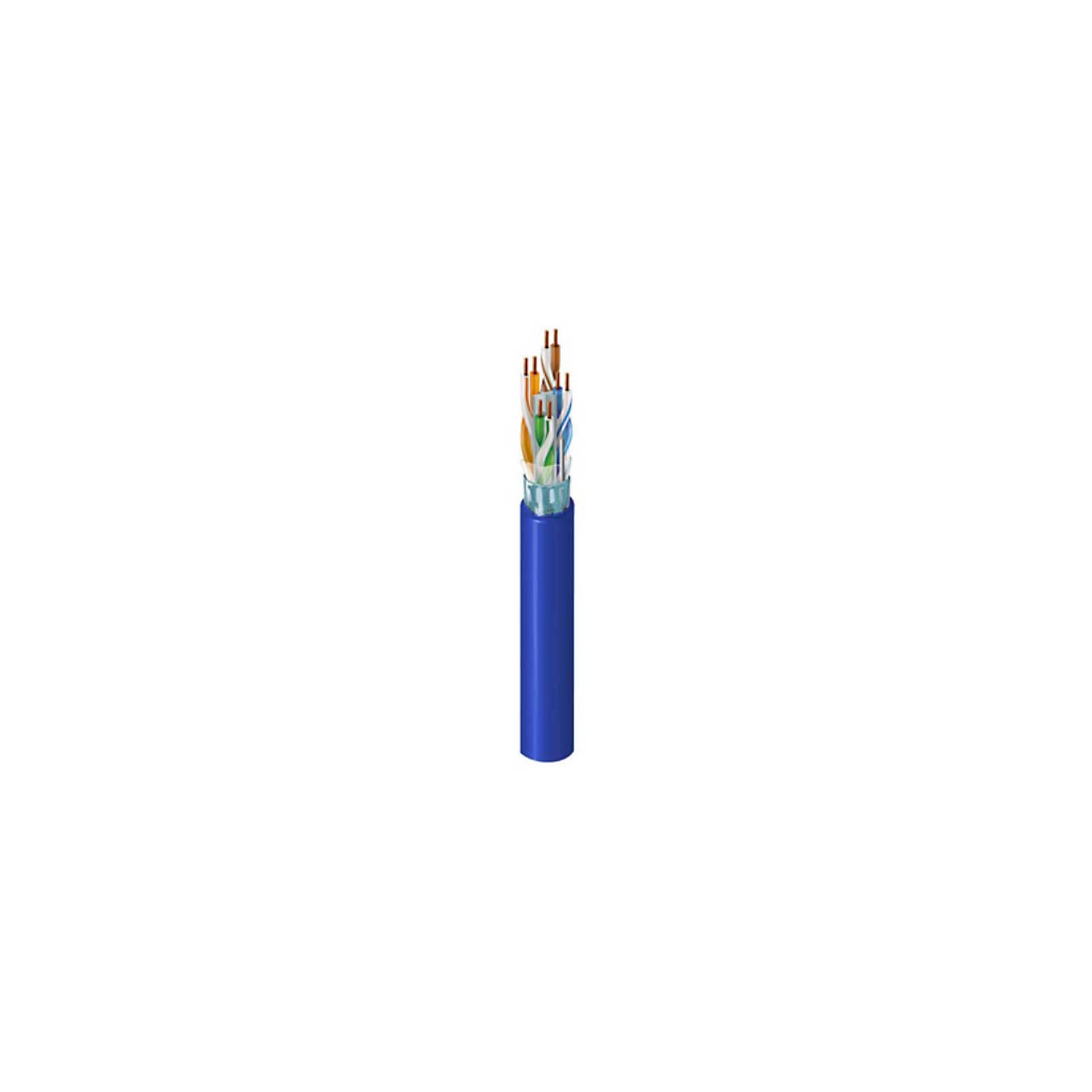

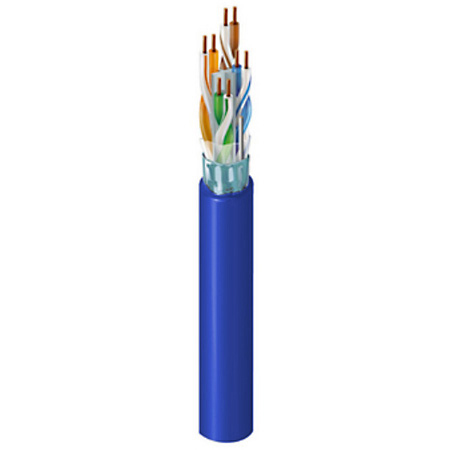

Belden 1352A CMP/Plenum F/UTP DataTwist 4-Pr Cat 6 Premise Horizontal Multi-Conductor Cable - Blue - 1000 Foot

1352A D151000 - Overview

Nonbonded-Pair

• Features:

  • F/UTP Four unshielded twisted pairs encased in an overall foil shield
  • High Performance: Belden microphone cables are made with high-conductivity copper
  • Withstands Constant Use: Flexible EPDM rubber jackets are built to last
  • Experience Less Distortion: Cables feature low capacitance


• Specifications:

  • Conductor AWG: 23
  • Conductor Stranding: Solid
  • Conductor Material: Bare Copper
  • Conductor Number of Pairs: 4
  • Insulation Material: FEP - Fluorinated Ethylene Propylene
  • Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
  • Outer Shield Type: Tape
  • Outer Shield Material: Polyester + Bi-Laminate (Alum+Poly)
  • Outer Shield Coverage: 100%
  • Outer Shield Drainwire Type: 24 AWG (Solid) TC
  • Outer Jacket Separator: Center Member (Patented X-Spline®)
  • Outer Jacket Material: Flamarrest® PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Diameter: 0.285 in (7.24 mm)
  • Ripcord: No
  • Overall Cable Diameter (Nominal): 0.285 in (7.24 mm)
  • Max. Conductor DCR: 93.8 Ohm/km
  • Max. DCR Unbalance: 3%
  • Max. Capacitance Unbalance: 160 pF/100m
  • Nom. Mutual Capacitance: 14 pF/ft
  • UL Voltage Rating: 300 V (CMP)
  • Storage Temperature Range: -20°C To ;75°C
  • Installation Temperature Range: 5°C To 50°C
  • Operating Temperature Range: -20°C To 75°C
  • Bulk Cable Weight: 49 lbs/1000 ft.
  • Max. Recommended Pulling Tension: 25 lbs.
  • Min. Bend Radius/Minor Axis: 1 in.
  • Min. Bend/Installation: 3 in.
  • Environmental Suitability: Plenum, Indoor
  • Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
  • Flammability / Fire Resistance: NFPA 262, UL 910 (Plenum), FT6, FT6, IEC 60332-1-2
  • Telecommunications Standards: Category 6 - TIA 568.C.2
  • Other Specification: UL Verified to Category 6


• Item Includes:

  • Belden 1352A CMP/Plenum Cat 6 Premise Horizontal Cable - Blue - 1000 Foot


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825112457
