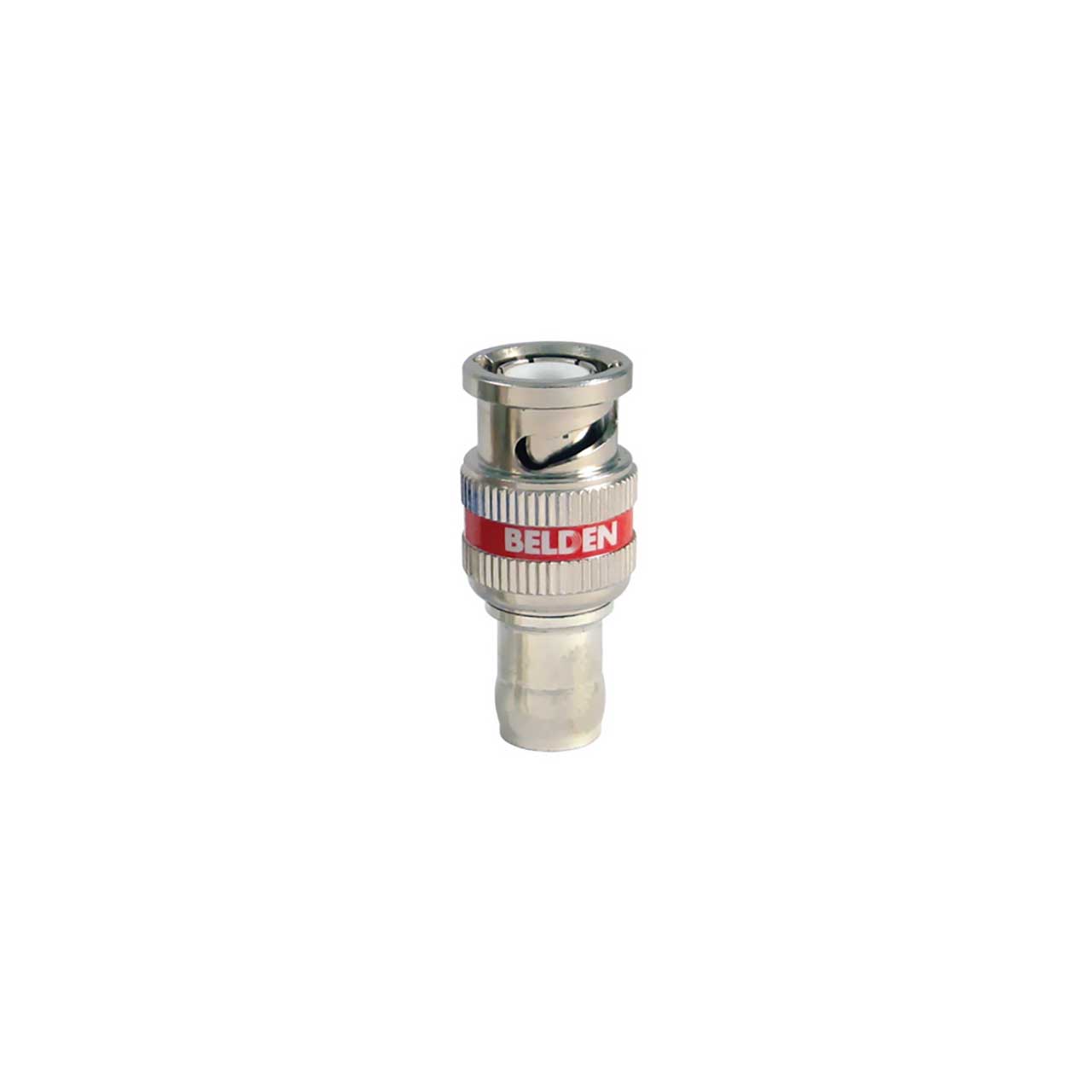

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3.79

Our Price:

$3.42

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1505ABHD1 - Overview

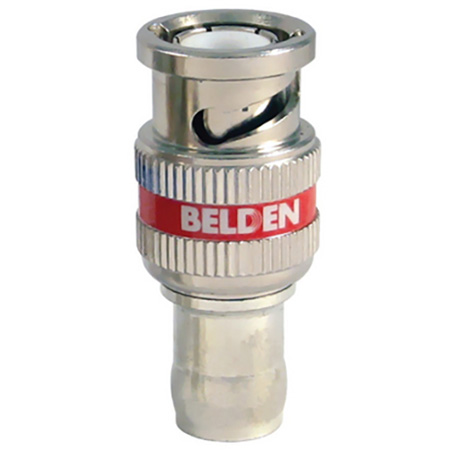

The Belden 1505ABHD1 is a 6G-SDI, 1-Piece BNC HD Compression Connector for 1505A/RG59 Cable. BNC Connectors from Belden maximize broadcast signal integrity, quality, performance and durability. These connectors exceed SMPTE return loss standards, providing excellent headroom and 75 Ohm performance. Long-term durability is ensured through brass construction and patented compression rings with pullout forces that exceed 100 lbs.

The 1-piece design simplifies and speeds the installation by eliminating loose pins and sleeves. This allows for repeatable and consistent installations every time while delivering return loss performance on par with more time consuming, traditional 3-piece designs.

Applications
HD-SDI
Video
Digital Video
SMPTE 2081-1 6 Gb/s UHDTV
SMPTE 424M 3 Gb/s HD-SDI 1080P

  • Features:

    • Quick Deployment: A 360-degree, floating-pin basket at the back of the connector makes insertion of the cable center conductor accurate and easy
    • Excellent Holding Strength: Internal 360-degree compression rings eliminate ingress and egress from the back of the connector


  • Specifications:

    • Nominal Characteristic Impedance: 75 Ohm
    • RG Type: 59
    • Environmental Space: Indoor
    • Footprint/Type: Coax
    • Connector Interface Type: BNC
    • Gender: Male - plug
    • Connector Series Name: HD
    • Locking: No
    • Termination Type: Compression
    • Return Loss Frequency 5-1485 [MHz]: Minimum Return (RL) 15 dB
    • Return Loss Frequency 1485-3000 [MHz]: Minimum Return (RL) 10 dB
    • Return Loss Frequency 3000-6000 [MHz]: Minimum Return (RL) 7 dB
    • Voltage Rating: 500VRMS
    • Electrical Characteristics Notes: SMPTE 2081-1 Return Loss or better


  • Item Includes:

    • 1505ABHD1 1-Piece BNC HD Compression Connector - Each


  • GTIN:

    0845671002362
