Belden 1505ABHD3 6G-SDI 3-Piece BNC HD Crimp Connector for 1505A/RG59 Cable - Red Band - Each

ITEM #: BL-1505ABHD3 MFG #: 1505ABHD3

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3.15

Our Price:

$2.84

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1505ABHD3 - Overview

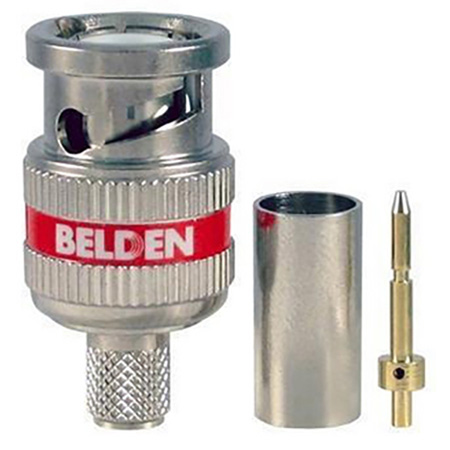

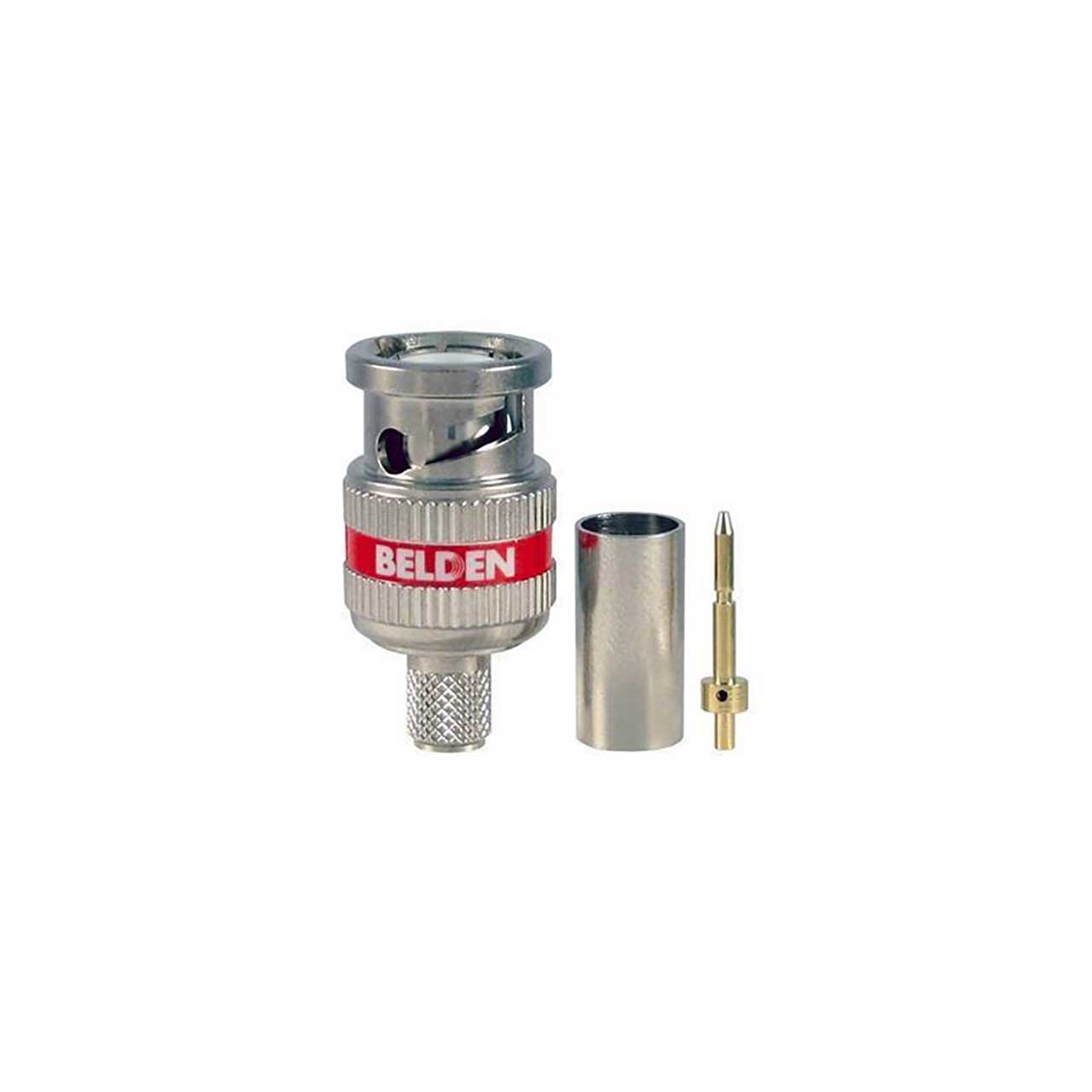

The Belden 1505ABHD3 is a single 6G-SDI, 3-Piece BNC HD Crimp Connectors for 1505A/RG59 Cable. BNC Connectors from Belden maximize broadcast signal integrity, quality, performance and durability. These connectors exceed SMPTE return loss standards, providing excellent headroom and 75 Ohm performance. Long-term durability is ensured through brass construction and patented compression rings with pullout forces that exceed 100 lbs.

Applications
HD-SDI
Video
Digital Video
SMPTE 2081-1 6 Gb/s UHDTV
SMPTE 424M 3 Gb/s HD-SDI 1080P

  • Features:

    • Quick Deployment: A 360-degree, floating-pin basket at the back of the connector makes insertion of the cable center conductor accurate and easy
    • Excellent Holding Strength: Internal 360-degree compression rings eliminate ingress and egress from the back of the connector


  • Specifications:

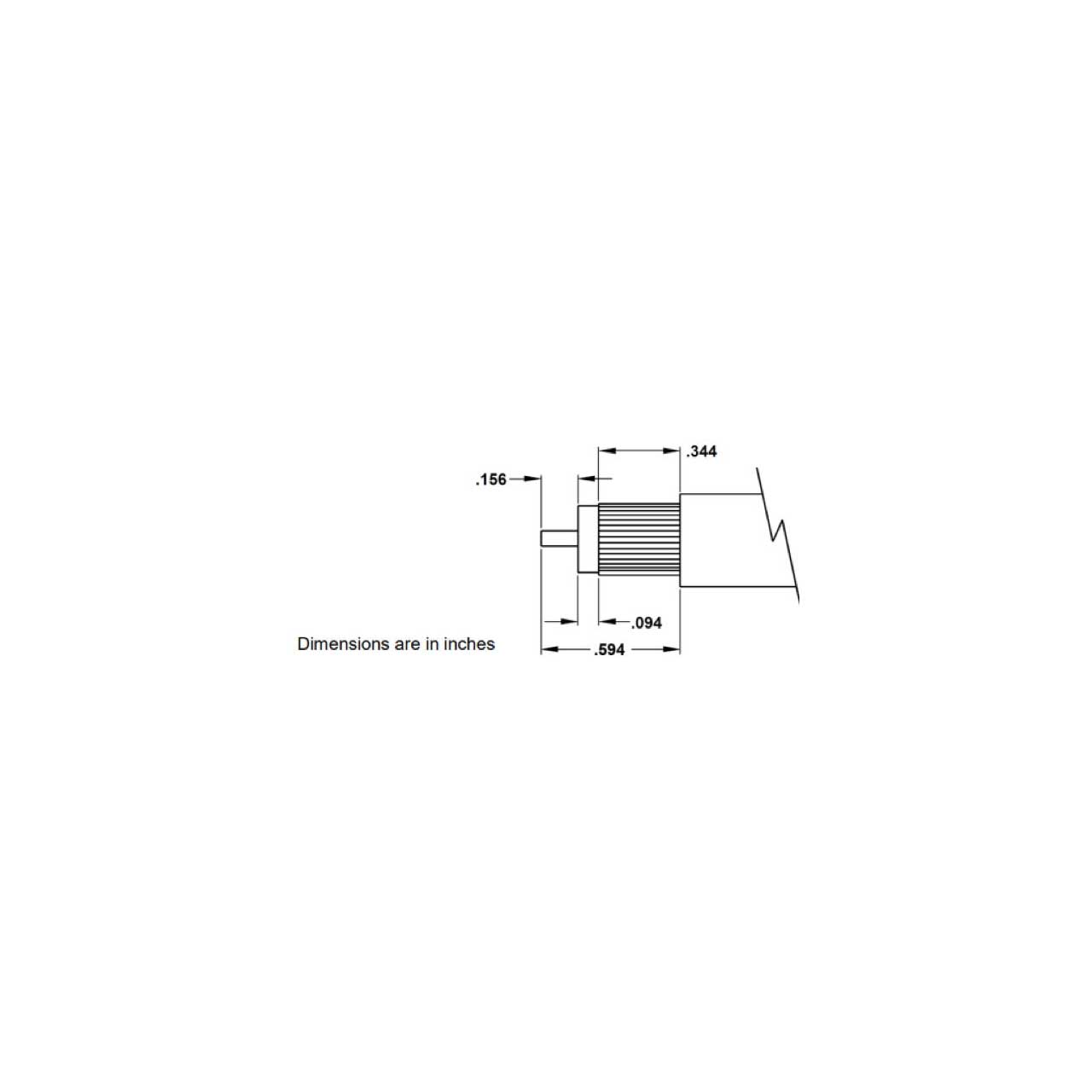

    • Trim Code 3-661-1: A = 0.624"/ B = 0.312" / C = 0.155"
    • Center Pin Crimp Size: 0.046"
    • Center Pin Crimp Cavity: 0.042"
    • Ferrule Crimp Size: 0.278"
    • Ferrule Crimp Cavity: 0.178
    • Number of Pieces: 3
    • Nut: Brass, Nickel Plated
    • Body: Brass, Nickel Plated
    • Contact: Brass, Gold Plated
    • Insulator: PTFE
    • Termination Type: Crimp
    • RG Type: 59
    • Nominal Characteristic Impedance: 75 Ohm
    • Electrical Characteristics Notes: SMPTE 2081-1 Return Loss or better
    • Footprint/Type: Coax
    • Connector Interface Type: BNC
    • Gender: Male - plug
    • Connector Series Name: HD
    • Color Band: Red
    • Locking: No
    • Suitability - Indoor: Yes
    • Suitability - Outdoor: No
    • Plenum (Y/N): No


  • Item Includes:

    • 1505ABHD3 6G-SDI 3-Piece BNC HD Crimp Connector for 1505A/RG59 Cable - Red Band - Each


  • GTIN:

    0845671002379
