Belden 1624P CMP/Plenum Premise Horizontal F/UTP Shielded 4-Pr BC Cat5 Cable (100MHz) 24AWG - Gray - 1000 Foot

ITEM #: BL-1624P-1000GY MFG #: 1624P 0081000

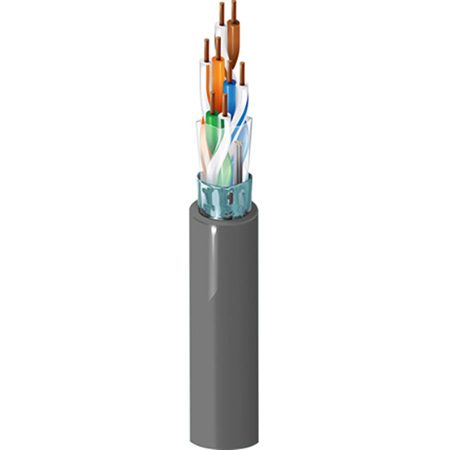

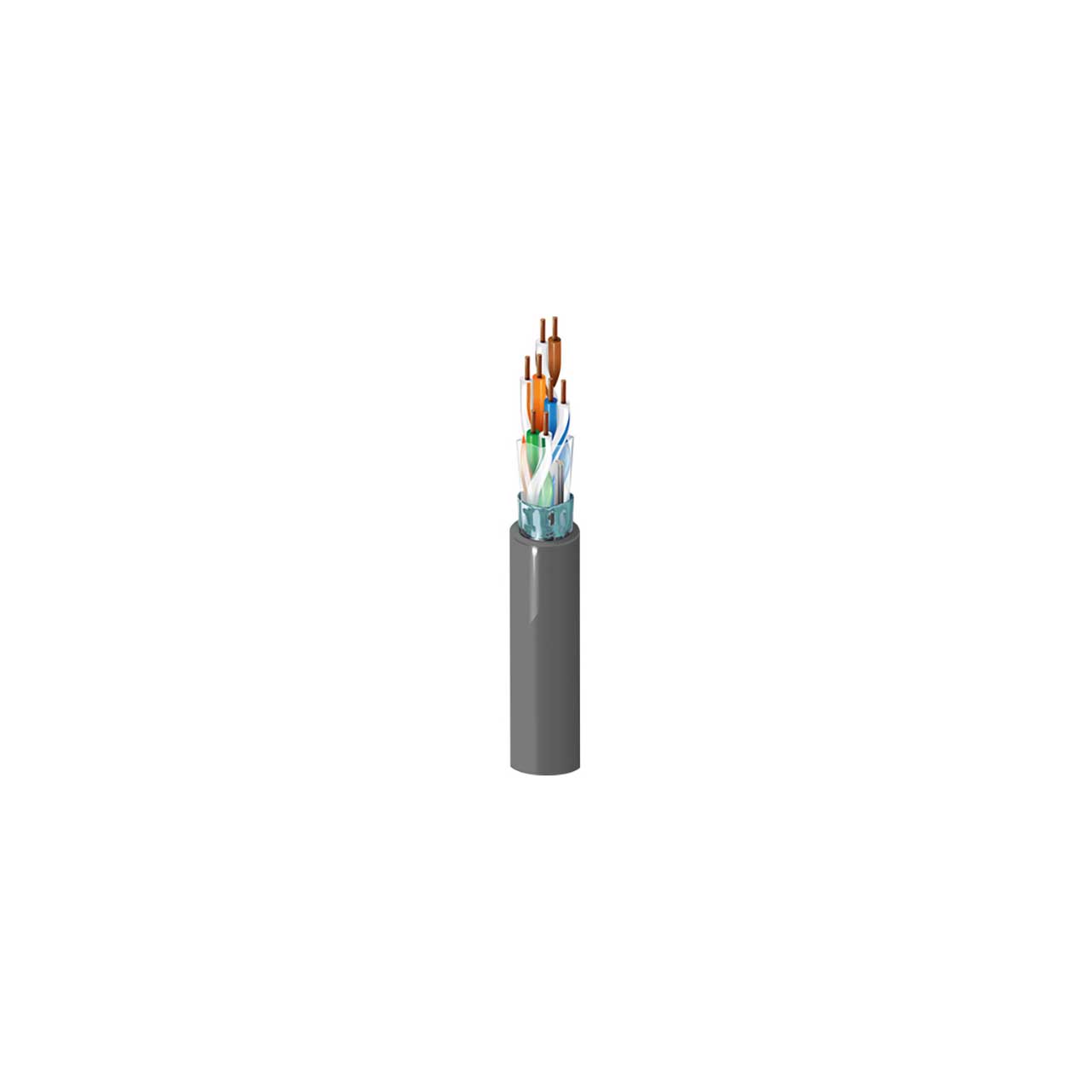

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BL-1624P-1000GY

1624P 0081000 - Overview

Belden 1624P is a Category 5 Premise Horizontal (100MHz) F/UTP Cable. It features 4 Pair, 24 AWG Solid Bare Copper Conductors in a Foil Shielded, Plenum-CMP rated, Flamarrest® PVC-LS Jacket.

Choose the right copper cable to meet your application's requirements. Belden has invested to ensure that thier cable products comply with CPR (Construction Products Regulation) rules being implemented by the European Commission (EC).

Applications
Premise Horizontal Cable
Ethernet 1000BASE-T
Ethernet 100BASE-TX
Ethernet 10BASE-T
PoE++, PoE+, PoE
Noisy Environments

  • Specifications:

    • Conductor AWG: 24 AWG, Solid Stranding Bare Copper
    • Conductor Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Conductor # of Pairs: 4
    • Insulation Material: Fluorinated Ethylene Propylene
    • Insulation Color Code: White/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown
    • Outer Shield Material: Polyester + Bi-Laminate (Alum+Poly)
    • Outer Shield Type: Tape
    • Outer Shield Coverage: 100%
    • Outer Shield Drain Wire Type: 24 AWG (7x32) TC
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.235 in (5.97 mm)
    • Outer Jacket Ripcord: No
    • Overall Cable Diameter (Nominal): 0.235 in (5.97 mm)
    • Operating Temperature Range: -20°C To +75°C
    • Bulk Cable Weight: 34 lbs/1000 ft.
    • Max. Recommended Pulling Tension: 25 lbs.
    • Min. Bend Radius/Minor Axis: 1 in.
    • Min. Bend/Installation: 2.350 in
    • NEC/(UL) Specification: CMP, UL444
    • CEC/C(UL) Specification: CMP
    • EU Directive 2011/65/EU (ROHS II): Yes
    • EU CE Mark: Yes
    • EU Directive 2000/53/EC (ELV): Yes
    • EU Directive 2002/95/EC (RoHS): Yes
    • EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2005
    • EU Directive 2002/96/EC (WEEE): Yes
    • EU Directive 2003/11/EC (BFR): Yes
    • CA Prop 65 (CJ for Wire & Cable): Yes
    • MII Order #39 (China RoHS): Yes
    • Other Specification: NEMA WC-63.1 Category 5
    • UL Flame Test: NFPA 262
    • CSA Flame Test: FT6
    • Plenum (Y/N): Yes
    • Non-Plenum Number: 1624R


  • Item Includes:

    • 1624P CMP/Plenum Premise Horizontal F/UTP Cat5 Cable (100MHz) 24AWG - Gray - 1000 Ft


  • Warranty:

    • 10 Year Limited Warranty


  • GTIN:

    0612825119449
