Belden 1800B CMR Single-Pair Digital Audio/Microphone Cable Str/TC Shielded - 24 AWG - Violet - 1000 Ft/Unreel Box

ITEM #: BL-1800B-1000UVT MFG #: 1800B 007U1000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

List Price:

$1,080.10

Our Price:

$666.76

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

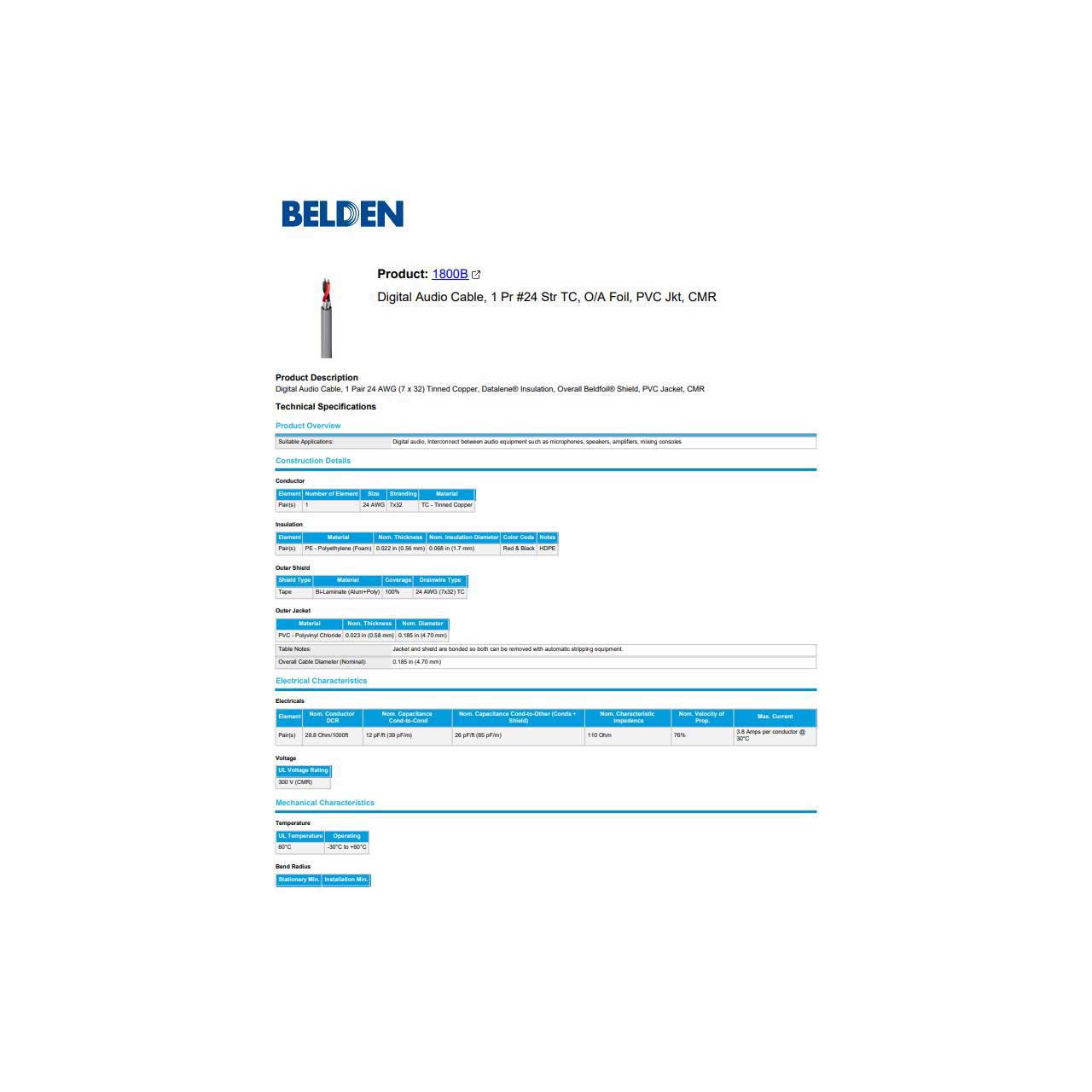

1800B 007U1000 - Overview

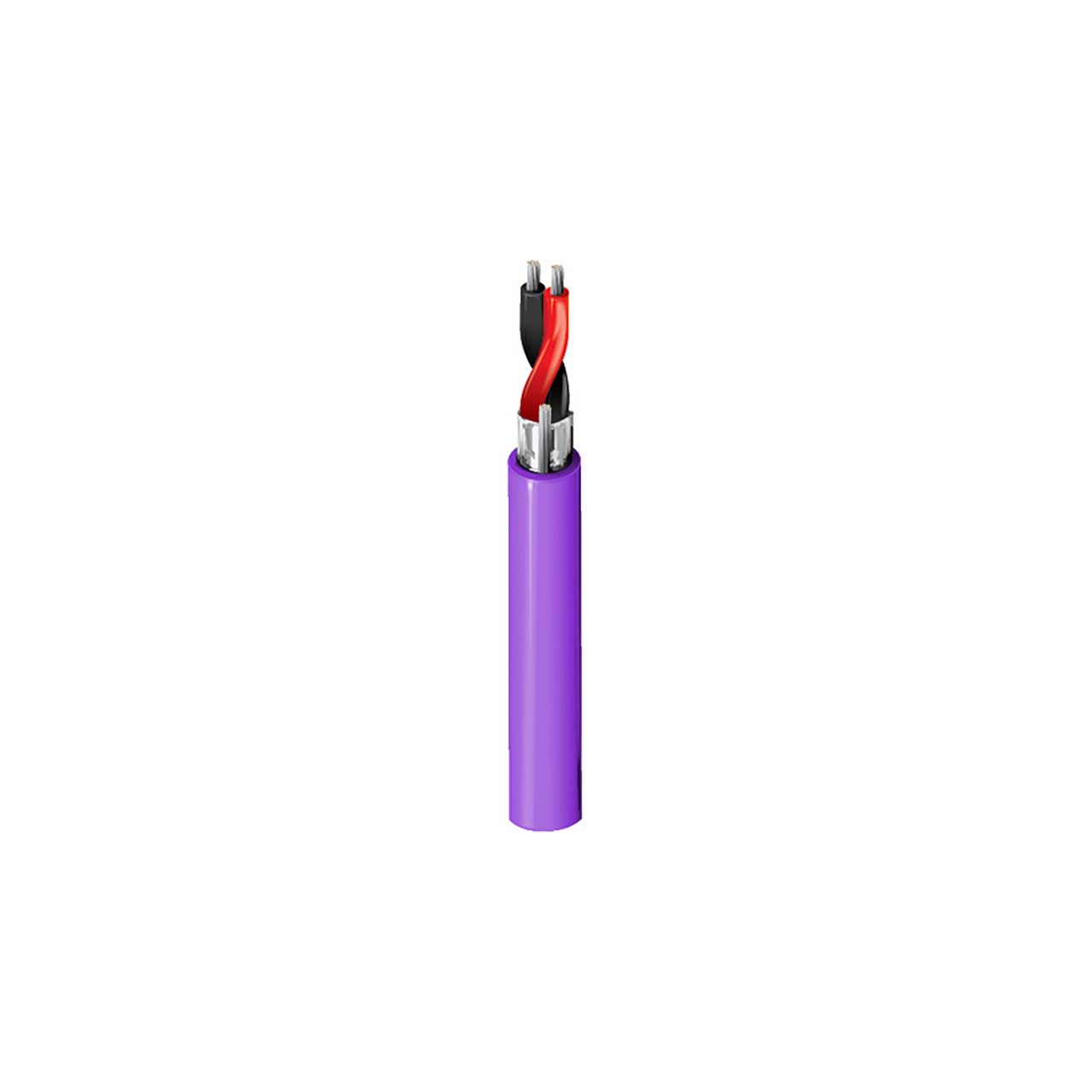

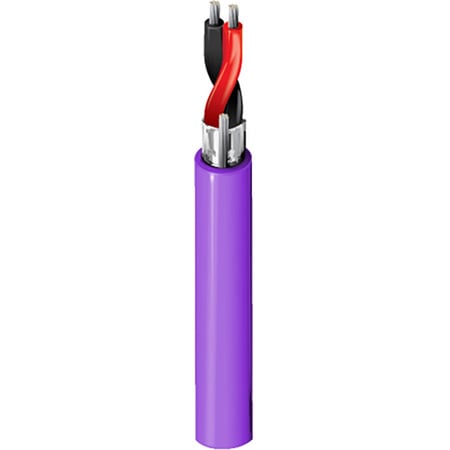

Belden 1800B is a CMR (riser) rated, single-pair bonded, Digital Audio/Microphone Cable. It's 24 AWG (7 x 32) Tinned Copper, with Datalene® Insulation, an Overall Beldfoil® Shield in a PVC Jacket.

Belden offers a comprehensive selection of digital audio cables for professional recording applications, sound system installations and multi-channel audio applications. Digital Audio Cables from Belden can be used anywhere a traditional analog or digital shielded pair cables are used. These cables are also ideally suited for applications requiring small size, low weight and high-performance.

Applications
Digital audio
Interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles

  • Features:

    • Patented Bonded-Pair technology For maximum ruggedness & consistent electrical performance during & following installation
    • Ready-to-use Jacketed single pair cable eliminates inconvenient steps for faster installation times & deployment efficiencies
    • High impedance Ensures low capacitance, ideally suited for use as an analog or digital cable
    • Ruggedized PVC jacket designed for flexibility


  • Specifications:

    • Number of Pairs: 1
    • Total Number of Conductors: 2
    • Conductor AWG: 24
    • Conductor Stranding: 7x32
    • Conductor Material: TC - Tinned Copper
    • Insulation Material: PE - Polyethylene (Foam)
    • Insulation Nom. Thickness: 0.022 in (0.56 mm)
    • Insulation Nom. Insulation Diameter: 0.068 in (1.7 mm)
    • Insulation Color Code: Red & Black
    • Insulation Notes: HDPE
    • Outer Shield Type: Tape 100%
    • Outer Shield Material: Bi-Laminate (Alum+Poly)
    • Outer Shield Drainwire Type: 24 AWG (7x32) TC
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Thickness: 0.023 in (0.58 mm)
    • Outer Jacket Nom. Diameter: 0.185 in (4.70 mm)
    • Overall Cable Diameter (Nominal): 0.185 in (4.70 mm)
    • Notes: Jacket and shield are bonded so both can be removed with automatic stripping equipment.
    • Nom. Conductor DCR: 23.7 Ohm/1000ft
    • Nom. Capacitance Cond-to-Cond: 12 pF/ft
    • Nom. Capacitance Cond-to-Other (Conds + Shield): 26 pF/ft
    • Characteristic Impedence: 110 Ohm
    • Nom. Velocity of Prop.: 76%
    • Max. Current: 2.75 Amps per conductor @25°C
    • Plenum (Y/N): N
    • Plenum Number: BL-1801B
    • UL Voltage Rating: 300 V (CMR)
    • UL Rating Temp: 60°C
    • Operating Temp: -30°C to +60°C

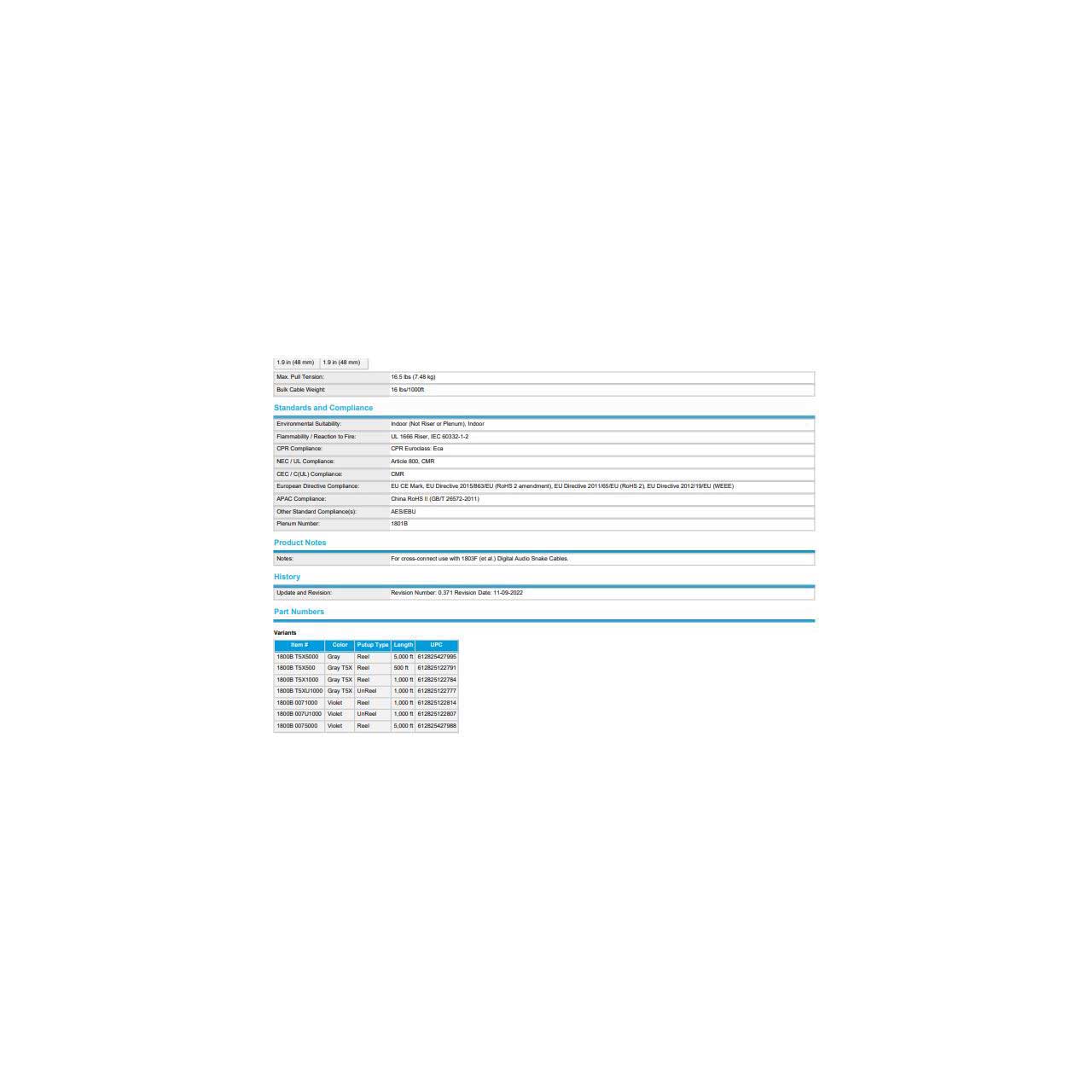

    • Max. Pull Tension: 16.5 lbs
    • Bulk Cable Weight: 16 lbs/1000ft
    • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
    • Flammability / Fire Resistance: IEC 60332-1-2
    • NEC / UL Compliance: Article 800, CMR
    • CEC / C(UL) Compliance: CMR


  • Item Includes:

    • 1800B Digital Audio/Microphone Cable - Violet - 1000 Ft/Unreel Box


  • Warranty:

    • Limited 10 Year Warranty
