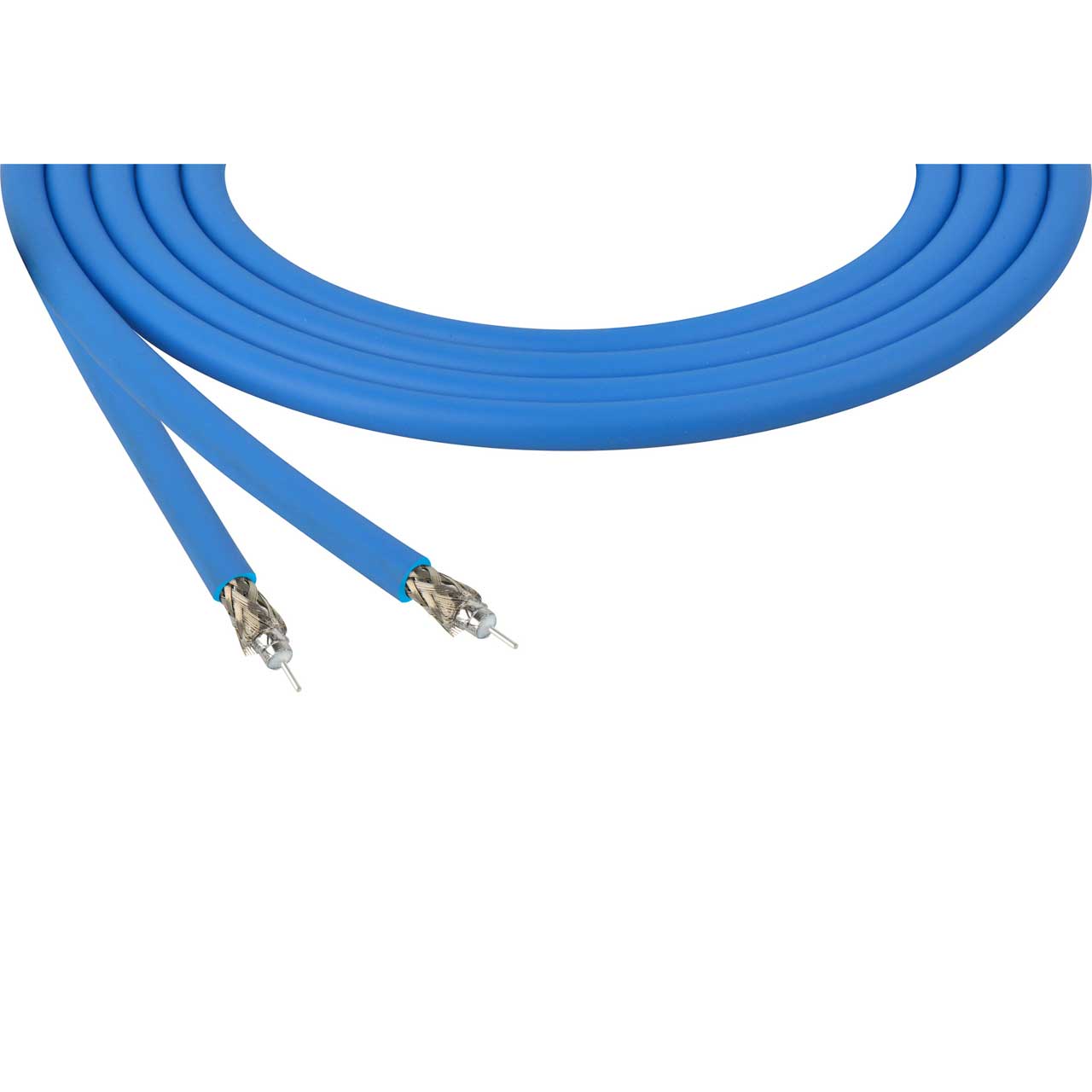

Belden 4505R 0061000 CMR Rated 12G-SDI 4K UHD RG59 75 Ohm Video Coax Cable 20 AWG - Light Blue - 1000 Foot

ITEM #: BL-4505R-1000LB MFG #: 4505R 0061000

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,460.80

Our Price:

$1,015.00

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

4505R 0061000 - Overview

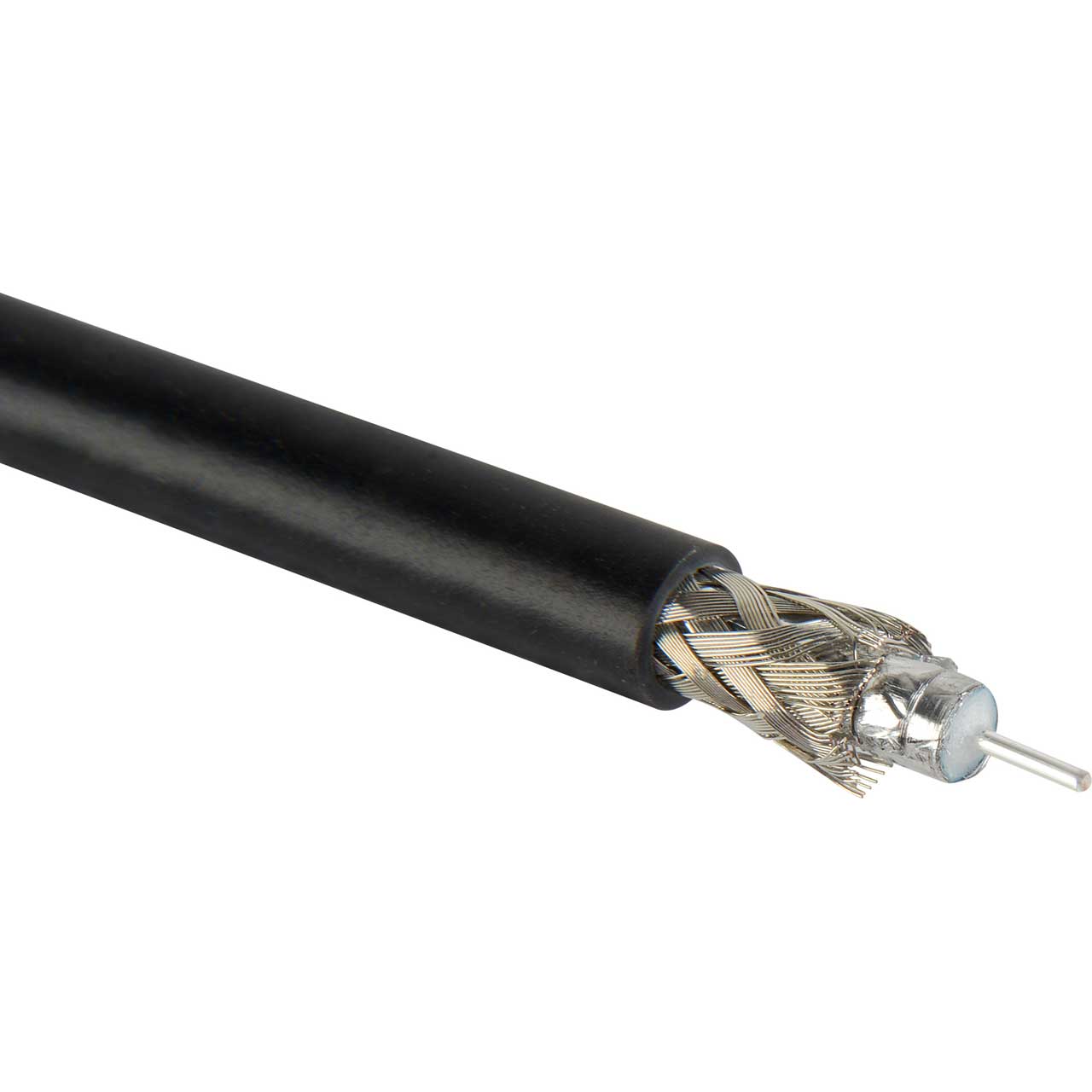

Belden 4505R is an RG-59, 75 Ohm, 12G-SDI Precision Video Coax with a 20 AWG Solid Silvered Copper Conductor, PE Insulation, Foil plus 95% Tinned Copper Braid Shield in a PVC Jacket, CMR rated.

Belden 4K UHD Coax Cables for 12G-SDI maximize 4K signal transmission distance over a single coax, minimizing weight and space utilization compared to multi-link solutions. This solution provides significant headroom and guarantees -15 dB return loss from 4.5 to 12 GHz.

Applications
Ultra-High Definition Digital Video
4K Single-link 12 Gb/s UHDTV
4K D-Cinema
8K Quad-link UHDTV
HD-SDI 1080p
SMPTE 2082-1 12 Gb/s UHDTV
SMPTE 2081-1 6 Gb/s UHDTV
SMPTE 424M 3 Gb/s

  • Features:

    • Faster Installation: Using Belden's single-link solution saves time and is significantly lighter than dual or quad-link configurations
    • Optimized Design: On Belden 4K UHD Coax Cables for 12G-SDI, the inner foil is bonded to the core to eliminate bunching when installing 1-piece connectors. The outer foil is bonded to the jacket for a quicker, one-step stripping process
    • Superior Performance: The 4K UHD coax cable for 12G-SDI are superior in performance and engineered to optimize transmission distance, the cables exceed the SMPTE Return Loss (RL) specifications for UHDTV
    • Supports 12 GHz: Belden 4K UHD Coax Cables for 12G-SDI are capable of supporting 12 GHz bandwidth and enable a single-link configuration to transmit 4K


  • Specifications:

    • Physical Characteristics
    • # Coax: 1
    • RG Type: 6
    • Conductor AWG: 20
    • Conductor Stranding: Solid
    • Conductor Nom. Diameter: 0.032 inches
    • Conductor Material: Silver Plated Copper
    • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
    • Nom. Insulation Diameter: .145
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Overall Nominal Cable Diameter: 0.233 in.

    • Mechanical Characteristics
    • Operating Temperature Range: -30°C To +75°C
    • Bulk Cable Weight: 31 lbs/1000 ft.
    • Max. Recommended Pulling Tension: 52 lbs.
    • Min. Bend Radius/Minor Axis: 2.500 in.

    • Electrical Characteristics
    • Impedance (Ohm): 75
    • Inductance (µH/ft): 0.107
    • Capacitance (pF/ft): 16.100
    • Nominal Velocity of Propagation (%): 83.000
    • Nominal Delay (ns/ft): 1.220
    • Nom. Conductor DCR @ 20°C (Ohm/1000 ft): 10.200
    • Nominal Outer Shield DCR @ 20°C (Ohm/1000 ft): 3.400
    • Max. Operating Voltage - UL: 300 V RMS


  • Item Includes:

    • 4505R 0061000 Video Coax 20 AWG - Light Blue - 1000 Foot


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825396871
