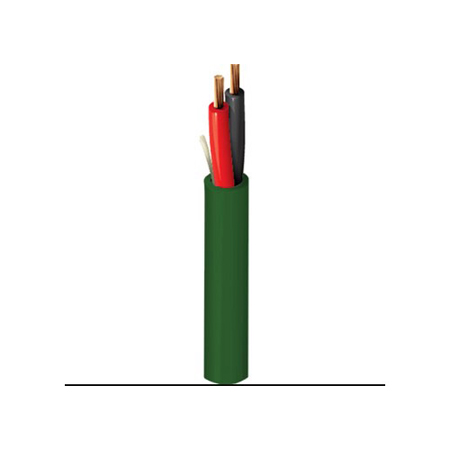

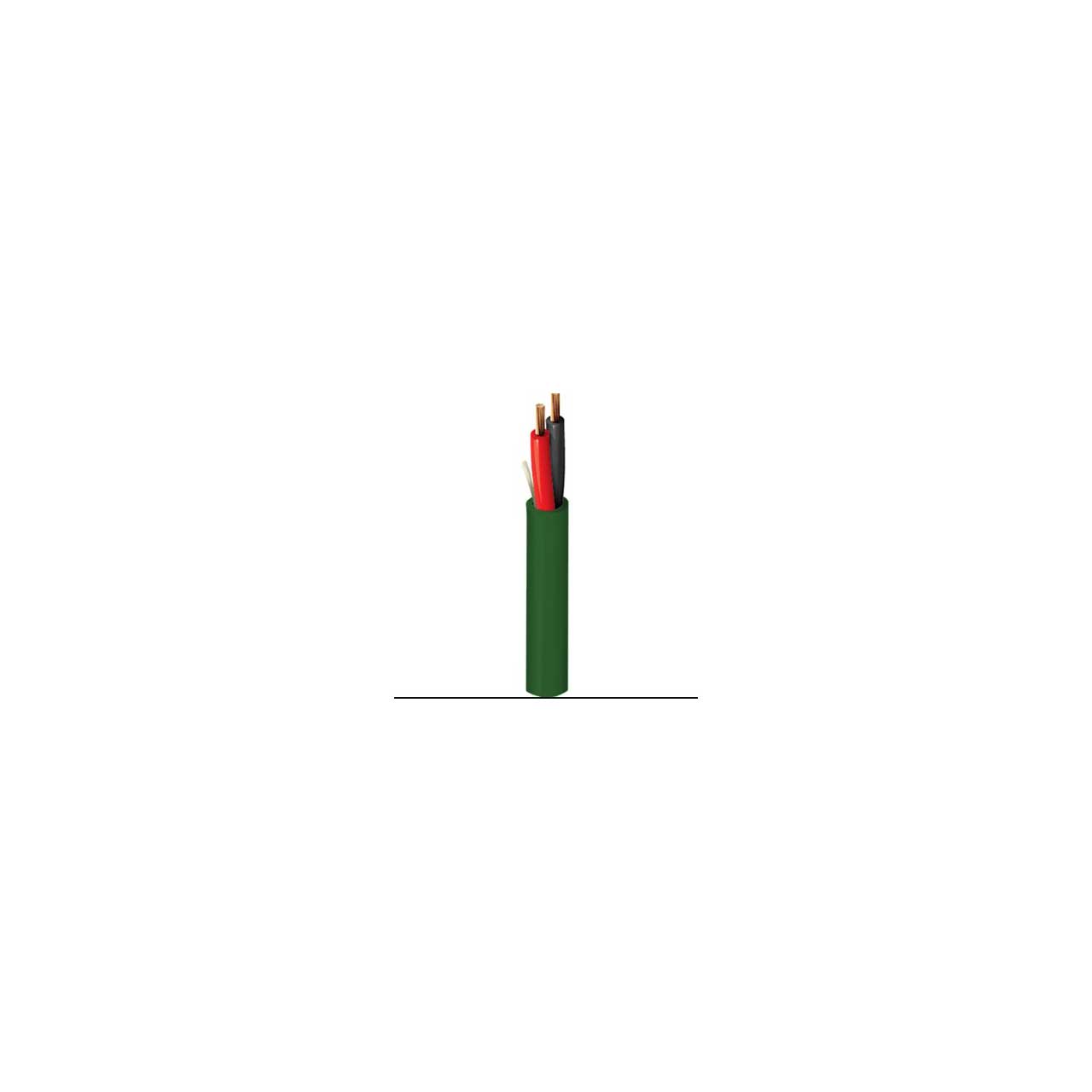

Belden 6200UE CMP/Plenum Security & Commercial Audio Cable 2x16AWG - Dark Green - 1000 Foot

6200UE 0051000 - Overview

• Features:

  • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
  • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
  • Easy Identification: Cable jackets feature footage room and zone markings


• Specifications:

  • Conductor
  • Element: Conductor
  • Number of Element: 2
  • Size: 16 AWG
  • Stranding: 19x29
  • Material: BC-Bare Copper

    Insulation
  • Element: Conductor
  • Material: PVC (Polyvinyl Chloride)
  • Nom. Thickness: 0.008in (0.20mm)
  • Color Code: Black, Red

    Outer Jacket
  • Material: PVC (Polyvinyl Chloride)
  • Nom. Thickness: 0.015in (0.38mm)
  • Nom. Diameter: 0.176in (4.47 mm)
  • Ripcord: Yes
  • Overall Cable Diameter: 0.176in (4.47mm)

    Electrical
  • Element: Conductors
  • Nom. Conductor DCR: 3.8 Ohm/1000ft (12 Ohm/km)
  • Nom. Capacitance Cond-to-Cond: 36.5 pF/ft (120 pF/m)
  • Max Current: 6.25 Amps per conductor @ 77°F (25°C)
  • Voltage: 300V (CMP)

    Mechanical
  • Temperature: UL Temperature: 75°C, Operating Temperature: 32° to 167°F (0° to 75°)

    Bend Radius
  • Stationary Min: 1.8" (46mm)
  • Installation Min: 1.8" (46mm)
  • Max Pull Tension: 61lbs (28kg)
  • Bulk Cable Weight: 23lbs / 1000ft

    Standards and Compliance
  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS


• Item Includes:

  • 1x 6200UE 2-16 AWG Non Paired Plenum Security/Alarm Cable - Dark Green - 1000FT Reel


• Warranty:

  • 10 Year Limited Warranty


• GTIN:

  0612825421627
