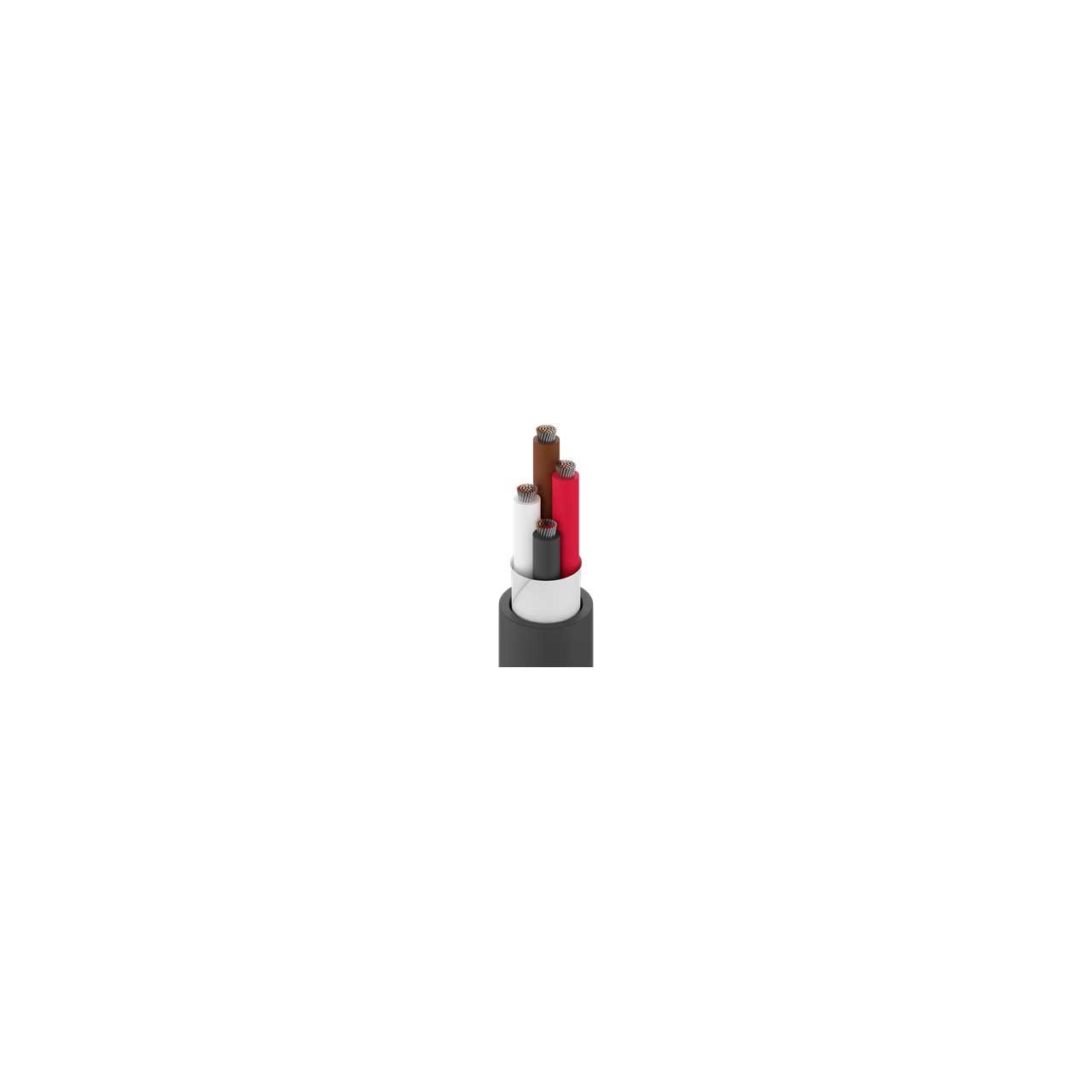

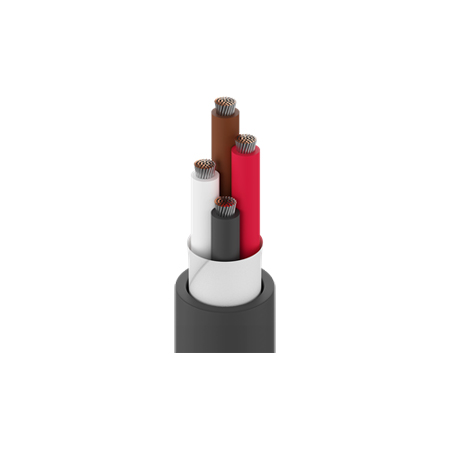

Belden 8454 4-Conductor-18 AWG Stranded Tinned Copper - Rubber Jacket 300V Portable AC Power Cordage - Black - 100 Foot

8454 010100 - Overview

• Features:

  • Portable Cordage
  • 4 Conductors
  • EPDM Insulation
  • Rubber Outer Jacket
  • Designed for Light-Duty Use


• Specifications:

  • Construction Details
  • Conductor Element: Conductor(s)
  • # of Conductor Elements: 4
  • Size: 18 AWG
  • Stranding: 41 x 24
  • Material: Tinned Copper
  • Insulation Element Type: Conductor(s)
  • Insulation Material: EPDM - Ethylene Propylene Diene Monomer
  • Nominal Thickness: 0.018 in (0.46 mm)
  • Nominal Insulation Diameter: 0.083 in (2.1 mm)
  • Color: Black
  • Outer Jacket Separator: Paper Jacket
  • Outer Jacket Material: SBR Styrene Butadiene Rubber
  • Nominal Thickness: 0.036 in (0.91 mm)
  • Nominal Diameter: 0.265 in (6.73 mm)
  • Overall Cable Diameter: 0.265 in (6.73 mm)

    Electrical Characteristics
  • Element: Conductor(s)
  • Nominal Conductor DCR: 7.3 Ohm/1000 ft
  • Max Current: 8 Amps per Conductor at 25°C (5.6 Amps over 50 ft)
  • UL Voltage Rating: 300V
  • Note: Dielectric Withstand Voltage: 1500 V AC Applied for 1 Min.

    Mechanical Characteristics
  • Temperature: 60°C
  • Operating: -40° to 140°F -40° to 60°C
  • Bend Radius Stationary Minimum: 2.7 in (69 mm)
  • Bend Radius Installation Minimum: 2.7 in (69 mm)
  • Maximum Pull Tension: 82 lbs (37 kg)
  • Bulk Cable Weight: 50 lbs/1000f
  • Environmental Suitability: Indoor
  • NEC/UL Compliance: Article 400
  • AWM Compliance: AWM 4097
  • European Direct Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)


• Item Includes:

  • 1x 100-Foot Multi-Conductor Unshielded Portable Cortage Cable - Black


• GTIN:

  0612825207856
