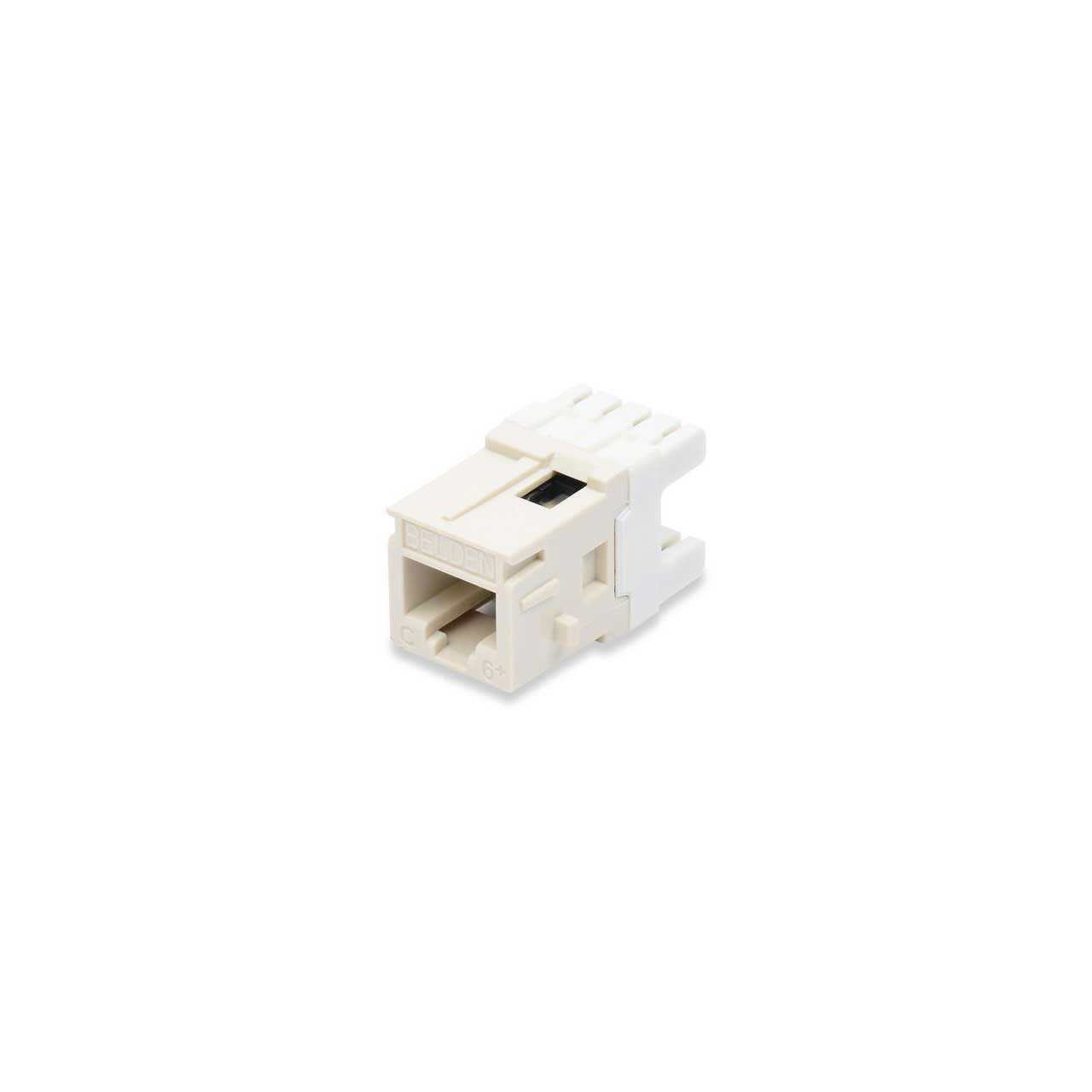

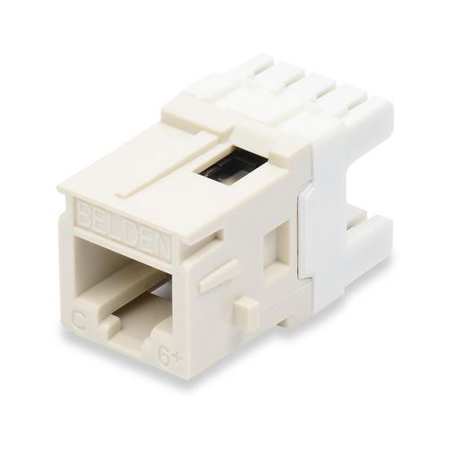

Belden AX101070 CAT6+ Modular Jack RJ45 MDVO Style - Green (TIA 606)

ITEM #: BL-AX101070 MFG #: AX101070

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$13.38

Our Price:

$12.22

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AX101070 - Overview

The Belden AX101071 is a Blue MDVO-Style CAT6+ Modular Jack designed to be used with Flex Patch Panels as well as Interface and MediaFlex Workstation Outlets and MDVO Style Faceplates, Adapters, Boxes and Patch Panels. The modular jacks can also be mixed and matched with a wide variety of adapters and boxes to suit practically any installation configuration for workstation outlet, consolidation point and telecommunications closet applications.

Belden CAT6+ Modular Jacks are designed to be used within the Belden 4800, 3600 and 2400 Systems. The Beyond Category performance exceeds the Category 6 standard. All performance characteristics have been set to guarantee transmission performance up to 300 MHz and a data-rate of up to 4.8 Gb/s.

  • Specifications:

    • Color: Green (TIA 606)
    • Wiring Scheme: T568A/B
    • Weight: 0.014 lbs.
    • Included Parts: 1 T-Bar +1 Dust Cap
    • Packaging: Individually packaged in a plastic bag. Standard pack of 50 units
    • Footprint/Type: MDVO-Style
    • Plug / Jack Compatibility: RJ45, RJ11
    • Connector/Hardware Retention: 20 lbs.
    • Plug/Connector Retention: 11.250 lbs.
    • Storage Temperature Range: -40°C To +70°C
    • Installation Temperature Range: -10°C To +60°C
    • Operating Temperature Range: -10°C To +60°C
    • Tool Compatibility: Belden 110 Connecting Tool, MediaFlex Termination Station
    • Telecommunications Standards: Category 6 - TIA 568.C.2, ISO/IEC 11801:2002 Ed.2
    • Third Party Performance Verification: ETL - Verified Category 6
    • Safety Listing: ACA, Bi-national Standard Listed
    • Suitability: Indoor
    • Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
    • Current Rating: 1.500 A
    • Insulation Resistance: 500 M-Ohm Minimum
    • Max. Contact Resistance: 20 m-Ohm
    • Termination Resistance: 2.5 m-Ohm


  • Item Includes:

    • CAT6 Modular Jack RJ45 MDVO Style - Green (TIA 606)
    • T-Bar (1)
    • Dust Cap (1)


  • GTIN:

    0611589002363
