AX104501 - Overview

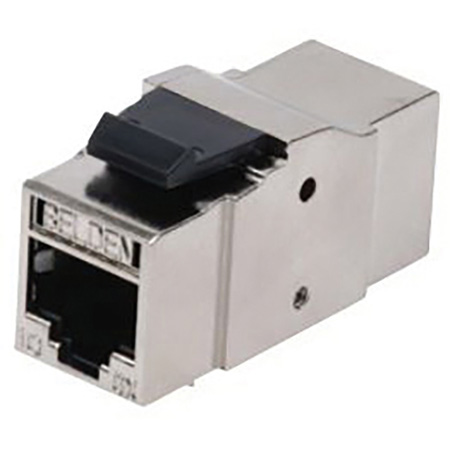

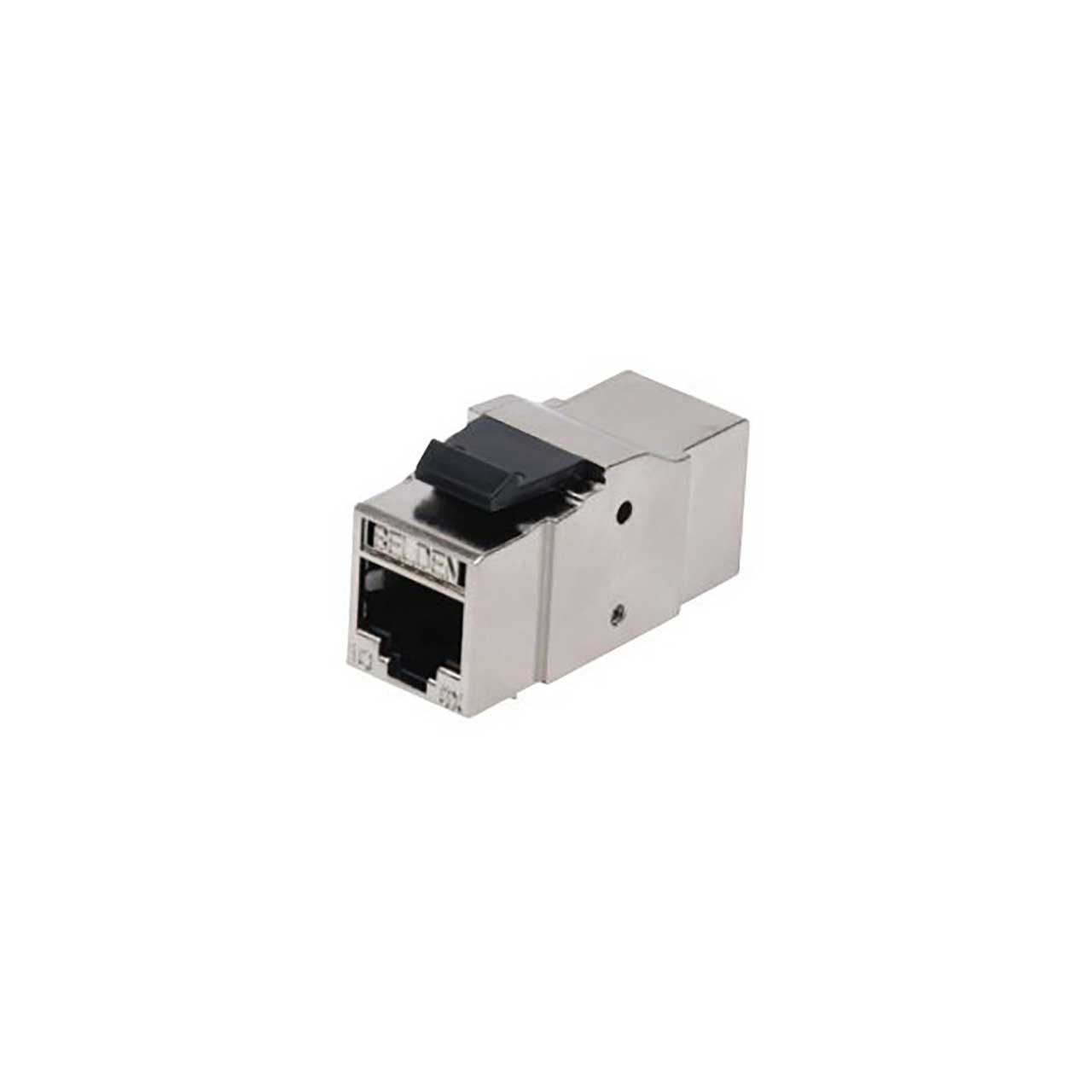

The AX104501 is a Category 6A 10GX Shielded RJ45 Coupler with T568A/B-T568A/B wiring scheme.

Suitable Applications:
IBDN Shielded System 10GX
TIA Category 6A and 10GBASE-T

  • Specifications:

    • Color: Gray
    • Wiring Scheme: T568A/B-T568A/B
    • Weight: 0.022 kg
    • Packaging: Individually packaged in a clear plastic bag.
    • Footprint/Type: KeyConnect
    • Plug / Jack Compatibility: RJ45
    • Connector/Hardware Retention: 88.964 N
    • Other Standards: FCC Part 68, Subpart F, IEC 60603-7
    • EU Directive 2002/95/EC (RoHS): Yes
    • EU RoHS Compliance Date (mm/dd/yyyy): 08/01/2008
    • MII Order #39 (China RoHS): EUP 50
    • Telecommunications Standards: Category 6A - TIA 568.C.2, Class EA - ISO/IEC 11801:2002 Amendment 2
    • Safety Listing: Bi-national Standard Listed
    • Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
    • Current Rating: 1.500 A
    • Insulation Resistance: 500 M-Ohm Minimum
    • Max. Contact Resistance: 20 m-Ohm
