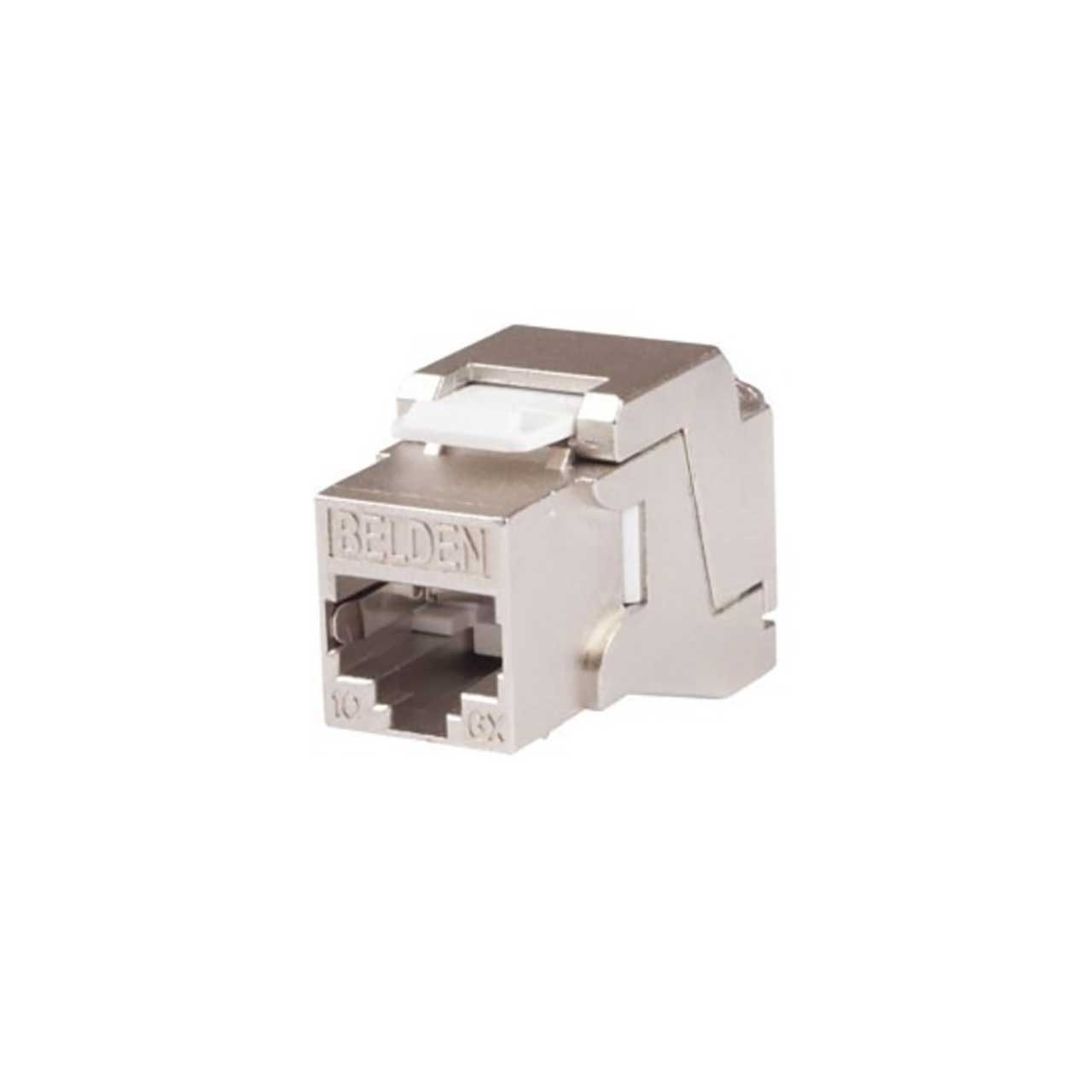

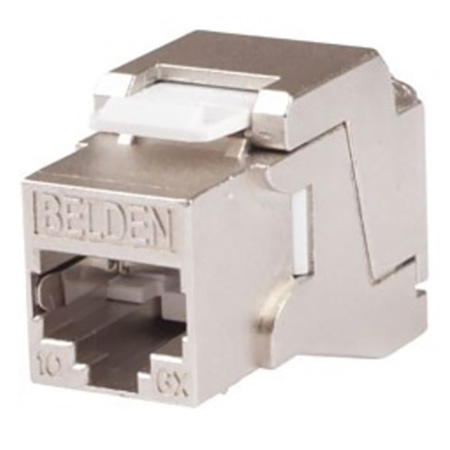

The Belden AX104562 is a 10GX Shielded Category 6A/RJ45 KeyConnect Modular Jack designed for the Belden AngleFlex Patch Panels, KeyConnect Interface and MediaFlex Workstation Outlets.
The KeyConnect Connectivity System has a keystone footprint. The modular jacks can also be mixed and matched with a wide variety of adapters and boxes to suit practically any installation configuration. 10GX Modular Jacks provide performance margins when installed as part of 10GX System. Beyond 10GT performance exceeds all parameters specified in the CAT 6A standard. All performance characteristics including ANEXT, NEXT, FEXT, Insertion Loss and Return Loss have been set to guarantee transmission performance up to 625 MHz.
Applications
IBDN Shielded System 10GX
TIA Screened Category 6A
ISO Class EA
10GBASE-T
Telecommunication Closets
Workstations
Shielded KeyConnect Patch Panels 24-p/48-p
