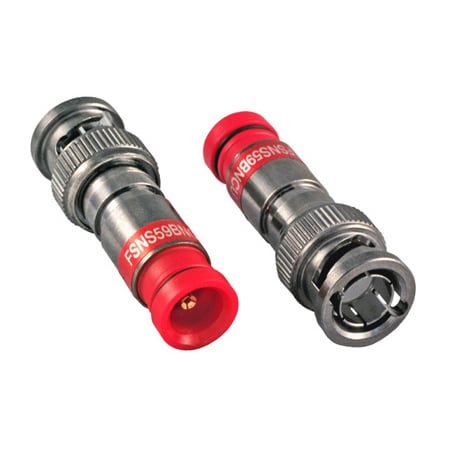

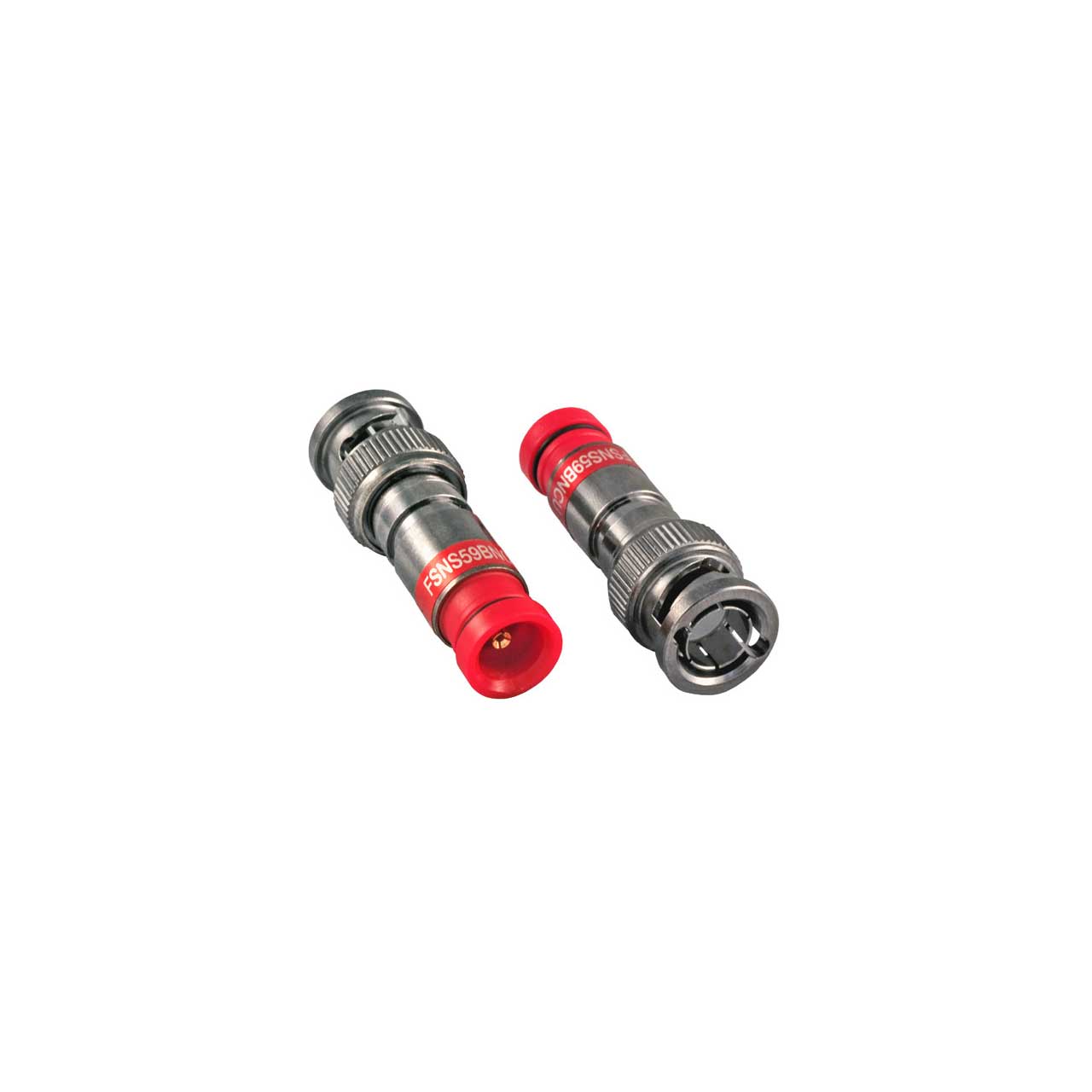

Belden FSNS59BNCU ProSNS 75 Ohm Indoor/Outdoor RG-59 Universal BNC Coax Compression Connector - 25 Pack

Name: Belden FSNS59BNCU ProSNS 75 Ohm Indoor/Outdoor RG-59 Universal BNC Coax Compression Connector - 25 Pack
Brand: Belden
SKU: BL-FSNS59BNCU
Price: 122.09 USD
Availability: InStock

ITEM #: BL-FSNS59BNCU MFG #: FSNS59BNCU

Belden

List Price:

$135.41

Our Price:

$122.09

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

FSNS59BNCU - Overview

The Belden FSNS59BNCU is a 25 pack of 75 Ohm ProSNS RG59 Universal BNC compression connectors with non-blind entry. Built with split ferrule design and a polymer compression sleeve for easy insertion and the lowest possible tool compression force this universal BNC connector is designed for standard or quad-shield RG59 cable.

BNC Connectors from Belden maximize broadcast signal integrity, quality, performance and durability. The connectors exceed SMPTE return loss standards, providing excellent headroom and 75 Ohm performance. Long-term durability is ensured through brass construction and patented compression rings with pullout forces that exceed 100 lbs.

Applications
CCTV
Security Cameras
Video

Features:
- Screw-lock collar provides superior electrical signal performance by creating coaxial alignment between the cable and connector center pin, delivering return loss results that exceed -20 dB at 4.5 GHz
- A non-blind entry provides the assurance that the center conductor is properly inserted into the BNC center pin, making connector installation easy and repeatable on every installation
- Improved insulator materials sustain maximum return loss performance
- 1-Piece design eliminates pin, collar and connector as separate components, simplifying and speeding connection installation time
- Internal 360§ compression rings provide excellent holding strength and eliminate ingress and egress from the back of the connector
Specifications:
- Nominal Characteristic Impedance: 75 Ohm
- Frequency Return Loss[MHz]: ≥ -32 dB up to 1 GHz typical
- Electrical Characteristics Notes: Salt Fog: Passes 1000 hours ANSI/SCTE 143 2007, RFI Shielding -85 dB (60% bonded foil), All Belden ProSNS connectors meet or exceed SCTE return loss standards
- Operating Temp Range: -40°F (-40°C) to 140°F (60°C)
- Footprint/Type: Coax
- Connector Interface Type: BNC
- Gender: Male - plug
- Connector Series Name: ProSNS
- Color Band: Red
- Locking: No
- Tool Compatibility: CPLCCT-SLMR or CPSNSCT-596 (compression), PSA59/6 (strip)
- Termination Type: Compression
- Cable Center Conductor Diameter Limits: .0317 - .0339 inch
- Cable Dielectric Diameter Limits: .144 - .157 inch
- Cable Outer Jacket Diameter Limits: .232 - .273 inch
- Cable Insertion Force: 20 lbf
- RG Type: 59/U Type
- Environmental Space: Indoor/Outdoor
Item Includes:
- FSNS59BNCU ProSNS 75 Ohm RG-59 BNC Coax Compression Connector - 25 Pack
Warranty:
- Limited Lifetime Connector Warranty when partnered with Belden Brilliance Cable
- 10-Year Connector Warranty when used with other brands of cable
GTIN:
0845671004632
