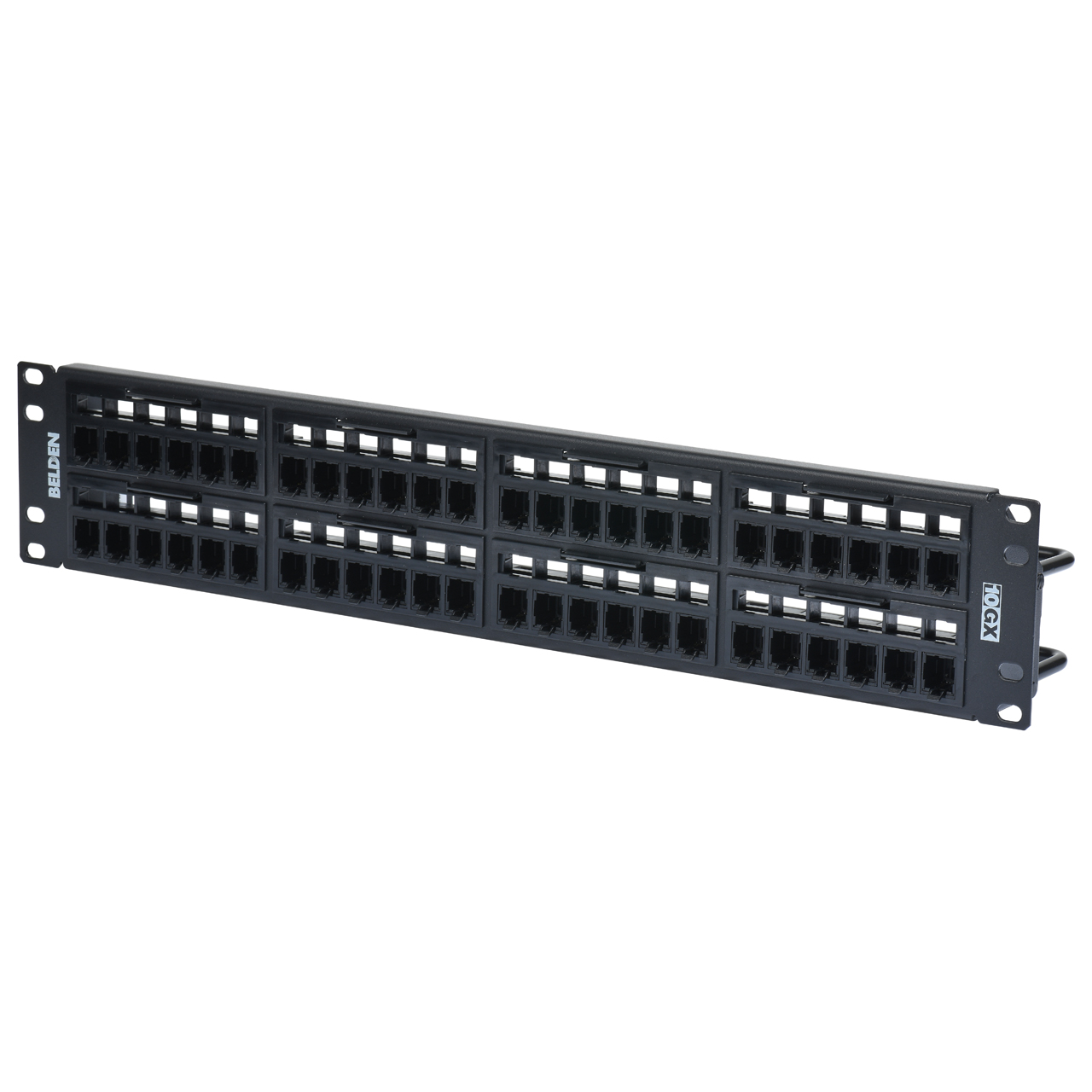

Belden RVACPF2U48BK 10GX REVConnect 2RU Coupler Pre-Loaded Patch Panel - 48 Port - UTP

RVACPF2U48BK - Overview

• Features:

  • User interface uses REVConnect receptacles
  • Fully assembled with REVConnect Couplers that are ready to terminate
  • Single-port modularity ensures quick, cost-effective repair if a connection goes bad
  • Cable management bar(s) included
  • Pre-printed ID card and labeling window for port identification


• Specifications:

  • Max Capacity: 48 connectors (patch panel is pre-loaded)
  • Dielectric Strength: 1,000 V RMS @ 60Hz for 1 minute
  • Current Rating: 1.300A
  • Insulation Resistance: 500MΩ Minimum
  • Termination Resistance: 2.5mΩ
  • Footprint/Type: REVConnect
  • Termination Type: Universal T568A/B
  • UL Rating: UL94 V-0
  • Data Category: Category 6A
  • TIA/EIA Compliance: Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2
  • Other Standards: FCC Part 68, Subpart F, IEC 60603-7
  • Environmental Space: Indoor
  • EU Directive 2011/65/EU (RoHS 2): Yes
  • Safety Listing: c(UL)us Listed
  • MII Order #39 (China RoHS): EUP 50
  • Installation Temperature Range: 14°F - 140°F (-10°C To +60°C)
  • Storage Temperature Range: -40°F - 158°F (-40°C - 70°C)
  • Operating Temperature Range: 14°F - 140°F (-10°C - 60°C)
  • Height: 3.47"
  • Width: 19.0"
  • Depth: 2.0"
  • Port Count: 48 Port
  • Front Connection: Flush
  • Packaging: Individually packaged in a cardboard box.
  • Weight: 3.68lbs
  • Material: Steel


• Item Includes:

  • 1x 10GX REVConnect 48-Port 2RU Coupler Pre-Loaded Patch Panel
  • 50x REVConnect Cores
  • 8x Clear Windows
  • 2x Rear Cable Management Bars
  • 4x Screws (10x32)
  • 4x Screws (12x24)
  • 2x Velcro Straps
  • 4x Frames
  • 1x Installation Guide


• GTIN:

  0611589247474
