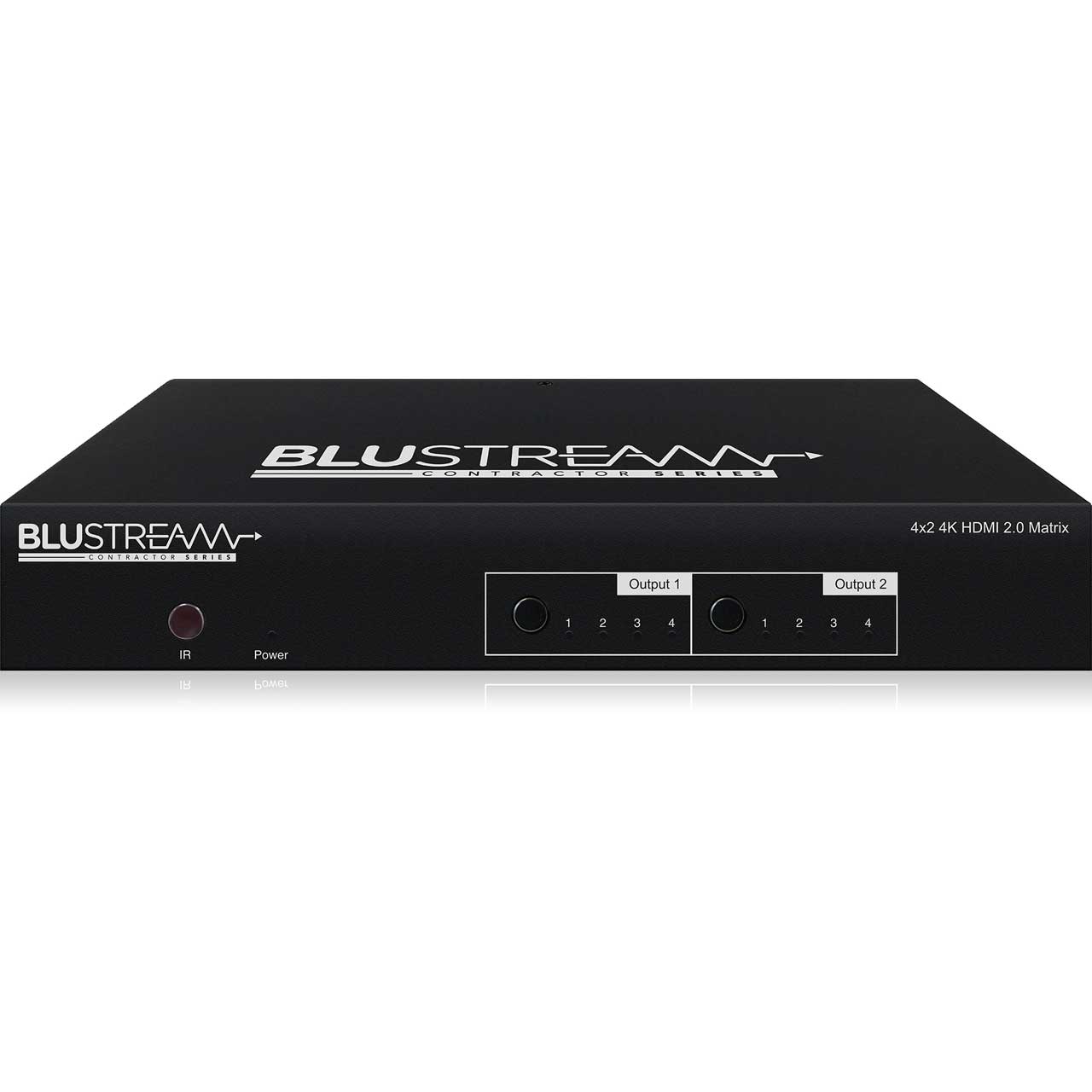

Blustream CMX42AB Contractor 4x2 HDMI 2.0 Matrix w/Audio Breakout

CMX42AB - Overview

• Features:

  • Features 4 x HDMI inputs which can be independently routed to 2 x HDMI outputs
  • Supports HDMI 2.0 18Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • HDMI audio breakout to associated output analog L/R audio and coaxial digital outputs concurrently
  • Control via front panel, IR and RS-232
  • IR routing
  • Supplied with Blustream 5V IR receivers and emitters
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP2.2 compliant


• Specifications:

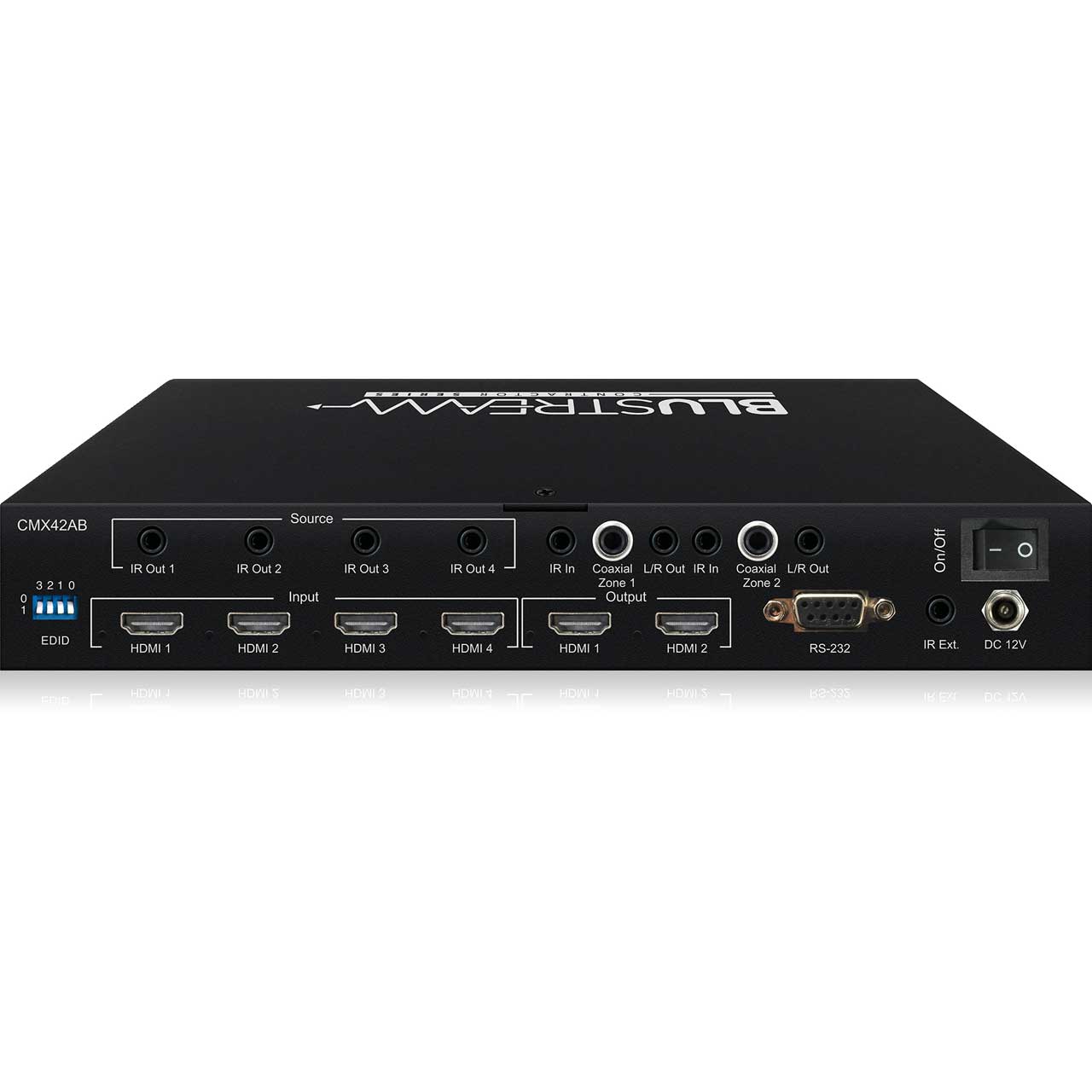

  • Video Input Connectors: 4 x HDMI Type A, 19-pin, female, locking
  • Video Output Connectors: 2 x HDMI Type A, 19-pin, female, locking
  • Audio Output Connectors: 2 x RCA (S/PDIF), 2 x Analog audio L/R (3.5mm stereo Jack)
  • RS-232 serial port: DB-9, female
  • IR Input ports: 3 x 3.5mm stereo jack
  • IR Output ports: 4 x 3.5mm mono jack
  • Unit Dimensions (W x D x H): 255mm x 104mm x 40mm (without feet or connections)
  • Unit Dimensions (W x D x H): 255mm x 115mm x 47mm (with feet and connections)
  • Shipping Weight: 1.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/2A DC


• Item Includes:

  • 1x CMX42AB matrix
  • 1x 12V/2A DC power supply
  • 1x Remote control
  • 4x IR emitter
  • 3x IR receiver
  • 1x Mounting kit
  • 1x Quick Reference Guide


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242002723
