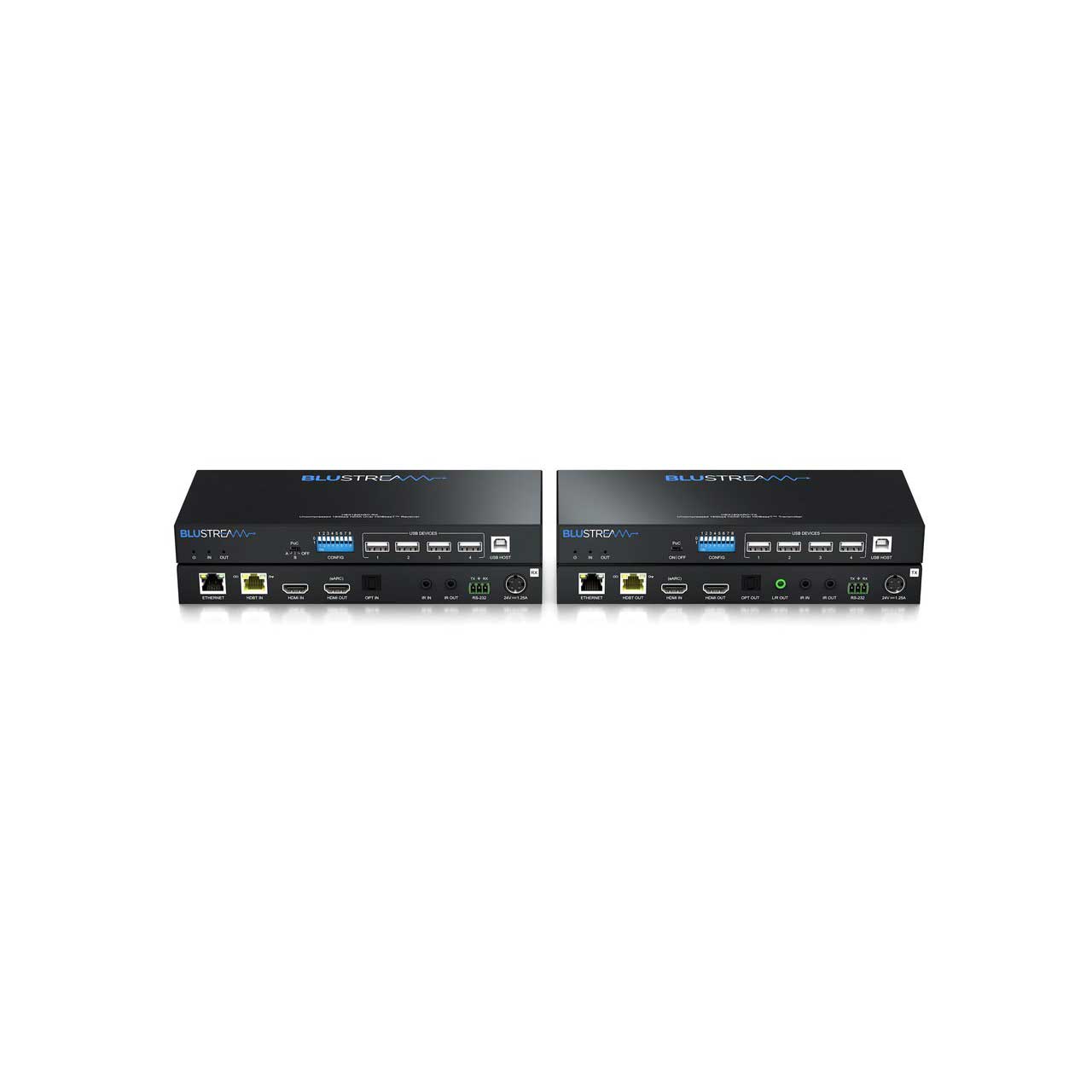

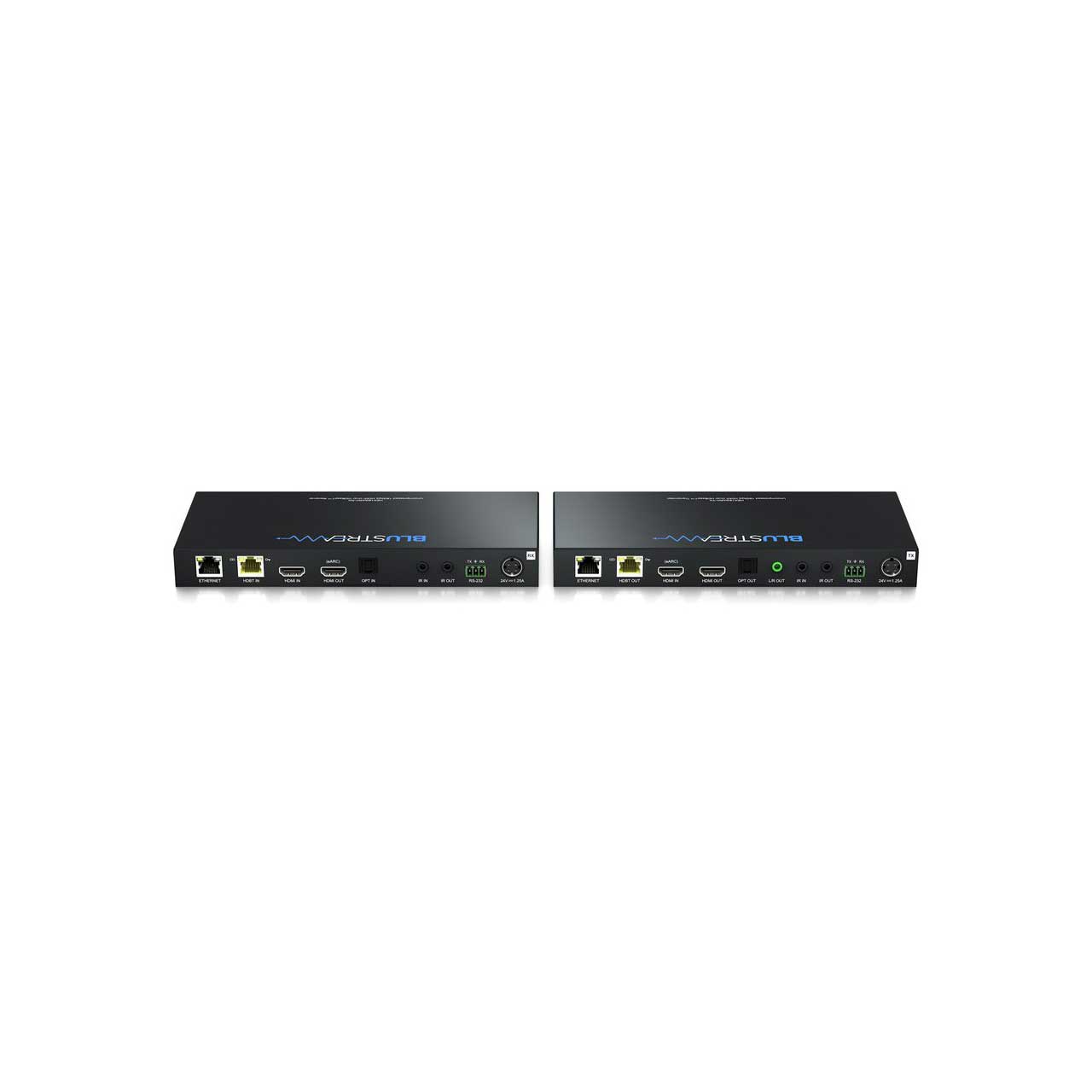

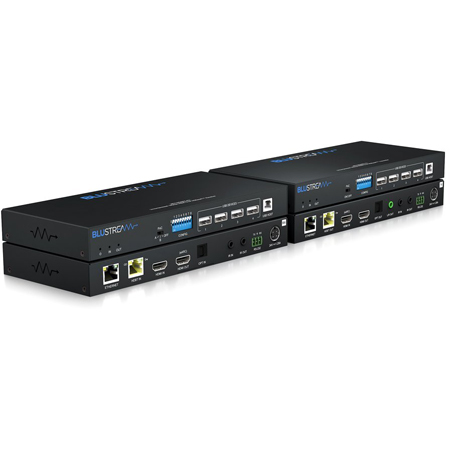

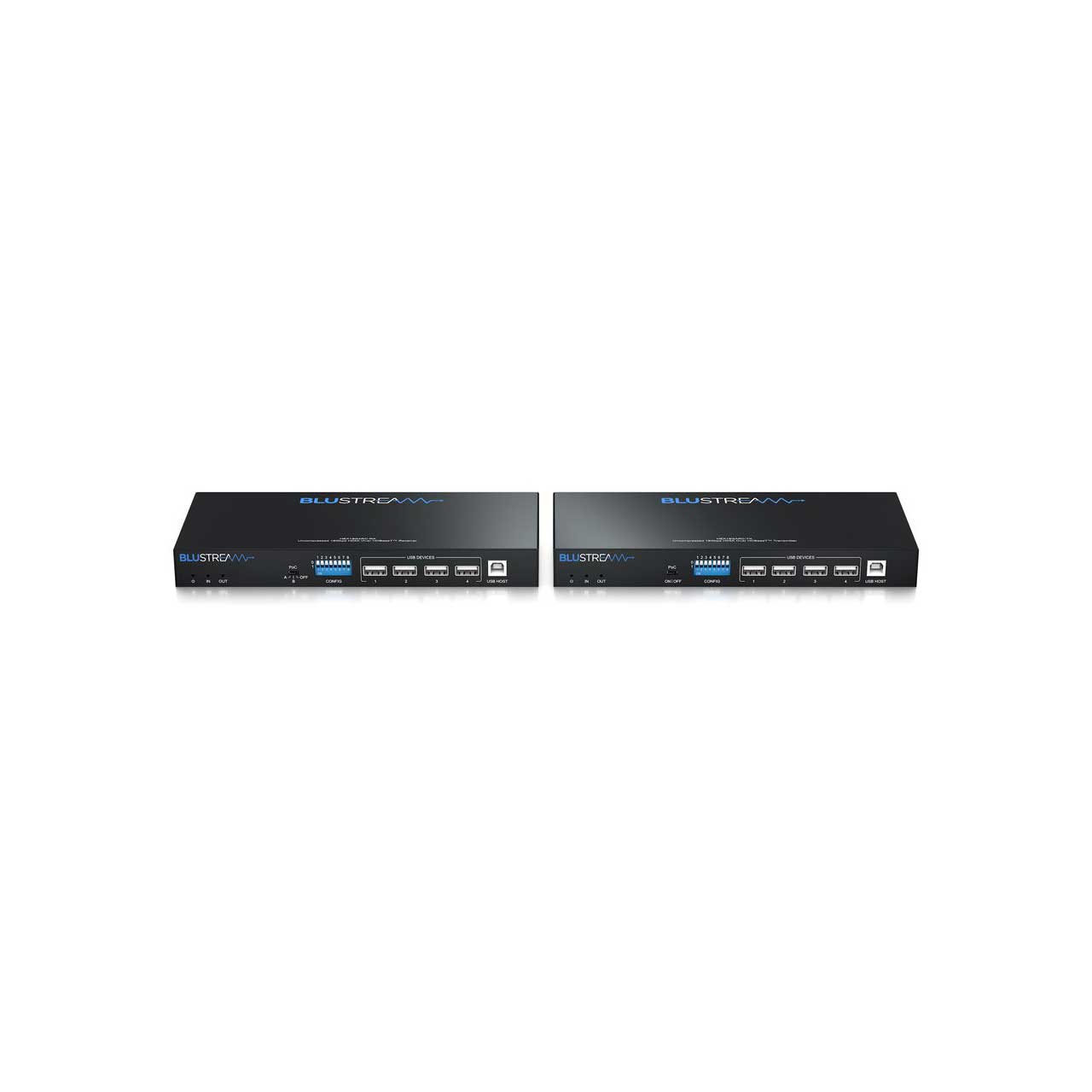

Blustream HEX18GARC-KIT Advanced HDBaseT HDMI 2.0 18Gbps 4K Extender TX/RX Set - 100m w/ARC

HEX18GARC-KIT - Overview

• Features:

  • Advanced uncompressed, unconverted, HDMI over HDBaseT™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
  • Supports HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video
  • Supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
  • Supports HDMI video distribution up to 100m*
  • Features 1x HDMI loop-out on HEX18GARC-TX for integrating local displays or cascading to multiple devices
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility, and handshaking issues
  • Supports eARC (Enhanced Audio Return Channel) from display via HDMI, and standard ARC from HDMI and Optical (S/PDIF) digital inputs
  • Supports audio return to HDMI (eARC compatible), optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCM only)
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmissions
  • Features USB2.0 for KVM with speeds of up to 350Mbps
  • Bi-directional Ethernet (1Gb), IR, & RS-232 pass through
  • Supplied with Blustream IR receiver and emitter
  • Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
  • Support for HDCP 2.3, HDCP 2.2 and HDCP 1.4
    *Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling


• Specifications:

  • HEX18GARC-TX
  • Video Input Connectors: 1 x HDMI Type A, female
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1x HDMI Type A, female
  • Audio Output Connectors: 1 x Analogue audio L/R (3.5mm stereo Jack), 1x Optical (SPDIF)
  • Ethernet port: 1 x RJ45 connector
  • RS-232 serial port: 1 x 3-pin Phoenix connector
  • USB/KVM Port: 1 x USB-Type B, 4x USB-Type A
  • IR Input ports: 1 x 3.5mm stereo jack
  • IR Output ports: 1 x 3.5mm mono jack
  • CTRL: 8-PIN DIP switch

    HEX18GARC-RX
  • Video Input Connectors: 1 x HDBaseT™ RJ45 connector, 1x HDMI Type A, female
  • Video Output Connectors: 1 x HDMI Type A, female (reserved for future use)
  • Audio Input Connectors: 1 x Optical (SPDIF)
  • Ethernet port: 1 x RJ45 connector
  • RS-232 serial port: 1 x 3-pin Phoenix connector
  • USB/KVM Port: 1 x USB-Type B, 4x USB-Type A
  • IR Input ports: 1 x 3.5mm stereo jack
  • IR Output ports: 1 x 3.5mm mono jack
  • CTRL: 8-PIN DIP switch

    General
  • Casing Dimensions (W x D x H ): 220mm x 100mm x 25mm (TX/RX)
  • Shipping Weight (Kit): 1.8kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Mounting kits included
  • Power Supply: 1x 24V/1.25A DC


• Item Includes:

  • 1x HEX18GARC-TX Transmitter
  • 1x HEX18GARC-RX Receiver
  • 1x 24V/1.25A DC Power Supply
  • 1x USB-A to USB-B Cable
  • 1x IRE1 Receiver
  • 1x IRR Emitter
  • 4x Mounting Brackets
  • 1x Quick Reference Guide


• GTIN:

  9340242003508
