Blustream HEX70CS-KIT HDBaseT HDMI 18G Extender Kit - 40m (1080p 70m)

HEX70CS-KIT - Overview

• Features:

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Color Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Video down-conversion on HDMI Receiver output allows a display only capable of supporting lower video resolutions (4K @ 60Hz 4:2:0 or 1080p) to receive the native 4K @ 60Hz 4:4:4 or 4K @ 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the Transmitter HDMI loop out.
  • Supports 4K @ 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI, HDCP, compatibility and handshaking issues
  • HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently
  • Supports bi-directional RS-232 pass through
  • Supports bi-directional IR pass through
  • Supplied with Blustream 5V IR receiver and emitter
  • Advanced EDID management
  • HDCP 2.2 compliant


• Specifications:

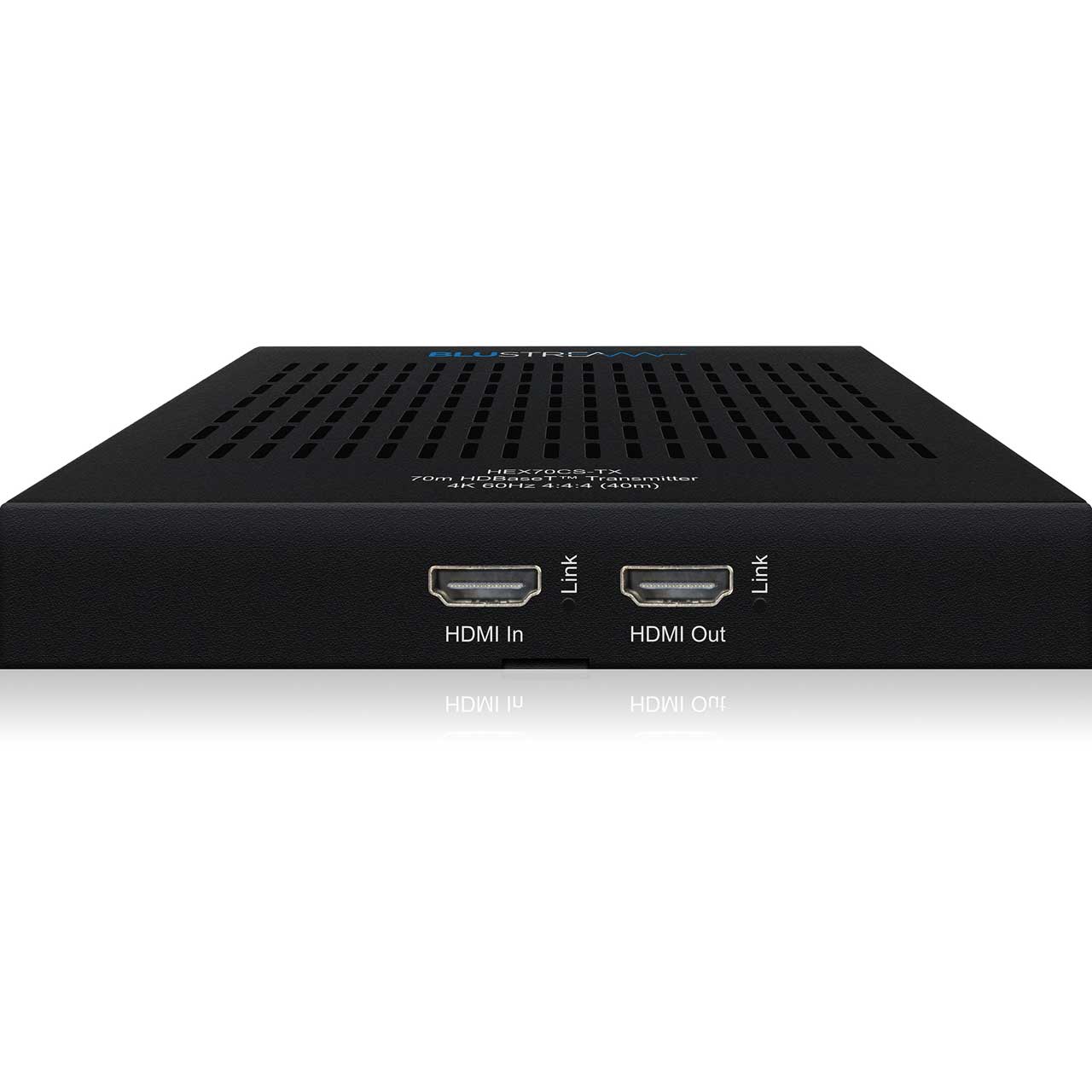

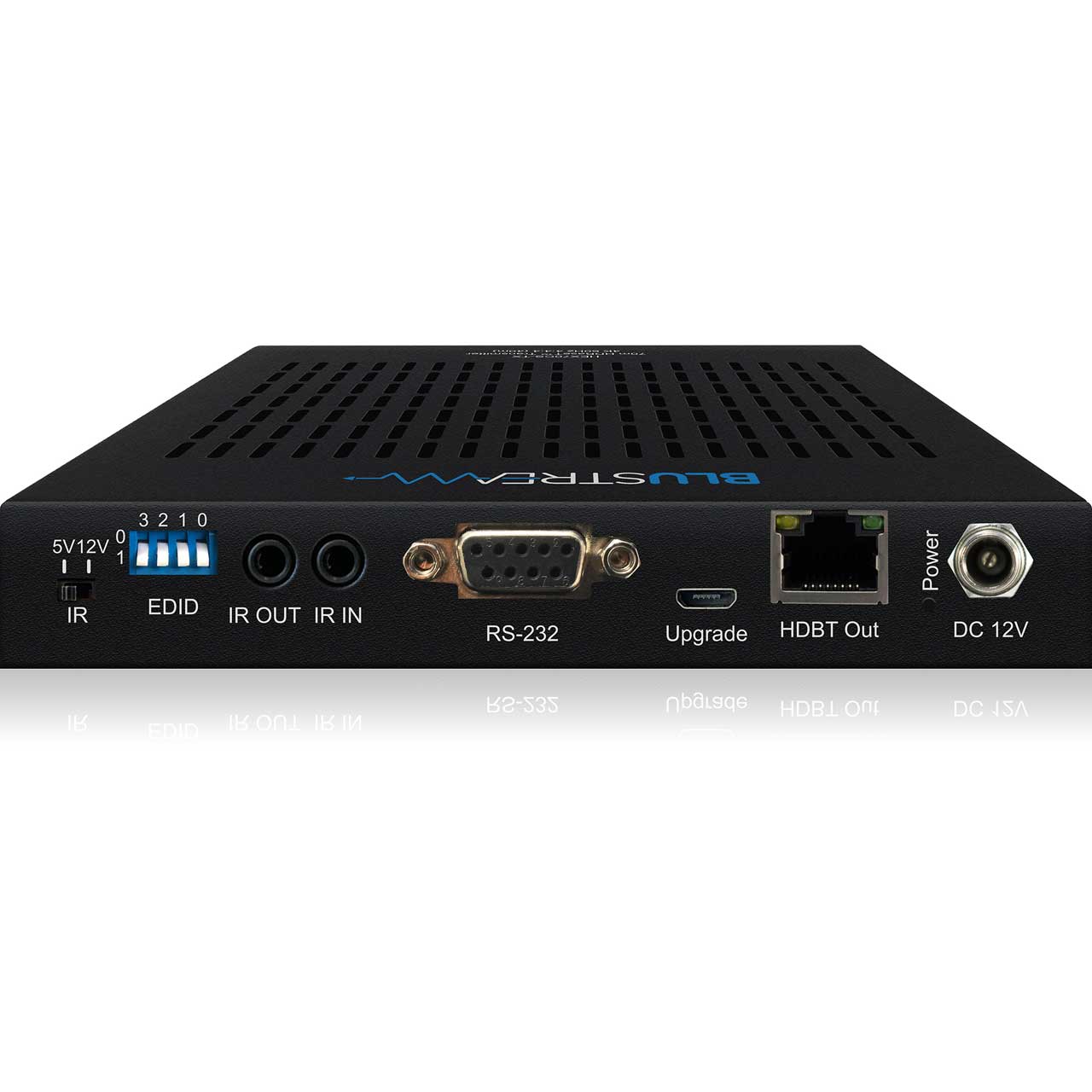

  • HEX70CS-TX Transmitter
    Video Input Connectors: 1 x HDMI Type A, female
    Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, female
    RS-232 serial port: 1 x DB-9 female
    IR Input ports: 1 x 3.5mm stereo jack
    IR Output ports: 1 x 3.5mm mono jack
    EDID DIP switch: 4-pin

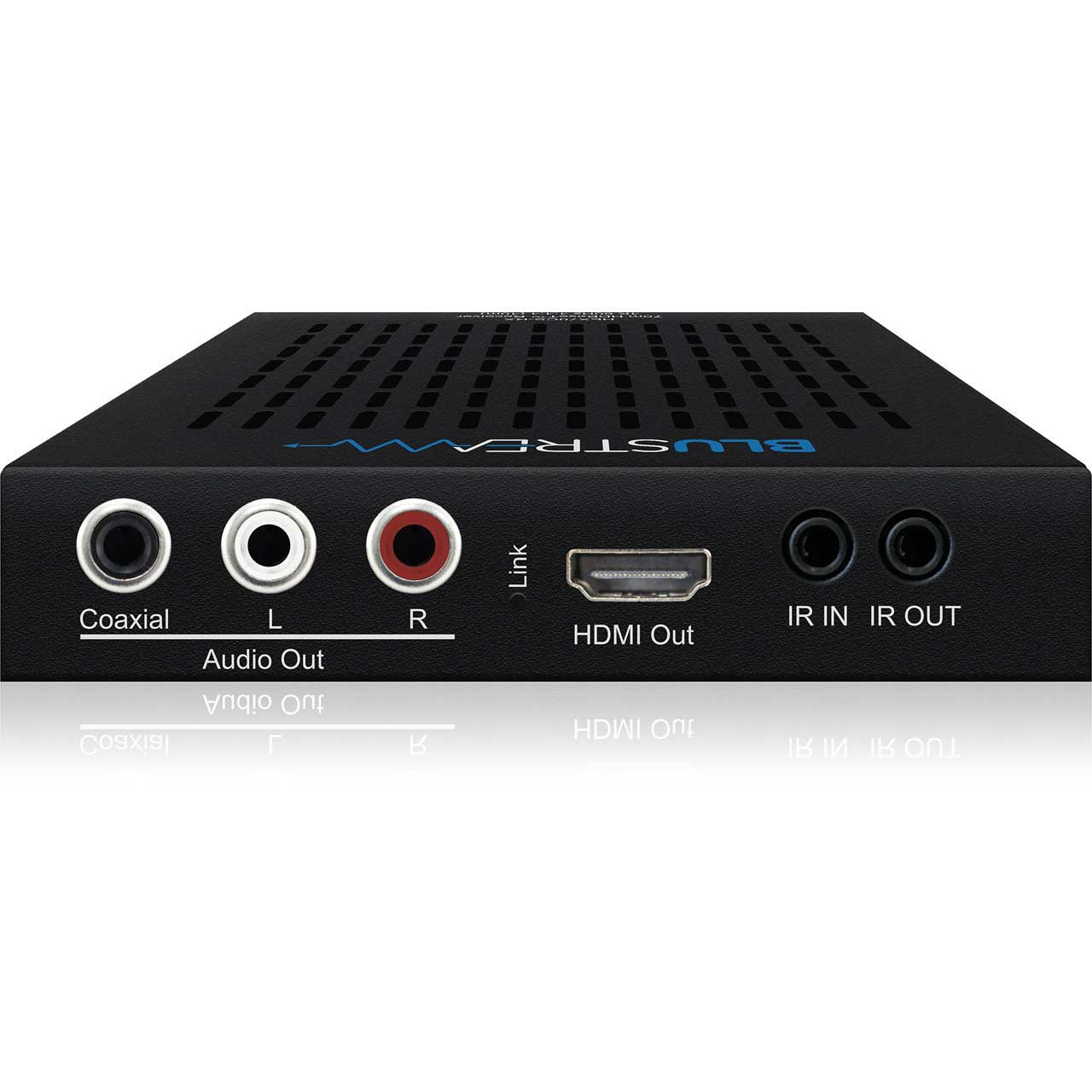

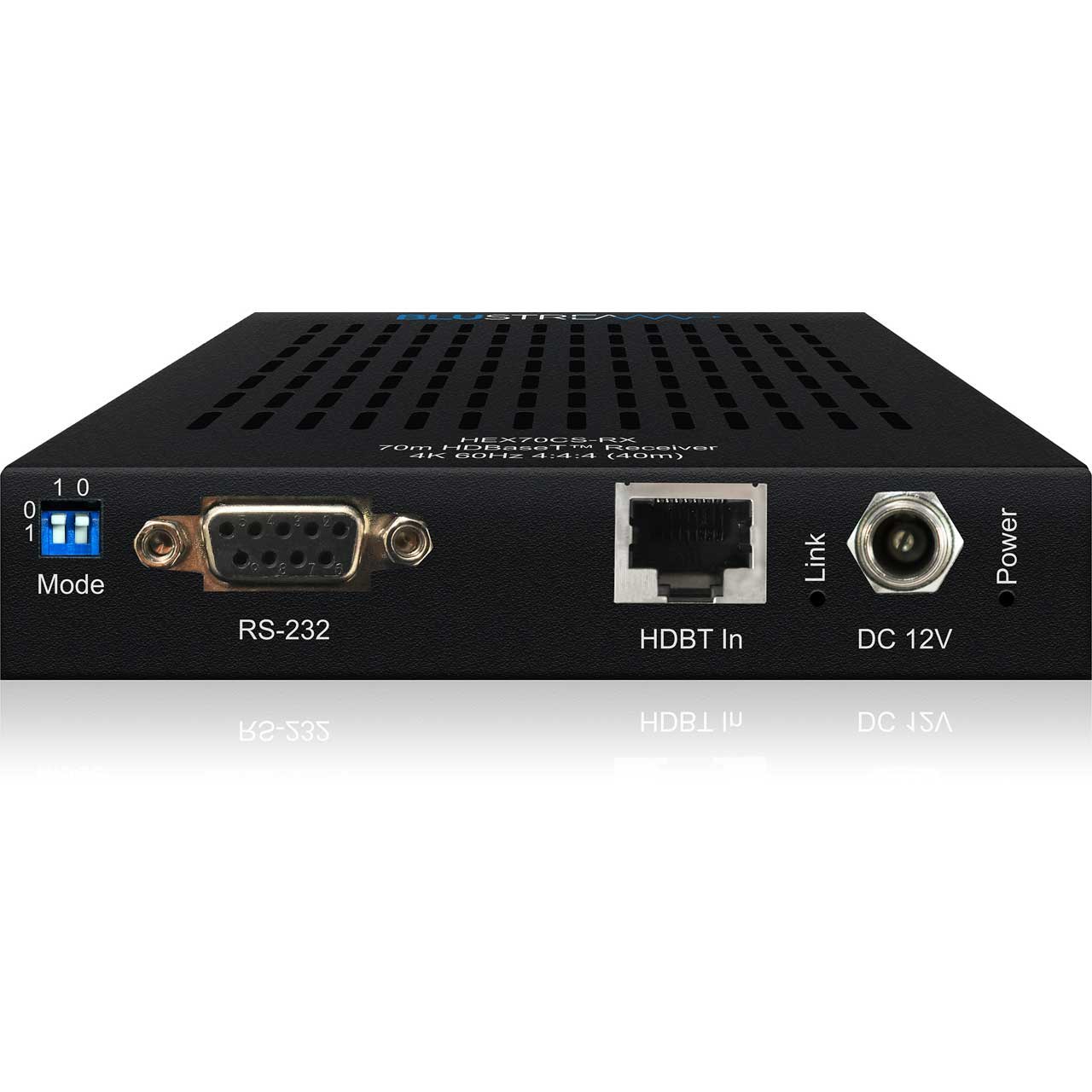

  • HEX70CS-RX receiver
    Video Input Connectors: 1 x HDBaseT™ RJ45 connector
    Video Output Connectors: 1 x HDMI Type A, female
    RS-232 serial port: 1 x DB-9 female
    IR Input ports: 1 x 3.5mm stereo jack
    IR Output ports: 1 x 3.5mm mono jack
    Audio Output Connectors: 1 x RCA (S/PDIF) & 2 x Analog RCA (Left / Right)
  • Power Supply: 12V/2A DC, screw type connector
  • Power Consumption: 12.7W
  • Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)
  • Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)
  • Receiver Dimensions (W x D x H): 113 x 124 x 22mm (without connections)
  • Receiver Dimensions (W x D x H): 113 x 138 x 22mm (with connections)
  • Ind. Extender Weight: 0.35kg (excluding accessories)
  • Shipping Weight: 1.4kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)


• Item Includes:

  • 1x HEX70CS-TX
  • 1x HEX70CS-RX
  • 2x Mounting Brackets
  • 1x 12V/2A Power Supply
  • 1x IR Emitter
  • 1x IR Receiver
  • 1x Quick Reference Guide


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242002310
