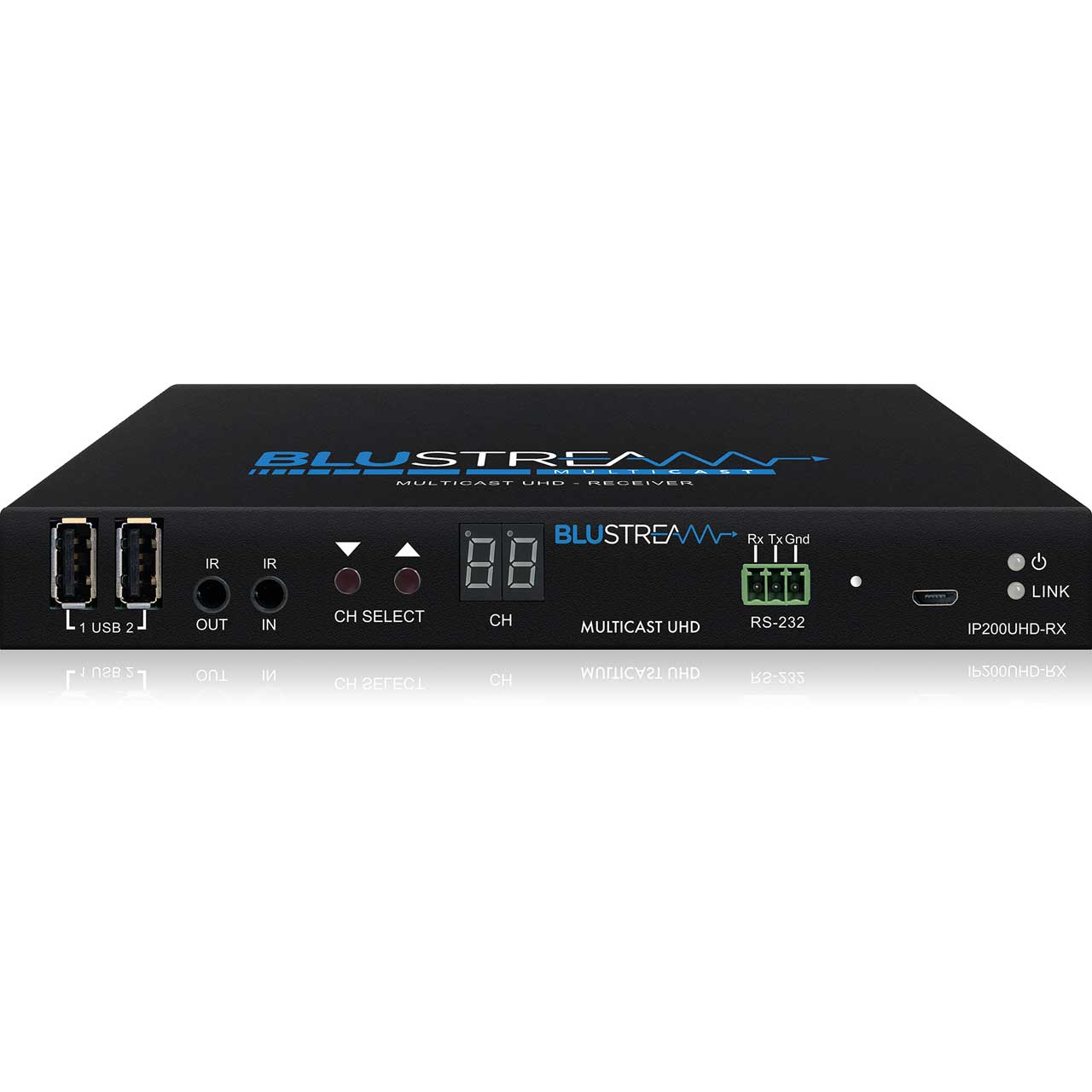

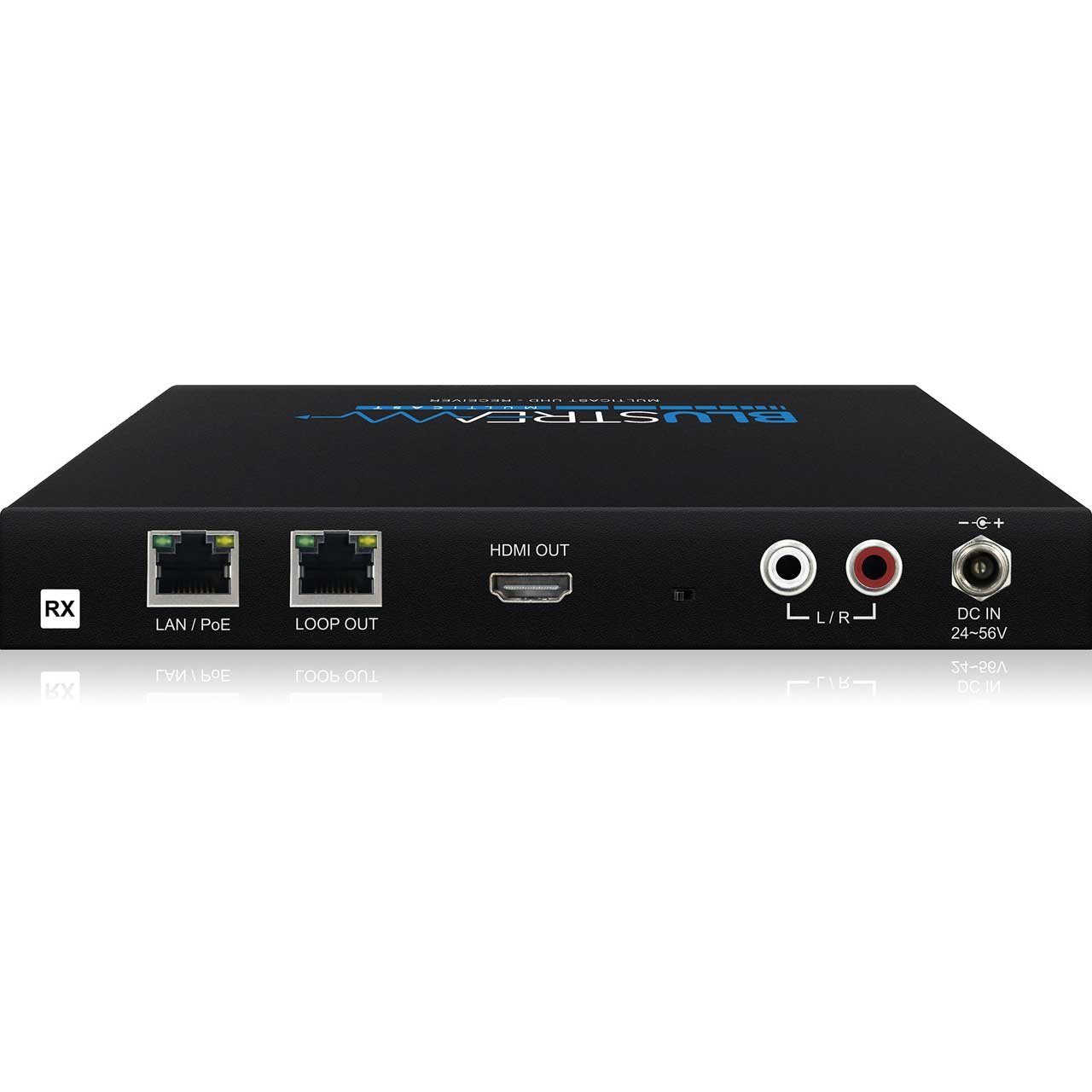

Blustream IP200UHD-RX IP Multicast HDMI UHD Video KVM over 1GB Network Receiver with Bi-directional IR / RS-232 & USB

IP200UHD-RX - Overview

• Features:

  • Advanced UHD video over 1Gb Network
  • Virtually unlimited system size
  • Extends HDMI up to a distance of 100m over a single CAT cable
  • Video up-scaling and downscaling
  • Supports up to 4K @ 30Hz UHD video output
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
  • PoE (Power over Ethernet) to power Blustream products from PoE switch
  • HDCP2.2 compliant with advanced EDID management
  • Analog L/R audio breakout
  • LAN loop-out for one-to-many extender mode
  • Local 24-56V power supply (should Ethernet switch not support PoE) - sold separately
  • Features 4 operational modes:
  • - Matrix distribution (requires 1Gb network switch)
  • - Video wall (requires 1Gb network switch)
  • - One-to-one HDMI extender (No network switch required)
  • - One-to-many HDMI extender (No network switch required)


• Specifications:

  • Video Input Connectors: 1 x LAN RJ45 connector
  • Video Output Connectors: 1 x HDMI Type A, female
  • Audio Output Connectors: 2 x RCA L/R Analog audio
  • Ethernet port: 1 x LAN RJ45 connector (video extension)
  • RS-232 Serial port: 1 x 3-Pin Phoenix connector
  • USB/KVM Port: 2 x USB - Type A
  • IR Input ports: 1 x 3.5mm stereo jack
  • IR Output ports: 1 x 3.5mm mono jack
  • Firmware Update (MCU): 1 x Micro-USB
  • Dimensions (W x D x H ): 190mm x 114mm x 25mm
  • Shipping Weight: 0.8kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)


• Item Includes:

  • 1x IP200UHD-RX
  • 1x (IRR) IR Receiver
  • 1x (IR1) IR Transmitter
  • 1x Serial 3-pin Phoenix Connector
  • 1x Mounting Kit


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242002891
