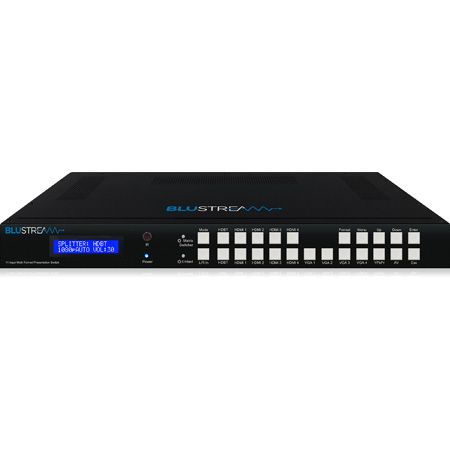

Blustream MFP112 11x2 Multi-Format Presentation Switcher

MFP112 - Overview

• Features:

  • Switcher can function in 2 modes:-
  • - Splitter mode - Both HDMI output 1 & HDBaseT™ output 2 display the same selected input.
  • - Matrix Switcher mode - HDMI inputs are independently switchable to HDMI output 1 & HDBaseT™ output 2. HDMI output 1 has access to HDBaseT™ input + HDMI inputs 1-4 ONLY (HDMI signal pass-through including 4K resolution), while HDBaseT™ output 2 has access to all HDMI, HDBaseT™ and analog video inputs with associated audio.
  • HDBaseT™ output (output 2) for distribution of video sources up to 100m (4K up to 70m) with bi-directional IR, RS-232, LAN serving and EDID management.
  • HDBaseT™ input for integration of remote HDMI sources up to 100m distance (4K up to 70m) with bi-directional IR and LAN serving
  • Built-in video scaling, both up-scaling (maximum of 1080p) and downscaling capabilities (including 4K to lower resolutions).
  • Video inputs support all industry standard video resolutions including VGA-WUXGA and 480i-4K.
  • Scaled video output resolutions include 720p, 1080P, 1280x1024, 1024x768, 1360x768, 1440,900, 1680x1050
  • Audio embedding - independent analog L/R audio input can be embedded to HDMI / HDBaseT™ outputs + analog L/R audio and Coaxial digital outputs concurrently (feature available on HDMI / HDBaseT™ outputs 1+2 in Splitter mode and HDBaseT™ output 2 only in Matrix Switcher mode).
  • HDMI audio breakout to analog L/R audio and Coaxial digital outputs concurrently (linked to output 2 when in Matrix Switcher mode)
  • Volume control of HDMI, line-level analog L/R audio and Coaxial digital outputs
  • PoH to compatible Blustream Transmitters & Receivers (local power required when using HEX100ARC-RX)
  • Supports all known HDMI audio formats on HDMI pass-through, including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission

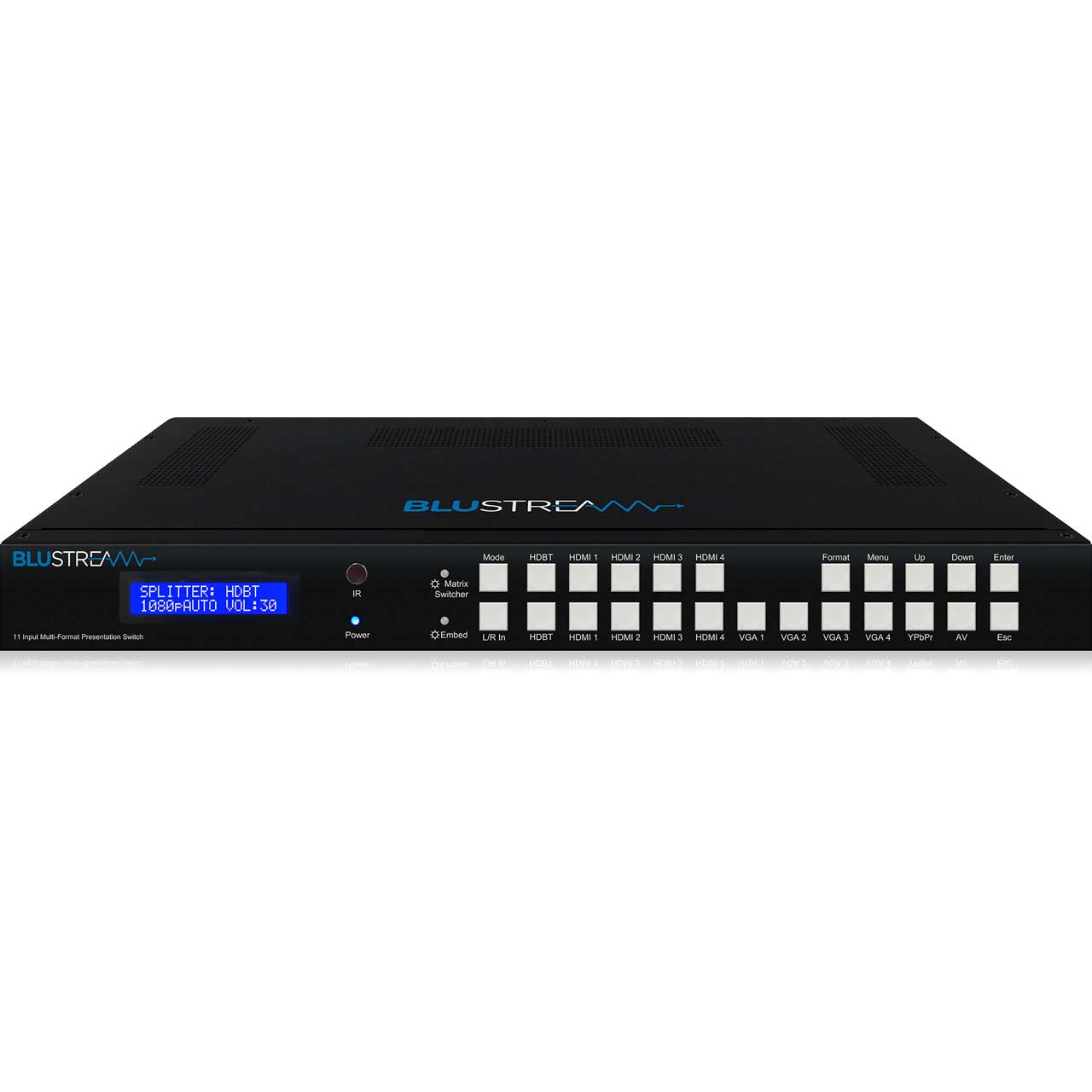

  • Front panel display for status feedback
  • Control via front panel, IR, RS-232 and TCP/IP
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP1.4 compliant


• Specifications:

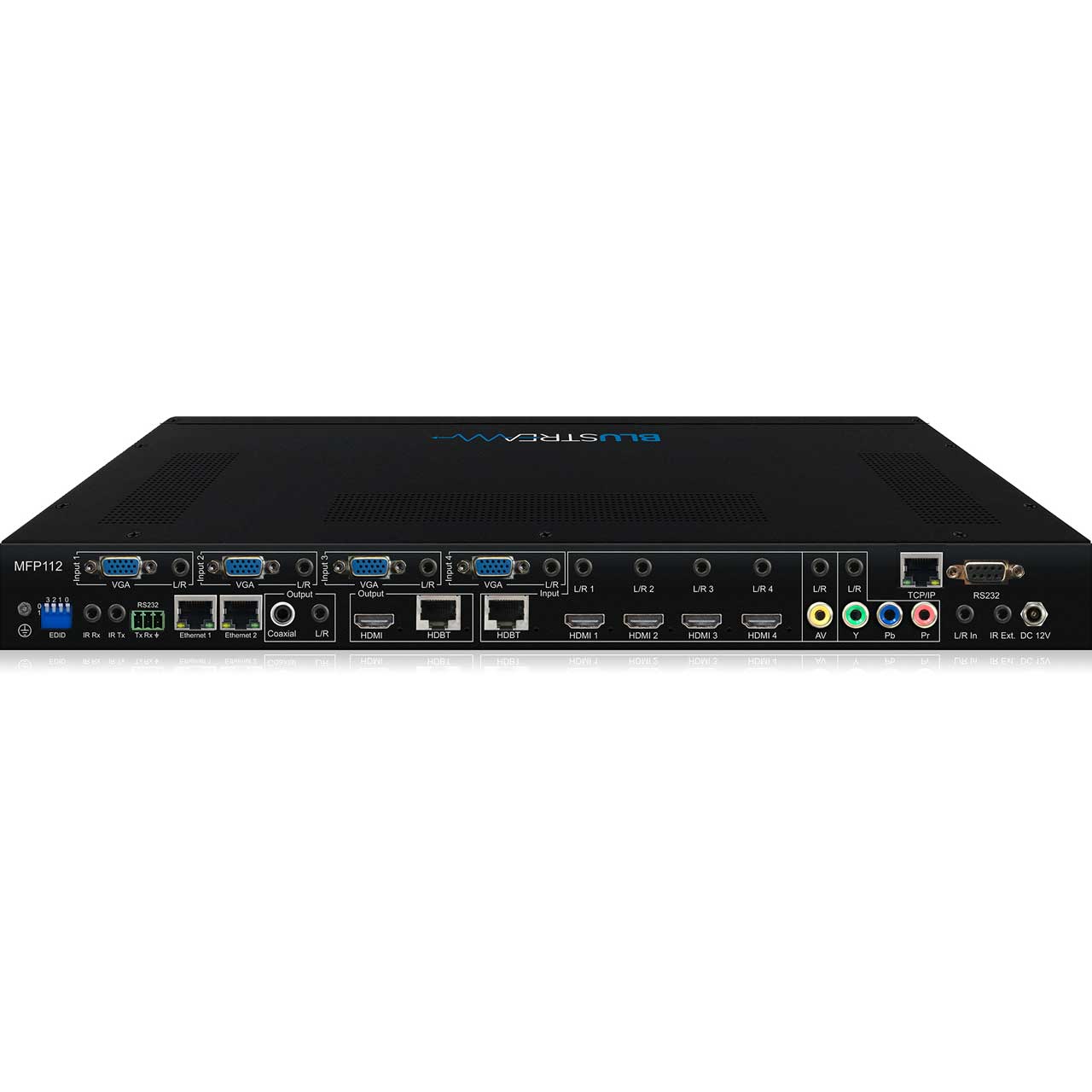

  • Video Input Connectors: 4 x HDMI Type A, 1 x HDBaseT™ RJ45 connector, 4 x VGA, 1 x Composite, 1 x
    Component (YPbPr)
  • Video Output Connectors: 1 x HDMI Type A, 1 x HDBaseT™ RJ45 connector
  • Audio Input Connectors: 11 x Analog audio 3.5mm stereo jack
  • Audio Output Connectors: 1 x Analog audio 3.5mm stereo jack, 1 x S/PDIF Coaxial digital
  • RS-232 serial port: DB-9 connector (Matrix control), 1 x 3-pin Phoenix connector for RS232 pass-through
  • IR Input ports: 2 x 3.5mm stereo jack
  • IR Output ports: 2 x 3.5mm mono jack
  • Casing Dimensions (W x H x D): 438mm x 45mm x 225mm, without feet
  • Dimensions Including Connections (W x H x D): 438mm x 45mm x 235mm
  • Shipping Weight: 1.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/5A DC


• Item Includes:

  • 1x MFP112
  • 1x 12V/5A DC power supply
  • 1x Remote control
  • 4x IR receiver
  • 3x IR transmitters
  • 1x IR control cable - 3.5mm-3.5mm cable
  • 1x Serial cable - 9-pin RS232 to 3-pin phoenix connector
  • 1x Mounting kit
  • 1x User manual


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242000811
