Blustream MFP31 3x1 Portable Multi-Format Presentation Switcher

Name: Blustream MFP31 3x1 Portable Multi-Format Presentation Switcher
Brand: Blustream
SKU: BLU-MFP31
Price: 364.00 USD
Availability: InStock

ITEM #: BLU-MFP31 MFG #: MFP31

Blustream

Options:

Options

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$364.00

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

MFP31 - Overview

The Blustream MFP31 is a portable multi-format presentation switch featuring HDMI, Mini DisplayPort™ and USB-C inputs to a single HDMI output, with manual or auto source selection.

The MFP31 supports HDMI 2.0 18Gbps specification including pass-through of all formats of HDR and HDMI audio.

The MFP31 is an ideal product for your boardroom or huddle-space application.

Features:
- Features 1 x HDMI, 1 x USB-C and 1x Mini DisplayPort™ input which can be switched to a single HDMI output
- Supports HDMI 2.0 18Gbps specification including HDR
- Supports resolutions up to 4K UHD 60Hz 4:4:4
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Supports Mini DisplayPort™ up to 4K UHD 60Hz 4:4:4, DP1.2
- Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2
- Supports both manual or automatic source selection
- HDCP 2.2 compliant
Specifications:

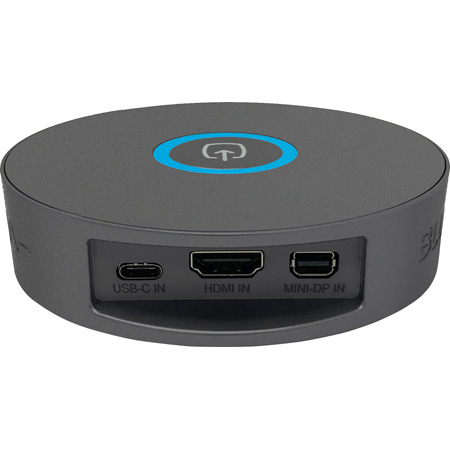

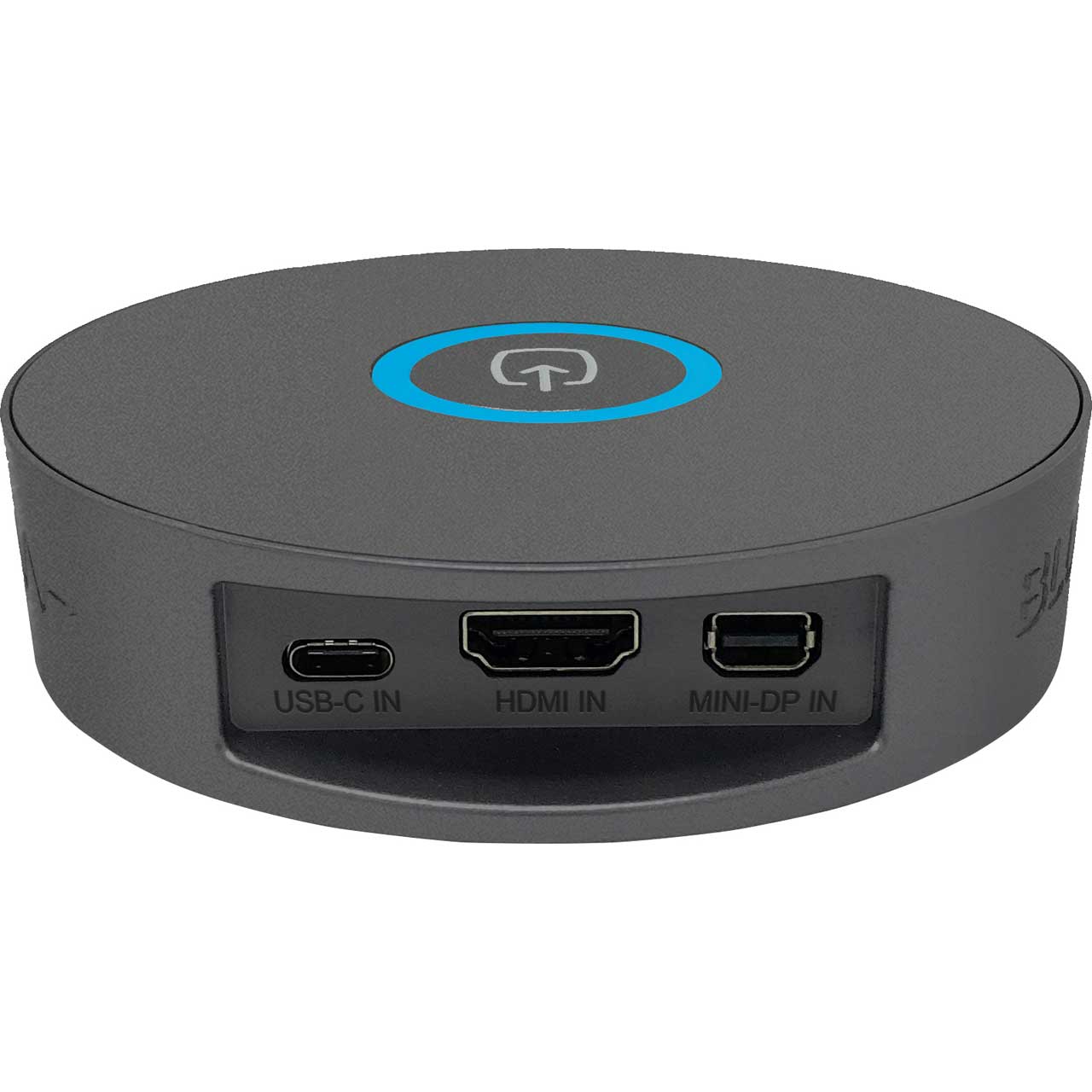

- Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x Mini DisplayPort™

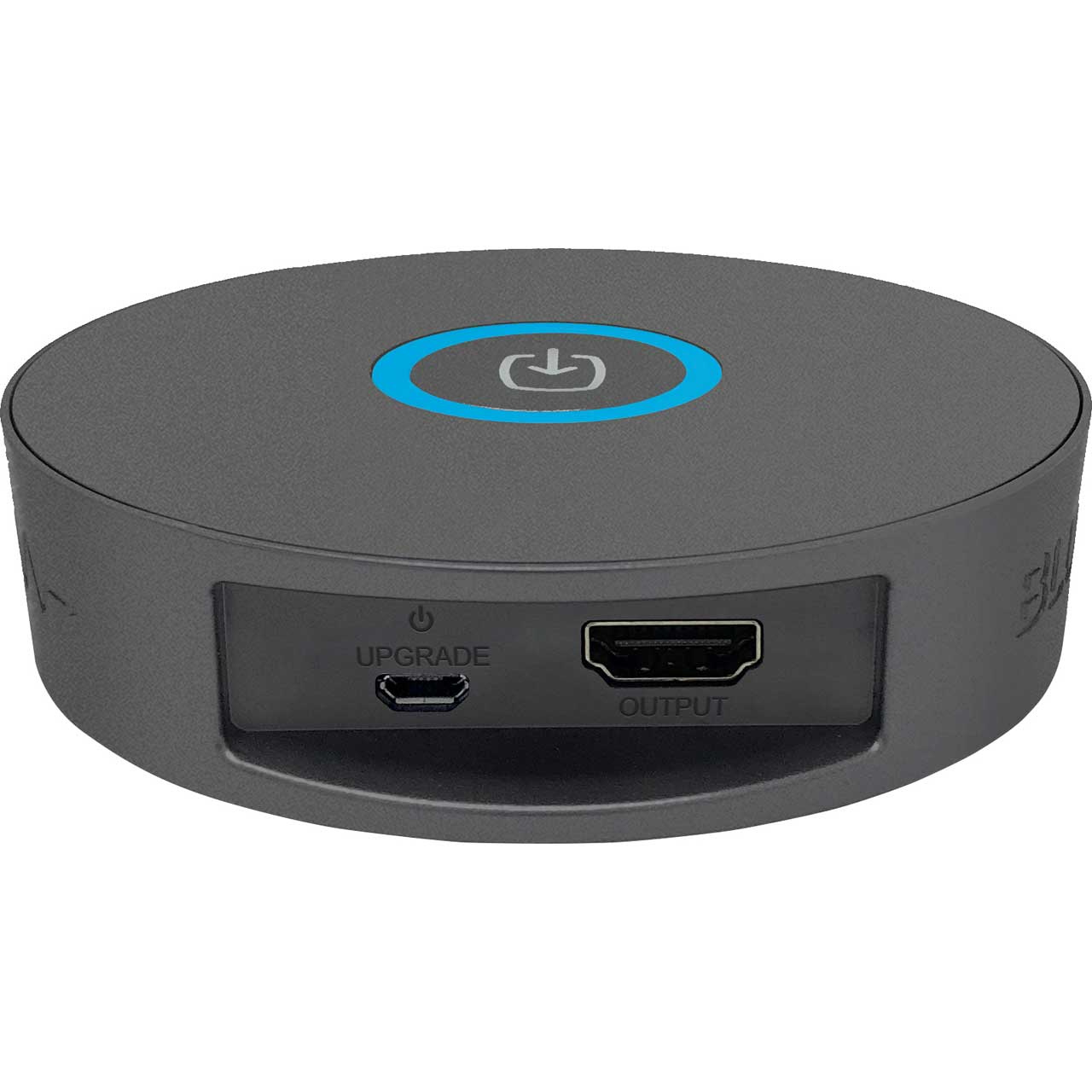

- Video Output Connectors: 1 x HDMI Type A, 19-pin, female
- Local power input: 1 x Micro USB, female
- Casing Dimensions (Dia.x H): 105mm x 25mm
- Operating Temperature: 32°F to 104°F (-5°C to +55°C)
- Storage Temperature: -4°F to 140°F (-25°C to +70°C)
- Power Supply: 5V/1A DC
Item Includes:
- 1x MFP31
- 1x 5V/1A DC Power Supply
- 1x USB to Micro-USB Charging Cable
- 1x Quick Reference Guide
- 1x Cloth Bag
Warranty:
- 3 Year Warranty
GTIN:
9340242003270
