Blackmagic MultiView 4 Video Multiviewer for 4 Channels of SDI - Bstock (Manufacturer Refurbished)

ITEM #: BMD-MULTIVIEW4BS MFG #: BMD-MULTIVIEW4-BSTOCK

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BMD-MULTIVIEW4BS

BMD-MULTIVIEW4-BSTOCK - Overview

Blackmagic MultiView 4 is the perfect solution for live production, on set, in control rooms, or any place where space is tight and customers don't have room for extra monitors. Customers no longer have to connect multiple monitors, dozens of cables or run extra power. They simply plug in cameras, decks, switchers, routers and feeds into the SDI connections on Blackmagic MultiView 4 and can see everything with amazing clarity and detail on a single HD or Ultra HD display.

Designed to be plug and play, customers can simply connect sources and instantly see a standard 2x2 layout on an HD or Ultra HD television. Using the included Ethernet remote control software, customers can turn on audio meters, choose which audio to output, as well as create custom labels, and more. Blackmagic MultiView 4 is also compatible with the optional Teranex Mini Smart Panel for customers that need to add front panel controls. For the ultimate in broadcast reliability and redundancy, you can even power MultiView 4 via the AC connection as well as power over Ethernet.

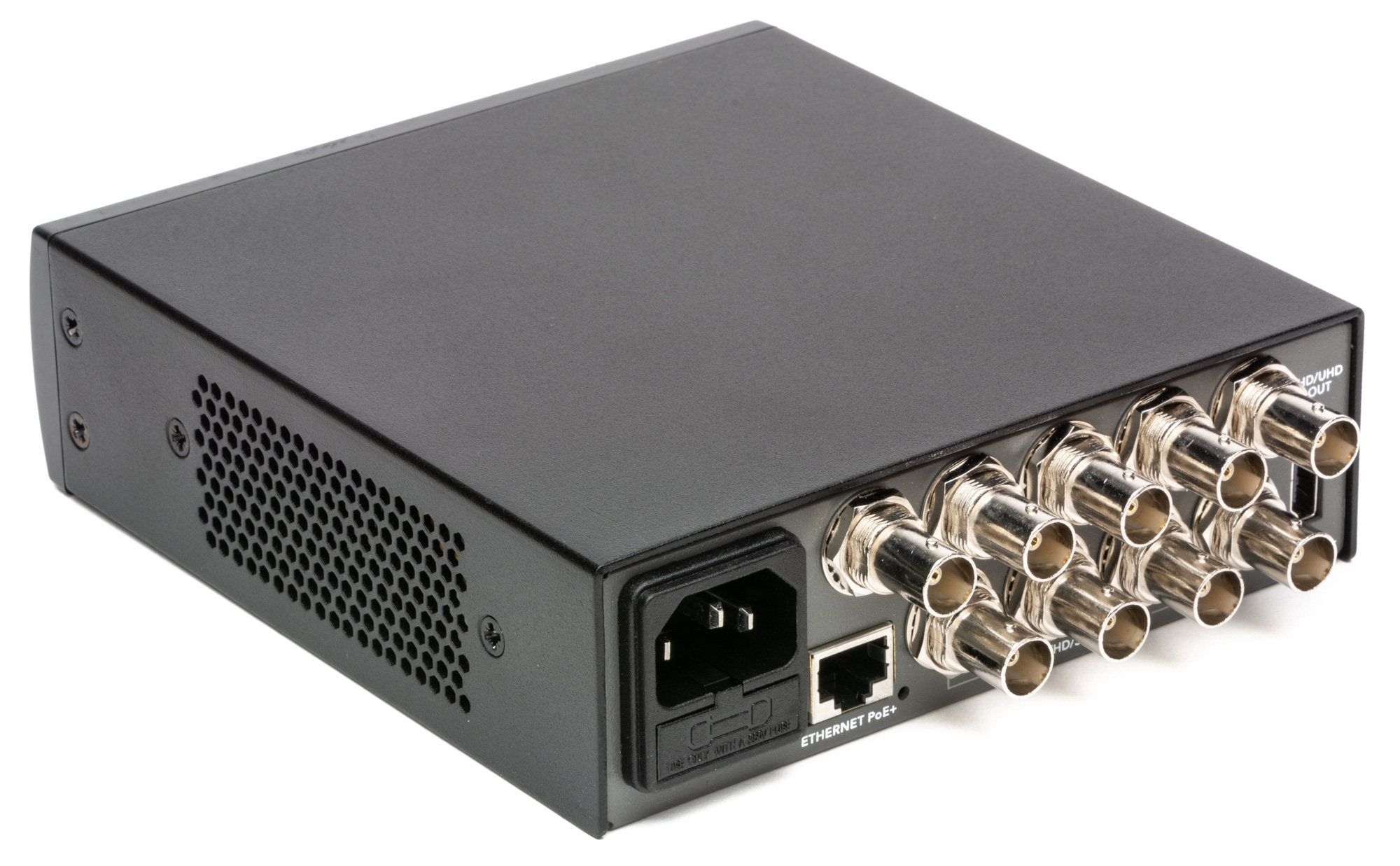

Blackmagic MultiView 4 is designed using the same compact, elegant enclosure as Blackmagic Design's Teranex Mini converters so they are small enough to be used in fly away cases, outside broadcast vehicles, housed in equipment racks or even sitting on a desktop. They are only one third of a single rack space wide, so customers can mount them on the optional Teranex Mini Rack Shelf side by side with additional MultiView 4 or Teranex Mini products.

Please Note: This is a Bstock Item. This unit has been used and refurbished by the manufacturer

  • Features:

    • Advanced multi view allows the use of Ultra HD television for twice the image sharpness.
    • Display up to 4 SDI sources on a single HD or Ultra HD display via SDI or HDMI.
    • 4 multi rate 6G-SDI inputs with loop through outputs.
    • Compatible with all SD, HD and Ultra HD equipment and formats up to 2160p30.
    • Automatic frame re-sync allows simultaneous display of mixed SD, HD and Ultra HD formats.
    • Standard quad split view.
    • Supported output resolutions: 1920 x 1080 and 3840 x 2160.
    • Compact portable ? width 1RU design with professional connections for easy installation.
    • Built in 90V - 240V AC international power supply for use anywhere in the world.
    • Remote control via Ethernet using the included Mac and Windows software.
    • Supports power over Ethernet (PoE+) which can also be used as a backup power source.
    • Blackmagic MultiView 4 can be looped for customized display arrangements.
    • Supports optional Teranex Smart Panel that adds push buttons and built in LCD monitor.
    • Supports optional Teranex Mini Rack Shelf for installation into equipment racks.
    • Please Note: This is a Bstock Item. This unit has been used and refurbished by the manufacturer

  • Specifications:

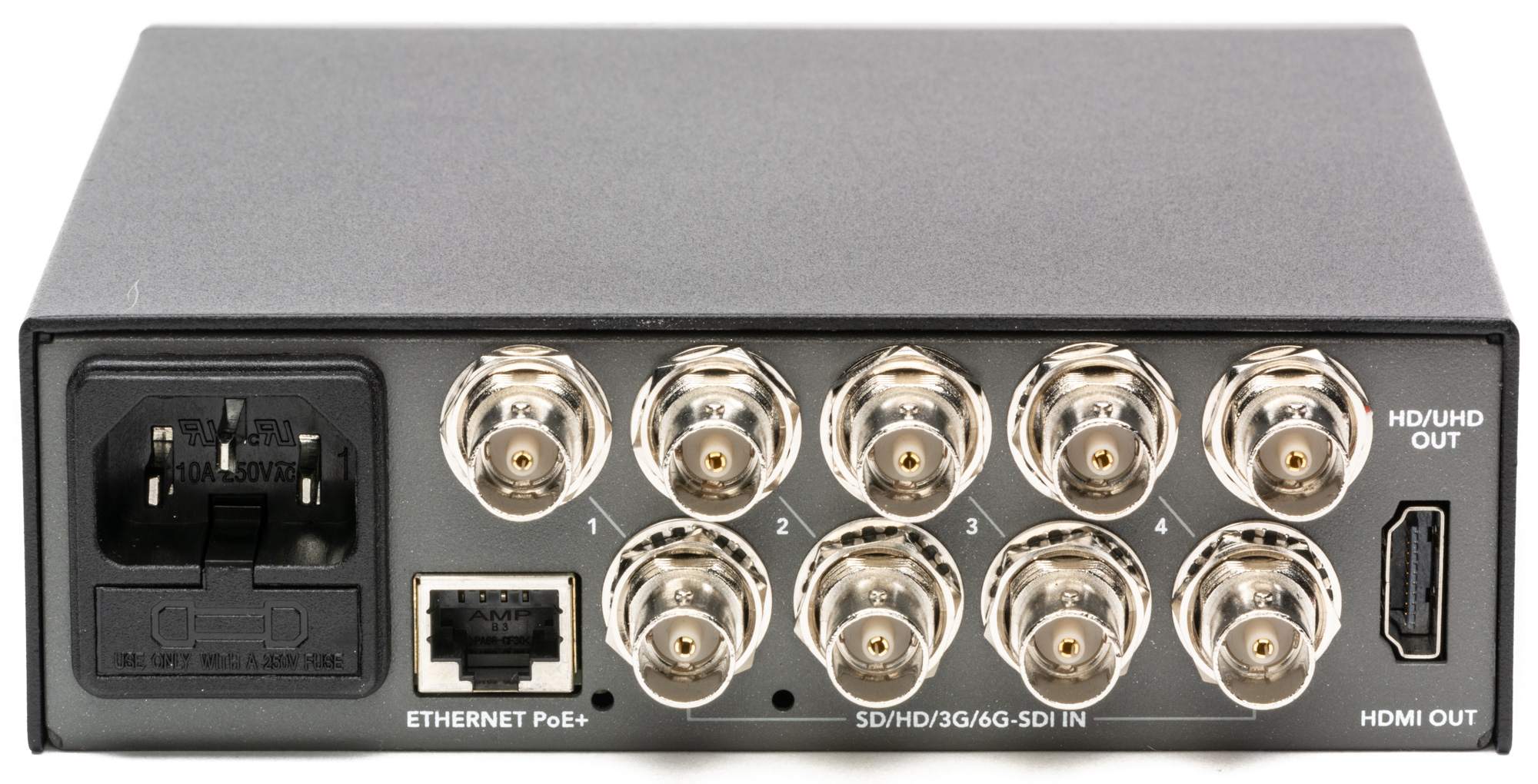

    • Connections
    • SDI Video Input: 4 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
    • SDI Video Loop Output: 4 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
    • SDI Video Multi View Outputs: 1 x 10-bit HD-SDI and 10 bit 6G-SDI
    • HDMI Video Multi View Outputs: 1 x HDMI type A connector. Output supports EDID of the monitor.
    • Multi Rate Support: Auto detection of SD, HD or 6G-SDI. Simultaneous viewing of 4K, HD and SD video.
    • Updates: USB or Ethernet.

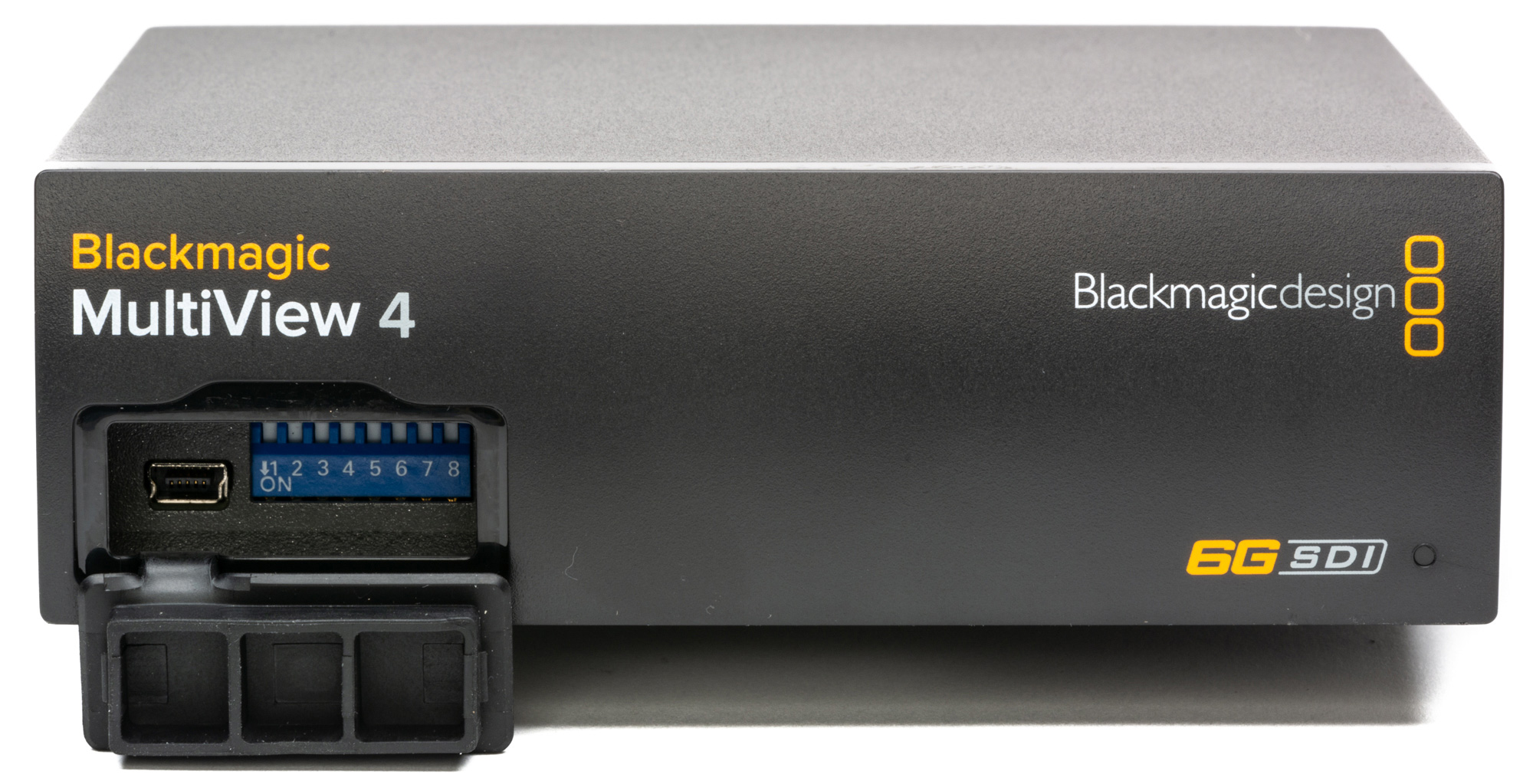

    • Control: Optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons.
    • Configuration: RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
    • Reclocking: On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.

      Standards
    • SD Format Support: 525i29.97 NTSC, 625i25 PAL
    • HD Format Support: 720p50, 720p59.94,720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
    • 2K Format Support: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K 23.98 PsF, 2K 24 PsF, 2K 25 PsF
    • Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
    • 4K Format Support: 2160p24
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.
    • SDI Video Rates: SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI.
    • SDI Video Sampling: 4:2:2 and 4:4:4.
    • SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit.
    • SDI Color Precision: 10-bit 4:2:2 and 4:4:4.
    • SDI Color Space: YUV or RGB for inputs, YUV for outputs.
    • SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input so that each input can be running a different television standard.
    • SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.

      Display: Optional Teranex Mini Smart Panel with 1.5" LCD for menu settings.

      Software
    • Software Control: Multi view software included free for Windows and Mac OS X.
    • Internal Software Upgrade: Via included updater application.

      Operating Systems
    • Mac OS X 10.10 Yosemite,
    • Mac OS X 10.11 El Capitan or later.
    • Windows 8.1 or Windows 10.

      Power Requirements
    • Power Fail Protection: MultiView 4 settings preserved and restored instantly at power on.
    • Power Supply: IEC power cable required. 90 - 240V AC input.
    • Power over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet)
    • Power Consumption: 16 Watts

      Environmental Specifications
    • Operating temperature: 0° to 40° C (32° to 104° F)
    • Storage temperature: -20° to 45° C (-4° to 113° F)
    • Relative Humidity: 0% to 90% non-condensing

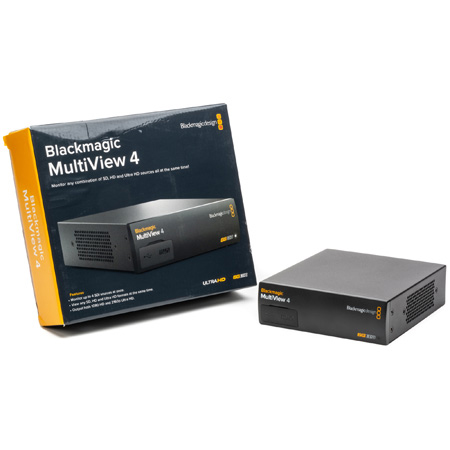

  • Item Includes:

    • Blackmagic MultiView 4
    • SD card with software and manual

  • Warranty:

    • 3 year Limited Manufacturer's Warranty.

  • GTIN:

    9338716003888
