The MUX-22 Series is a group of fiber interfaces that distributes multiple professional video and audio signals, such as SD/HD/3G-SDI over the same optical fiber.
The MUX-22 Series panels offer eight SD/HD/3G-SDI coaxial video inputs or outputs that are converted to and from single-mode optical fiber links. It is equipped with a CWDM (Coarse Wavelength Division Multiplexing) module with auxiliary fiber ports to allow for connection of external fiber systems, to the CWDM module.
The ProGrid audio and data transport seamlessly multiplexes with the MUX-22 Series fiber. Audio and control data from Clear-Com user panels or matrices are sent transparently through the optical network. Each intercom channel can be routed to and from every device on the network using the Optocore Control software. The devices can also be used with other BroaMan units as part of a larger routing solution.

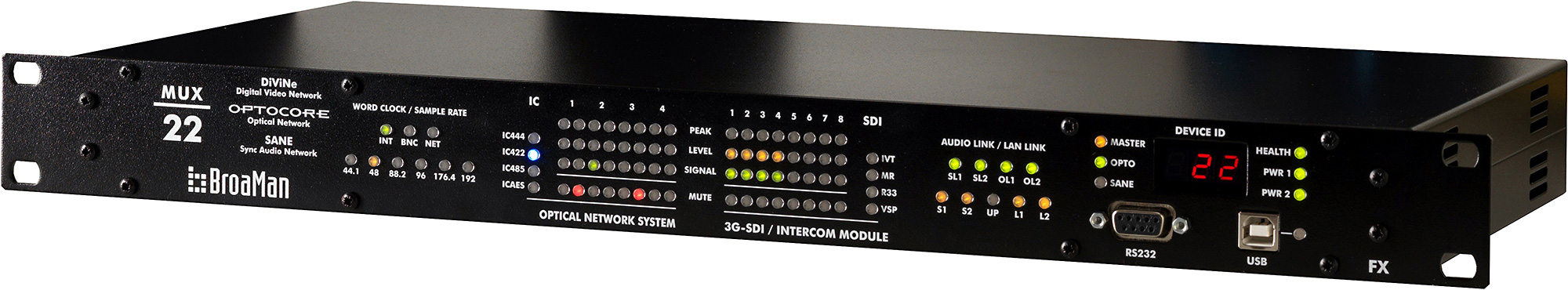

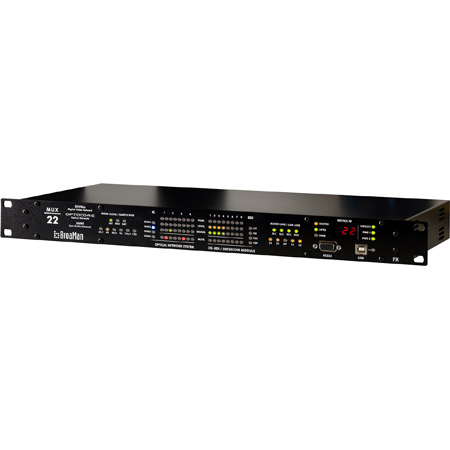

The MUX-22-RTS-8IN is a 1RU single point to point BroaMan Intercom and Video interface with two SANE CAT5 network ports and Optocore Single-Mode LC Fiber interface, and includes 4 RTS RS485 intercom channels, 8 3G-SDI video inputs GPIO Option card. A separate sync i/o, 2 LAN ports and 1 Auxiliary 1310nm fiber tunnel are available. Redundant PSUs are included.
Please note! At least two BroaMan MUX interfaces are required for an end to end link.
