The Route66 Series is a group of fiber interfaces that routes multiple professional video and audio signals, such as SD/HD/3G-SDI over the same optical fiber. The panels have a 40x40 optical MUX and router for up to 24 BNC-SDI 3G/HD/SD video ports, up to 20 duplex or 36 simplex protocol-independent LC fiber ports.
The Route66 routes inputs from 3rd-party video or from fiber from other BroaMan devices, such as MUX-22 Series or Repeat48 Series, under user control. The protocol independence provides for full flexibility and as Route66 Series interfaces do not code or decode the signals, the latency is near zero.
One Route66 AutoRouter can transform Optocore rings, ProGrid or DiGiCo rings into intelligent star with automatic stream patch. It closes the optical loop automatically depending on connected ports.

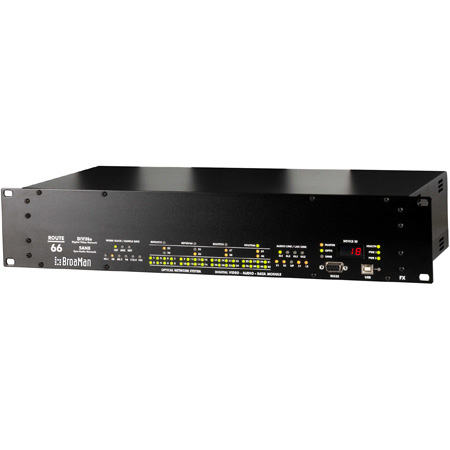

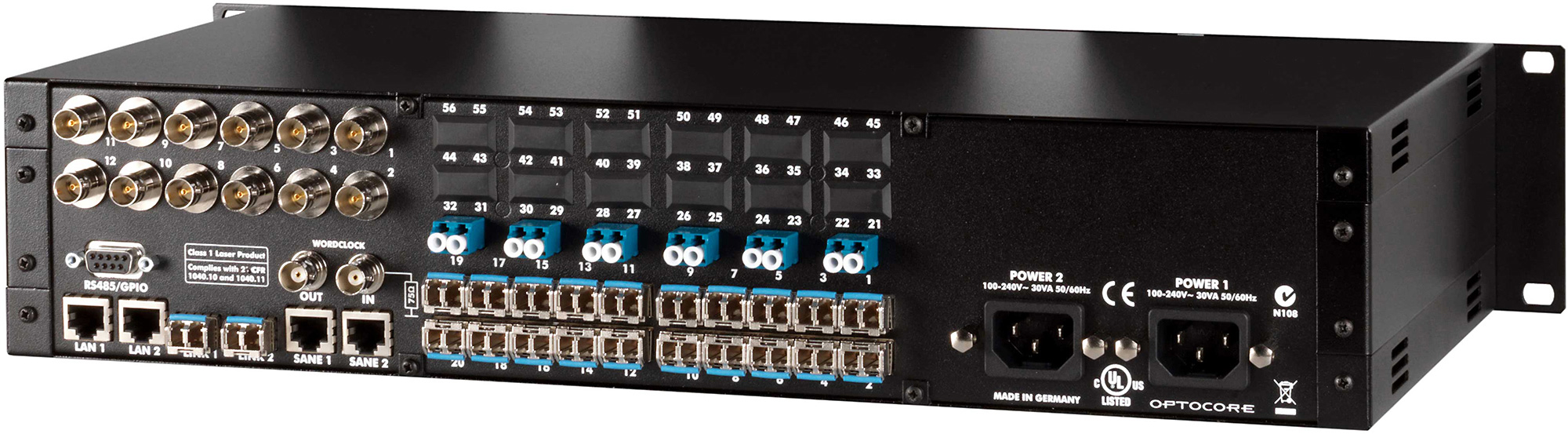

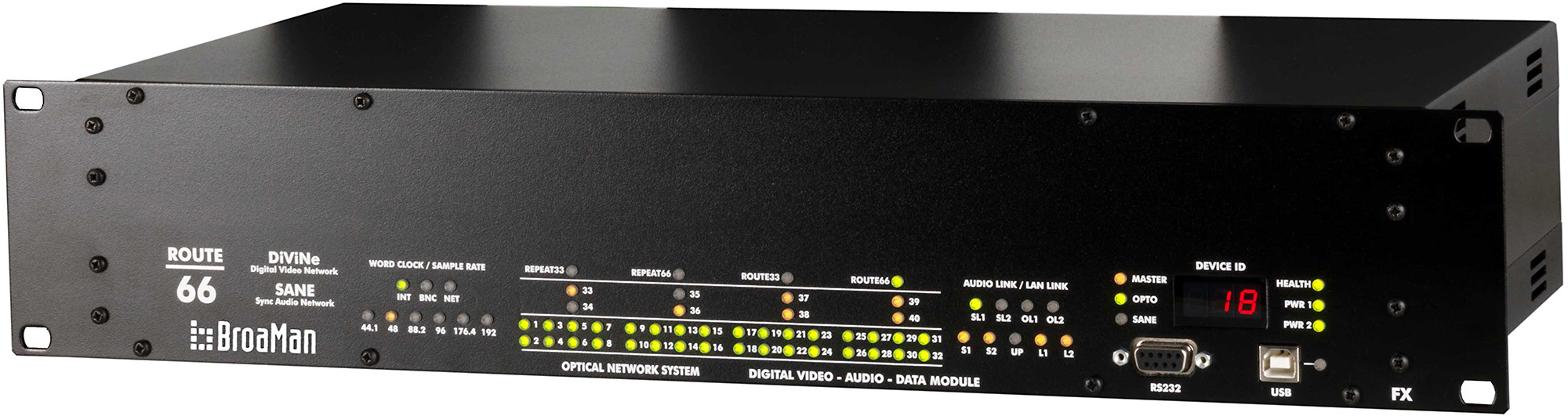

The ROUTE-66-AUTO-15 is a 2RU BroaMan fiber stream AutoRouter, which can transform Optocore, ProGrid or DiGiCo ring into intelligent star with automatic stream patch - it closes the optical loop automatically depending on connected ports. 15 location Route66 AutoRouter enables connection of 15 satellite devices or 15 rings to create one large ring. It is equipped with 30 multimode TRX. Redundant PSUs are included.
