Cobalt RM20-9262-B/S 20-Slot openGear Frame Rear I/O Module (Split Supports 2 Cards) 1 AES Input 2 AES Outputs 2 Analog

RM20-9262-B/S - Overview

• Features:

  • 24-bit audio conversion
  • Supports audio sampling frequencies from 30 kHz to 192 kHz
  • Cable equalization and data reclocking on incoming AES/EBU signal
  • Built-in 1x4 AES DA
  • Remote control/monitoring via DashBoard software

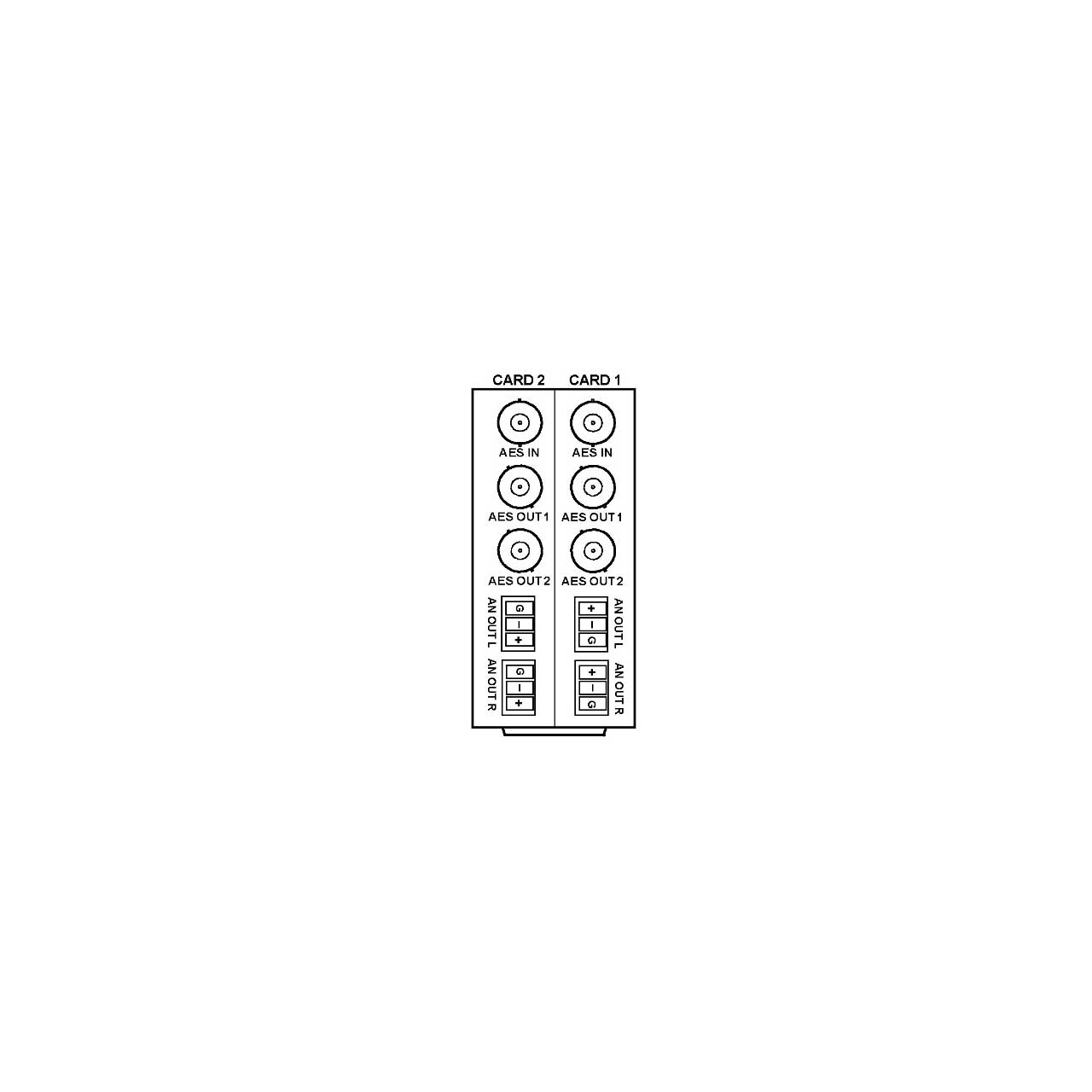

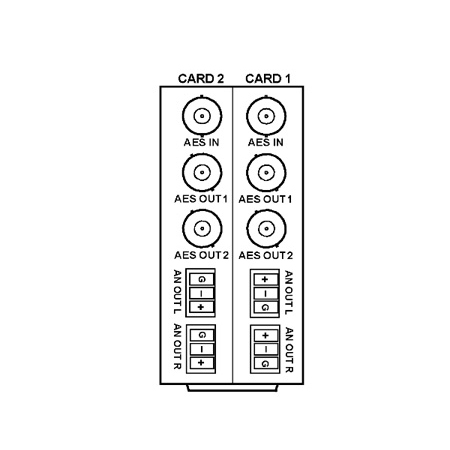

  • (Dual-card (split) rear module; connections are per card)
  • AES In
  • (2) AES Out (1x2 DA)
  • (1) Balanced Analog Audio Out (L)
  • (1) Balanced Analog Audio Out (R)
  • (All coaxial connectors BNC)


• Specifications:

  • Electrical
  • Power: 4 Watts
    AES Input
  • Number of inputs: (1) unbalanced AES-3id
  • Impedance: 75 ω
  • Resolution: 24-bit
  • Level: 0.2 - 7 Vp-p
  • Sample rate: 30 kHz to 192 kHz
    AES Output
  • Number of outputs: (4) unbalanced AES-3id
  • Impedance: 75 ω
  • Resolution: 24-bit
  • Level: 1 Vp-p
  • Sample rate: 30 kHz to 192 kHz
  • Jitter: <5 ns
    Analog Audio Output
  • Number of Outputs: (4) balanced
  • Impedance: 60 ω
  • Freq. Response: +/-0.2 dB at 20 Hz to 20 kHz
  • Max Level: +24 dBu
  • THD+N: <0.01%
  • Noise: -84 dBu at 20 Hz to 20 kHz
