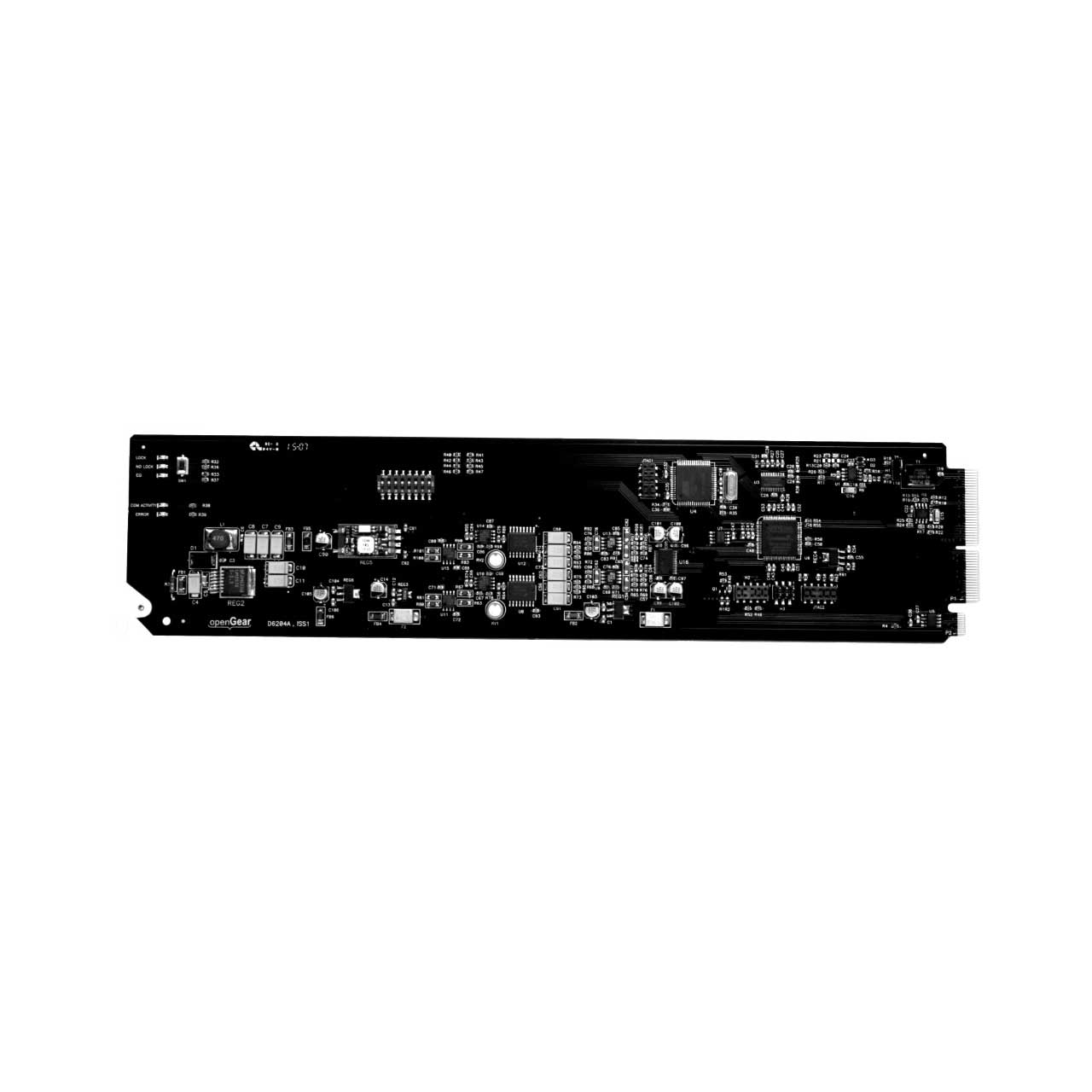

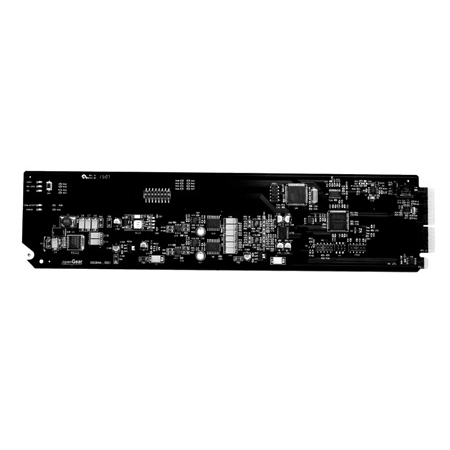

Cobalt Digital 9262 Stereo AES to Analog Audio D/A Converter openGear Card

ITEM #: CB-9262 MFG #: 9262

Primary Image
Cobalt Digital
Free Shipping with $49 Minimum Order

List Price:

$876.00

Our Price:

$875.95

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

9262 - Overview

The 9262 features digital-to-analog audio conversion and also provides a 1x4 AES/EBU DA. It supports audio sampling frequencies from 30 kHz to 192 kHz, and converts the incoming AES digital audio signal to a stereo balanced analog audio signal pair using 24-bit conversion. Cable equalization and reclocking techniques enable the 9262 to reliably recover incoming digital audio signals over large cable lengths.

  • Features:

    • 24-bit audio conversion
    • Supports audio sampling frequencies from 30 kHz to 192 kHz
    • Cable equalization and data reclocking on incoming AES/EBU signal
    • Built-in 1x4 AES DA
    • Remote control/monitoring via DashBoard software


  • Specifications:

    • Electrical
    • Power: 4 Watts
      AES Input
    • Number of inputs: (1) unbalanced AES-3id
    • Impedance: 75 ω
    • Resolution: 24-bit
    • Level: 0.2 - 7 Vp-p
    • Sample rate: 30 kHz to 192 kHz
      AES Output
    • Number of outputs: (4) unbalanced AES-3id
    • Impedance: 75 ω
    • Resolution: 24-bit
    • Level: 1 Vp-p
    • Sample rate: 30 kHz to 192 kHz
    • Jitter: <5 ns
      Analog Audio Output
    • Number of Outputs: (4) balanced
    • Impedance: 60 ω
    • Freq. Response: +/-0.2 dB at 20 Hz to 20 kHz
    • Max Level: +24 dBu
    • THD+N: <0.01%
    • Noise: -84 dBu at 20 Hz to 20 kHz


  • Warranty:

    • 5
