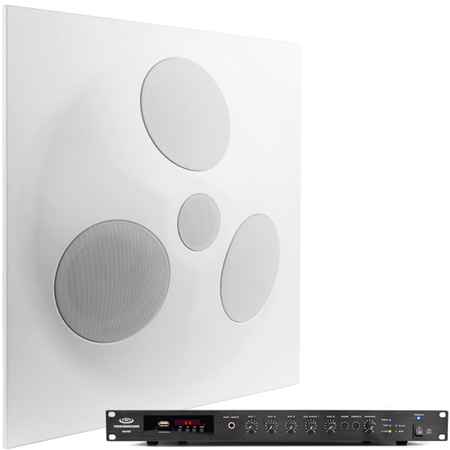

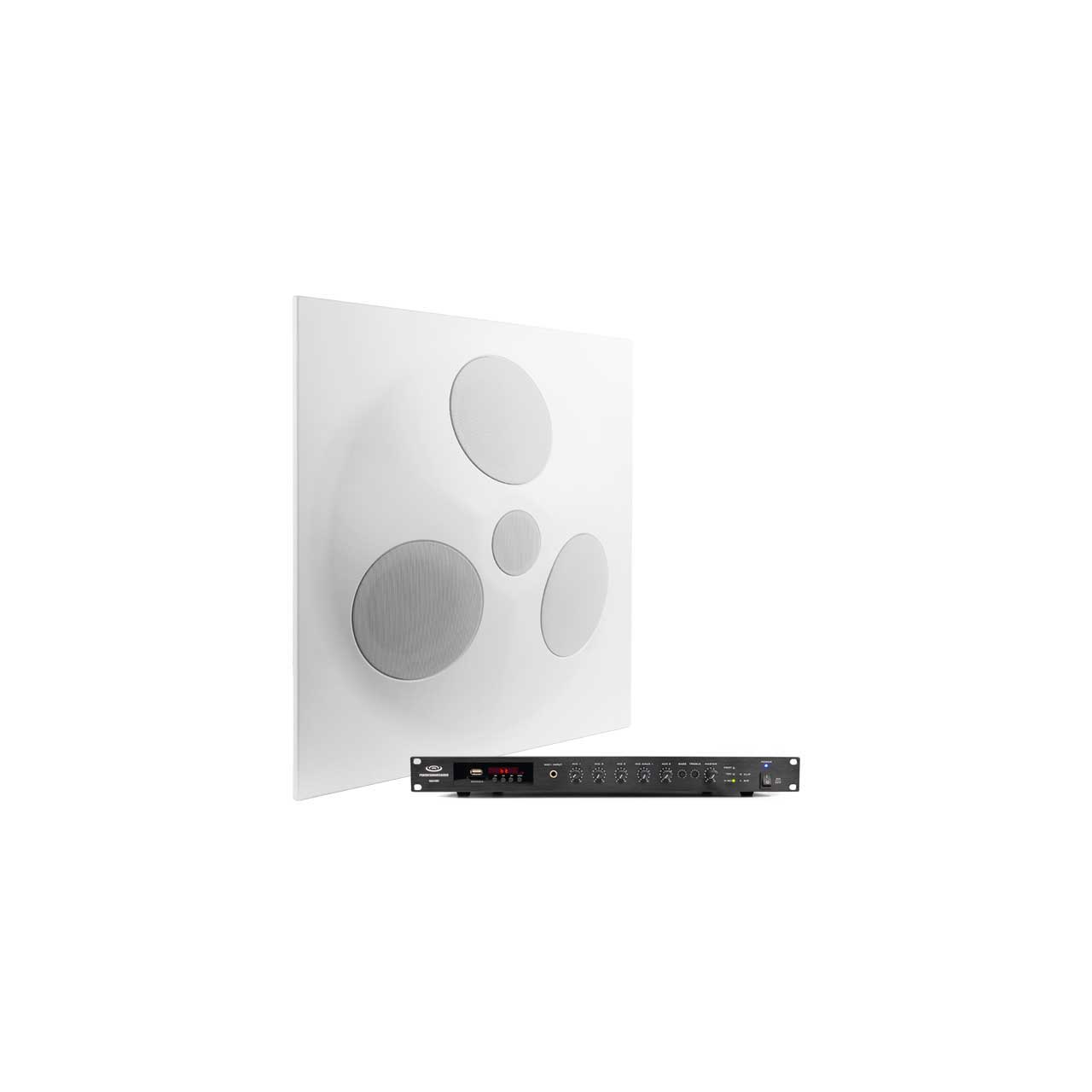

Pure Resonance Audio CFSS-SD5RMA120BT Conference Room System with SD5 & Amplifier with Bluetooth

ITEM #: CFSS-SD5RMA120BT MFG #: CFSS-SD5RMA120BT

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,243.99

Our Price:

$1,039.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


CFSS-SD5RMA120BT - Overview

Conference Room Sound System With Bluetooth
Pure Resonance Audio CFSS-SD5RMA120BT premium conference room sound solution provides 360° of incredible audio coverage with a high-performance 120W mixer amplifier. This speaker system includes a wide coverage, high fidelity, low profile speakers to cover up to 2,500 square feet with rich, crisp, and clear speech reproduction. Wirelessly stream audio with your Bluetooth-enabled device or connect your existing audio and/or video equipment via the mixer amplifier. This conference speaker system is perfect for conference venues, multi-function rooms, event rooms, meeting rooms or any other application where vocal intelligibility is needed.

Bluetooth Ready
Use a smartphone, tablet, laptop or Bluetooth enabled PC to easily stream audio wirelessly to the system from anywhere in the room. Simply press the Mode button on the RMA120BT or remote control until the display indicates "BT" then go to settings in your device and select "PA-02086" to pair. Once connected you're ready to play and control audio from your Bluetooth device.

SD5 Superdispersion Ceiling Speaker Array
The Pure Resonance Audio SD5 SuperDispersion® omnidirectional drop tile ceiling speaker array is the premium solution for speech reproduction and intelligibility that maximizes audio coverage. The SD5 drop ceiling speaker provides an industry-leading 50' by 50' of audio coverage in a smooth, even 360-degree coverage pattern and reproduces speech better than any ceiling speaker on the market today. Just one SD5 speaker takes the place of multiple traditional single ceiling speakers, saving money, simplifying and reducing installation time and cost, and optimizing performance.

RMA120BT 120W Rackmount Bluetooth Mixer Amplifier
The simple to operate Pure Resonance Audio RMA120BT 5-channel commercial rack mount mixer amplifier features 120 watts of high-performance power encased in a slim and lightweight space-saving design. This mixer amplifier provides quick and easy Bluetooth connection as well as the ability to accommodate most input sources like microphones, AV equipment, or computer audio. Adjust the audio levels/settings as well as control the volume to the SD5 speakers with the included remote control.

Quick And Easy To Install
Designed to install much quicker than a traditional ceiling speaker, the SD5 is built to save your most important currency, time. Simply remove one 2'x2' (or a cut 2'x4') ceiling tile, drop the SD5 into any standard drop-ceiling grid, and attach the speaker wire and safety cables. Detailed directions can be found in the provided manuals. Pay careful attention when pulling the speaker wire and hooking up the safety cables. No special audio skills are required. After the speakers and mixer amplifier are properly installed, connect your required input sources or pair a Bluetooth-enabled device, and adjust the volume to the desired level. Enjoy!

Emergency Audio Cutoff
In the event of an emergency, the RMA120BTs' emergency input (EMC In) can be configured to stop all other audio automatically. The emergency input takes priority over all other audio allowing an integrated emergency voice alarm system to be heard loud and clear. This input will work with an existing paging system, emergency paging mic, and, most importantly, a relay closure from a fire alarm system.

  • Features:

    • Pure Resonance Audio SD5 SuperDispersion® 70V Omnidirectional Drop Tile Ceiling Speaker Arrays
    • Omnidirectional coverage pattern provides 360° x 180° of consistent frequency response
    • Powerful proprietary tweeter design with a lower crossover point improves vocal performance
    • Wave guided housing directs sound where it needs to go
    • Ported enclosure is acoustically optimized and tuned with bass-reflex for turbulence reduction
    • Low profile metal back-box comes with built-in safety suspension points
    • Thumbwheel selectable 8-ohm nominal and 70-volt inputs are compatible with any commercial or stereo amplifier
    • Takes just minutes to install, simply remove one ceiling tile and drop the SD5 into any standard drop-ceiling grid
    • Safety carabiner kit includes braided steel cables and infinitely adjustable SpeedClamp™ fasteners for secure and fast easy-install

      Pure Resonance Audio RMA120BT 5-Channel 120W Commercial Rack Mount Mixer Amplifier with Bluetooth 4 Ohm/70V
    • 1 RU chassis, high-efficiency, and lightweight design
    • MP3 media player supports USB, SD, Bluetooth and FM tuner
    • Supports 1 emergency channel input, 2 AUX inputs, and 4 MIC inputs
    • Bass and treble tone controls
    • Level, overload, and protection light indicators provide short circuit, overload, and overheating protection
    • Advanced high-performance power amplifier circuit
    • 4-16Ω/70V speaker output
    • 120W rated output power
    • Forced air-cooling fan from front to back, starts up in a uniform speed rotation and then speeds up when the temperature increases to meet long working hours
    • Remote control

  • Specifications:

    • SD5 Ceiling Speaker
    • Power Handling: 63 Watts RMS
    • Frequency Response: 46Hz - 20kHz
    • Sensitivity: 90dB @ 2.83V/1M
    • Impedance: 8 ohms with Built-in 70V transformer
    • Drivers: 3 5.25" drivers; 3 3" tweeter
    • 70V Transformer Taps: 7.5W, 15W, 30W, 60W @ 70V; 8 ohm Bypass
    • Dispersion: 360° by 180°

      RMA120BT Mixer Amplifier
    • Rated Power Output: 120W
    • Speaker Outputs: 4-16Ω/70V
    • Frequency Response: 80Hz~16KHz +/- 3db
    • Protection: Overheat/Short-circuit

  • Item Includes:

    • 1x Pure Resonance Audio SD5 SuperDispersion® Drop Tile Ceiling Speaker Array
    • 1x Safety Cable Kit
    • 1x Pure Resonance Audio RMA120BT 120W Commercial Bluetooth Mixer Amplifier
    • 1x IR Remote Control
    • 1x Power Cord
    • 1x 50ft Free 16/2 Gauge Speaker Wire

  • Warranty:

    • Speakers: 2 Years
    • Amplifiers & Electronics: 1 Year
    • Microphones: 1 Year
    • Accessories: 1 Year
