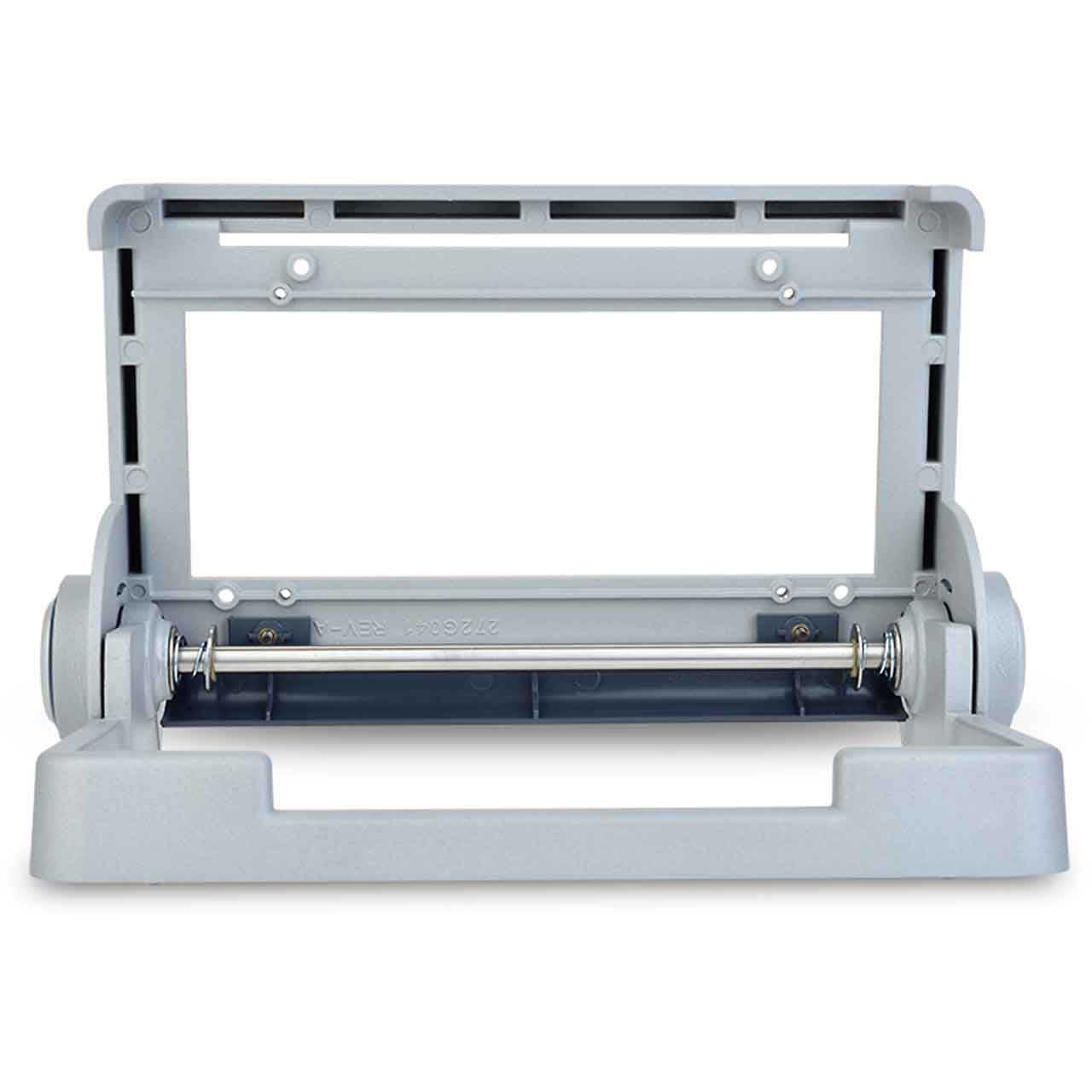

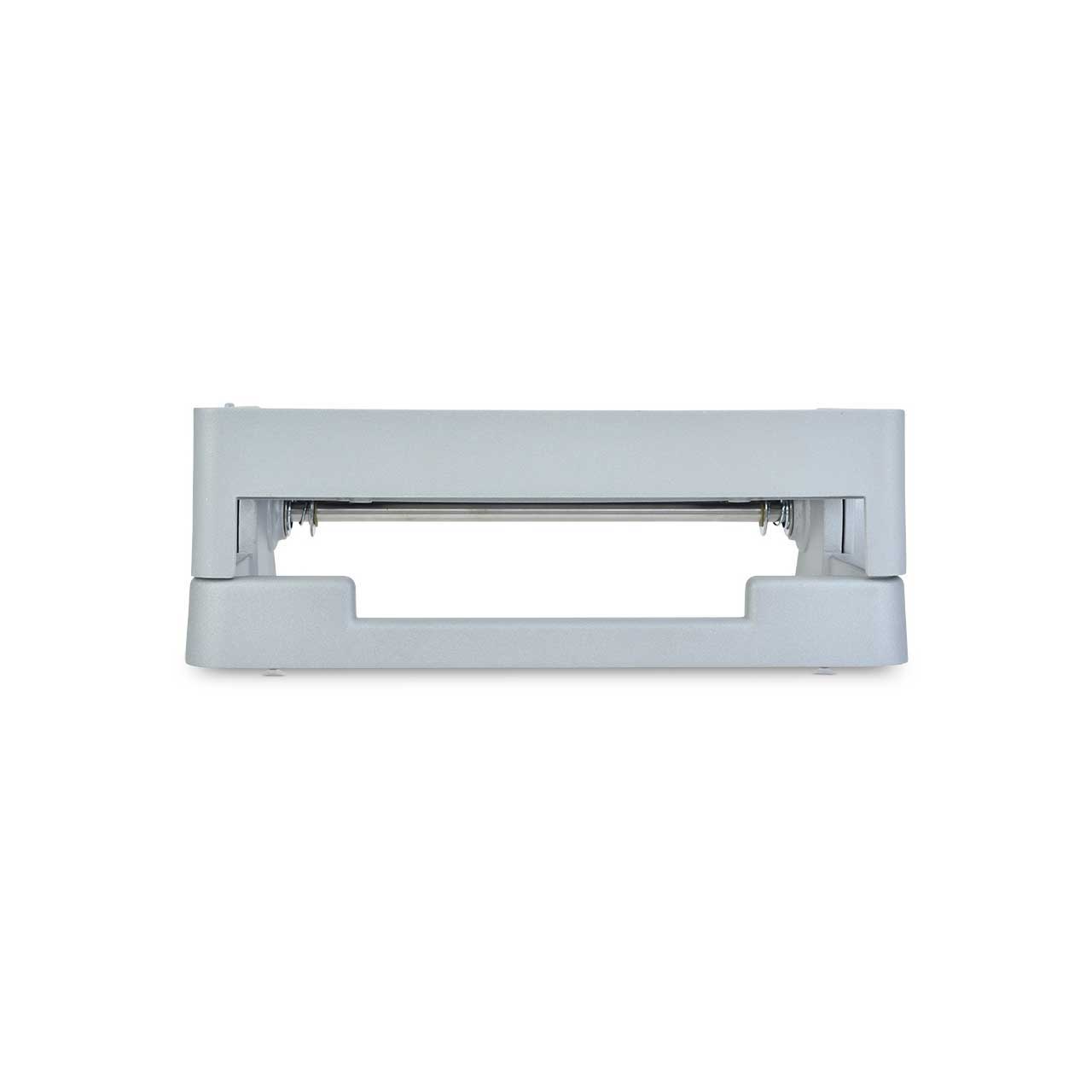

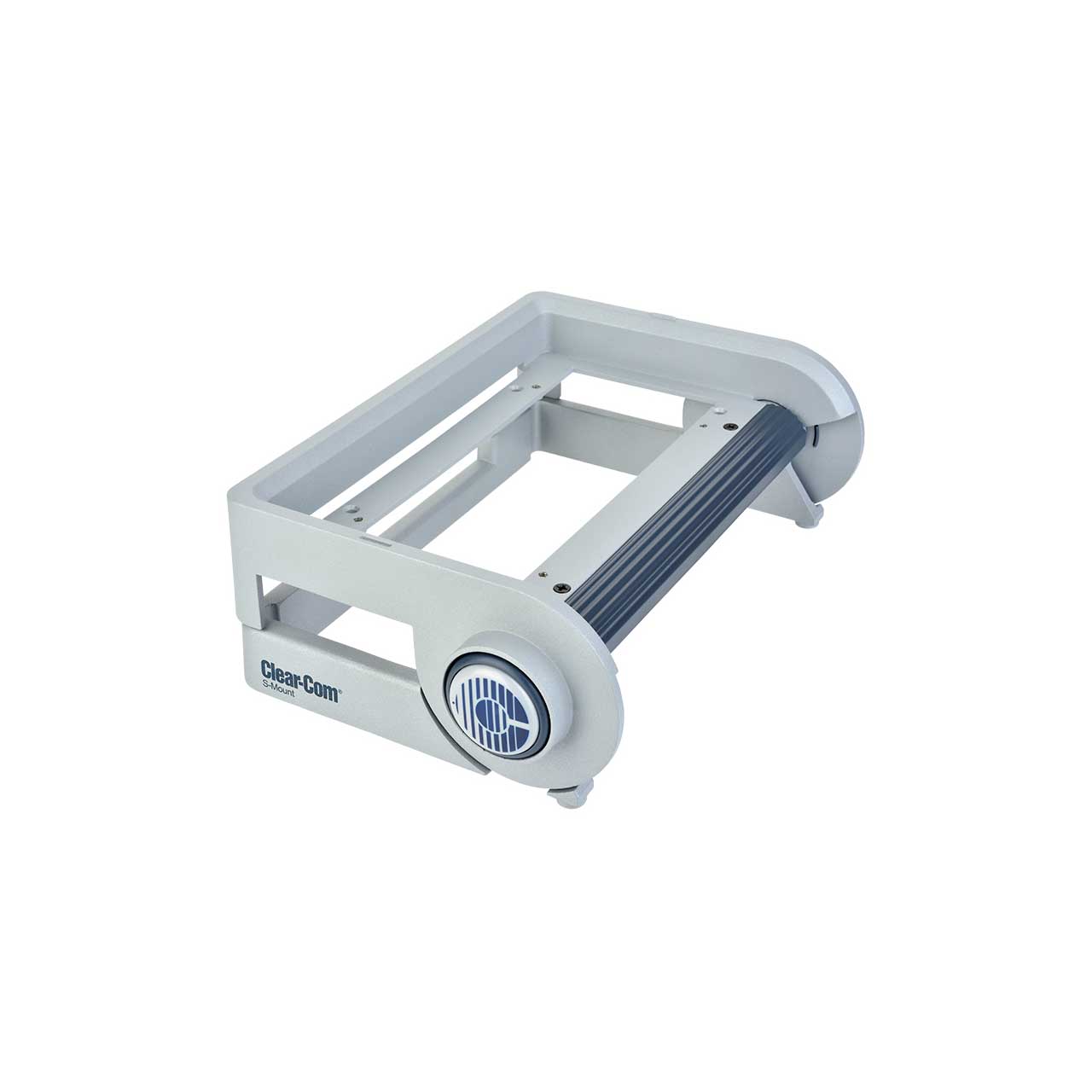

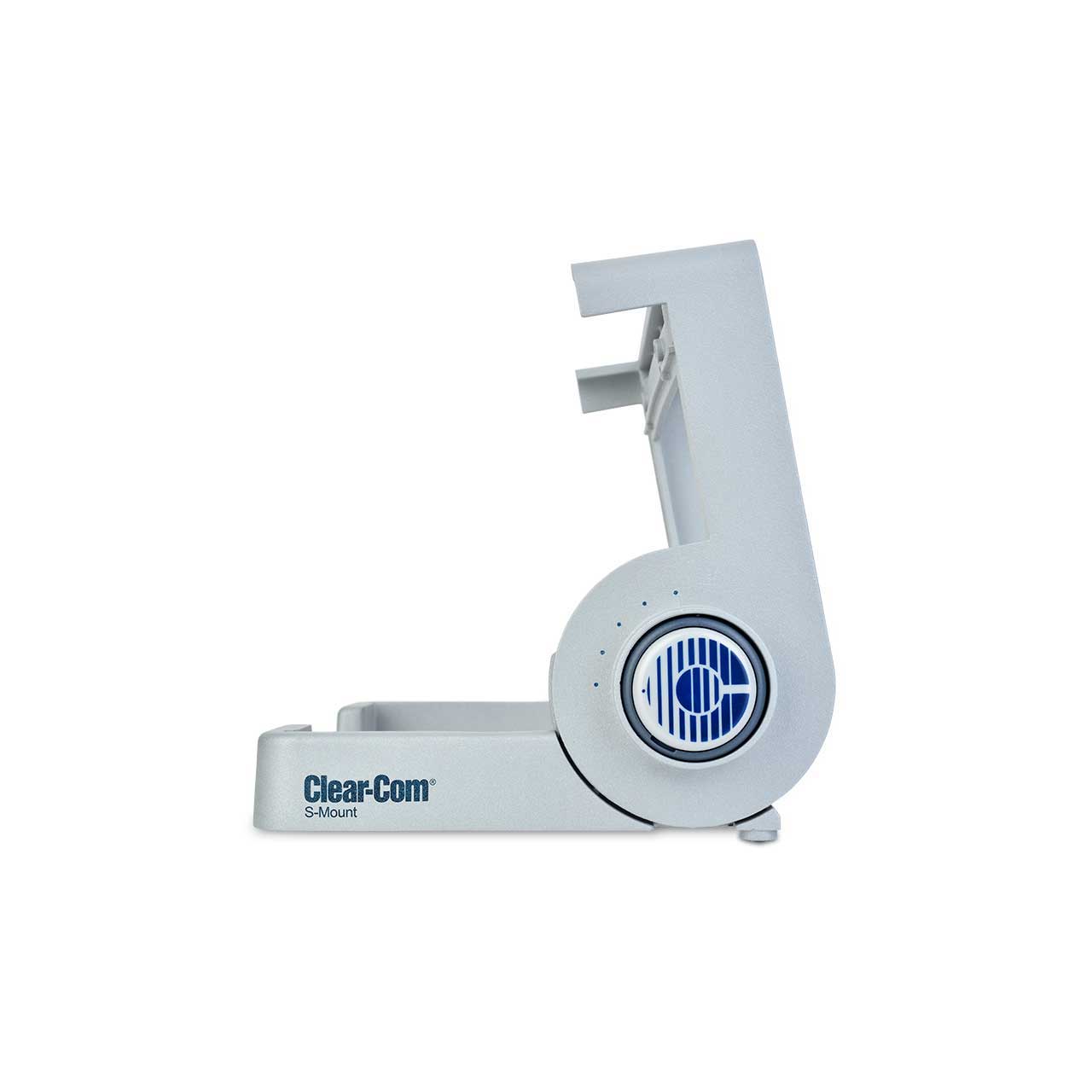

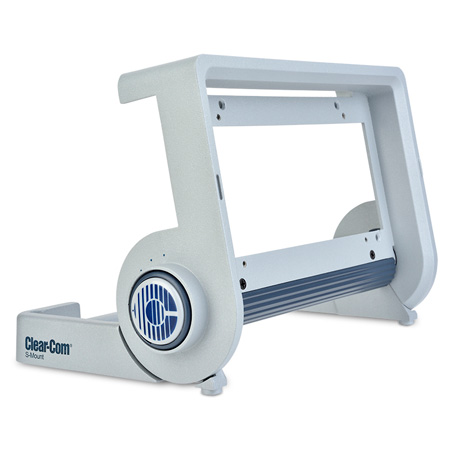

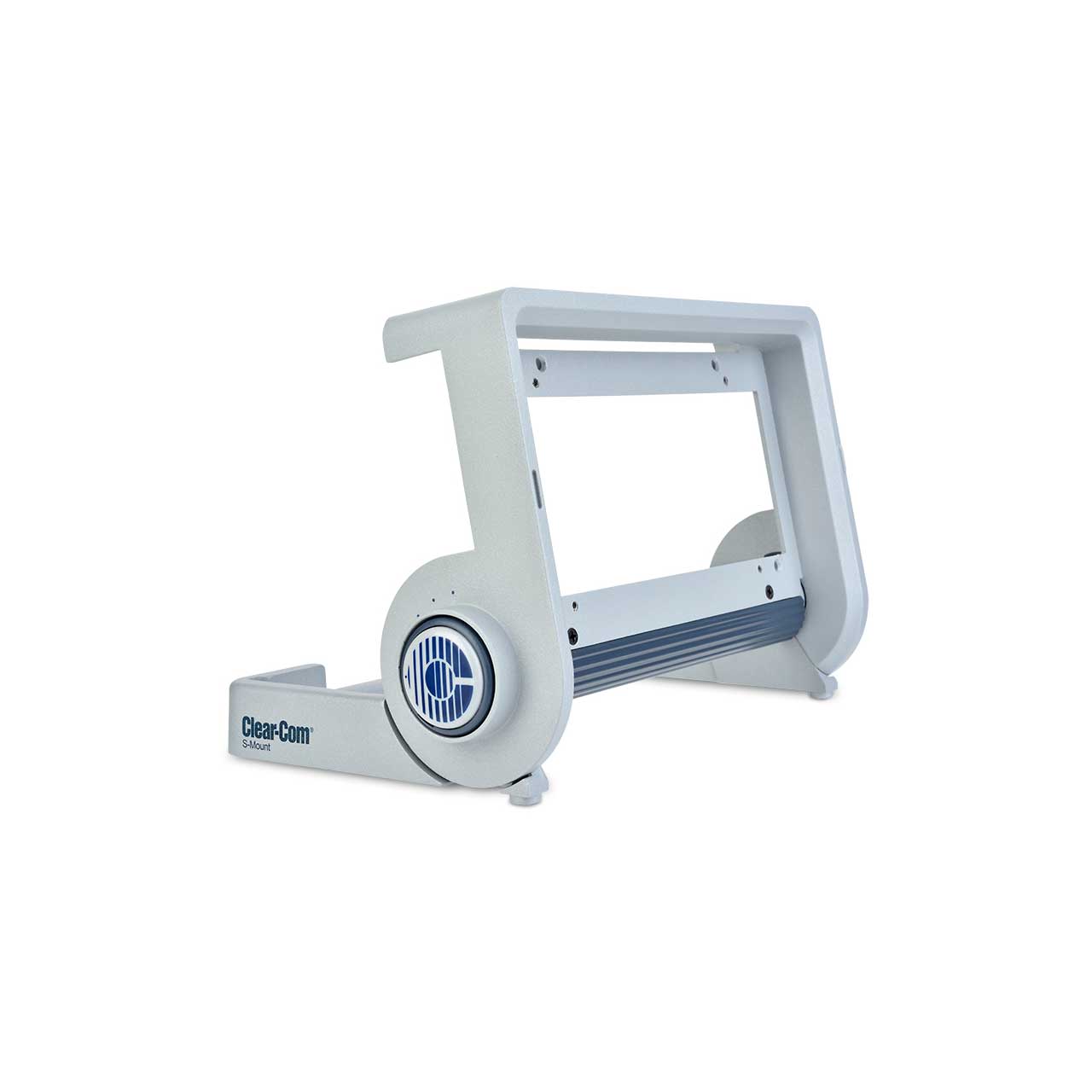

The ClearCom HelixNet S-MOUNT is a desktop or surface mount enclosure kit for mounting the HKB-2X HelixNet Intercom Speaker Station (sold separately). HelixNet® is a fully networked partyline intercom, supporting up to 24 channels and independent Program Audio over XLR, LAN or WAN. Intended for portable and semi-permanent installations, the S-MOUNT features raised sides to protect the knobs of the HKB-2X speaker station from damage. Mounted speaker stations can be carried face-to-face if needed due to keyed lugs for easy stacking. Anti-slip feet help prevent movement when using the S-MOUNT on a desktop. For temporary setups, the screw holes provided on the S-MOUNT allow simple and quick surface mounting. The S-MOUNT provides the HKB-2X's connections as XLR-3M/F loop-thru and RJ45 LAN connector for connectivity to the HMS-4X main station over XLR Powerline or Ethernet, while providing ability to power the unit from Powerline, Power-over-Ethernet (PoE) or a DC input using the supplied power supply.
Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system.
