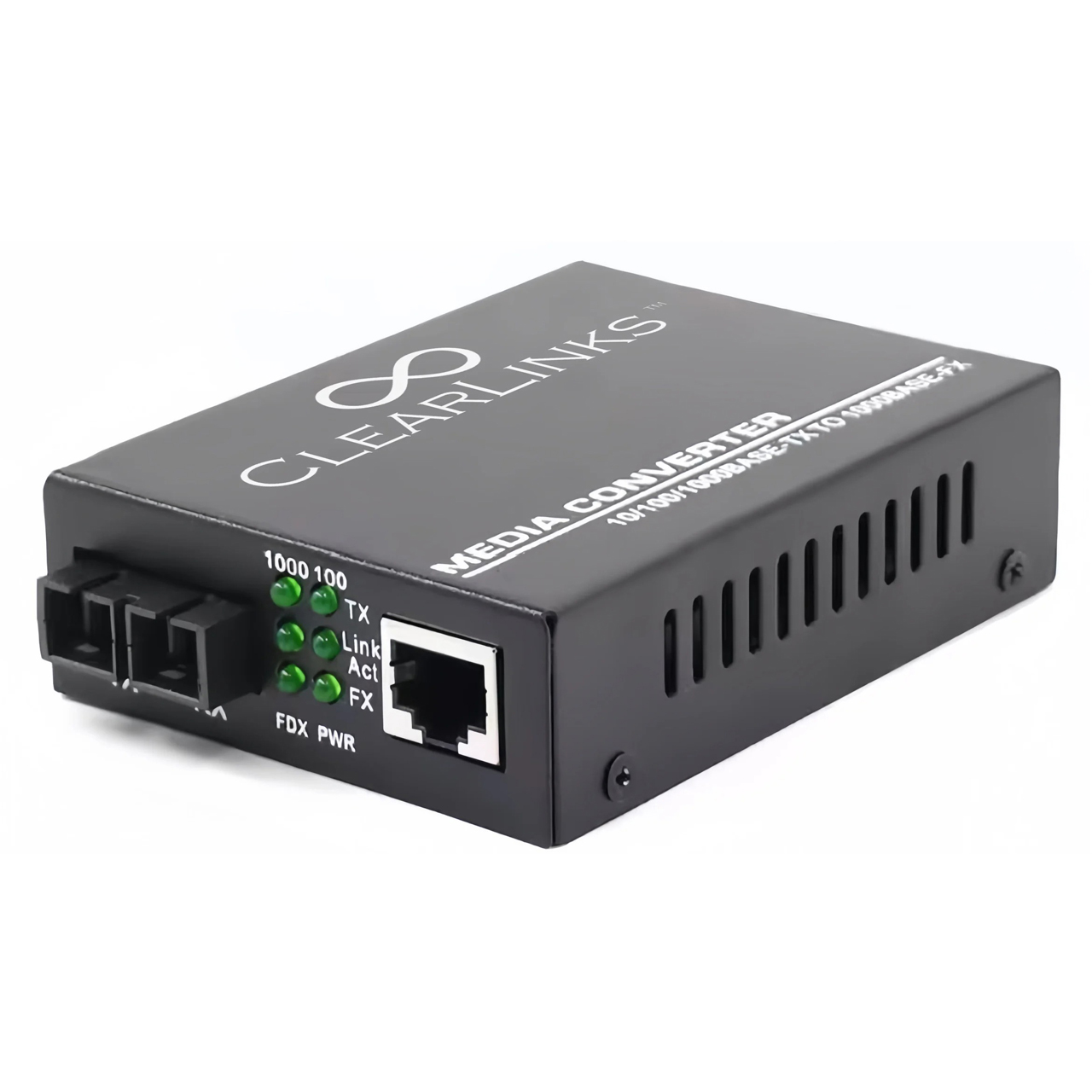

ClearLinks CGU-00101C1 RJ45 to SC 1 Gigabit Media Converter - Multi-Mode Fiber - 550m Range - w/ SFP

CGU-00101C1 - Overview

• Features:

  • 850nm Multi-Mode Dual-Fiber Optical Module: Supports a transmission distance of 500 meters; upgradable to a 1310nm multi-mode dual-fiber optical module, extending transmission up to 2 kilometers.
  • Ethernet Standards Compliance: Fully compliant with IEEE 802.3, 1000Base-TX, 1000Base-FX, IEEE 802.3U, IEEE 802.3X, and IEEE 802.1d standards.
  • Flow Control: Supports full-duplex flow control and half-duplex back pressure flow control for efficient data management.
  • Auto-Negotiation & Auto-MDI/MDI-X: Enables 10/100/1000BASE-T auto-negotiation and crossover functionality for seamless device integration.
  • Performance Monitoring: Equipped with six LED indicators to monitor network performance and device status.
  • Power Consumption: Low power usage of 5W with input support ranging from AC110 to 240V.
  • Comprehensive After-Sales Service: Includes up to three years of quality assurance and maintenance services for long-term reliability.
  • Extended Temperature Range: Designed to operate efficiently in environments with temperatures ranging from 32°F - 122°F (0°C to 50°C).
  • Flexible Installation Options: Supports both rack-mount and standalone installation, offering versatile deployment options based on network needs.
  • Comprehensive After-Sales Service: Includes up to three years of quality assurance and maintenance, ensuring long-term reliability and support.


• Specifications:

  • Optical Ports: 1x 100Base-SC
  • Copper Ports: 1x 10/100/1000BaseT RJ45
  • Wavelength: 850nm
  • Range: 550m
  • Fiber Mode: Multi-mode
  • Input Power: 5V DC, 1A
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Storage Temperature 14°F - 158°F (-10°C - 70°C)


• Item Includes:

  • 1x Power cord
  • 1x Warranty card


• Warranty:

  • 3 Year Warranty
