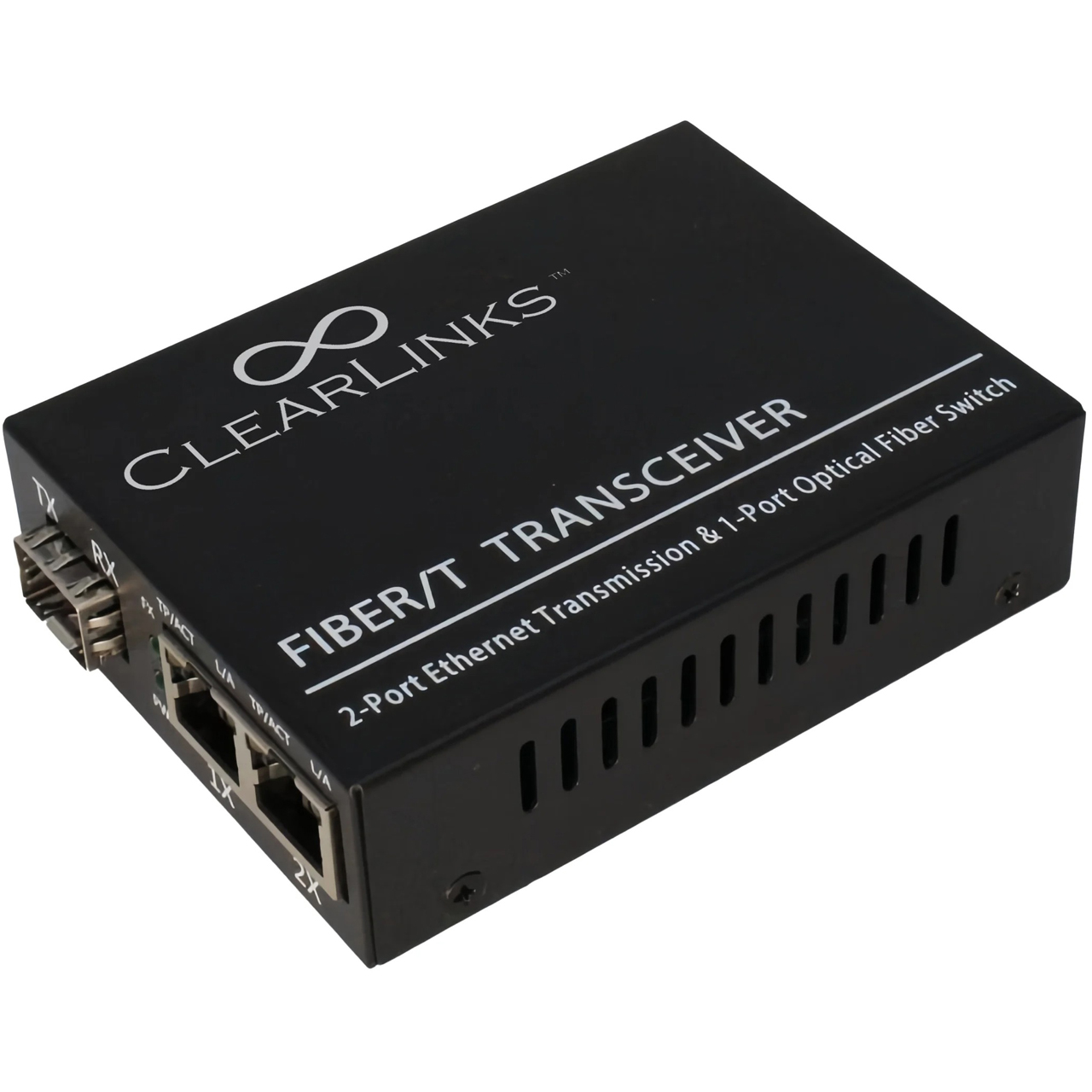

ClearLinks CGU-10102S RJ45 to SFP PoE 1 Gigabit Media Converter

Name: ClearLinks CGU-10102S RJ45 to SFP PoE 1 Gigabit Media Converter
Brand: ClearLinks
SKU: CLK-CGU-10102S
Price: 186.00 USD
Availability: PreSale

ITEM #: CLK-CGU-10102S MFG #: CGU-10102S

ClearLinks

Our Price:

$186.00

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

CGU-10102S - Overview

Both the IEEE 802.3at PoE+ and IEEE 802.3af PoE standards are supported by the ClearLinks CGU-10102S PoE+ Gigabit Ethernet media converter. The device uses Cat5e/6 cables to convert single-mode or multi-mode fiber signals to copper Ethernet signals, offering 48 VDC power and Gigabit Ethernet up to 100 meters. The device is perfect for powering and data-supplying PoE and PoE+ devices, including VoIP phones, access control devices, security cameras, and etc. Without the need to install extra power outlets and cables, the CGU-10102S is the perfect way to supply data and power straight to network devices via the RJ45 interface.

Please Note: SFPs sold separately.

Features:
- IEEE802.3af/at Compliance: Fully compliant with IEEE 802.3af/at PoE standards, ensuring seamless integration with a wide range of powered devices.
- Power Output: Supports up to 30 watts of output power, ideal for powering PoE-enabled devices.
- 10/100/1000Mbps RJ45 Port: Features auto-negotiation to bridge varying network speeds and devices into a unified Gigabit fiber network.
- High-Speed Bandwidth: Designed to deliver high-speed performance for large-scale workgroups requiring Ethernet network expansion.
- SFP Module Compatibility: Supports both multi-mode and single-mode fiber, providing flexible deployment options via various SFP modules.
- Extended Range: Capable of extending Ethernet connections up to 120km with a 1.25G SFP module.
- Standards Compliance: Adheres to IEEE 802.3 10BaseT, IEEE 802.3u 1000BaseTX, and 1000BaseFX standards, ensuring compatibility and reliable operation.
- Auto-Negotiation & Auto-MDI/MDI-X: Automatically adjusts speed and crossover settings for seamless integration and reduced configuration efforts.
- LED Indicators: Clear, easy-to-read LED indicators enable real-time monitoring of device and network status.
- Comprehensive After-Sales Service: Includes up to three years of quality assurance and maintenance, ensuring long-term reliability and support.
Specifications:
- Optical Ports: 1x 100Base-SFP
- Copper Ports: 2x 10/100/1000BaseT RJ45
- Wavelength: 850-1310nm
- Fiber Mode: Single-mode/Multi-mode
- Input Power: 5V DC, 1A
- Operating Temperature: 32°F - 122°F (0°C - 50°C)
- Storage Temperature 14°F - 158°F (-10°C - 70°C)
Item Includes:
- 1x Power cord
- 1x Warranty card
Warranty:
- 3 Year Warranty
