Extend full 18Gb HDMI signals over long distances via LC fiber optic cables with the Camplex FMCH002. This unit fully supports HDR 18Gbps 4:4:4 for resolutions up to 4096 x 2160 @60Hz while also offering RS232 machine control.

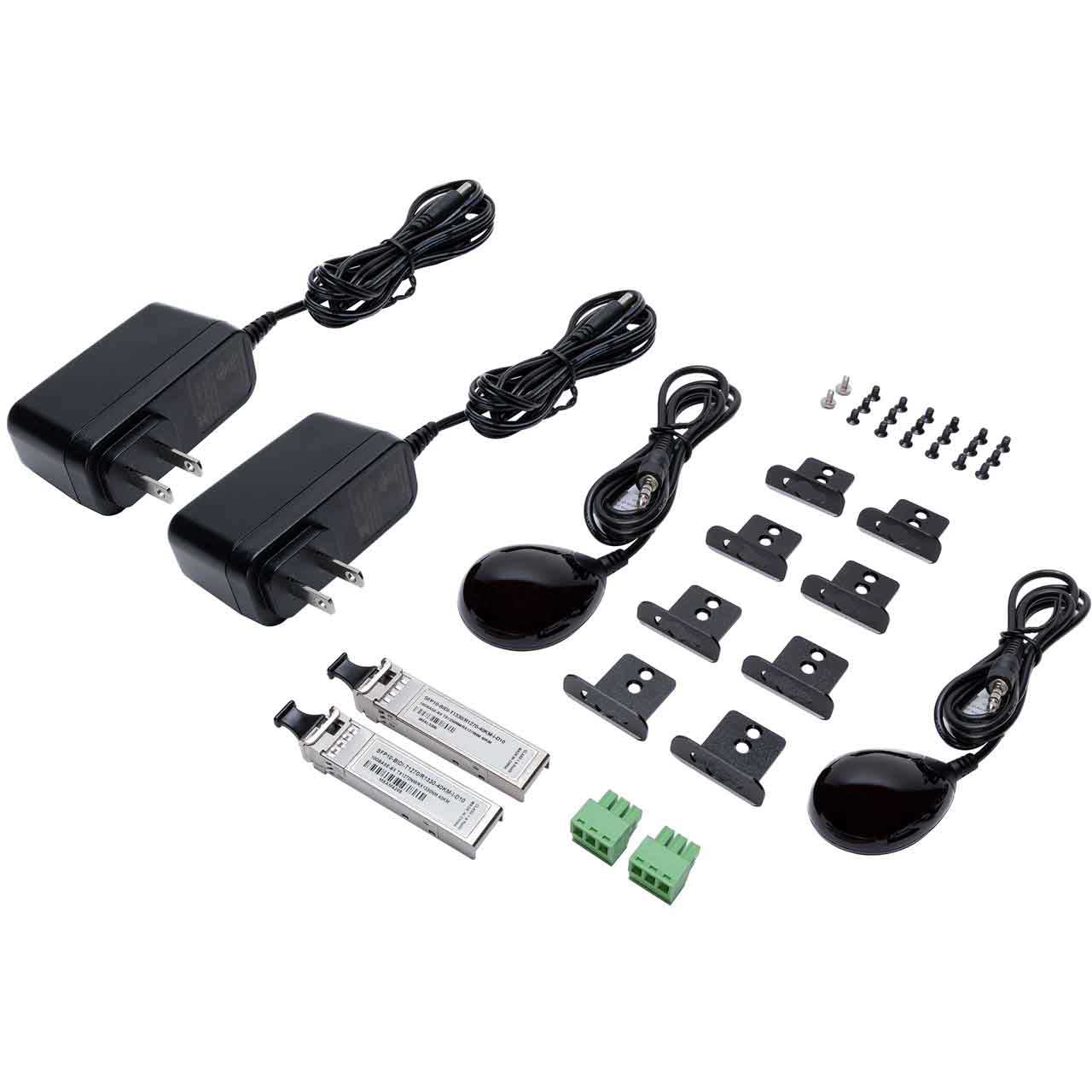

The feature set of the Camplex FMCH002 also includes the ability to utilize a transmitter and receiver set as a point-to-point HDMI fiber extender or use it in conjunction with a 10G ethernet switch in a point to multipoint matrix. Transmitters feature a looping HDMI output for monitoring purposes and receivers have Toslink audio outputs. Each kit includes LC Fiber SFP modules and power supplies.
The entire system supports EDID pass-through as well as HDCP 2.2 to ensure display and projection compatibility. The Camplex FMCH002 is the right solution for multi-camera productions at outside venues, theater, and live event projection systems and more.
