CMX-TACNGO-AUDBD - Overview

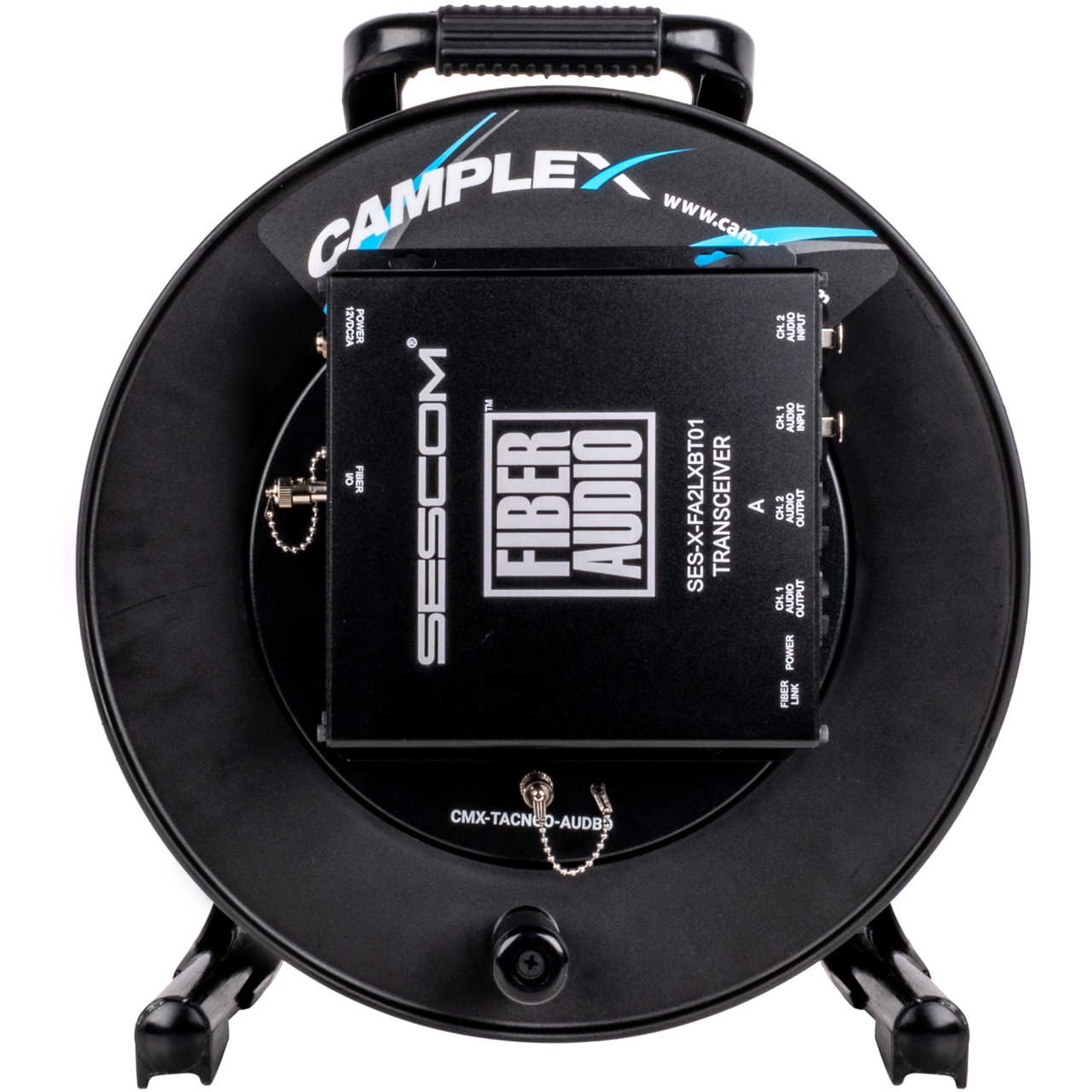

The Camplex TACNGO-AUDBD provides a simplified means for running long distance 2-Channel Bi-Directional Line Level Audio for use in live events, concerts and even clock & timing transmission. The TACNGO-AUDBD combines a Sescom X-FA2LXBT01 audio over fiber converter system with a Camplex 1000-foot single mode ST tactical cable reel for fast field deployment.

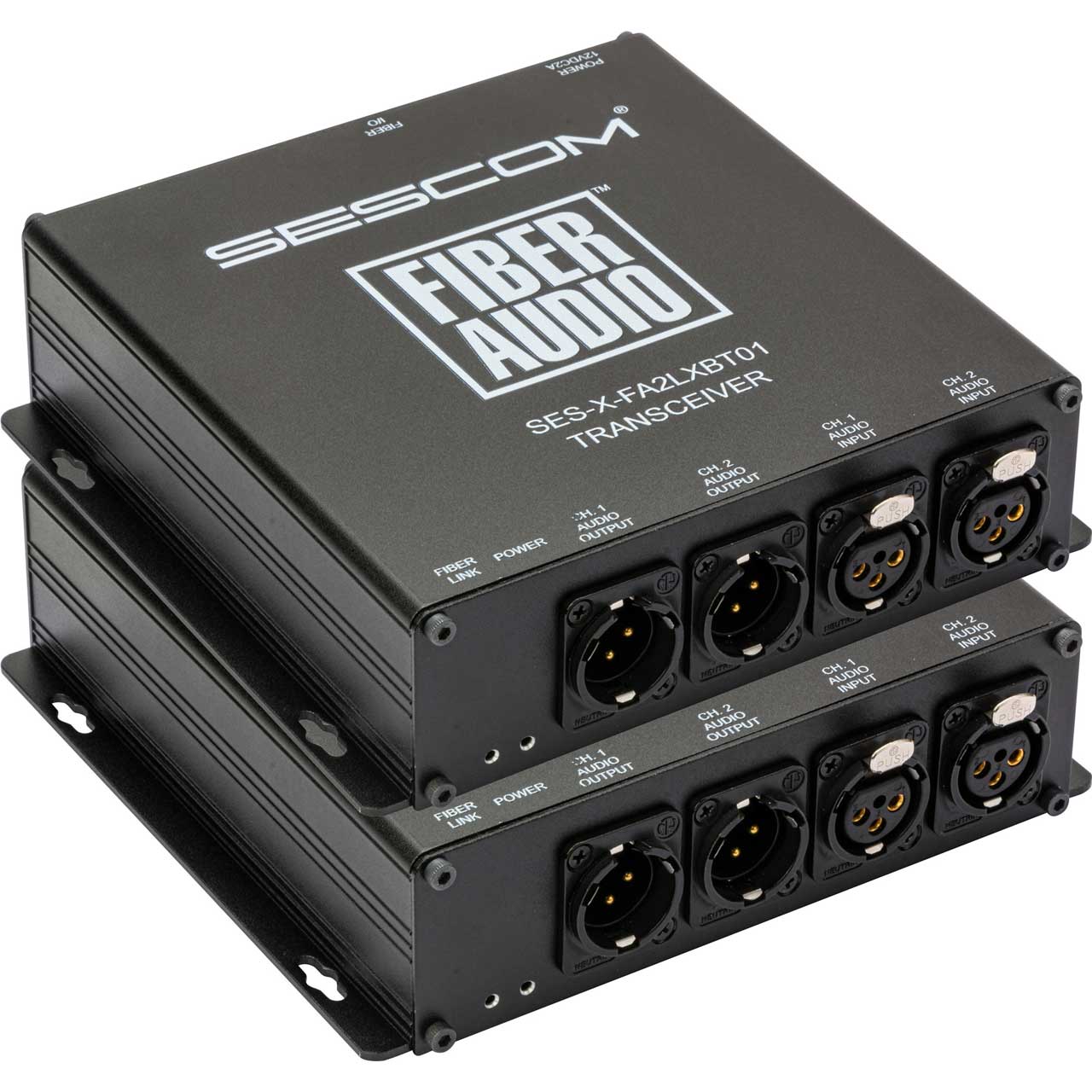

Utilizing the Sescom X-FA2LXBT01 audio fiber converters permits the TACNGO-AUDBD to send 2 channels of balanced audio via XLR connectors in either direction for an extremely flexible field system. The system uses trusted bayonet locking ST connectors to ensure your signal will remain uninterrupted.

The Camplex tactical fiber is the perfect fit for any outside or live venue use as it stands up to the punishment of field abuse. Fiber is also the ultimate choice to avoid audio hum and interference often found in long copper audio runs.

  • Features:

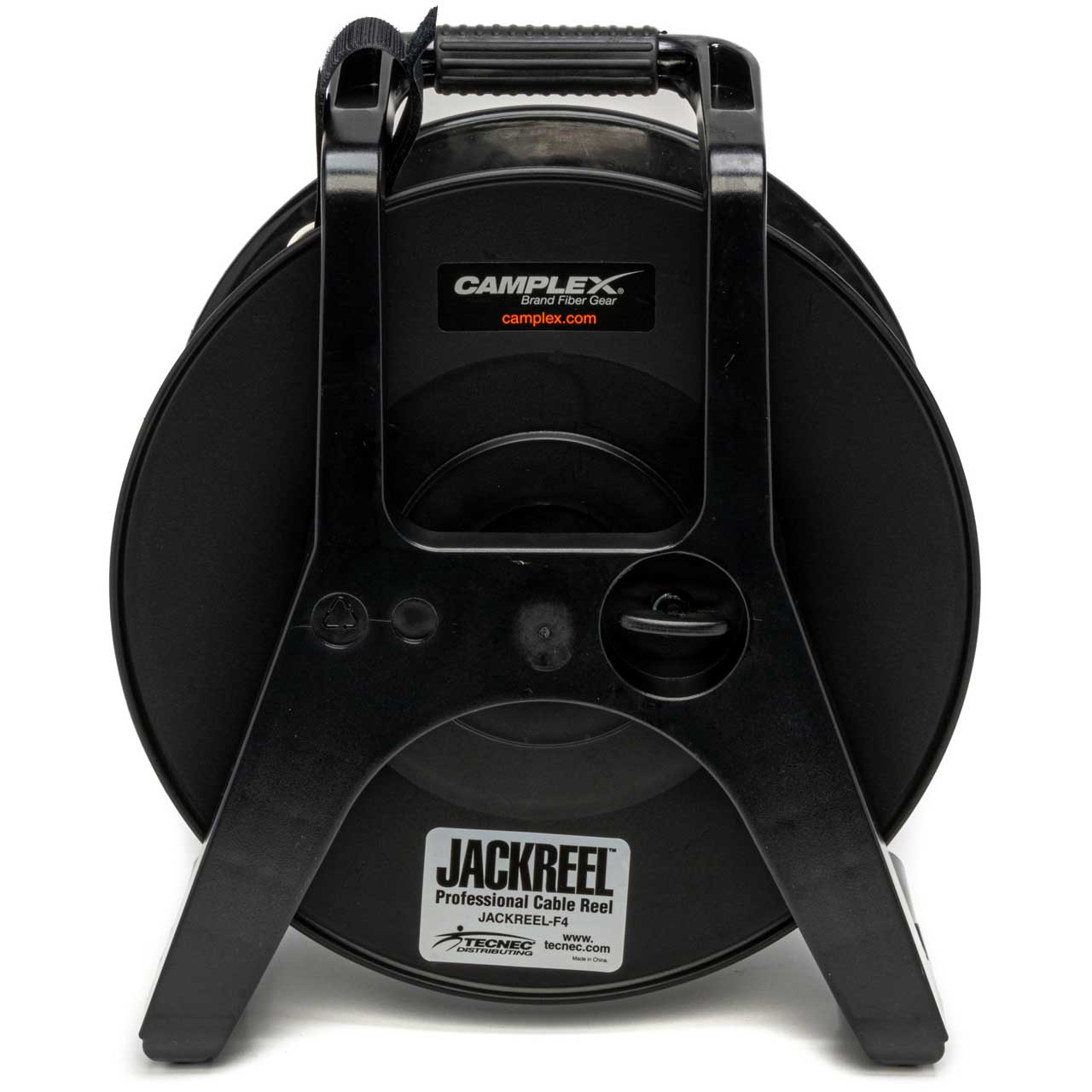

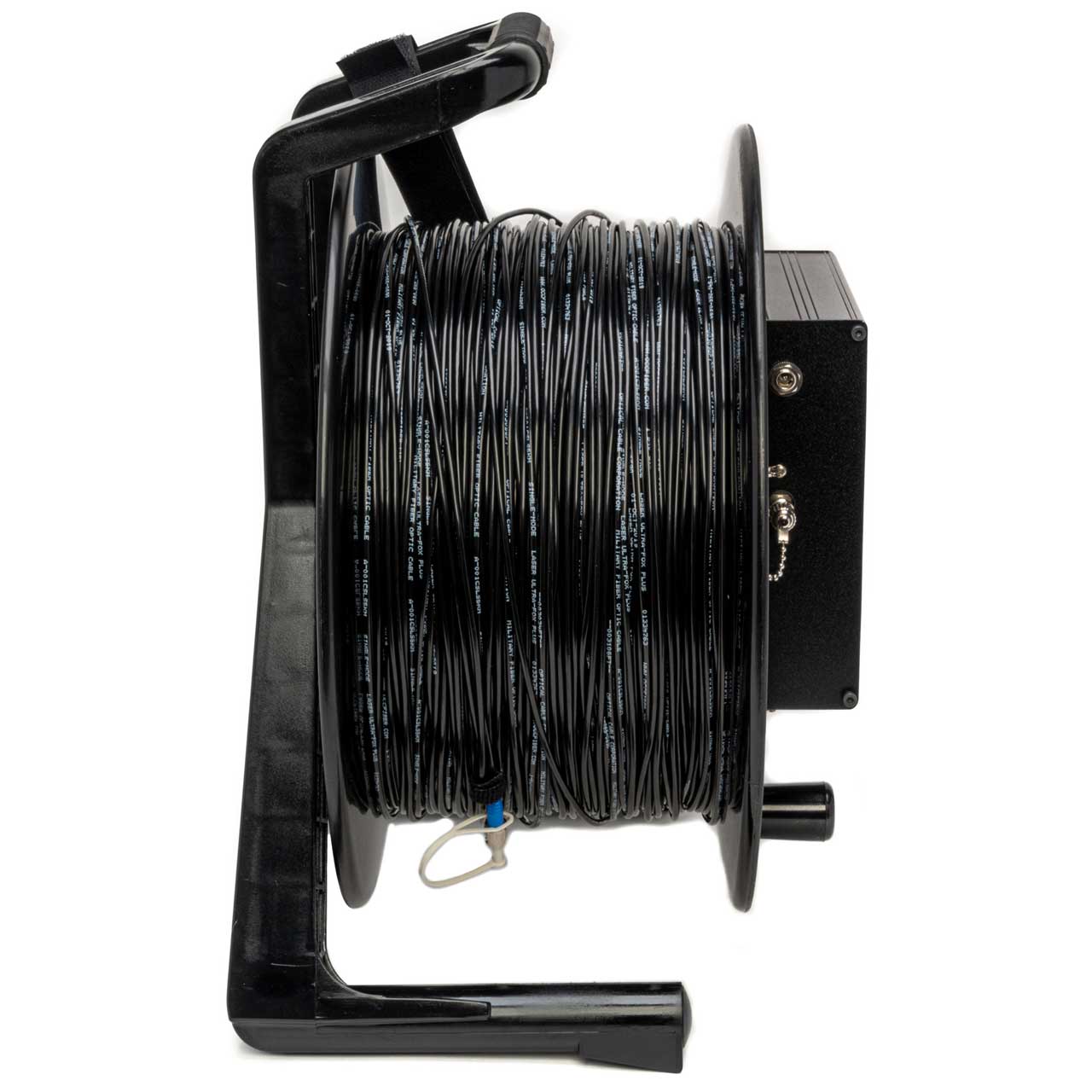

    • Rugged Cable Reel for Fast and Easy Field Deployment
    • 2-Channel XLR Bidirectional Audio over Fiber Extender
    • ST Fiber Connector
    • 24-Bit Digitally Encoded Analog Audio
    • Transmission Distance up to 12.4 miles over Singlemode Fiber
    • No Loss in Signal Quality
    • Adjustment Free Plug & Play Operation
    • Enable Cascaded Audio Setups
    • Line Level Balanced Audio Operation
    • Indicator LEDs Monitor Fiber Link and Power

  • Specifications:

    • Unity Gain: 0dB
    • Sample Rate: 48kHz, 24K bit rate
    • Frequency Response: 20Hz - 20kHz
    • Signal to Noise Ratio > 90dB Ref. 4dBu, A Weighting
    • Total Harmonic Distortion <0.05%
    • Maximum Balanced Input Signal: 18dBu
    • Optical Wavelength: 1310nm/1550nm
    • Max input/output voltage: 17.4Vp-p

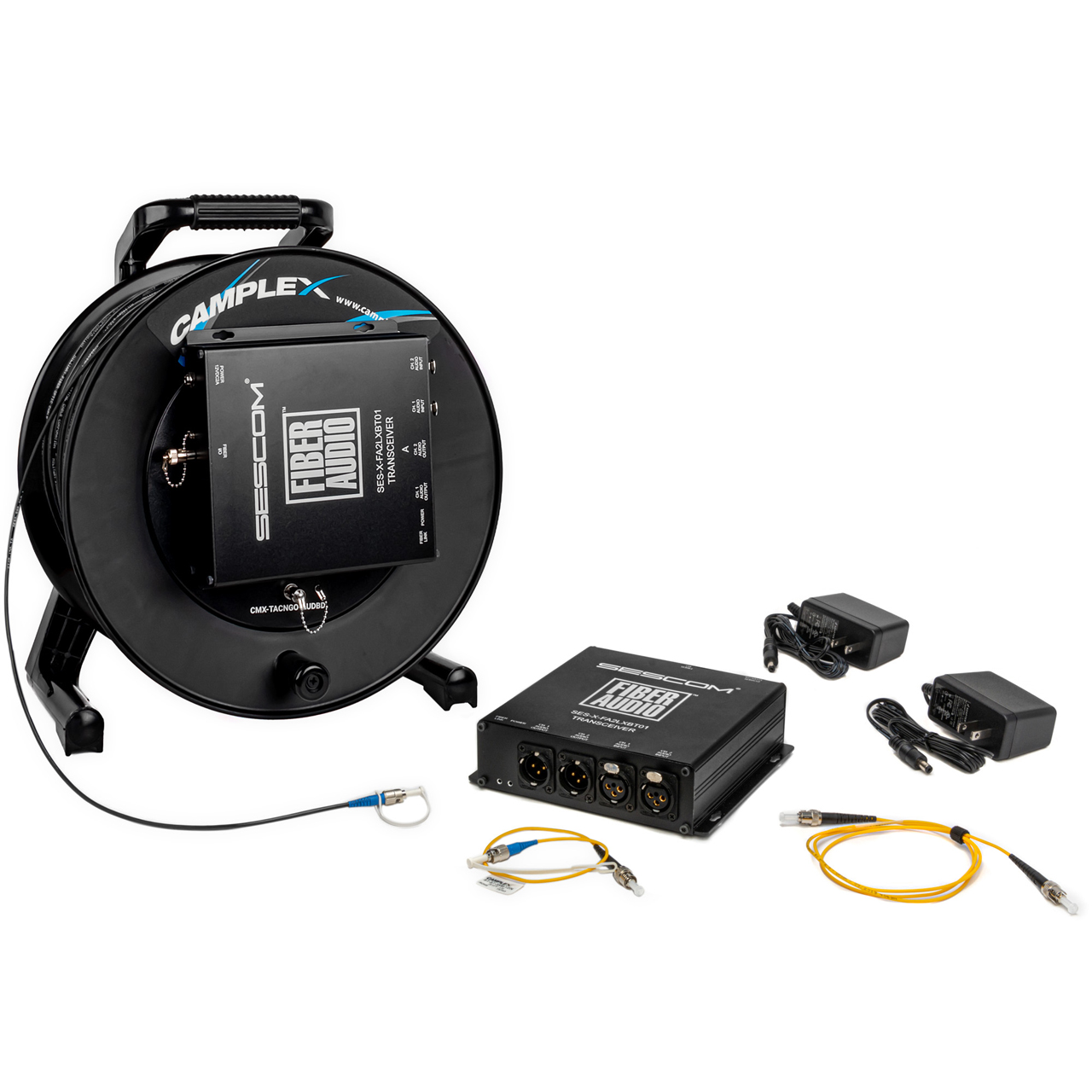

  • Item Includes:

    • (1) Sescom SES-X-FA2LXBT01 2 CH Balanced XLR Bi-Directional Audio over Fiber Extender Kit
    • (2) power supplies
    • 3M Dual Lock fasteners
    • 1000 ft tactical fiber cable on reel

  • Warranty:

    • 1 Year
