Coax Connectors 67-454-D66 Micro BNC Straight PCB Mount Bulkhead Jack - 75 Ohm 6Ghz HD-BNC - 100 Pack

ITEM #: COA-67-454-D66 MFG #: 67-454-D66

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Coax Connectors Ltd
Free Shipping with $49 Minimum Order

List Price:

$732.00

Our Price:

$658.80

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

67-454-D66 - Overview

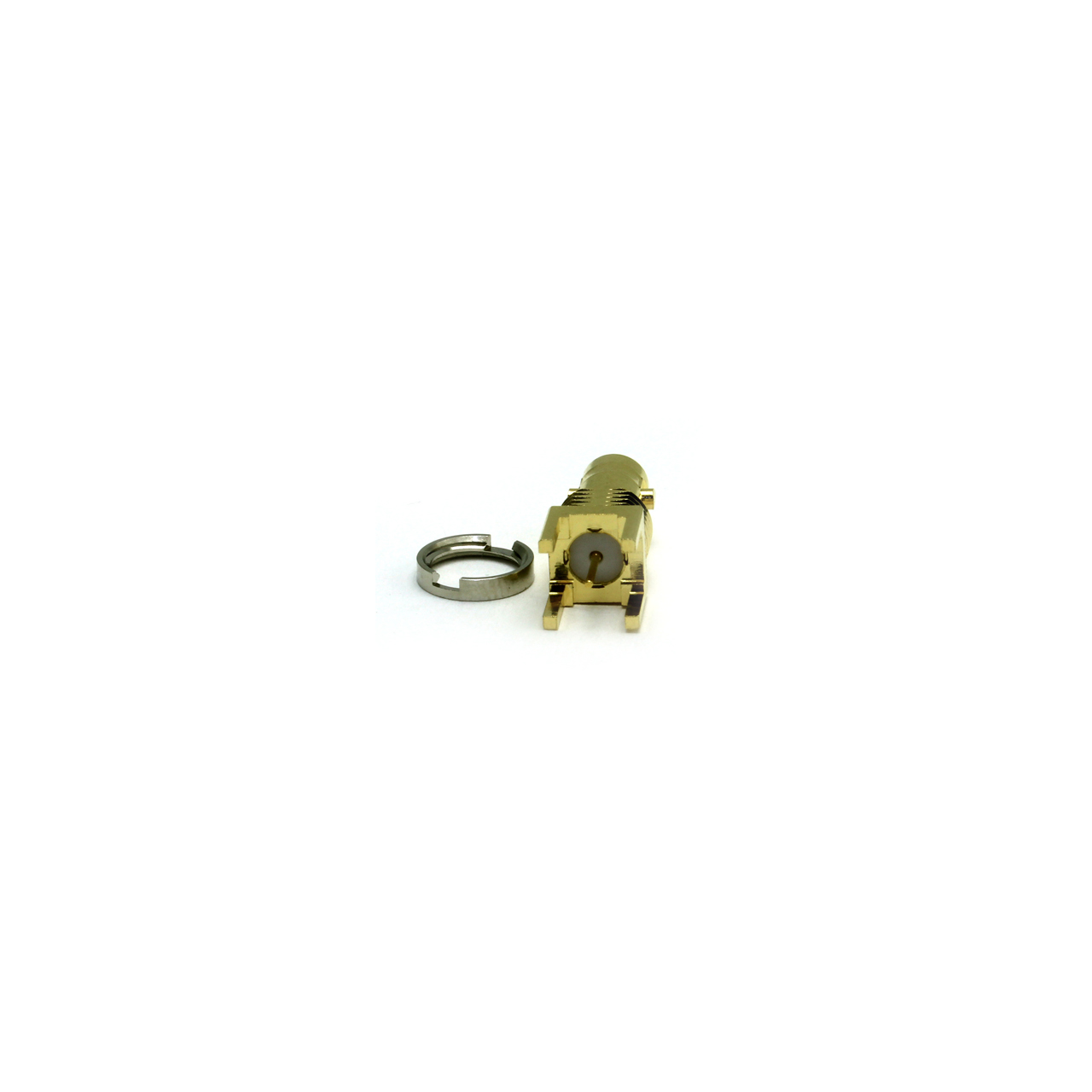

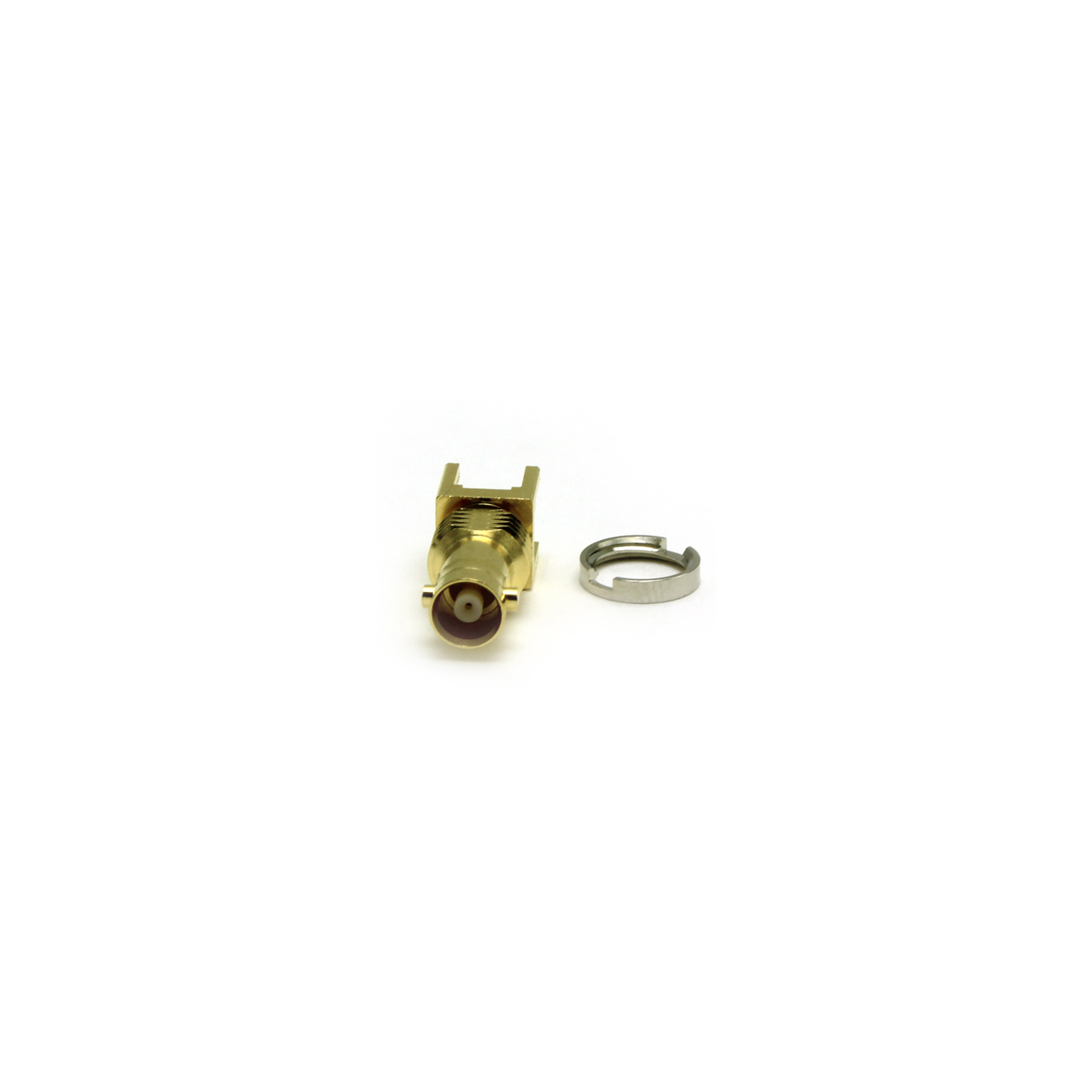

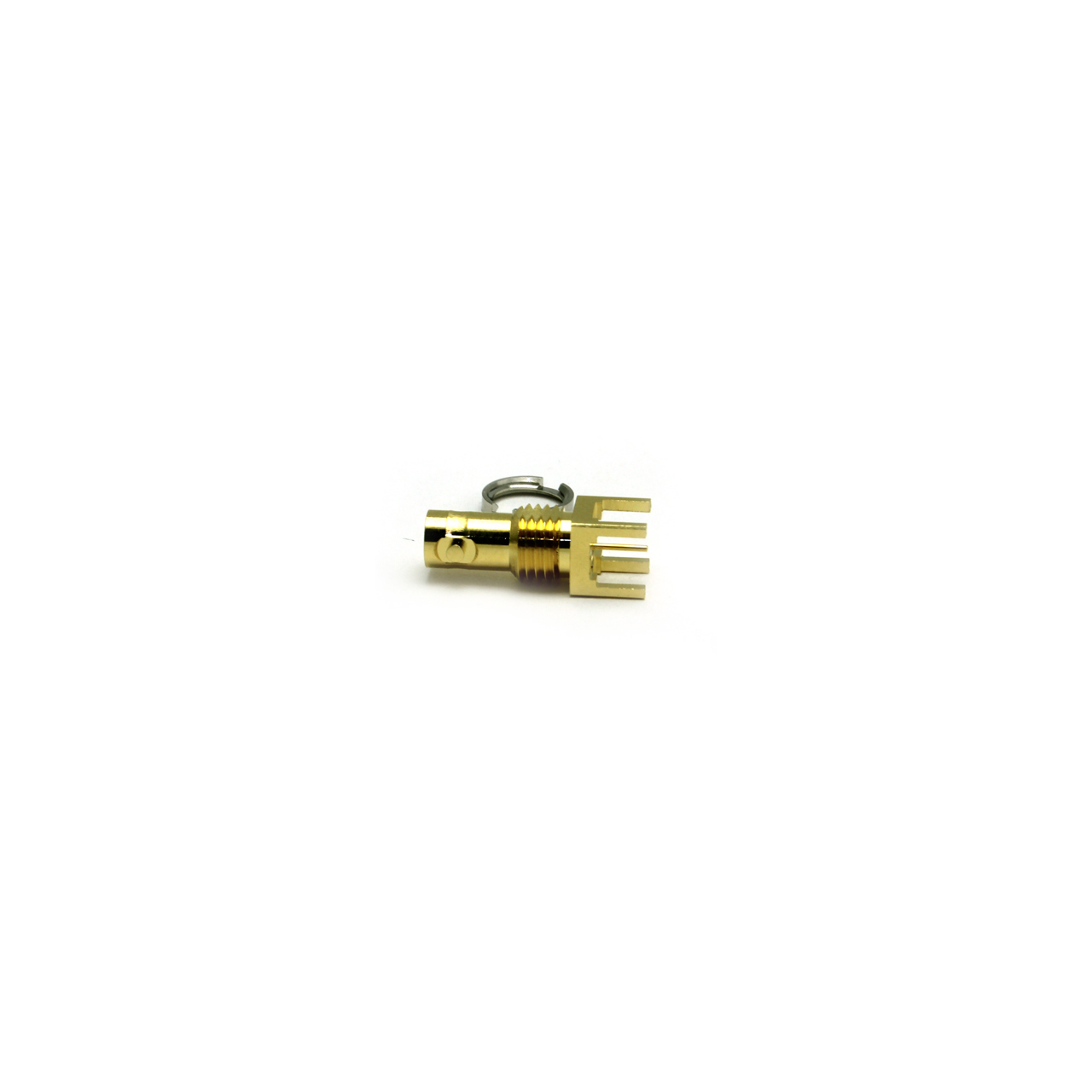

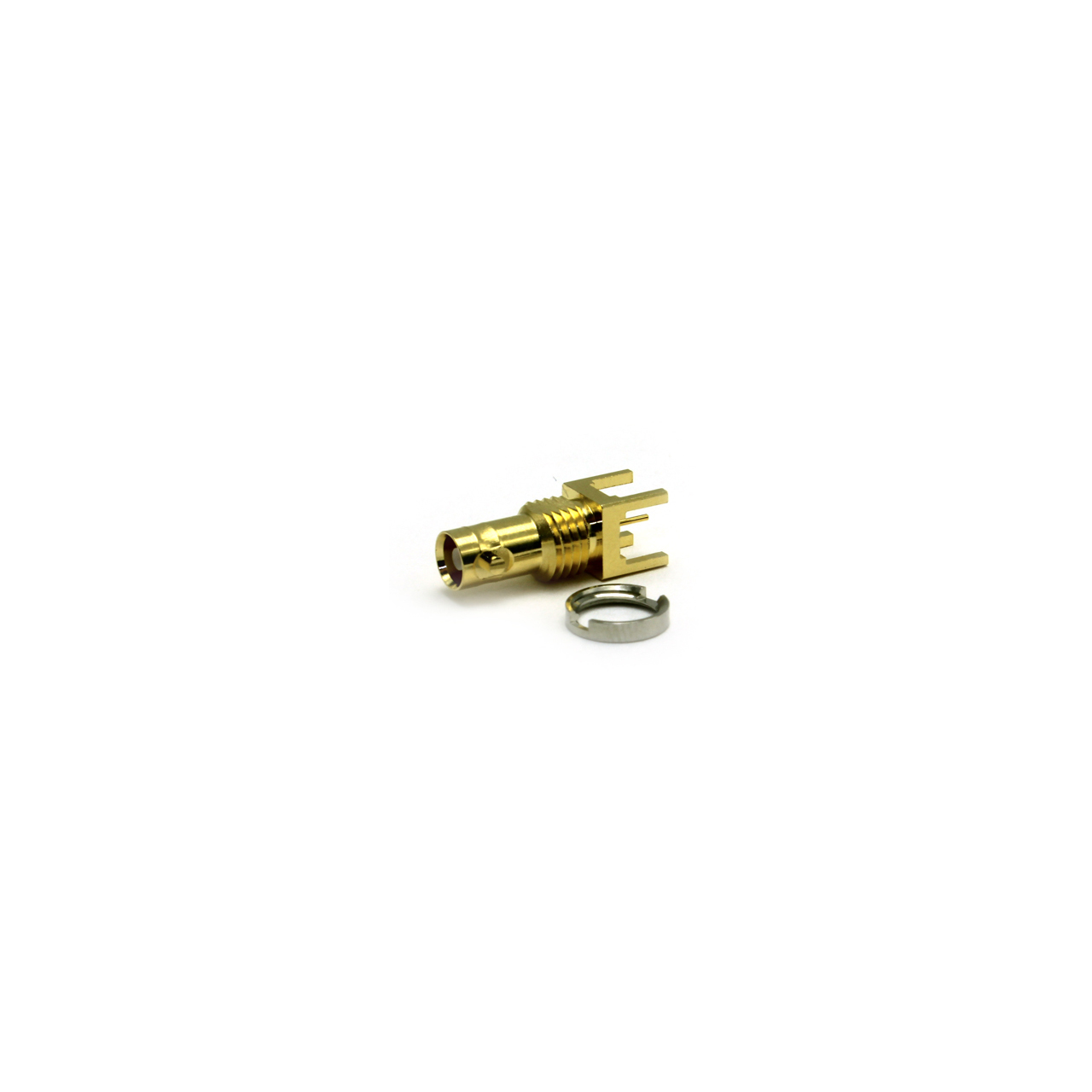

The Coax Connectors 67-454-D66 is a micro BNC (AKA HD-BNC) 75 ohm straight PCB jack. This true 75 ohm jack is designed for Full HD 1080p applications and general use up to 6GHz. With gold plated inner and outer contacts.

  • Specifications:

    • Electrical
    • Impedance: 75 Ohm
    • Frequency Range: Up to 6GHz
    • Dielectric Withstand Voltage: 1000 Veff
    • Insulation Resistance: 10000 M-Ohm

      Mechanical
    • RoHS 3 Compliant: Yes
    • Center Contact Termination: Solder
    • Outer Contact Termination: Solder
    • Mating Cycles: 500
    • Contact Retention: 10N min
    • Weight: 2.32g
    • Mating Force: 10N Max
    • Un-Coupling Force: 10N Max

      Environmental
    • Operating Temperature: -67 Deg F to 311 Deg F (-55 to +155 Deg C)
    • IP Rating ( Mated ): IP64

      Material
    • Center Contact: Beryllium Copper
    • Outer Contact: Brass
    • Insulator: PTFE
    • Center Contact Plating: Gold
    • Outer Contact Plating: Gold
