Coax Connectors COA-67-463-D6616 Micro BNC End Launch 1.6mm Bulkhead Jack - 75 Ohm HDBNC 12GHz - 120 Pack

ITEM #: COA-67-463-D6616 MFG #: 67-463-D66 1.6MM

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Coax Connectors Ltd
Free Shipping with $49 Minimum Order

List Price:

$667.20

Our Price:

$600.48

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

67-463-D66 1.6MM - Overview

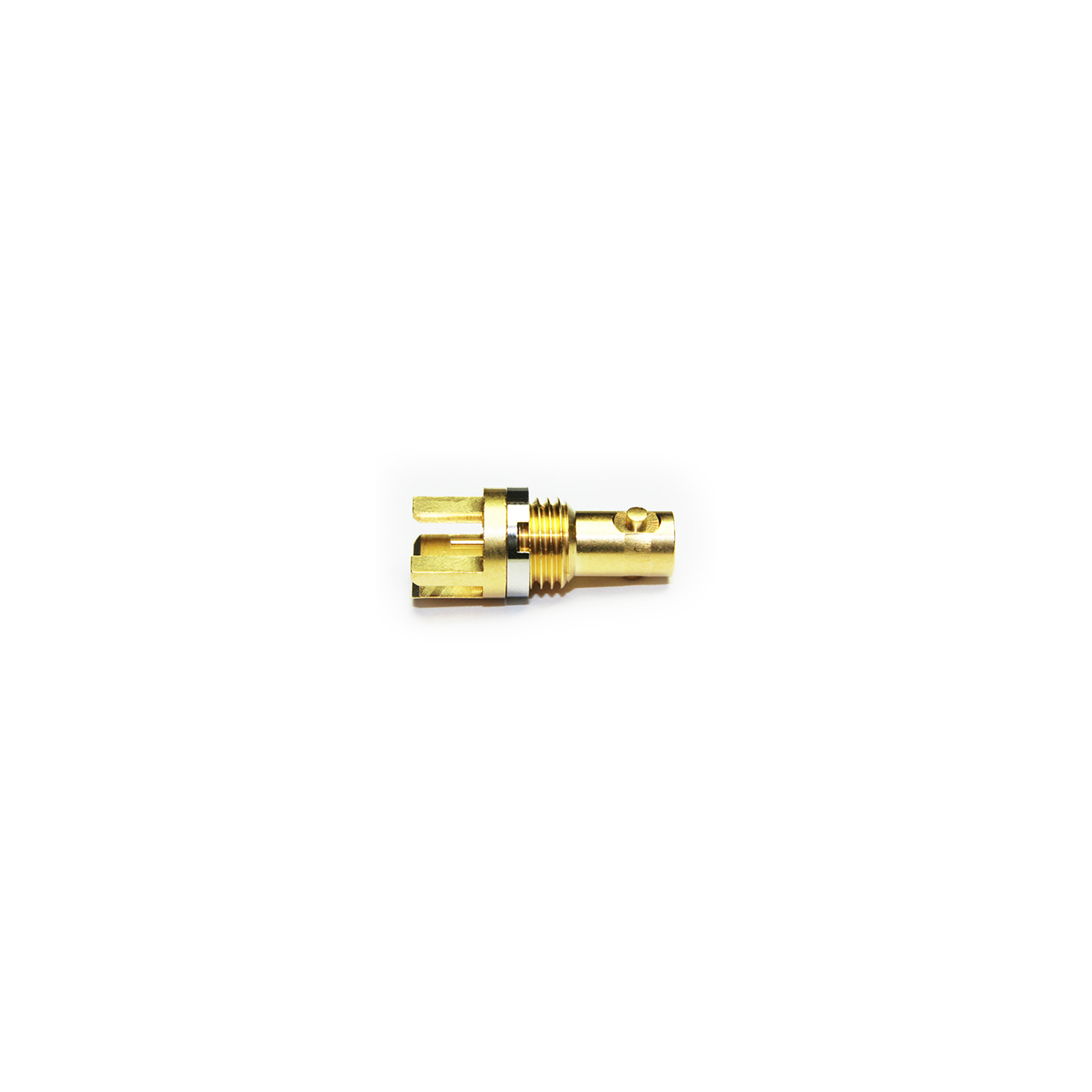

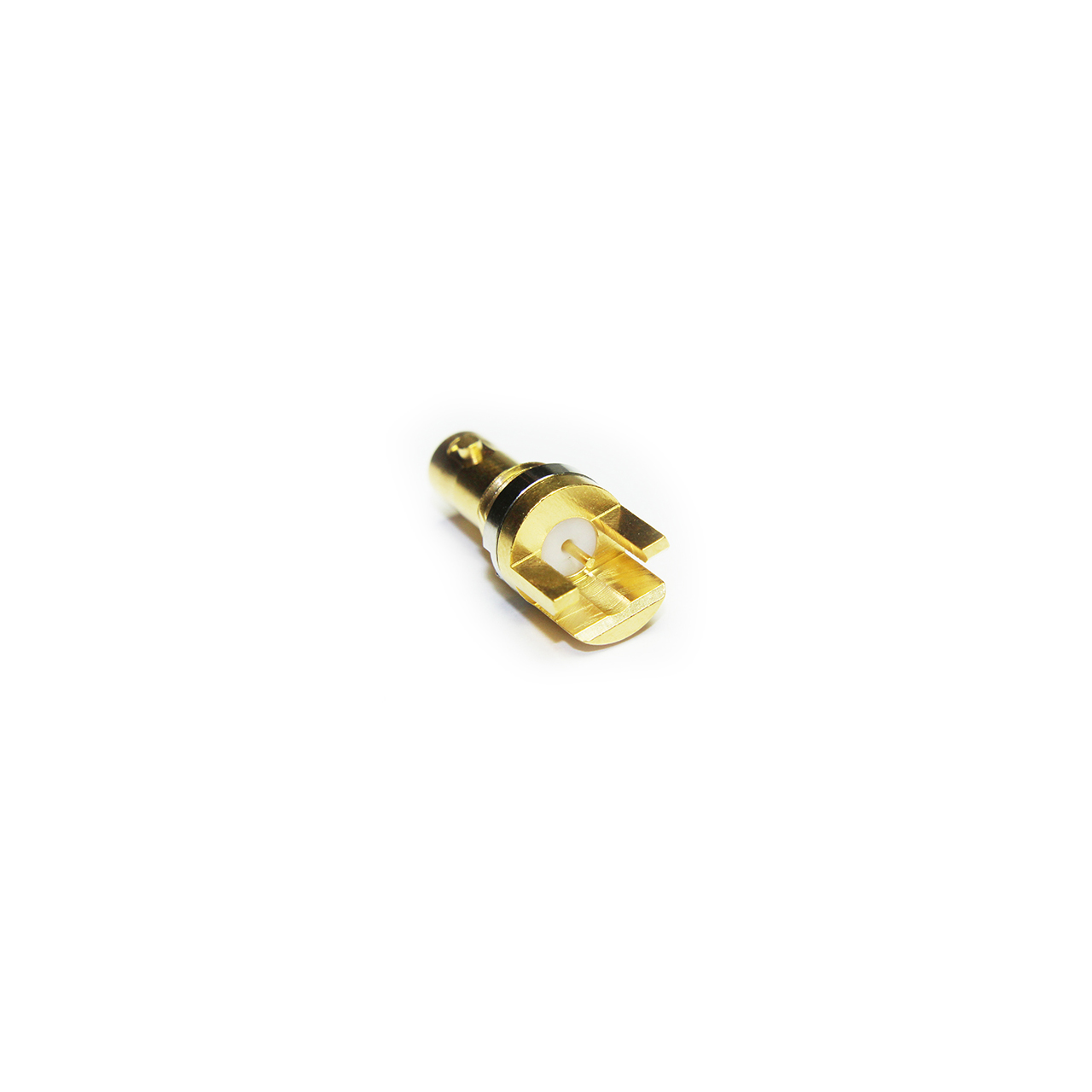

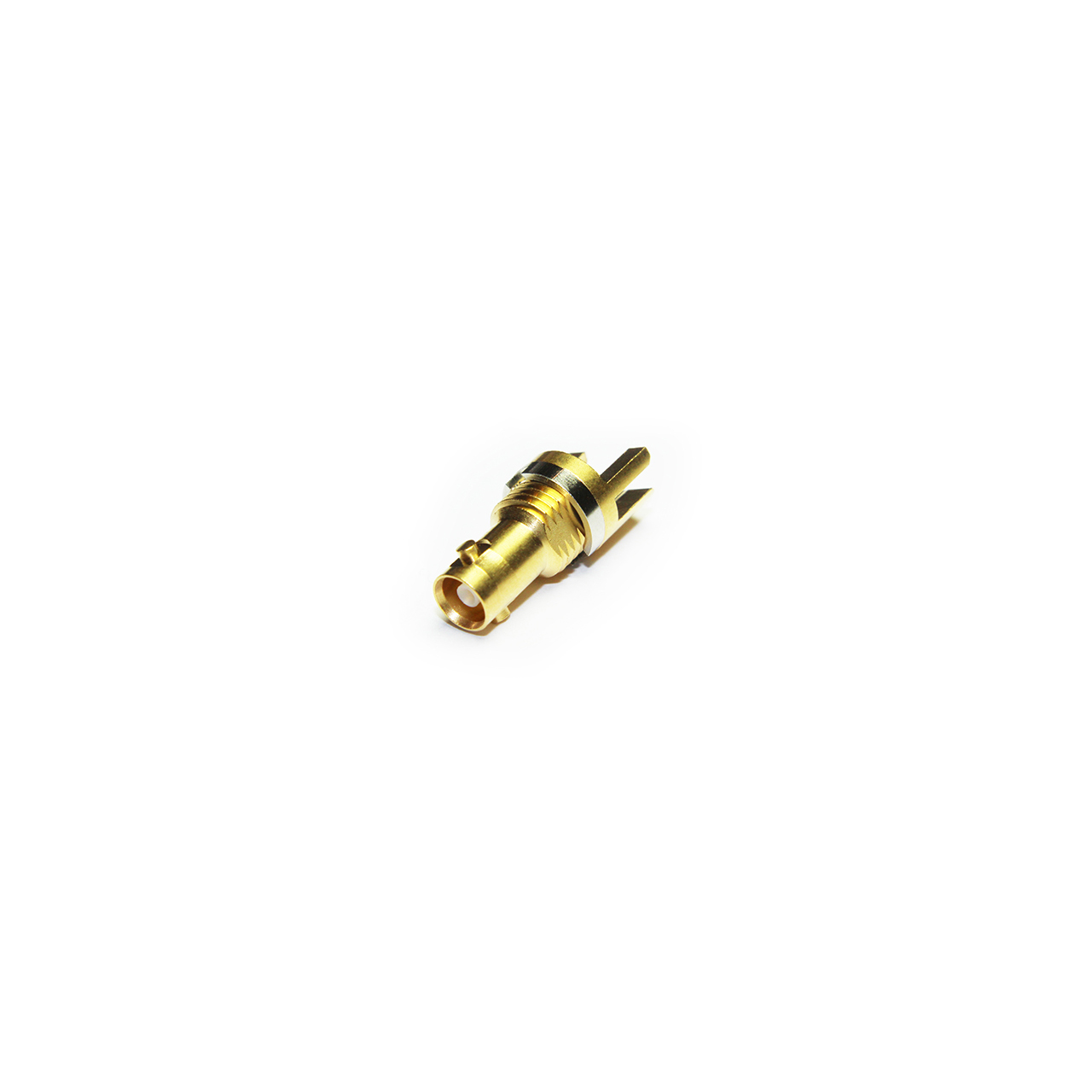

The Coax Connectors 67-463-D66 1.6 is a micro BNC (AKA - HDBNC) 75 ohm end launch jack for 1.6mm PCB. This true 75 ohm jack is designed for Full HD 1080p applications and general use up to 12GHz. With gold plated inner and outer contacts.

  • Specifications:

    • Electrical
    • Impedance: 75 Ohm
    • Frequency Range: Up to 12GHz
    • Dielectric Withstand Voltage: 1000 Veff
    • Insulation Resistance: 10000 M-Ohm

      Mechanical
    • Return Loss: -13db@12GHz
    • RoHS 3 Compliant: Yes
    • Center Contact Termination: Solder
    • Outer Contact Termination: Solder
    • Mating Cycles: 500
    • Contact Retention: 10N min
    • Mating Force: 10N Max
    • Un-Coupling Force: 10N Max

      Environmental
    • Operating Temperature: -67 Deg F to 311 Deg F (-55 to +155 Deg C)
    • IP Rating ( Mated ): IP64

      Material
    • Center Contact: Beryllium Copper
    • Outer Contact: Brass
    • Insulator: PTFE
    • Center Contact Plating: Gold
    • Outer Contact Plating: Gold
