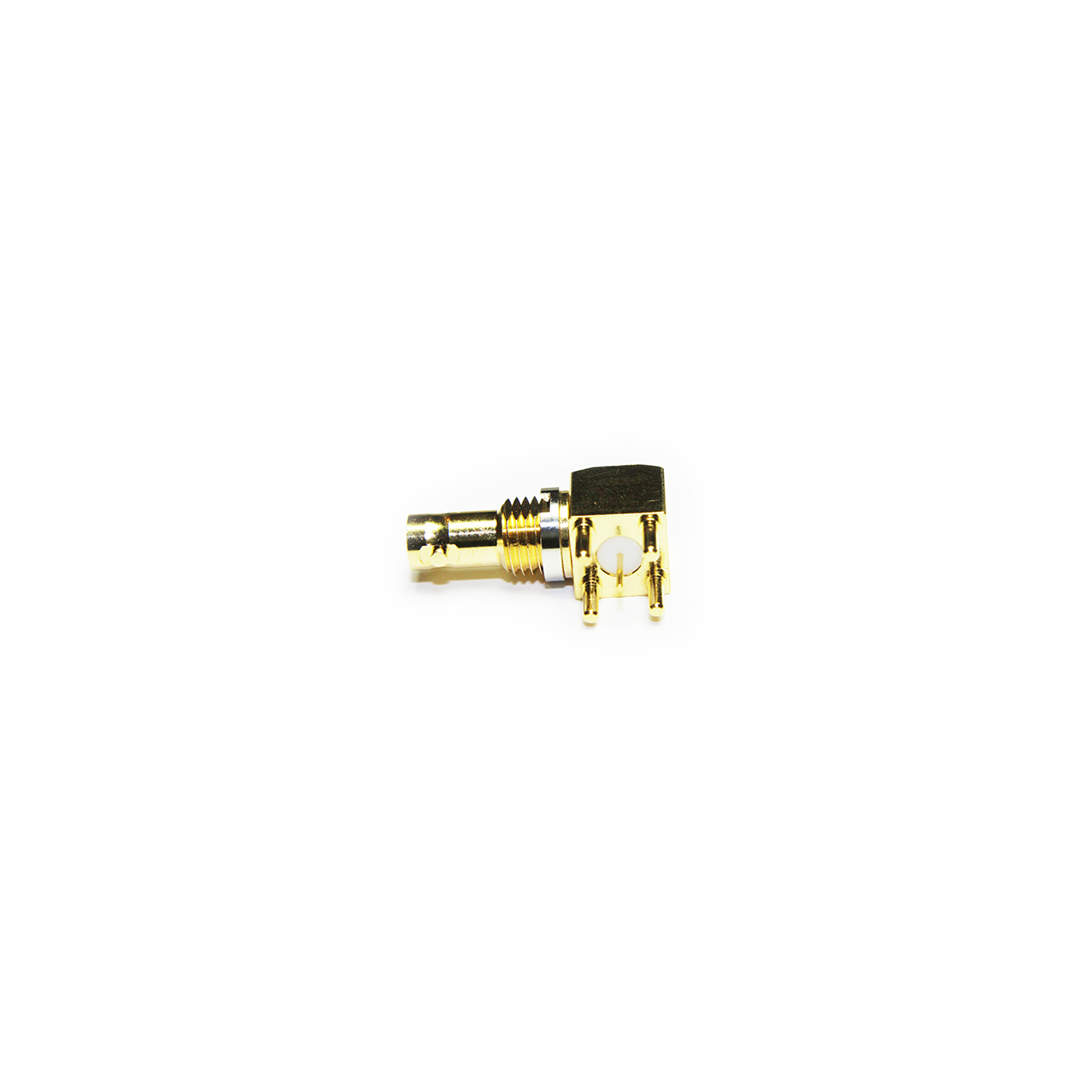

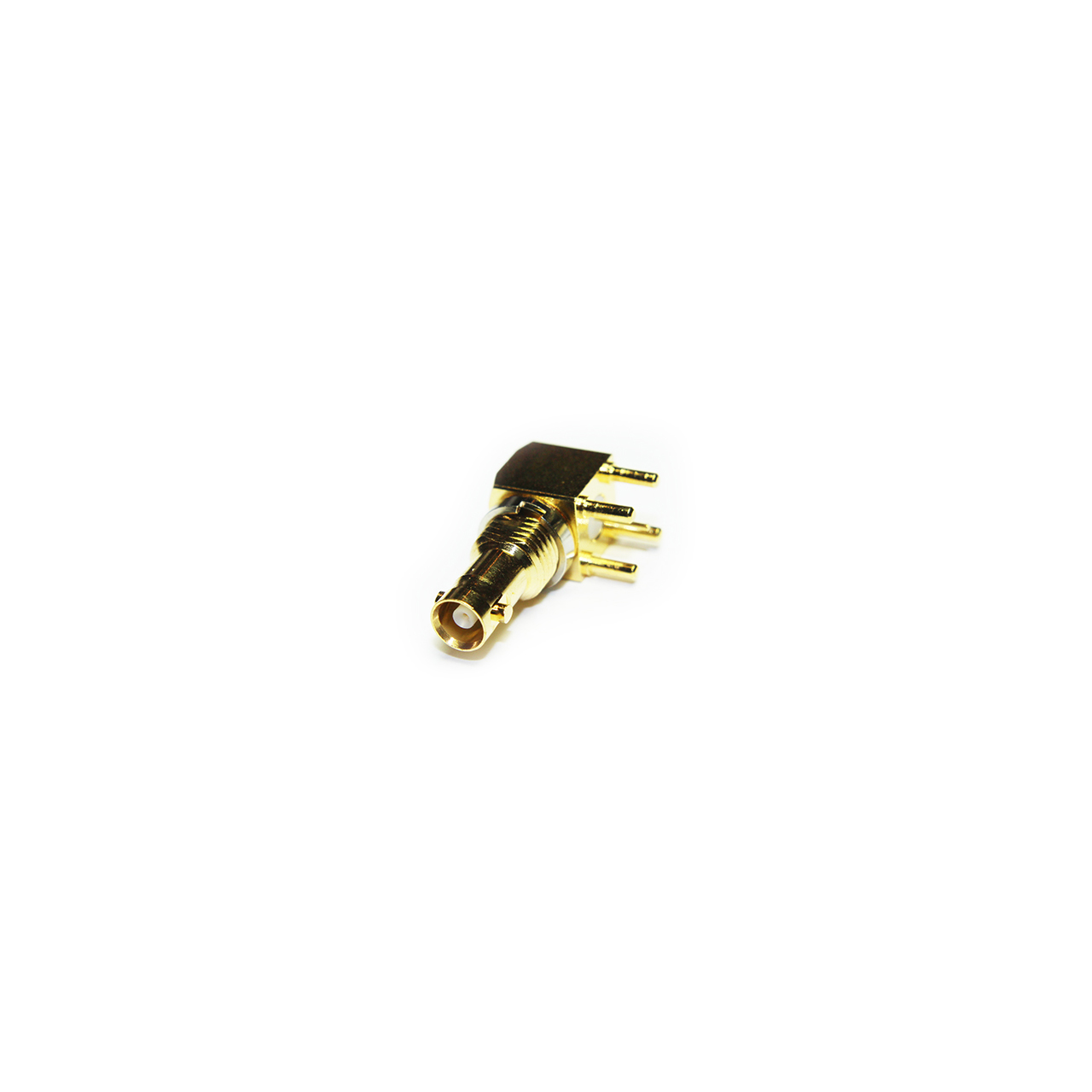

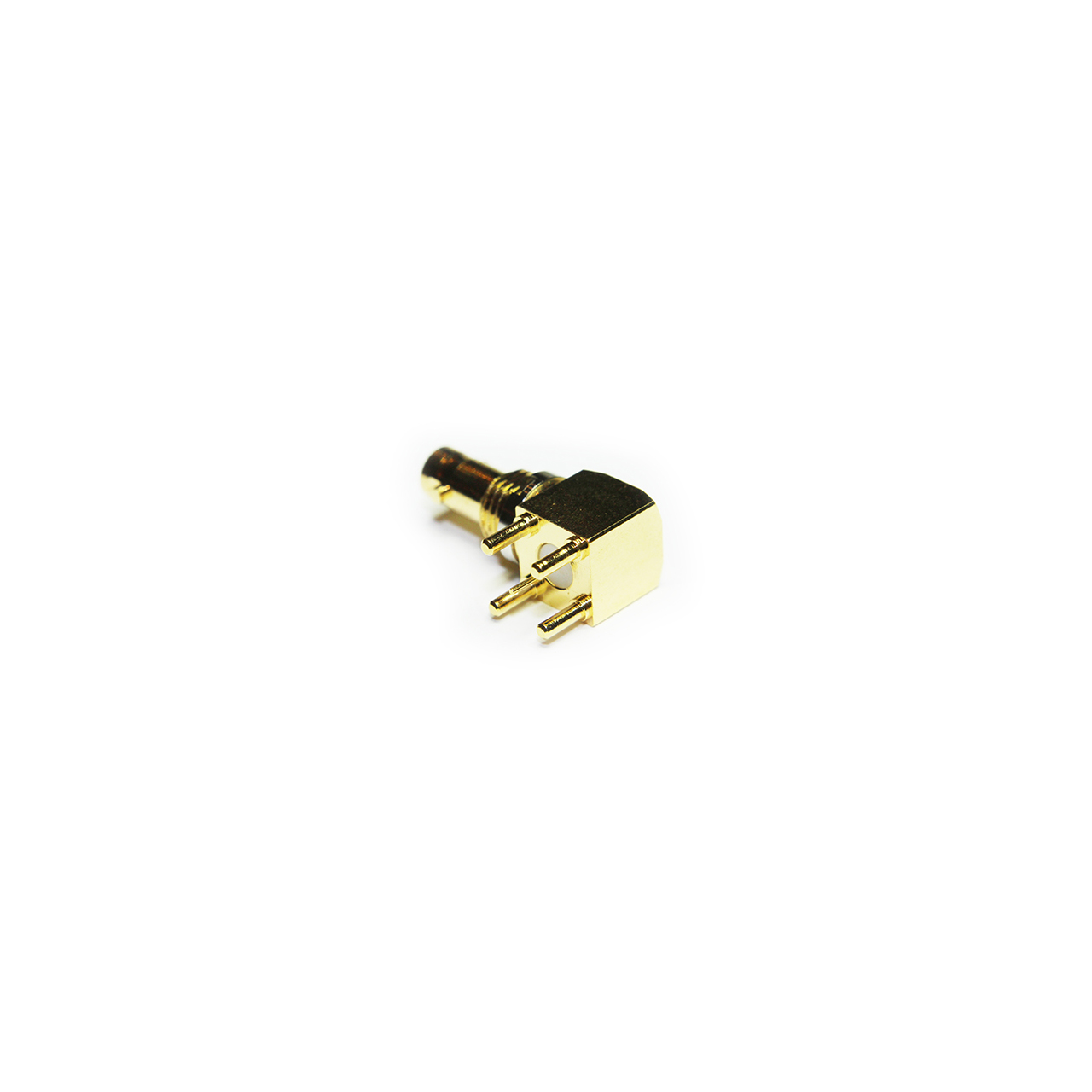

Coax Connectors 67-468-D66 Micro BNC Right Angle PCB Mount Bulkhead Jack 2.4mm Leg - 12Ghz HDBNC - 80 Pack

ITEM #: COA-67-468-D66 MFG #: 67-468-D66

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Coax Connectors Ltd
Free Shipping with $49 Minimum Order

List Price:

$510.40

Our Price:

$459.36

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

67-468-D66 - Overview

The Coax Connectors 67-468-D66 is a micro BNC (AKA - HDBNC) 75 ohm right angle PCB bulkhead jack. This true 75 ohm jack is designed for Full HD 1080p applications and general use up to 12GHz. With gold plated inner and outer contacts.

  • Specifications:

    • Electrical
    • Impedance: 75 Ohm
    • Frequency Range: Up to 12GHz
    • Dielectric Withstand Voltage: 1000 Veff
    • Insulation Resistance: 10000 M-Ohm
    • Return Loss: -11.71db@12GHz

      Mechanical
    • RoHS 3 Compliant: Yes
    • Center Contact Termination: Solder
    • Outer Contact Termination: Solder
    • Mating Cycles: 500
    • Contact Retention: 10N min
    • Weight: 4.93g
    • Mating Force: 10N Max
    • Un-Coupling Force: 10N Max

      Environmental
    • Operating Temperature: -67 Deg F to 311 Deg F (-55 to +155 Deg C)
    • IP Rating ( Mated ): IP64

      Material
    • Center Contact: Beryllium Copper
    • Outer Contact: Brass
    • Insulator: PTFE
    • Center Contact Plating: Gold
    • Outer Contact Plating: Gold
