67-476-D66-8.3 - Overview

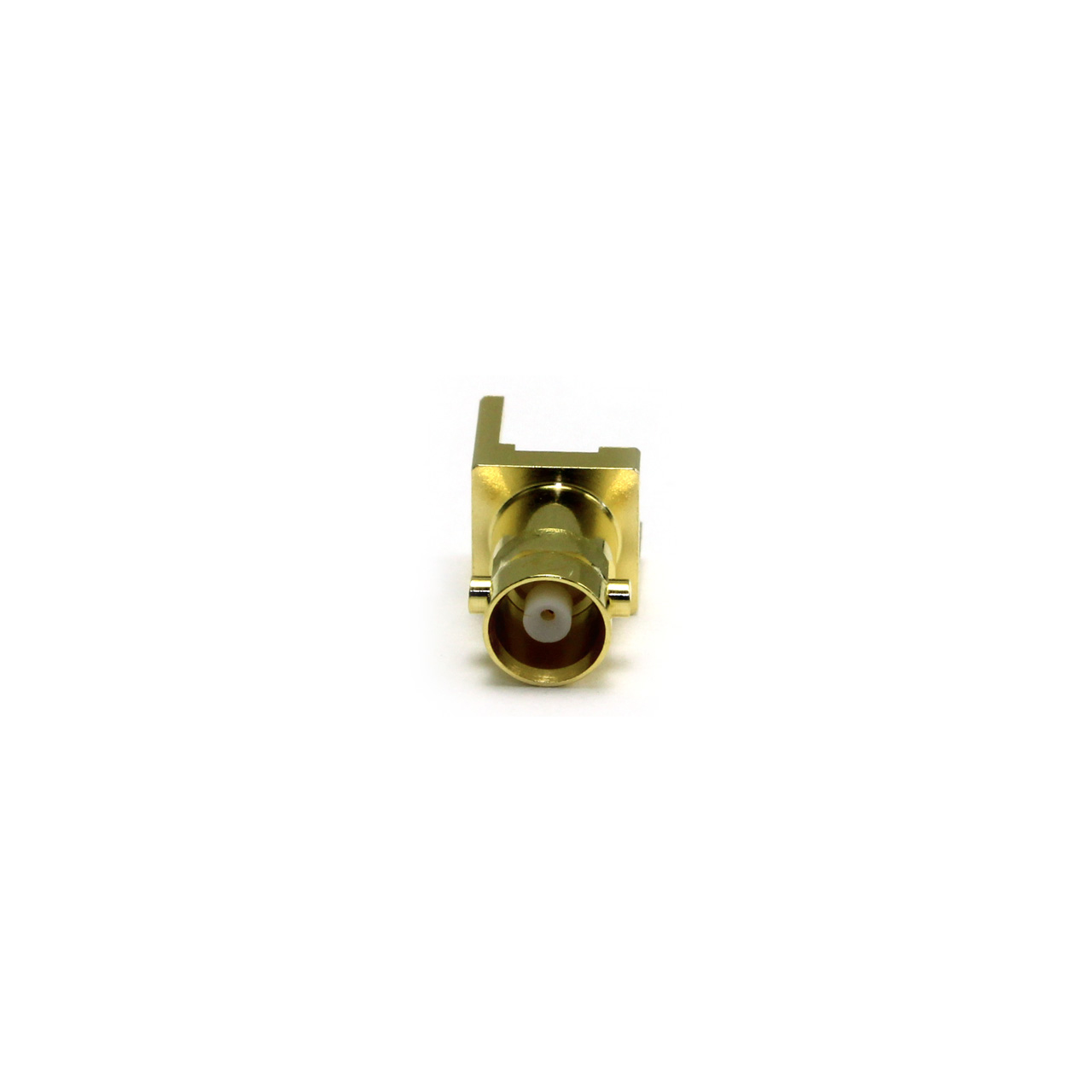

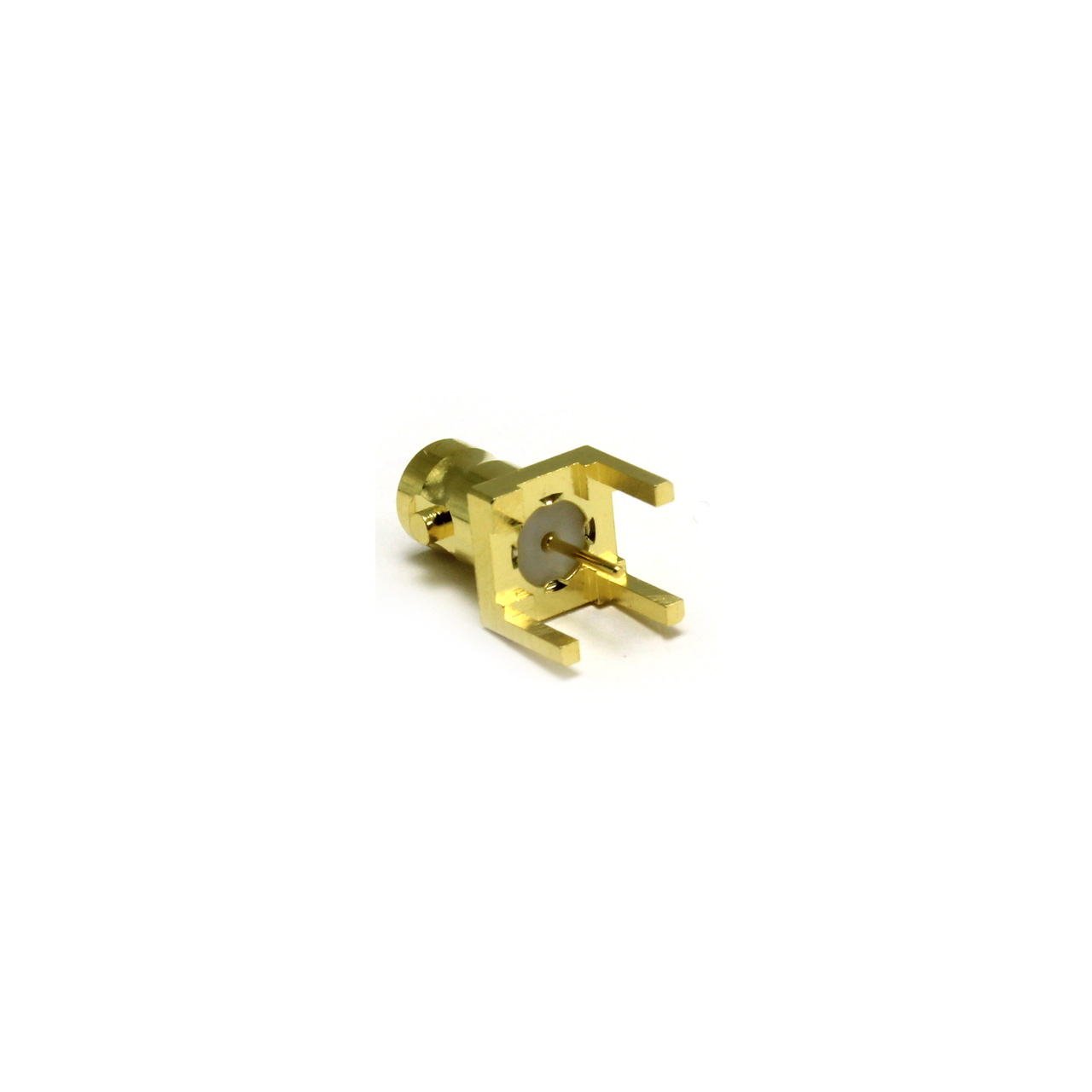

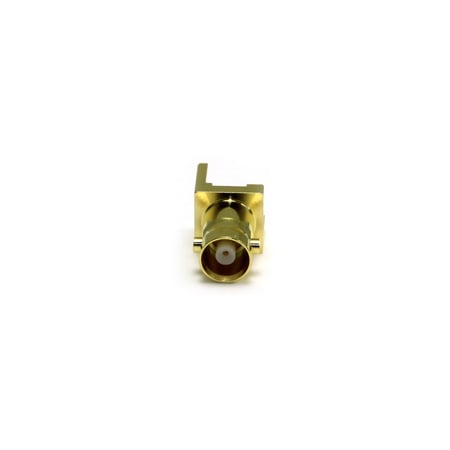

The Coax Connectors 67-476-D66-8.3 is a micro BNC 75 ohm straight PCB jack with 3 outer contact legs Giving board height of 8.3mm . This true 75 ohm jack is designed for Full HD 1080p applications and general use up to 12GHz. With gold plated inner and outer contacts.

  • Specifications:

    • Electrical
    • Impedance: 75 Ohm
    • Frequency Range: Up to 12GHz
    • Dielectric Withstand Voltage: 1000 Veff
    • Insulation Resistance: 10000 M-Ohm
    • Return Loss: -8.71db @ 12GHz

      Mechanical
    • RoHS 3 Compliant: Yes
    • Center Contact Termination: Solder
    • Outer Contact Termination: Solder
    • Mating Cycles: 500
    • Contact Retention: 10N min
    • Weight: .92g
    • Mating Force: 10N Max
    • Un-Coupling Force: 10N Max

      Environmental
    • Operating Temperature: -55 to +155 Deg C
    • IP Rating ( Mated ): IP64

      Material
    • Center Contact: Beryllium Copper
    • Outer Contact: Brass
    • Insulator: PTFE
    • Center Contact Plating: Gold
    • Outer Contact Plating: Gold
