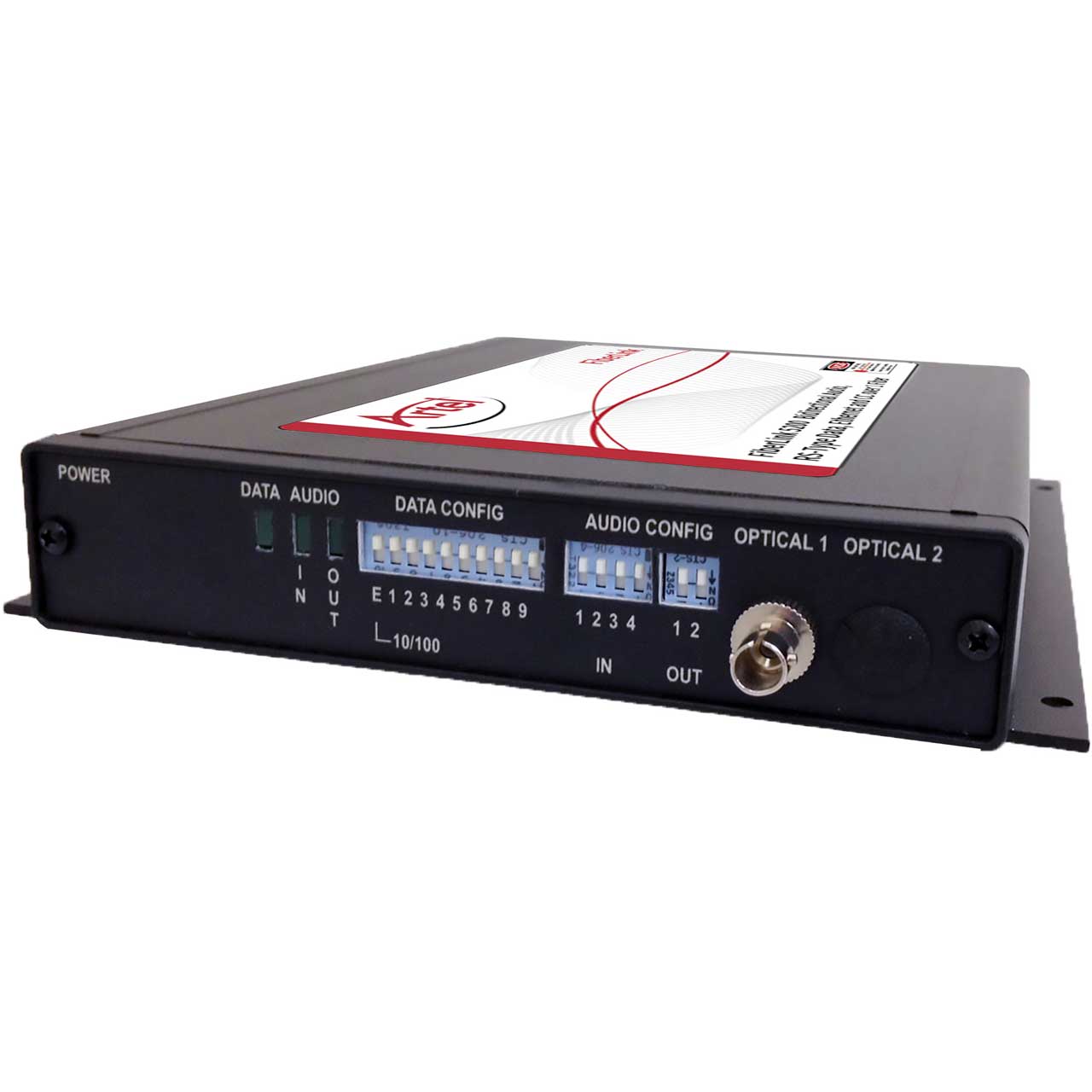

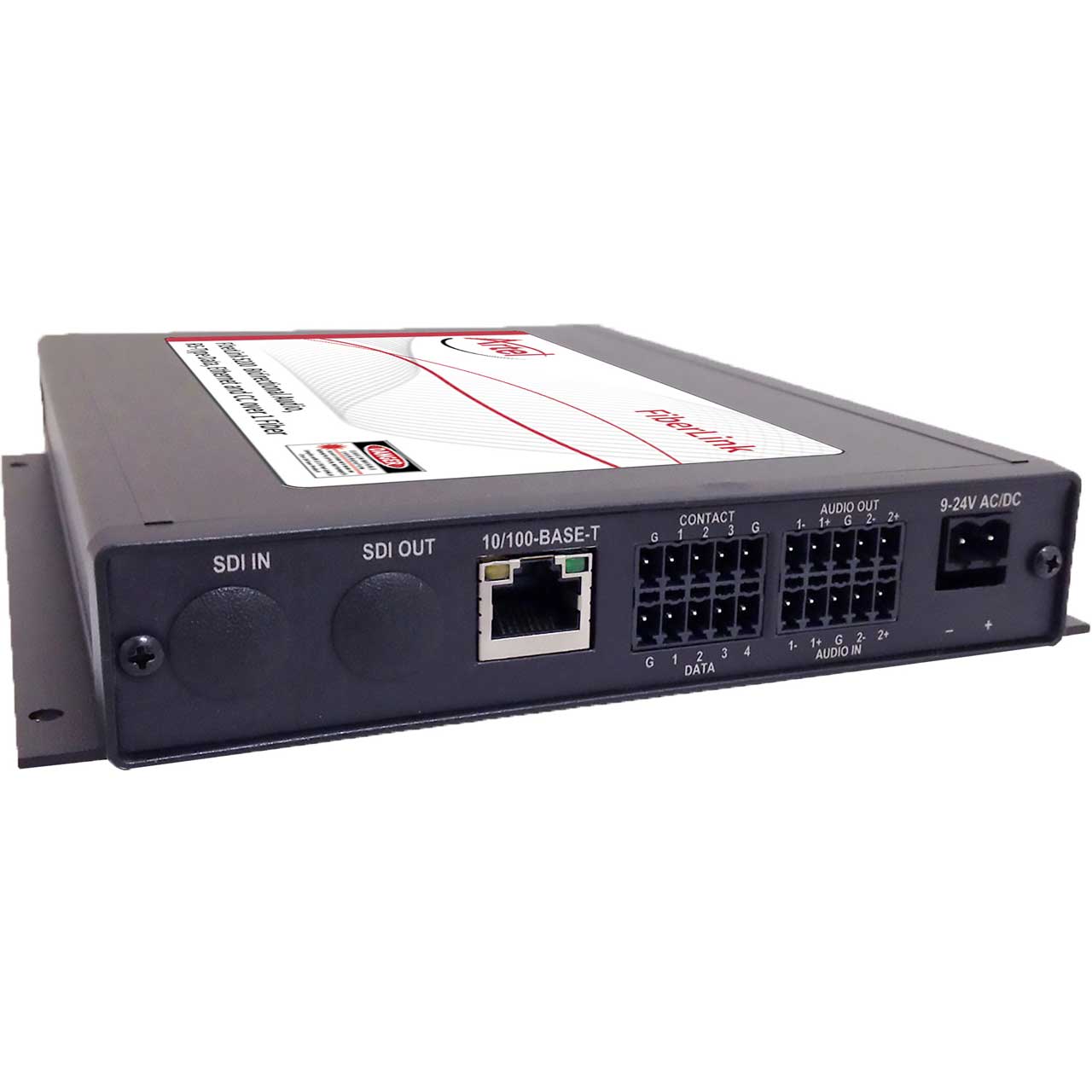

Artel FiberLink 5200-B3S Multimode Bidirectional Audio/ Ethernet/ Data & CC Box with ST Connectors - Transmitter

5200-B3S - Overview

• Features:

  • Single Mode Fiber - This product comes in a version that supports Single Mode Fiber.
  • Multimode Fiber - This product comes in a version that supports Multimode Fiber.
  • 10/100 Ethernet - This product transmits and receives 10/100 Ethernet.
  • Bidirectional Audio - This product supports sending two pairs of independent audio, one in each direction.
  • Bidirectional Contact Closure - This product supports bidirectional contact closure.
  • RS-Type Data - This product transmits and receives RS-Type data.


• Specifications:

  • Audio Specifications
  • Audio Connector: Screw terminal block
  • Audio Noise Level: -85 dBm
  • Bits Per Sample/ Sampling Rate: 24 bits, 52 kHz
  • Channel Phase Differential: ±0.1 °
  • Crosstalk: -100 dB (1kHz)
  • Frequency Response: +0/-0.5 dB, 20 Hz - 20 kHz
  • Input Impedance: 600 Ohms terminated, >24K ohms unterminated
  • Maximum Audio Level: +10 dBu
  • Number Of Audio Channels: 2, balanced or unbalanced
  • Output Impedance: 50 Ohms nominal
  • Receiver Output Gain: +0 dB or +6 dB; switch selectable
  • Signal-To-Noise Ratio (A-Weighted): 95 dB referenced full scale (balanced)
  • Switches: Select input terminationBalanced or unbalanced input/output, selectable on a per-channel basisOutput gain boost +0 dB or +6 dB
  • System Gain: Unity Gain, ±3%, Input: balanced 600 ohms, 50 ohms source impedanceOutput: balanced into 600 ohms, gain boost 0 dB.
  • THD: THD 0.002%, 20Hz - 20 kHz, full scale

    Contact Closure Specifications
  • Contact Closure Connectors: Removeable terminal block
  • Contact Closure Input: Dry contact or TTL level referenced to GND
  • Contact Closure Output: Isolated reed relay contacts; 115 Volts AC; 50/60 Hz @ 0.2 A or 24 Volts DC @ 1 A

    Data Specifications
  • Control Format: Switch selectable RS-232, RS-422 & RS-485 (4 wire or 2 wire);
  • Data Bandwidth: DC to 115 Kb/sec, max.
  • Data Channels: 1 Channel, Bi-Directional
  • ProtocolS: NRZ, NRZI, RZ, Manchester, Bi-phase
  • Signal Connectors: Removable terminal block

    Ethernet Specifications
  • Port: 10/100 Base-T, RJ-45 connector, Configured as MDI
  • Speed: 10 Mbps & 100 Mbps Ethernet, Switch Selectable

    Fiber Optic Input
  • Connector: LC or ST
  • Maximum Input Power: 0 dBm
  • Minimum Input Sensitivity: -17 dBm
  • Wavelength: 1100 - 1620 nm

    Fiber Optic Output
  • Connector: LC or ST
  • Emmiter Type: Laser
  • Output Power(Nominal): -3.0 dBm
  • Wavelengths Used: 1310nm, 1490nm, 1550nm

    General Specifications
  • Box Version Dimensions: 6.5 W x 1.15 H x 8 L (inches)165 W x 29 H x 203 L (mm)
  • Indicators: Power, Audio activity, RS-Data Activity, Ethernet LEDs on RJ-45 Connector, Alarm (card version only)
  • MTBF: 27,000 Hours
  • Number Of Fibers: 5200/5201: 1 Fiber
  • Operating Temperature: -10 ° C to +50 ° C
  • Power: 9-24 volts, AC or DC 5200: 7.5 watts, 25.6 BTU/Hr5201: 7.5 watt s, 25.6 BTU/Hr
  • Slots IN 6000A Card Cage: 2
  • Weight: apporx. 1 lb.; 0.45 kg


• Item Includes:

  • 1x FiberLink Unit (5200, 5201)
  • 1x User's Manual
  • 1x Ethernet Crossover Cable
