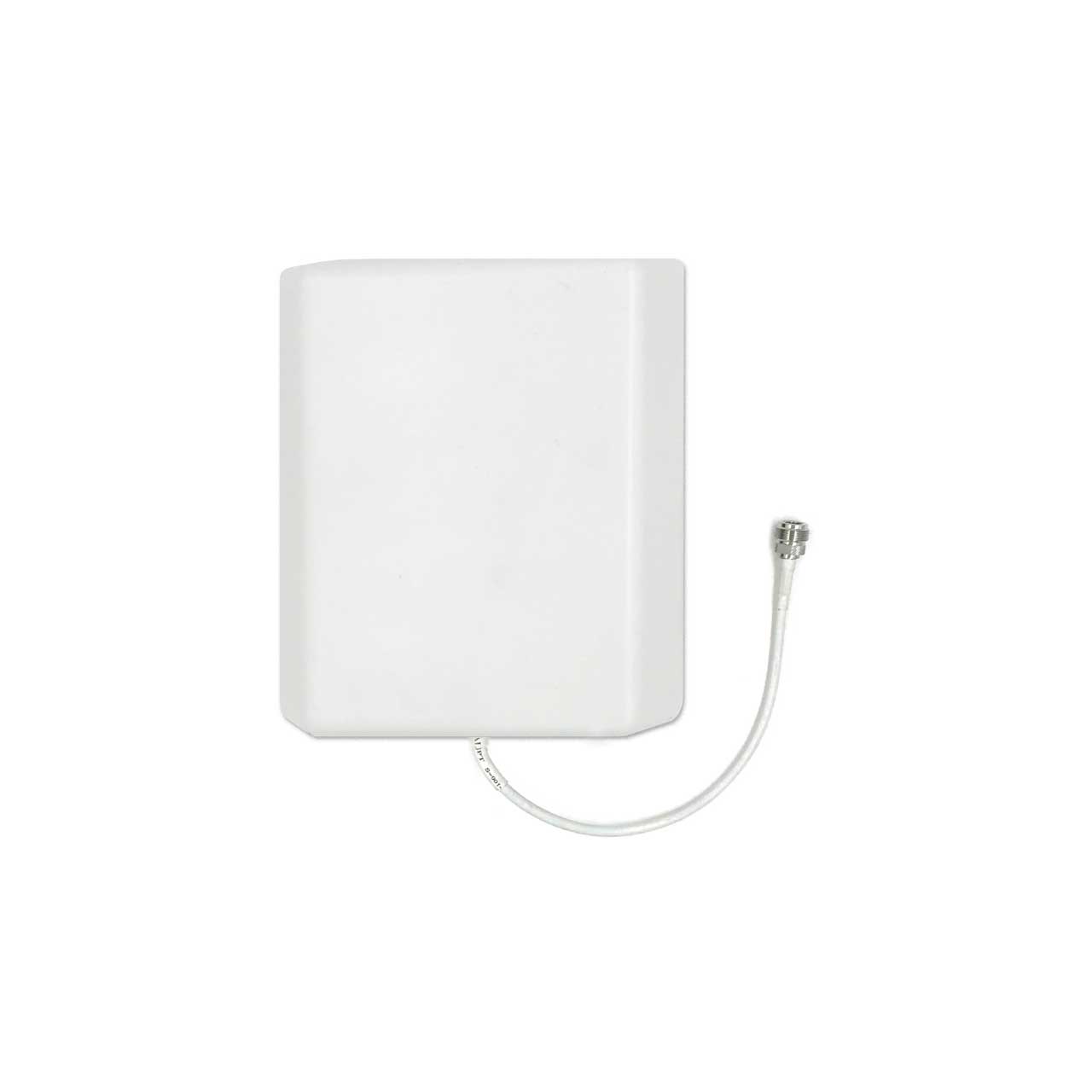

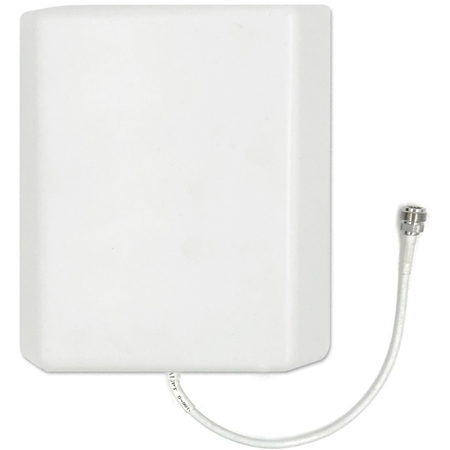

City Theatrical 5981 panel antenna is a directional unit with a 60° Beam spread. These antennas can be used with a single transmitter in a pair with a splitter to send the radio signal in two different directions (e.g. two sides of a building with the transmitter mounted at the corner).
The 5981 Panel Antenna can be used for indoor or outdoor projects.

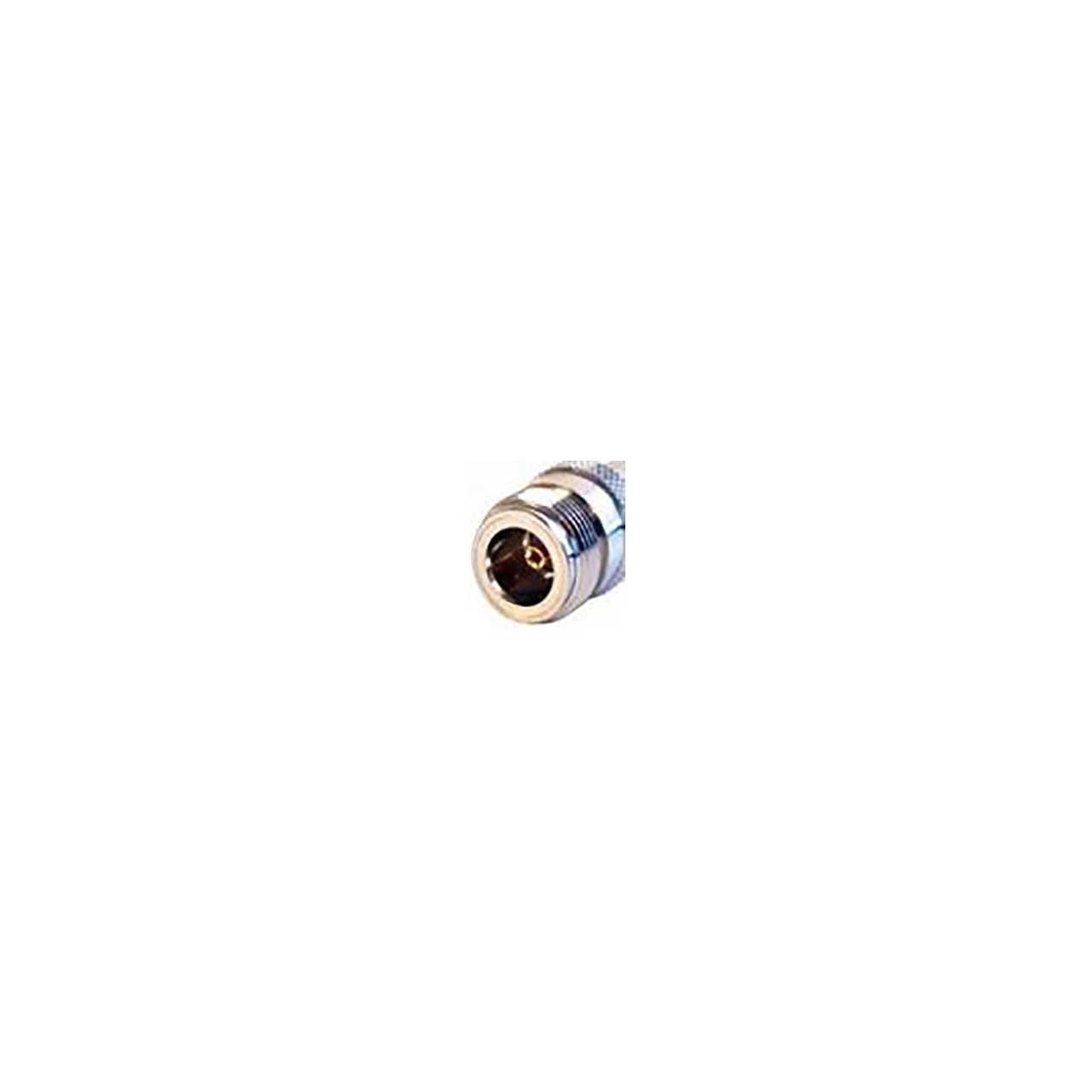

The Panel Antenna comes with mounting bracket and attached 6" lead with female "N" connector. To connect to SHoW Baby, Neo Tx or Rx, Multiverse Node or Multiverse Transmitter requires a 5638 Adapter Cable. To connect to Vero requires a 5641 Adapter Cable. (Both sold separately)
The 8dBi Panel is legal in the EU with the use of a splitter. When using high gain antennas be certain that the EIRP of your system is within permissible limits of your local regulatory body. Should you have specific application questions, please contact the City Theatrical engineering department for guidance.
