Clark SPA22GSP 22AWG Single Pair Audio Cable - Plenum - 1000 Foot

ITEM #: CWC-SPA22GSP MFG #: SPA22GSP

Primary Image
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SPA22GSP - Overview

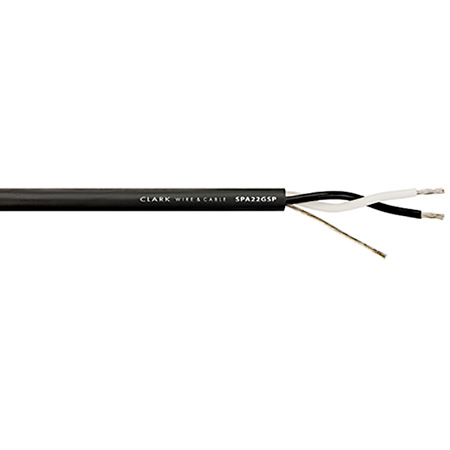

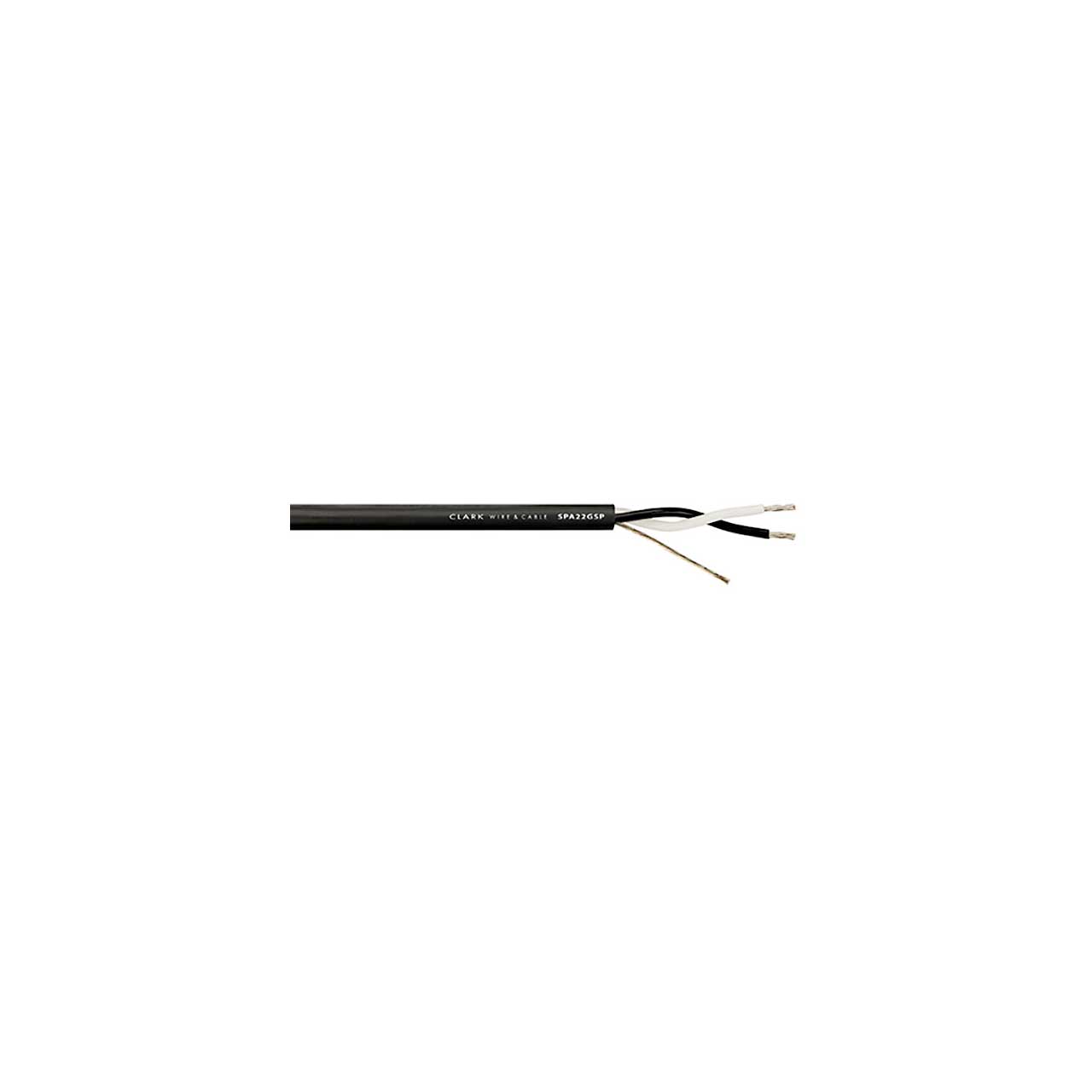

Clark's SPA22GSP is a low-noise, single-pair audio cable for balanced line level or microphone applications. Easy to terminate, the SPA22GSP features several timesaving features, such as a bonded easy-strip shield and tinned copper conductors that streamline that cable termination process. Excellent common-mode and RF/EMI noise rejection are achieved by a precision twisted pair and 100% foil shield. UL rated CMP for plenum applications, the SPA22GSP can be installed in a variety of permanent installation environments.

  • Features:

    • Easy-to-Strip and Terminate - Jacket and bonded foil shield strip in one operation
    • Low-Wick Insulation - High melt temperature minimizes insulation reduction when soldering
    • 22 AWG Tinned Copper Conductors - Low loss, corrosion resistant and easy to solder
    • Excellent Noise Rejection - Precision pair twisting maximizes RF/EMI rejection
    • CMP Plenum Rated - Suitable for installation in plenum applications

  • Specifications:

    • Conductors: (2) 22AWG (7x30) Stranded TC, .030" O.D.
    • Insulation: FEP .010" wall, (one white, one black)
    • Shield: 100% Foil (Easy-Strip Bonded) with 22AWG (7x30) Stranded TC Drain Wire
    • Jacket: PVC, .132inch O.D.
    • Available Colors: Black
