Digital Forecast Bridge Micro M-DA 1x3 3G-SDI Splitter Reclocking Video Distribution Amplifier

Name: Digital Forecast Bridge Micro M-DA 1x3 3G-SDI Splitter Reclocking Video Distribution Amplifier
Brand: DIGITAL FORECAST
SKU: DF-M-DA
Price: 152.00 USD
Availability: InStock

ITEM #: DF-M-DA MFG #: M-DA

DIGITAL FORECAST

List Price:

$160.00

Our Price:

$152.00

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

M-DA - Overview

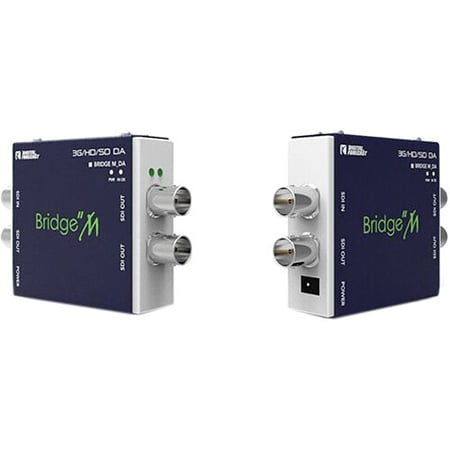

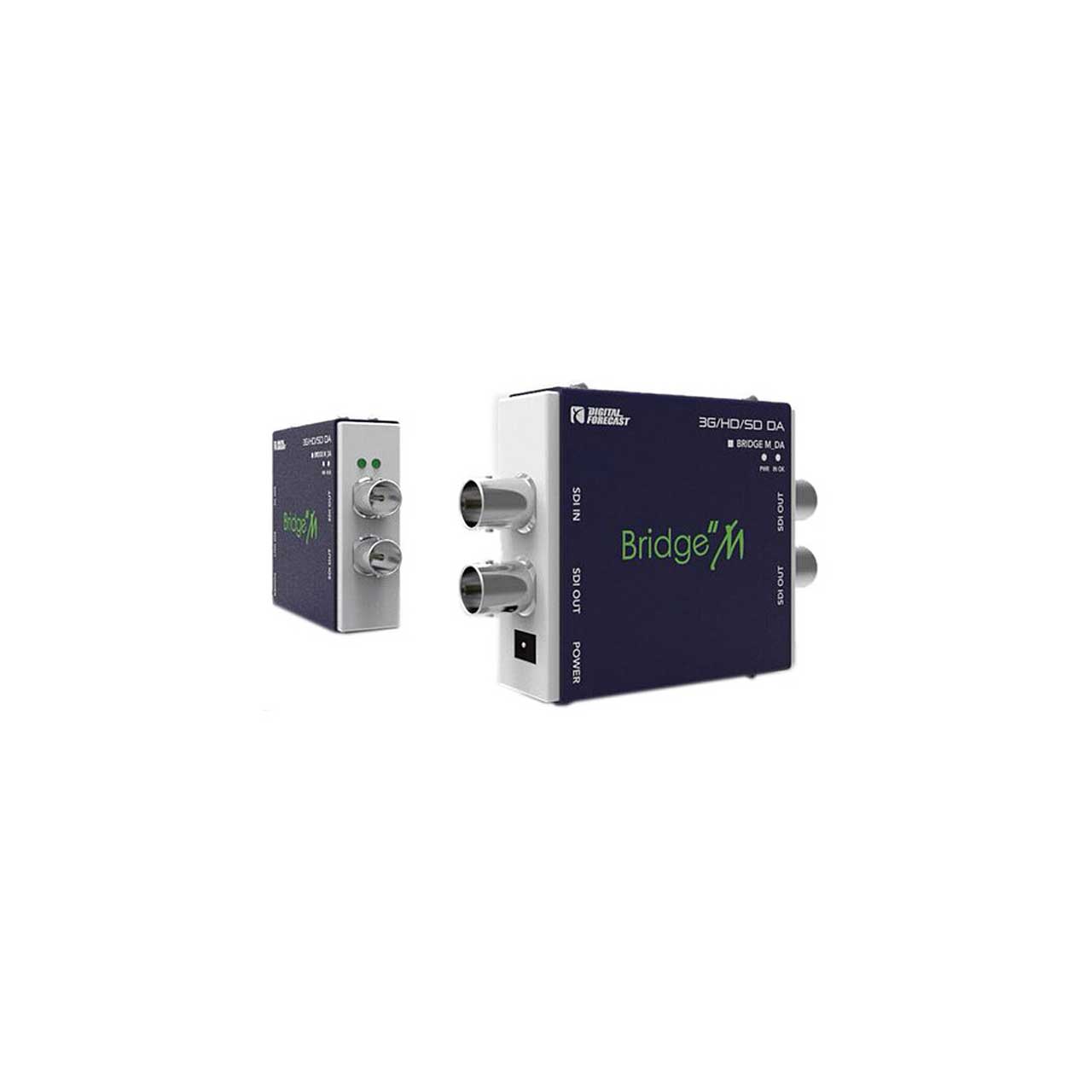

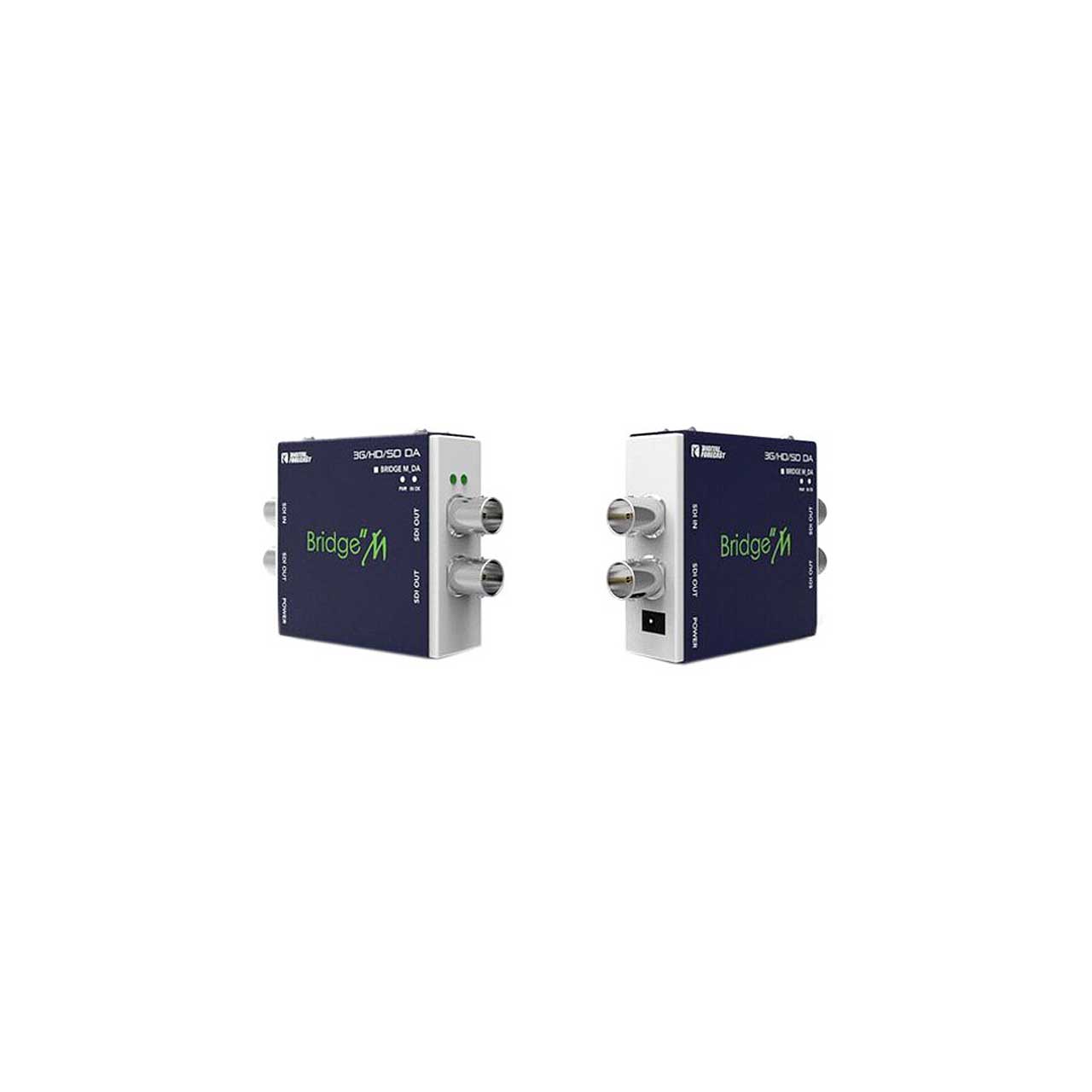

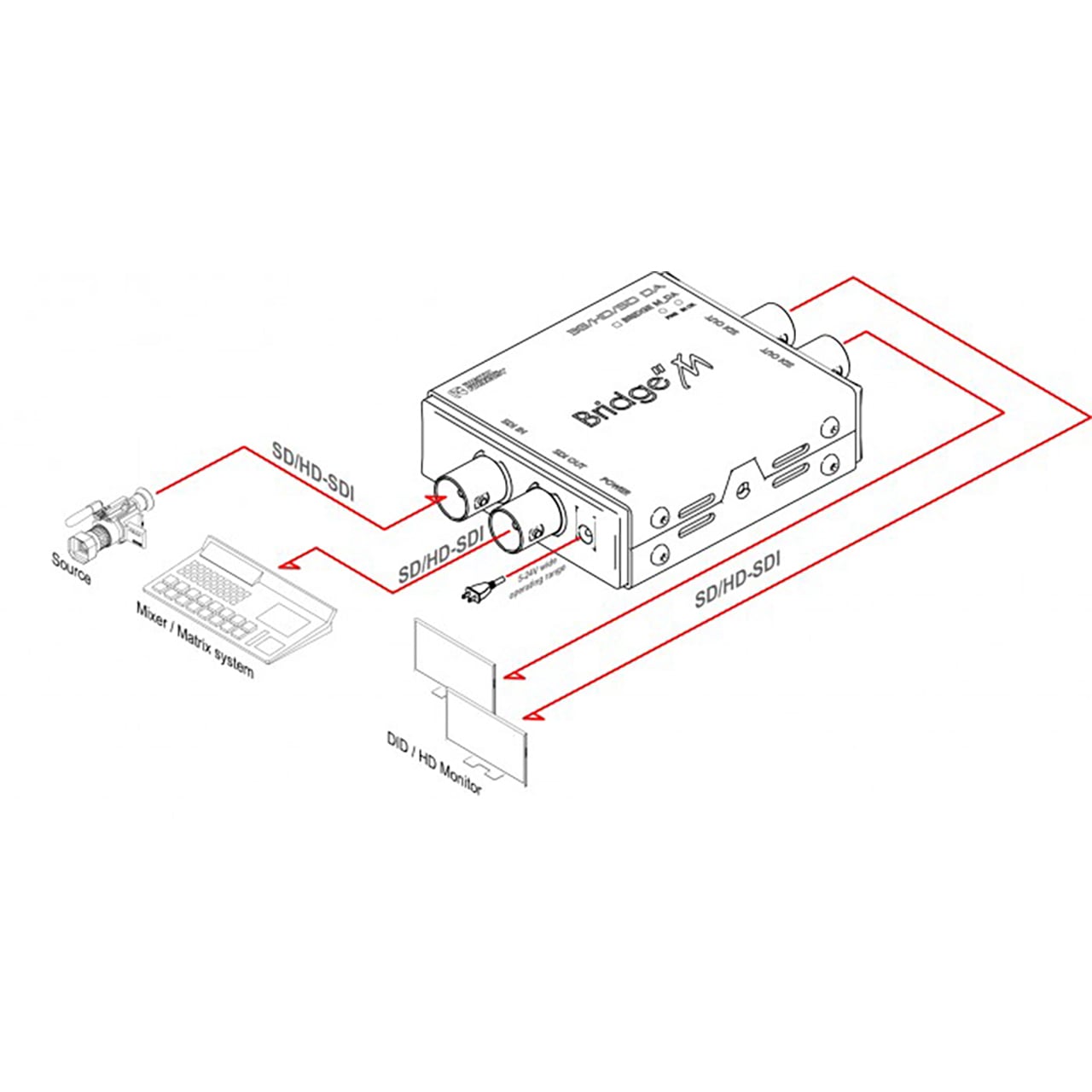

The M-DA is part of the Digital Forecast Bridge M Series (Micro Type Converters) and is a Serial Digital video distribution amplifier that allows you take a single SDI signal and send it out to up to three devices. SD, HD, and 3G-SDI standards are supported. The M-DA distributes SDI SMPTE standard signals supporting formats up to 1080p60. There is a built-in re-clocker and cable equalizer - ensuring accuracy up to 100m/328ft in HD.

Features:
- HD/SDI distribution amplifier
- Inside cable equalizer & re-clocker
- Up to 100m (HD grade) , Up to 60m (3G grade)
- 1 HD/SDI input ( SD/HD/3G all standard format )
- 3 HD-SDI out ( SD/HD/3G all standard format )
- DC 5V ~ 24V wide operating range
Specifications:
- Physical
- Dimension (H x W x D): 68 x 59.2 x 20 mm (2.7" x 2.3" x 1")
- Weight: 90g (3.2 oz)
- Power Level: +12 VDC
- Power Consumption: 3.0Watts (Max : 4Watts)
- Operating Temperature: -20° ~ 70°
- Humidity: 0 to 95% RH, non-condensing
- Data Rate: 3 Gbps
- Signal Level: 800mVp-p +/- 50m

  Digital Video Specs
- Supports multi-rate SDI formats
- SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
- SMPTE 296M: 720p (60/59.94/50)
- SMPTE-274M,SMPTE-292M: 1080i (60/59.94/50) 1080p (30/29.97/25/24/23.98)
- SMPTE-424M: 1080p (60/59.94) 3G
Warranty:
- 2 Years
