2x IO / Headphone Out / 2 x Mic In

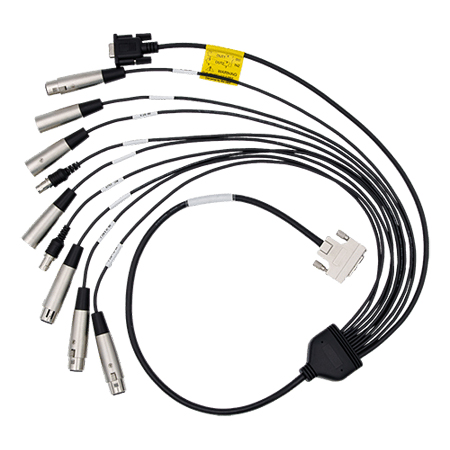

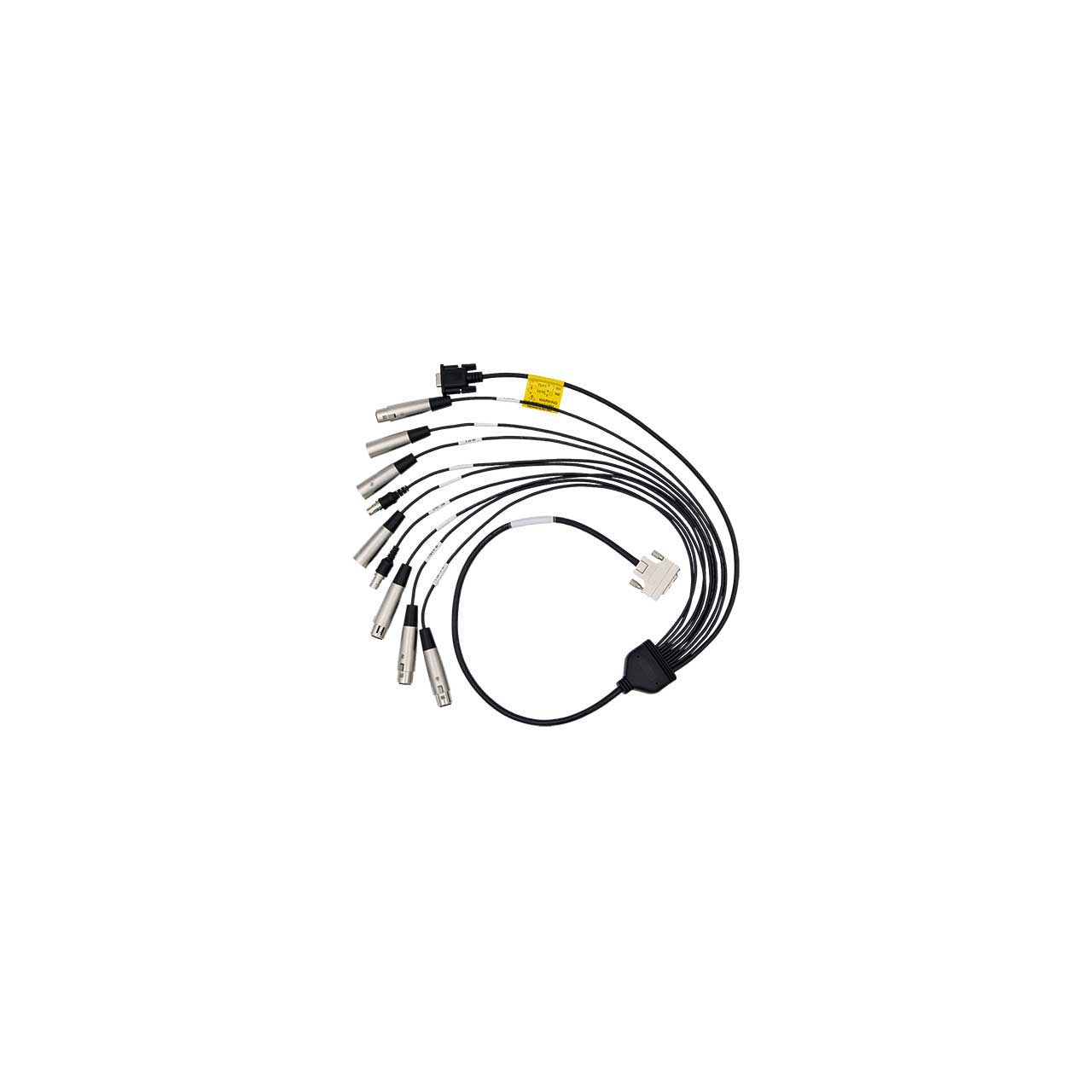

Digigram Breakout Cable features 4 analog female XLRs and 4 male XLRs (4 x analog I/Os) and 2 digital female XLRs and 3 male XLRs (2 x AES3 I/Os + 1 AES11 sync input) for ALP442E/ALP442E-MIC.
-
- Total breakout cable length: 1 m
- XLRs for audio I/Os and AES11 input
- BNC for Word Clock I/O
- DB9 for GPIO
- Inter board synchronization
- Headphones: 3.5 mm TRS female jack
-
- Breakout cable for analog I/Os: Length 1 m, XLR connectors
- Breakout cables for digital I/Os: Length: 1 m, XLR for I/Os and AES11 sync input, BNCs for Word clock I/O, 2 x D-Sub 25 for GPIs and GPOs
-
- 1x Digigram Breakout Cable with XLRs for Analog and AES/BNC for Word Clock/GPIO (1m) for ALP442E/ALP442E-MIC
