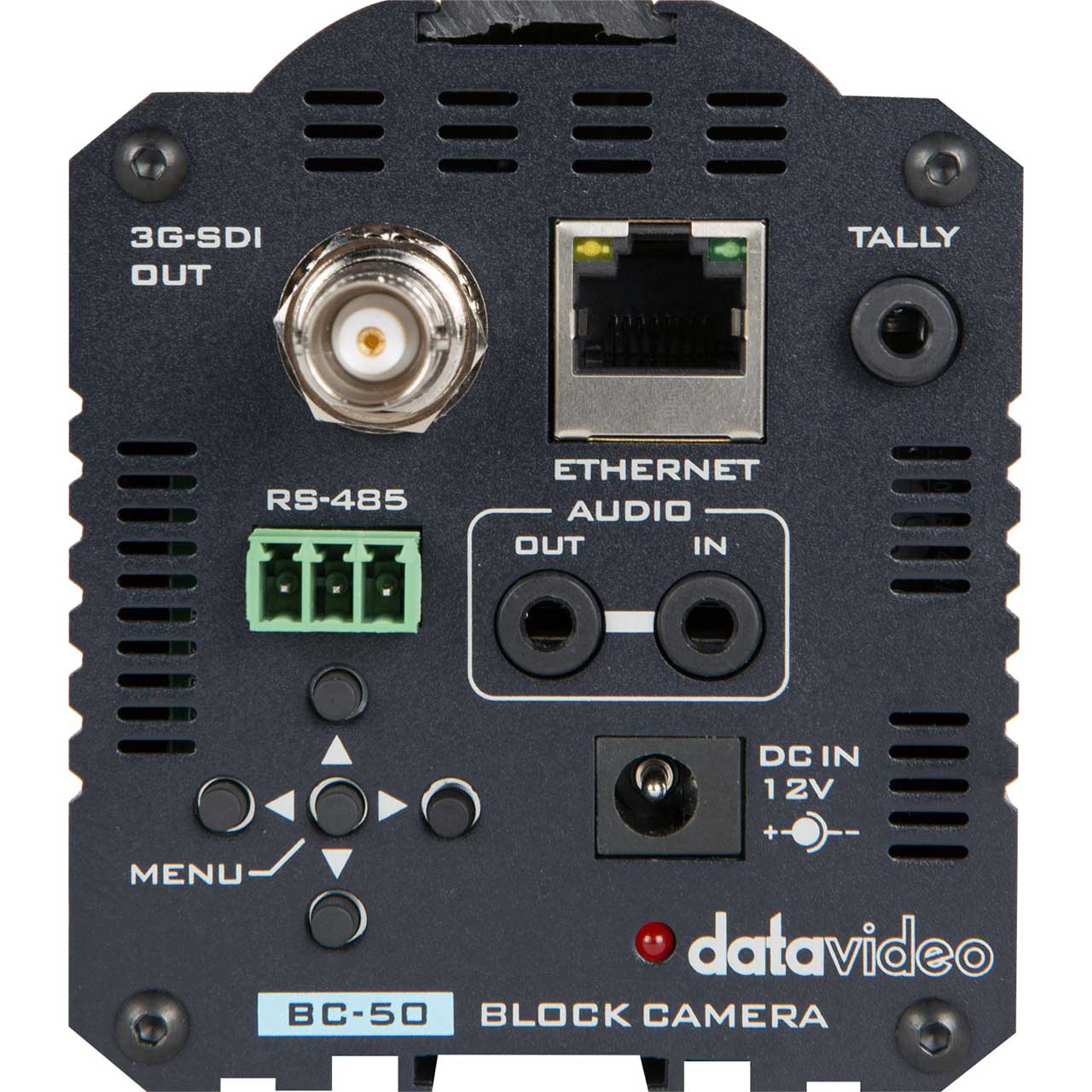

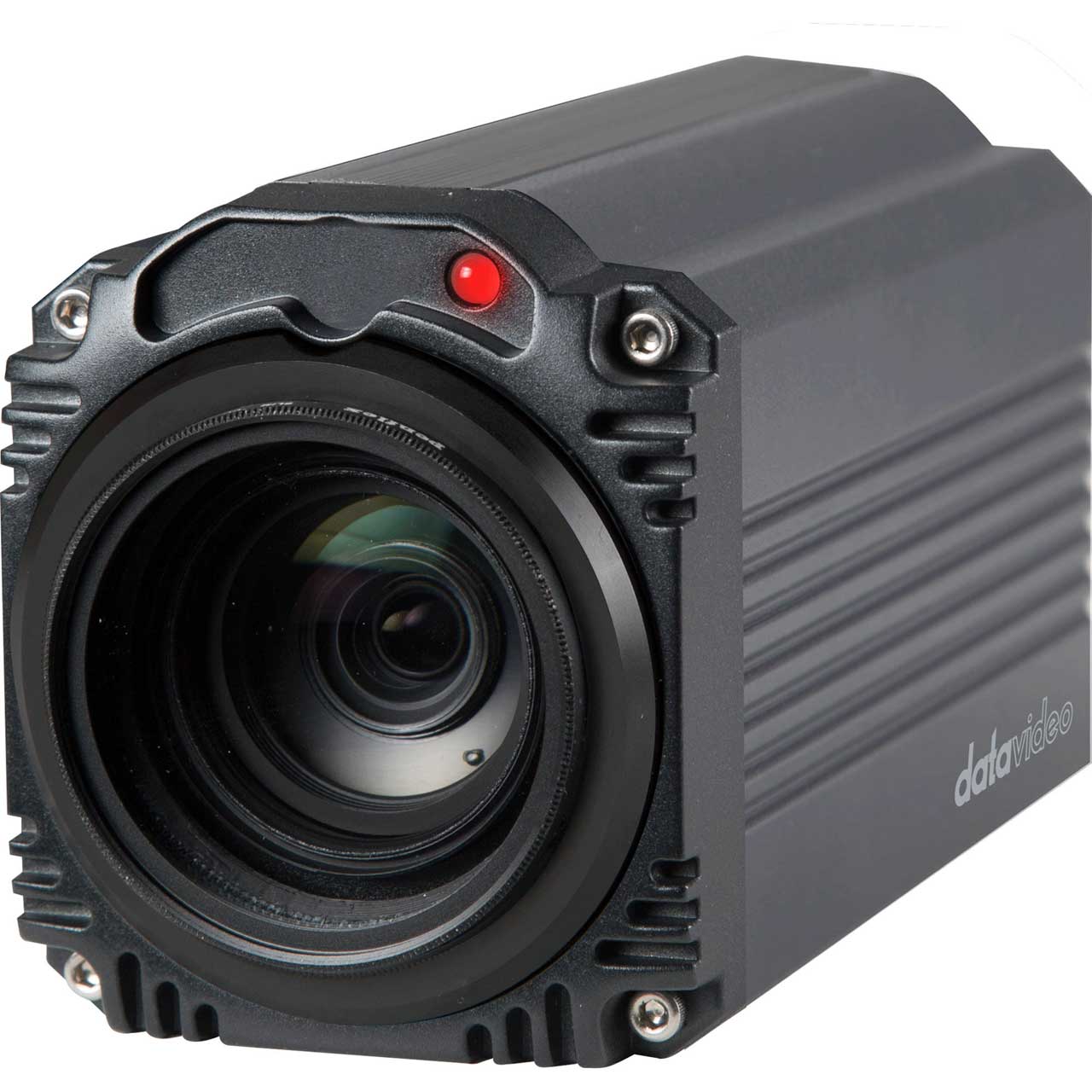

Datavideo BC-50 HD Block Camera with Streaming Capabilities HD-SDI and Ethernet Outputs

BC-50 - Overview

• Features:

  • 1080P Full HD resolution
  • 20x optical zoom with a maximum aperture of F1.8. The camera gain setting of 0.05 LUX is sufficient for video production with a smooth PTZ control
  • H.264/H.265/Motion-JPEG compression through RJ-45 connection
  • RTMP streaming to facebook and youtube
  • Regular 3G SDI output for uncompressed video up to 1080P
  • Controllable by VISCA/Pelco-C/Pelco-D
  • Tally lights for broadcast level applications
  • The camera is only 6.4 inch long facilitating setup in all environments
  • Cold shoe mount for connecting an external LED light or monitor


• Specifications:

  • Video format: 1080p 60/50/30/25; 1080i 60/50; 720p 60/50
  • Image Sensor: 1/2.7" progressive scan CMOS sensor
  • Effective Pixels (approx.): 2.07 Mega pixels
  • Min. Illumination: 0.05 Lux @ (F1.8, AGC ON)
  • Electronic Shutter: 1/30s - 1/10000s
  • Zoom Ratio: 20x Optical zoom ; 16x Digital zoom
  • Gamma Control: Yes
  • Iris Control: Auto/Manual
  • Digital Noise Reductions: 2D & 3D
  • On-Screen Display (OSD) English, Simplified Chinese, Traditional Chinese
  • White Balance: Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K-1, 6500K-2, 6500K-3, One Push, Manual
  • AGC / Gain Control: Auto / Manual (0 to 28 step); Max. Gain Limit (6 to 28 step)
  • Mirror / Flip Image: Yes
  • Focus Mode: Auto / Manual
  • Field of View (Horizontal, Wide): Approx. 63.7° (WIDE END) / 2.3° (TELE END)
  • Image Compensation: Day & Night function
  • Video Output: 3G/HD-SDI x1
  • Tally LED: Dual color (Red, Green)
  • Filter: M52.0 x 0.75 Thread with UV Protection
  • RoHS: Compliant
  • Remote Control Interface and Transmit Distance: RS-485: Transmit up to 1200m
  • F/W Update: Ethernet
  • Color: dark blue


• GTIN:

  0672255007433
