NVS-33 - Overview

Stream Video in RTMPS, RTMP, RTSP & TS Formats!

Datavideo NVS-33 is a H.264 video streaming server which is designed for different applications and network environments by different bit-rate settings. The NVS-33 combines recording and streaming functions into one single unit. Moreover, it supports various features including SDI x 1 and HDMI x 1 video input interfaces, external connected RCA Unbalanced Audio signals. Furthermore, the NVS-33 supports NTFS and FAT file systems for video recording. So, it allows users to record a single video file which the file size is larger than 4GB.

  • Features:

    • H.264 Streaming and Recording Simultaneously: Supports different bitrates for recording and streaming
    • 1x SDI / HDMI Input: NVS-33 is a small, easy-to-use video streaming and recording equipment designed for professional video producers.
    • Support RCA Unbalanced Audio Input: Also support SDI / HDMI embedded audio
    • Streaming Videos in RTMPS, RTMP, RTSP, and TS Formats: Easy stream to YouTube, Facebook, and many other platforms.
    • Record on SD Card: Easy to store. The NVS-33 can record MP4 or TS file to an SD card
    • Supports FAT /NTFS File System: Recording to SD Card with either NTFS and FAT file system to keep the continuous recording without file size limitation.
    • Remotely Controlled by Windows or Mac: Remotely controlled using a Windows / Apple PC or mobile device with a web browser.


  • Specifications:

    • NVS-33 H.264 Video Streaming Encoder and Recorder

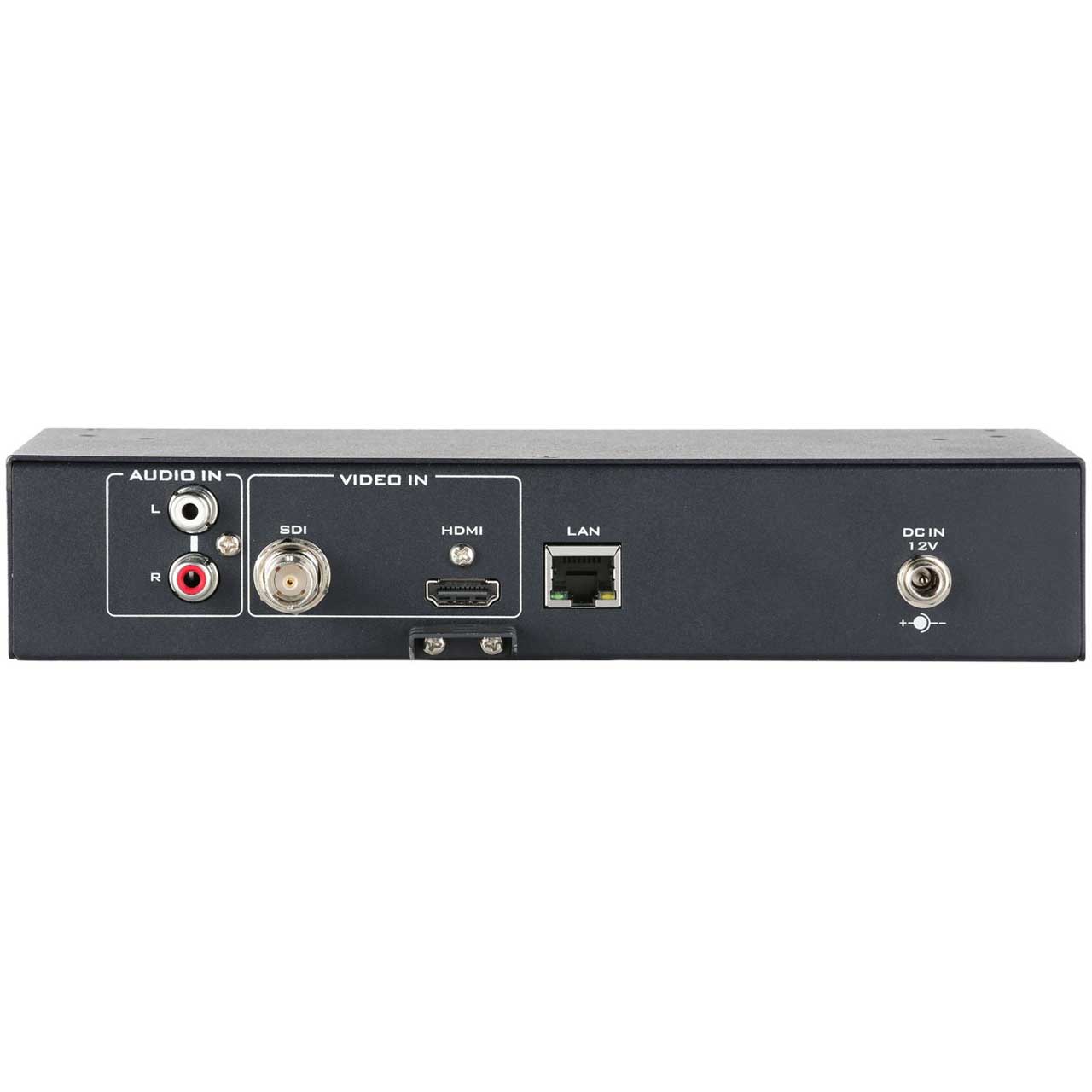

    • Video Input: (1) HDMI (1) SDI
    • Supported Video Input Resolution:
      1080p 60/59.94/50
      1080p 30/29.97/25/24/23.98
      1080i 60/59.94/50
      720p 60/59.94/50
      480i 59.94, 576i 50
    • Audio Input: SDI & HDMI embedded audio; RCA L/R x1
    • Encode: H.264/AVC, Main/High Profile
    • Video Bitrate:
      Record Only: Up to 16Mbps (1080p50/60)
      Stream Only: Up to 10Mbps (1080p50/60)
      Rec+Stream: 10Mbps (1080p25/30)
    • Video Rate Mode: CBR/VBR
    • Audio Mode: Stereo/Mono
    • Audio Bitrate: Stereo: 64-384Kbps; Mono: 32-192Kbps
    • Streaming Protocols:
      TS over TCP/UDP (unicast & multicast)
      RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
      RTMP/RTMPS (Publish)
      HLS
    • Recording File Format: MP4, TS
    • Storage: SD Card x1 (File System: NTFS, FAT)
    • Power Supply: DC 12V
    • Dimension (LxWxH): 8.66 x 3.74 x 1.85" (220 x 95 x 47mm)
    • Weight: 1.54Lbs (0.7kg)
    • Operating Temp. Range: 32° to 104°F (0° to 40°C)

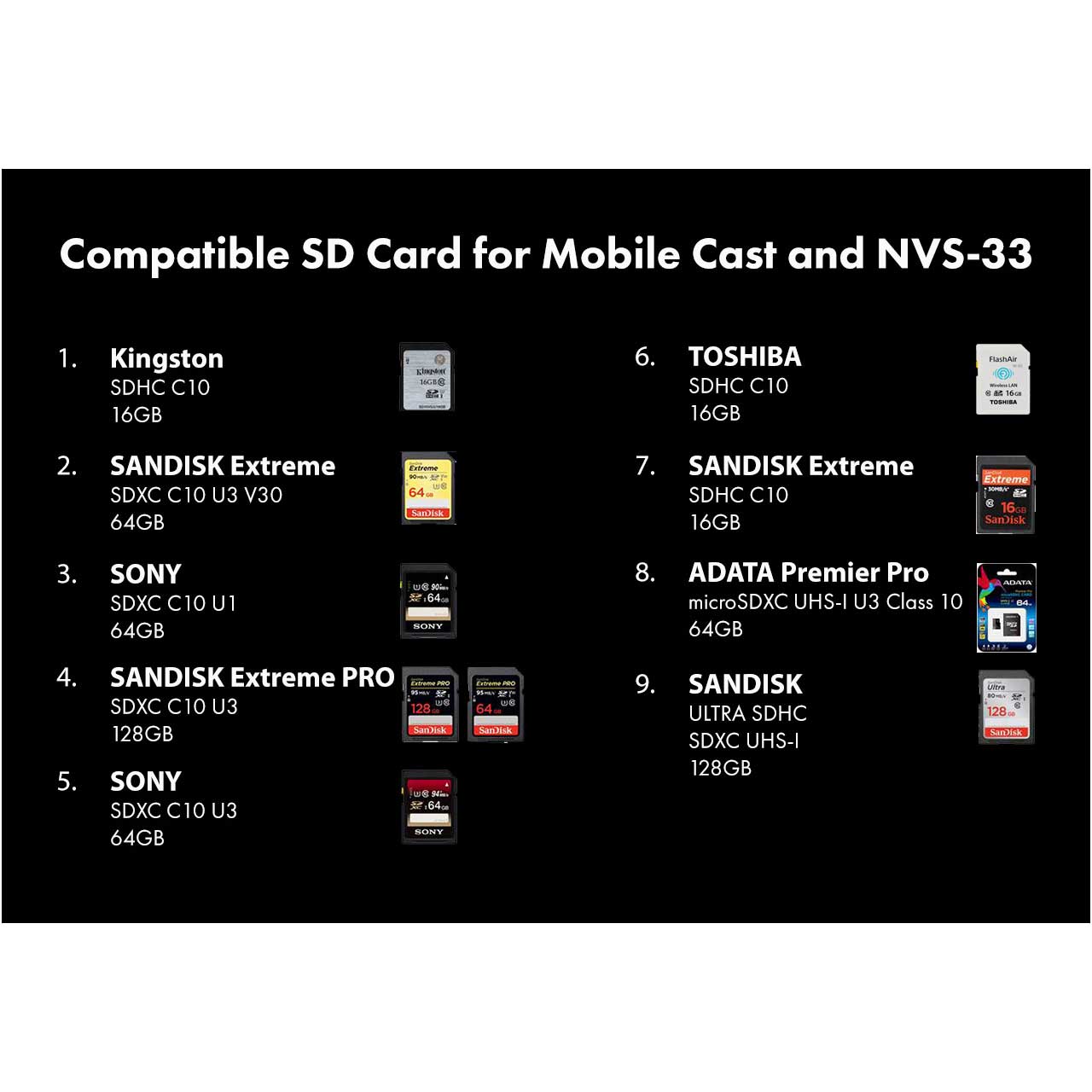

      Verified Compatible SD Cards
    • Kingston: SDHC C10 (16GB)
      Sandisk:
      Extreme SDXC C10 U3 V30 (64GB)
      Extreme PRO SDXC C10 U3 (128GB)
      Extreme SDHC C10 (16GB)
      Ultra SDHC/SDXC UHS-1 (128GB)
    • Sony:
      SDXC C10 U1 (64GB)
      SDXC C10 U3 (64GB)
    • Toshiba: SDHC C10 (16GB)
    • ADATA: Premiere Pro microSDXC UHS-1 U3 Class 10 with SD adapter (64GB)
    • Unirex: SDHC UHC 1, U1 Class 10
    • Samsung: EVO microSD Card (SD Adapter) UHS-1 Speed Class 1 (U1), Class 10


  • Item Includes:

    • 1x NVS-33 product
    • 1x AD Switch DC 12V
    • 1x Thank You Card


  • GTIN:

    0672255006795
