Datavideo NVS-40 4 Channel Streaming Encoder and Recorder

ITEM #: DV-NVS-40 MFG #: NVS-40

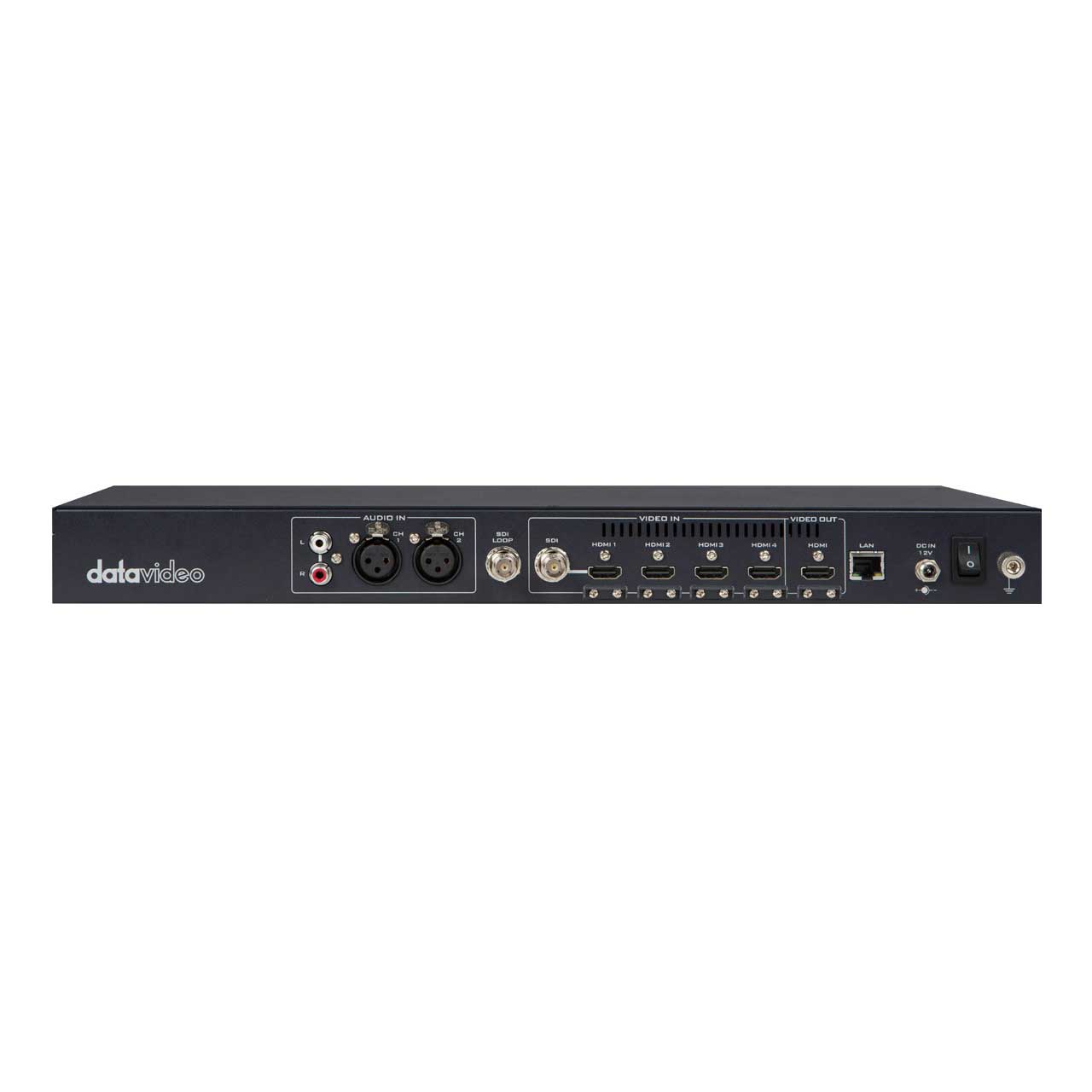

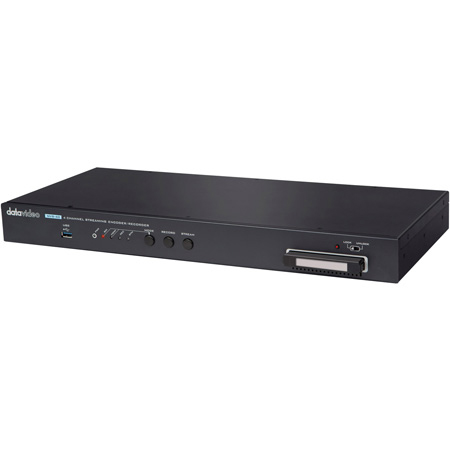

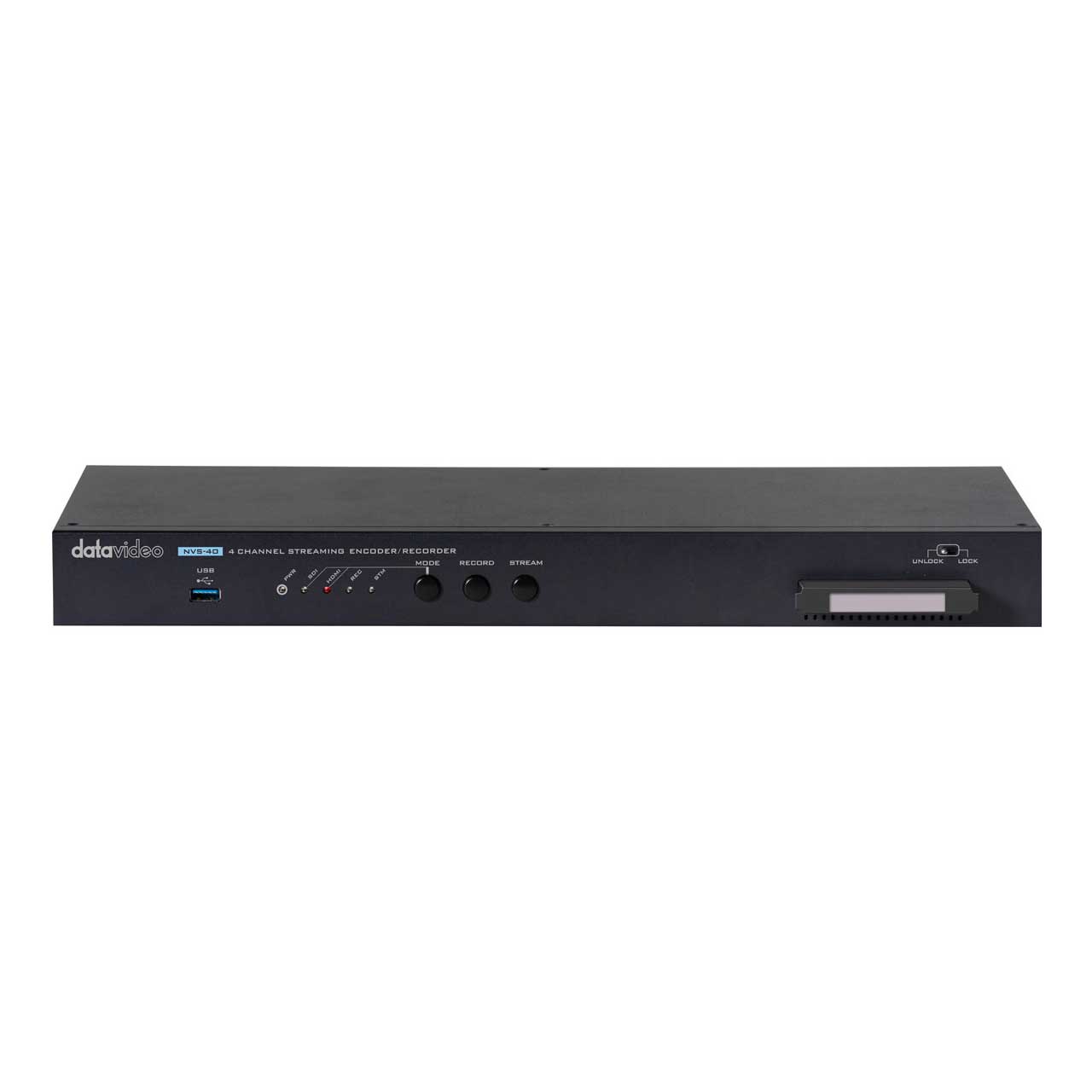

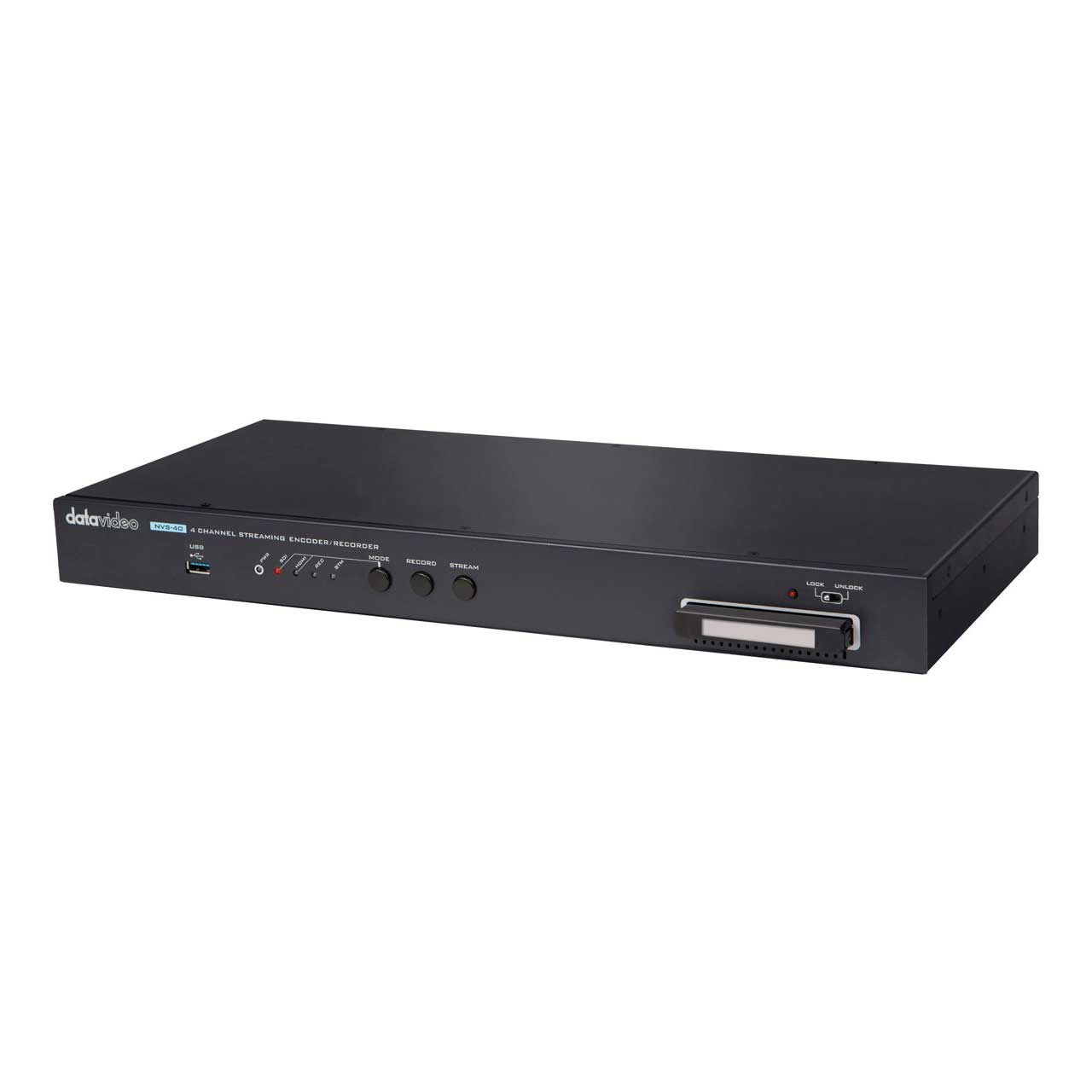

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


NVS-40 - Overview

The NVS-40 is a multi-channel video encoder, streaming unit, and recording station. This single piece of equipment ensures that you can send out multiple streams to different destinations in a variety of bitrates. NVS-40 can also record on a hard drive, so your production is safe in all cases. NVS-40 supports recording directly to the hard disk in master quality. Recording is also fully customizable with different GOP structures, frame rate and bit rate set up.

NVS-40 uses cutting edge encoding to ensure the signal to arrive in superior quality. The encoder can downscale and de-interlace each incoming signal to meet the destination specifications. Each incoming signal is dual-encoded. This means that each signal can be distributed in two bitrates. This gives the user an enormous amount of freedom and flexibility. NVS-40 can be used with all major streaming platforms and social media channels, such as YouTube Live, Facebook, Twitch, UStream, Akamai, Wowza, Adobe Media Server and Datavideo's own DVS-200 server.

The NVS-40 offers extensive customization options. Each input channel has its own color correction options to customize brightness, contrast and saturation. Setting up NVS-40 is easily done with a very simple browser menu. This way, NVS-40 is accessible from any device on the network.

Going live on the internet is mandatory for any video producer at the moment. NVS-40 gives you all the features and capacity to produce the way you like without giving up reliability. It can replace multiple streaming encoders and recorders. NVS-40 is a cost-effective solution for any video producer that needs to deliver his or her production to multiple servers at the same time.

  • Features:

    • 4 channel simple video streaming server
    • Simultaneous Live Streaming & Recording
    • Streaming to YouTube, Facebook and other live streaming platform.
    • Four channel capture and streaming
    • H.264/AVC High Pro le Level 4.1
    • Configurable bit rate up to 30Mbps per channel
    • Independent encoder settings for simultaneous streaming and recording
    • Built-in de-interlacer
    • Built-in video downscaler
    • Isolated / PIP / PBP (Picture by Picture) video processing modes
    • Dynamic Parameter Settings Adjustment: GOP structure, Frame Rate, Bit Rate

  • Specifications:

    • Video Input: HDMI x4 (Channel 1 SDI/HDMI selectable)
    • Supported Video Input Resolution: 1080p60/59.94/50, 1080p30/29.97/25/24/23.98 1080i60/59.94/50
    • 720p60/59.94/50 480i59.94, 576i50
    • Video Output: HDMI 1.4x1 SDI loopthrough x1
    • Audio Input: RCA L/R x1 XLR x2
    • Encode: H.264/AVC High Profile Level 4.1
    • Video Bitrate: Each Channel Rec + Stream 30Mbps
    • Video Rate Mode: CBR/VBR
    • Audio Mode: Stereo/Mono
    • Audio Bitrate: AAC-LC
    • Sample rate: 48KHz, 16bit
    • Configurable bit rate: 128K or 256K or 384K
    • Recording file format: MP4, MOV
    • Storage: HDD x1
    • Power Supply: DC 12V 16W

  • GTIN:

    0672255007563
