Datavideo PTC-150TL HD/SD PTZ Camera with HDBaseT Technology - HDMI/3G-SDI/CVBS/HDBaseT Out - Black

ITEM #: DV-PTC-150TL MFG #: PTC-150TL

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,899.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PTC-150TL - Overview

Made with HDBaseT Technology

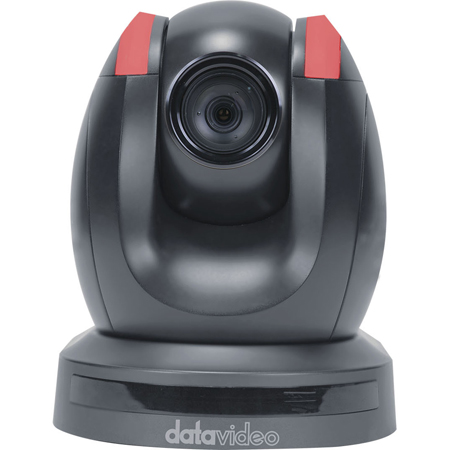

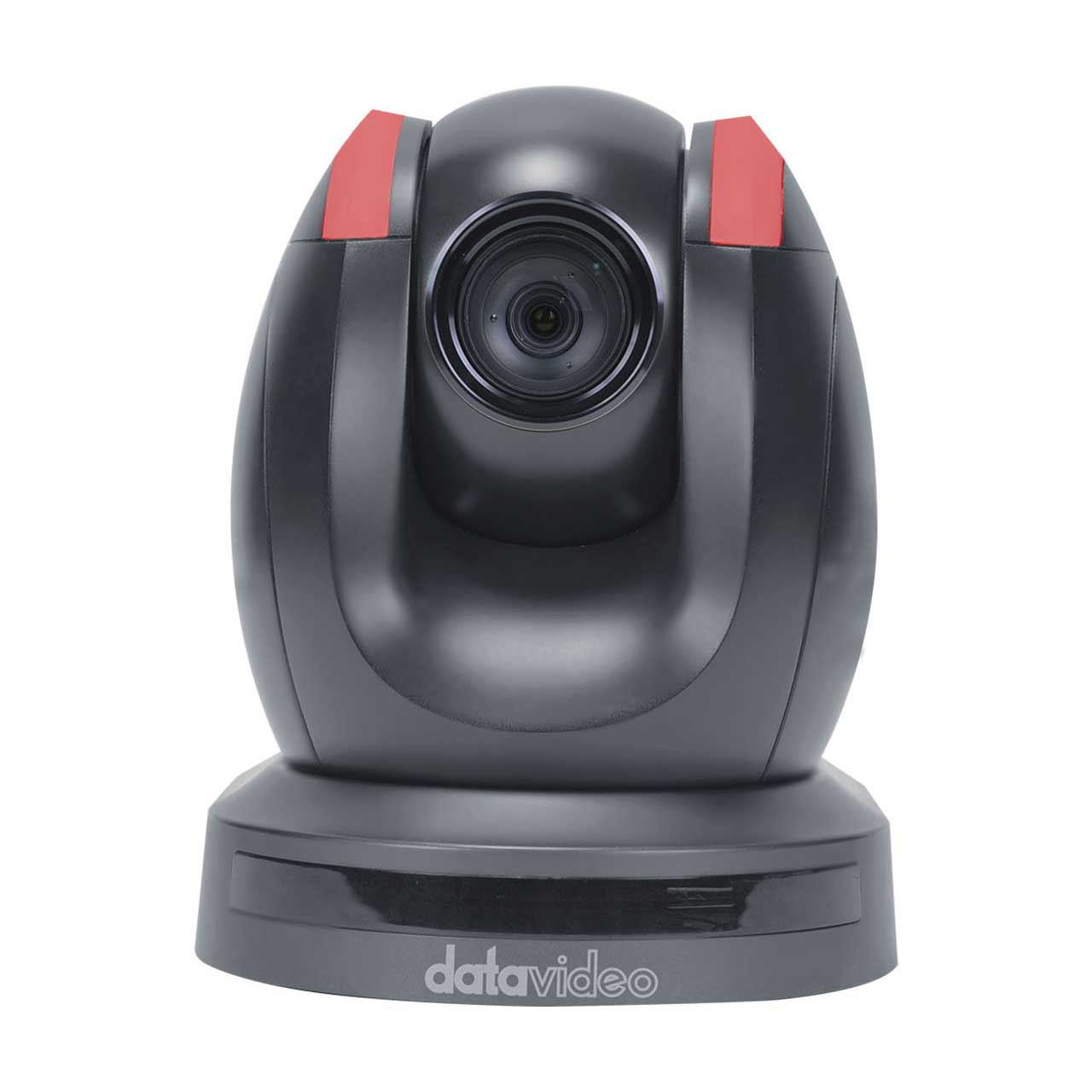

The Datavideo PTC-150TL is an HD/SD PTZ Video Camera with HDMI, 3G-SDI, CVBS and HDBaseT outputs in black.

Rather than using one cable for video, a second cable for power, and a third cable for camera control, the PTC-150TL is able to do all of the above using a single ethernet cable. This model does not include the HBT-11 Receiver, but works with HS-1600T as-is. This increase in flexibility greatly reduces setup time, and now you can mount the camera in challenging locations (like spots without nearby power outlets).

Simple multi-camera control at your fingertips

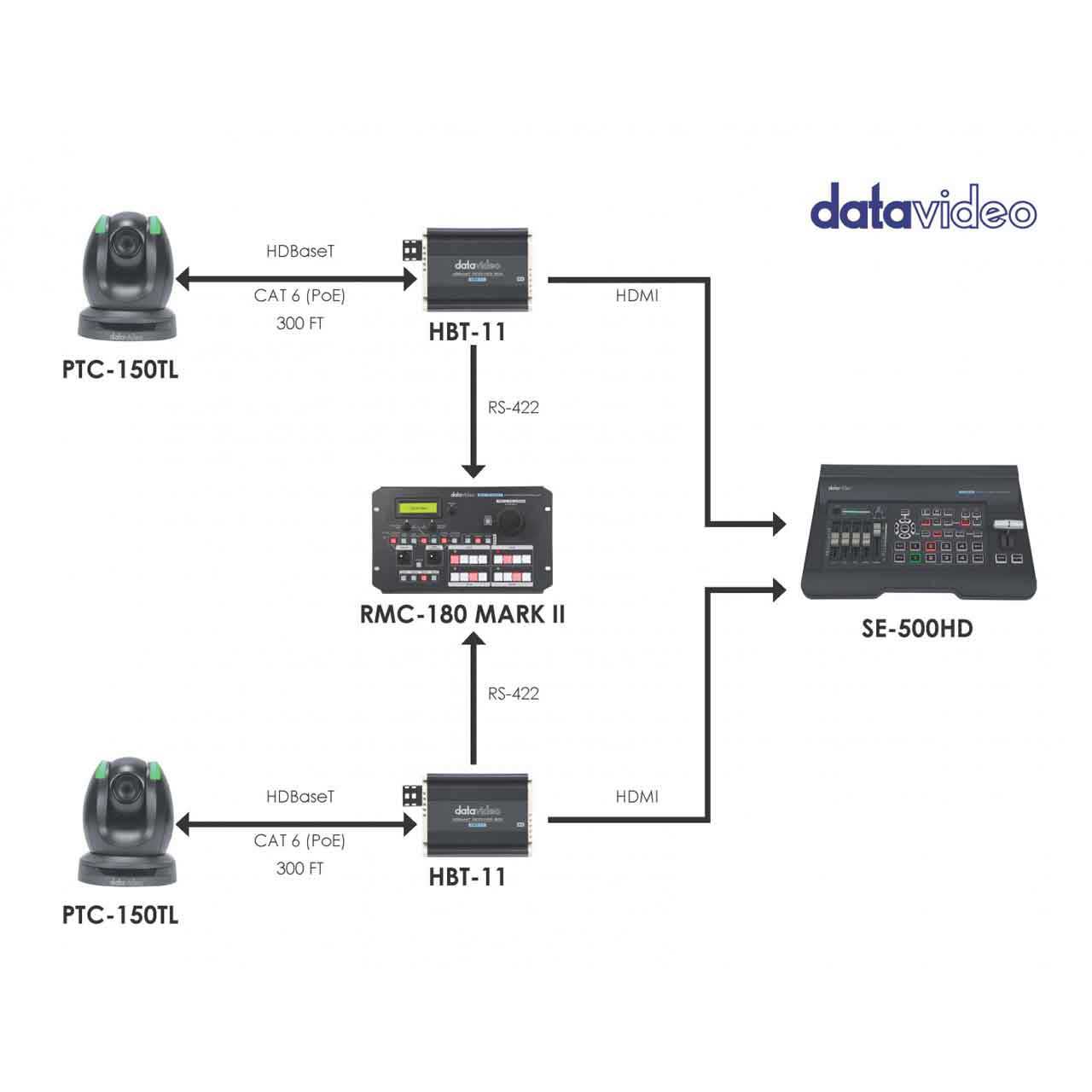

With its ergonomic joystick and tactile button layout, the RMC-180 series controllers (sold separately) make it easy to set up and control up to four Datavideo PTC-150TL cameras for any live video production.

Wide 63° Field of View
PTC-150TL provides a wide Field of View of 63°, easily shooting all the scenes in the field.

Fantastic 3G Resolution with 30x Optical Zoom
The PTC-150TL shoots video at a maximum resolution of 1080p60, with advanced digital noise reduction for beautiful, smooth image quality even in less-than-perfect lighting conditions.

One-person camera crew

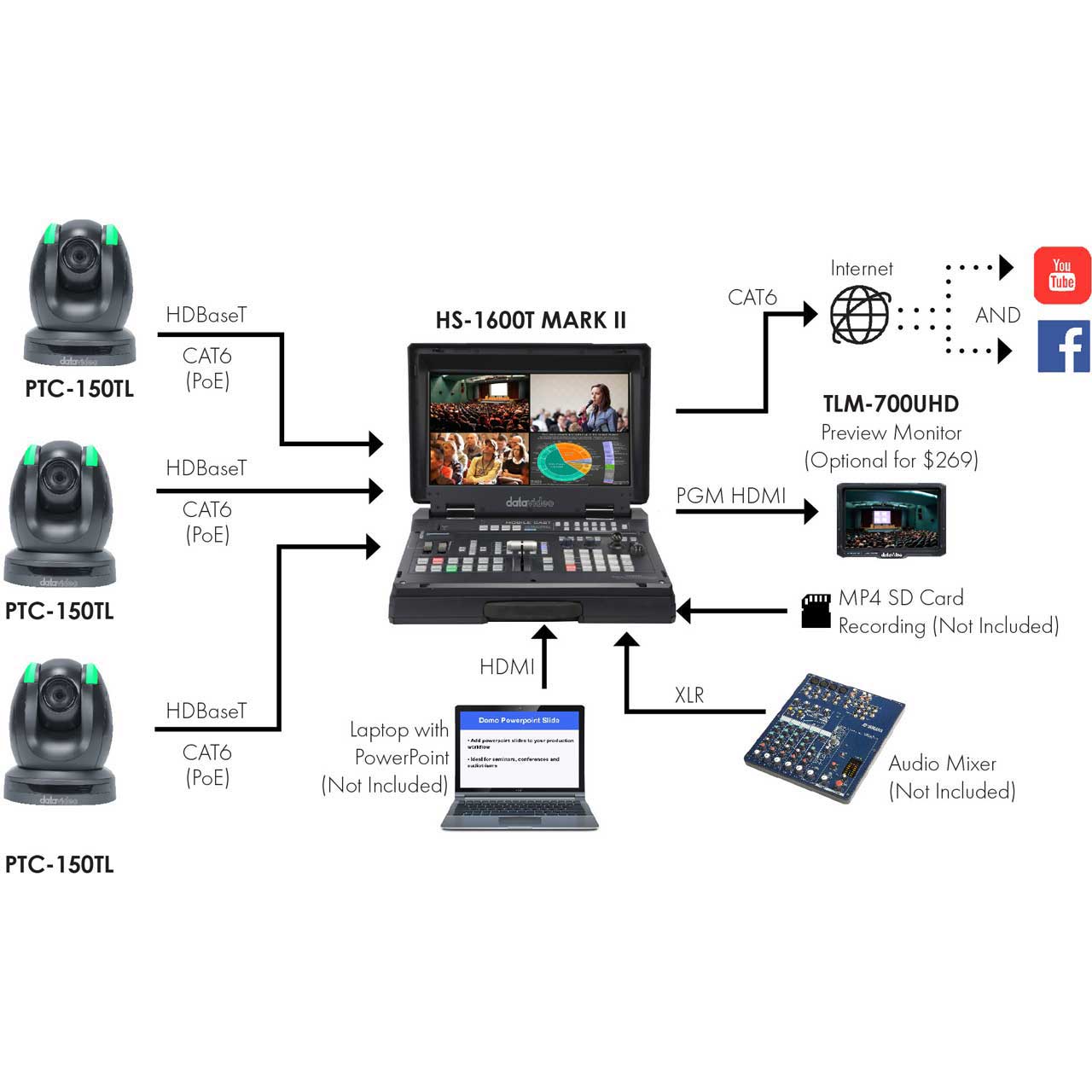

The beauty of multiple PTC-150T cameras is the ability to control all of them from a single control panel. Pair cameras with the RMC-180 controller or with an HDBaseT mobile switcher like the HS-1600T (items sold separately), and you can reduce your camera crew to just... you

  • Features:

    • HD Resolution - 1/2.8" High Definition 2.14 M Pixels progressive CMOS sensor
    • 30x optical zoom (f = 4.3 mm to 129 mm)
    • High definition formats supported - 1080/59.94p, 1080/50p, 1080/59.94i, 1080/29.97p, 1080/25p, 1080/50i, 720/59.94p, 720/50p
    • Standard definition formats supported - 480i, 576i
    • Digital Noise Reduction Function (DNR) to reduce the noise and enable clearer image under low light conditions
    • Position coordinates report in real time per frame
    • Video Output - HD-SDI + CVBS + HDMI synchronously
    • Tally LED Design
    • Supports VISCA Protocol Keyboard
    • Supports DVIP Control Protocol
    • Supports HDBaseT

  • Specifications:

    • PTC-150TL
    • Video format/Resolution: 1080p 59.94/50/29.97/25 - 1080i 59.94/50 - 720p 59.94/50 - 480i, 576i (on CVBS)
    • Image Sensor: 1/2.8" type progressive scan CMOS sensor
    • Effective Pixels (approx.): 2.14 Mega pixels
    • S/N Ratio: 50dB
    • Min. Illumination: Color : 0.4 lx - B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
    • Electronic Shutter: 1/25~1/1250 sec (50/25Hz) - 1/30~1/1500 sec (59.94/29.97Hz)
    • Zoom Ratio: 30x Optical Zoom
    • Gamma Control: Off / Normal / Standard Mode 1-4
    • Iris Control: Auto / Manual
    • Digital Noise Reductions: Yes
    • On-Screen Display (OSD): English
    • White Balance: AWB, MWB, One push WB, Outdoor, Indoor, Fluorescent
    • AGC / Gain Control: Auto / Manual - Max. Gain Limit
    • Mirror / Flip Image: Yes
    • Focus Mode: Auto / Manual
    • Panning / Tilting Range Pan: 270° , Tilt: +90° to -20°
    • Panning / Tilting Speed Manual: 1~150°/Sec - Swing: 1~150°/Sec
    • Preset: 50 Position
    • Focal Length: f=4.3 mm (WIDE) to 129 mm (TELE) F1.6 to F4.7
    • Field of View (Horizontal, Wide): Approx. 63.7° (WIDE END) / 2.3° (TELE END)
    • Image Compensation: Day & Night function

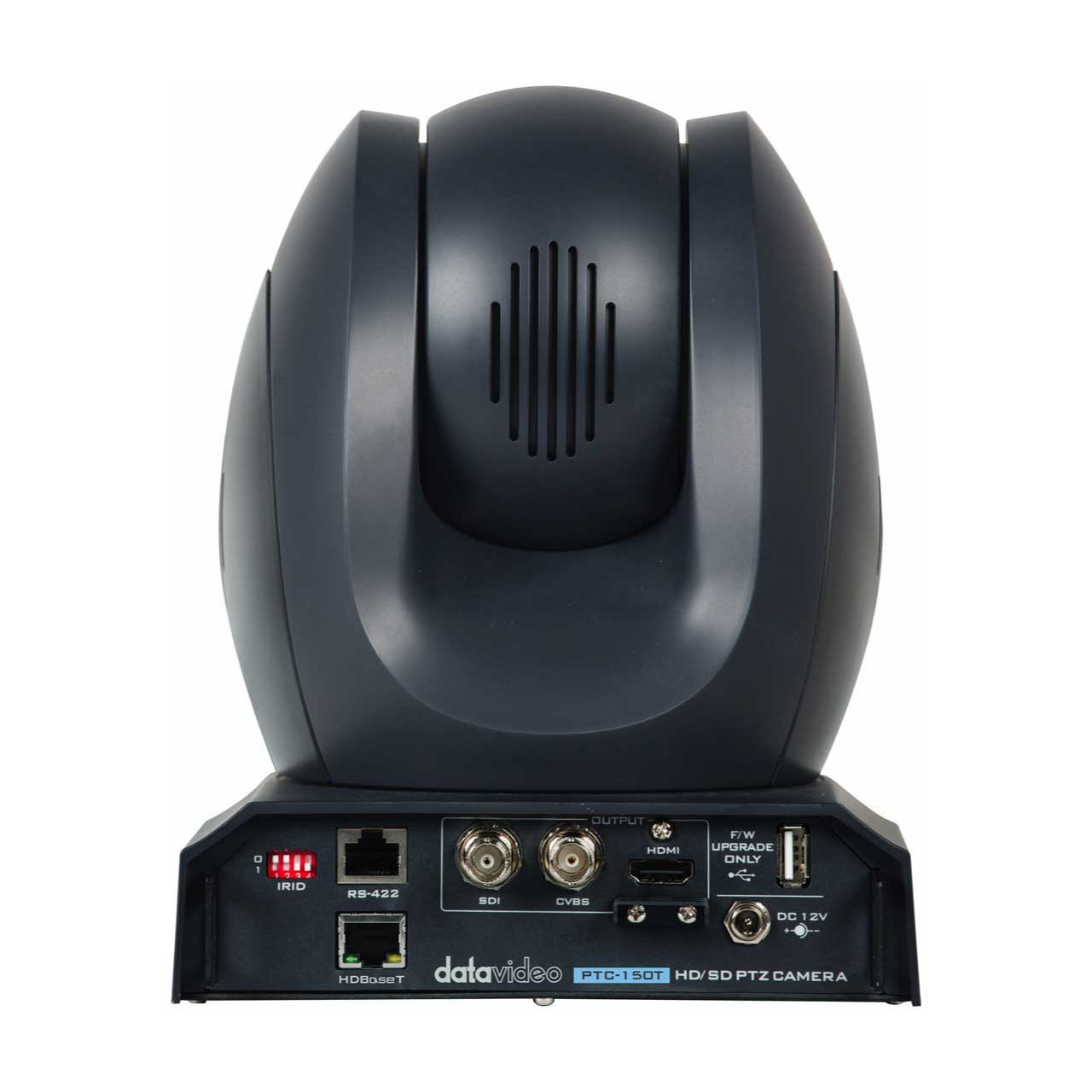

    • Video Output: HDMI (V1.3) x 1 - 3G-SDI x 1 - CVBS x 1 - HDBaseT x 1 to PTC-150T Receiver Box
    • Audio Input: NA
    • Tally: LED Dual color (Red, Green)
    • Lens Filter: M52.0 x 0.75 Thread with UV Protection
    • Control Protocol: VISCA, DVIP
    • Remote Control Interface: RS-422: Transmit up to 1000m - HDBaseT (RJ-45)/ DVIP on Receiver Box: Transmit up to 100m
    • Control Protocol: VISCA, DVIP
    • Video Compression Format: NA
    • Audio Compression Format: NA
    • Audio Bitrate: NA
    • HD IP Interface: NA
    • Streaming Protocols: NA
    • First Stream: Supported
    • Resolution: NA
    • Second Stream: Supported
    • Resolution: NA
    • Video Bitrate: NA
    • Video Bitrate Mode: NA
    • Encoding Frame rate: NA
    • POE: NA
    • F/W Update: USB
    • IR Control: Yes
    • Camera Control Unit: HS-1500T/HS-1600T series/RMC-180 series/RMC-300 series
    • Tripod Mount: 1/4-20 UNC
    • Optional Accessories: WM-1/ WM-10/ WM-11
    • Color: Black/White
    • Dimension (LxWxH): 173 x 189 x 219 mm
    • Weight: 2.7 kg
    • Operating Temp: Range 0~40 °C
    • Power: DC 12V 29W

  • Item Includes:

    • 1 x PTC-150T/TW Unit

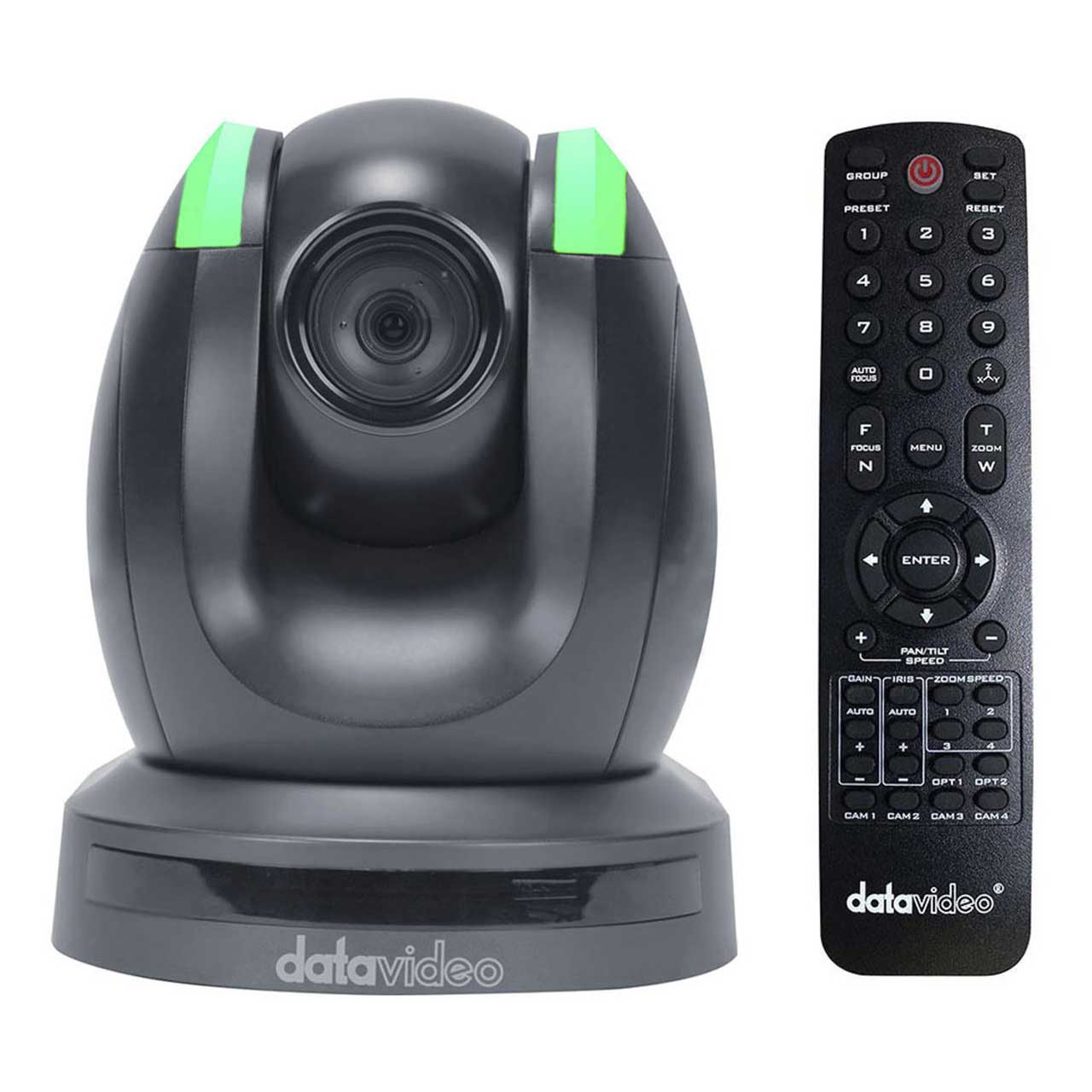

    • 1 x IR remote controller
    • 1 x Ceiling mount bracket-A
    • 1 x Ceiling mount bracket-B
    • 6 x Ceiling mount bracket screw M3*4mm
    • 1 x DC 12V Power Adaptor
    • 2 x Power Cord
    • 1 x A tightrope
    • 1 x Phoenix connector to RJ-45

  • Warranty:

    • One year from the date of purchase with free two year extension if product is registered with Datavideo within 30 days of purchase.

  • GTIN:

    0672255007341
