Complete and Compact 8 Inputs 4K Production Switcher The switcher designed for the omnimedia generation.

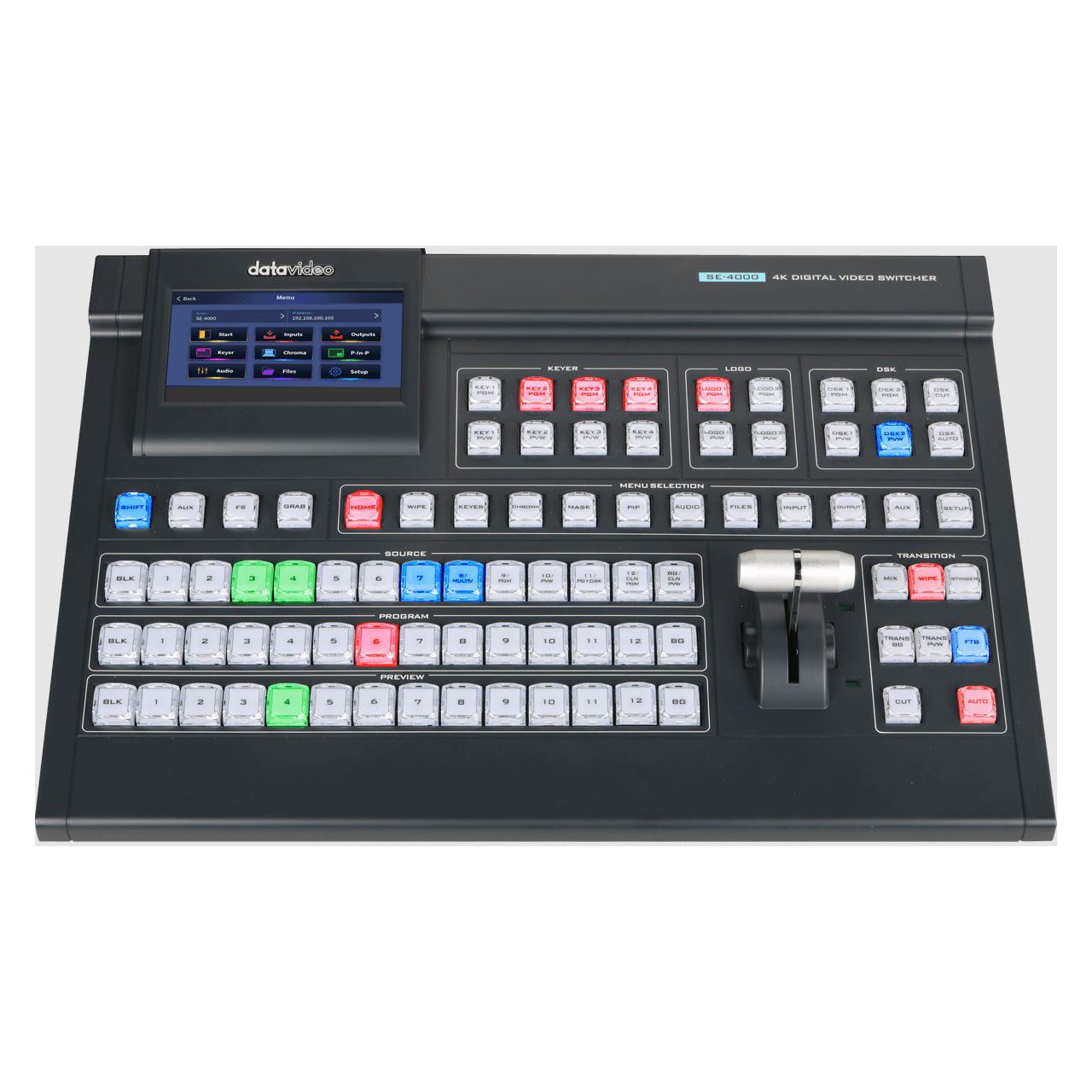

Datavideo SE-4000 is a comprehensive 4K video switcher tailored for the omnimedia generation. The SE-4000 is equipped with broadcast quality UHD 4K50/60 12GSDI and HDMI 2.0 video input ports, allowing you to operate the device using the traditional physical control panel and a state-of-the-art 5 inch color LCD touch screen.
The SE-4000's one-button-one-function feature simplifies your video production flow. With the auxiliary outputs, cross point, four chroma keyers, PIP, DSK effects, you will be able to easily generate various professional effects for all scenarios and applications.
Designed for Easy Installation
SE-4000's base unit can be easily mounted into a standard 19" rack. The power button on the front panel makes it easy to turn on and off the switcher.
5" Touchscreen Display
The SE-4000 is Datavideo 4K switcher with 4K support on every input. Additionally, it has a 5" LCD touch panel to adjust all the setting without any laptop or app needed.
The OSD menu is behind the one-button-one-function design.
In order to set up the one-button-one-function feature, we've included a color HD 5 inch touch screen. Well-designed icons help you identify settings therein.
All menu functions can be found here. You can group multiple functions into one button so you will be able to execute these functions with one tap.

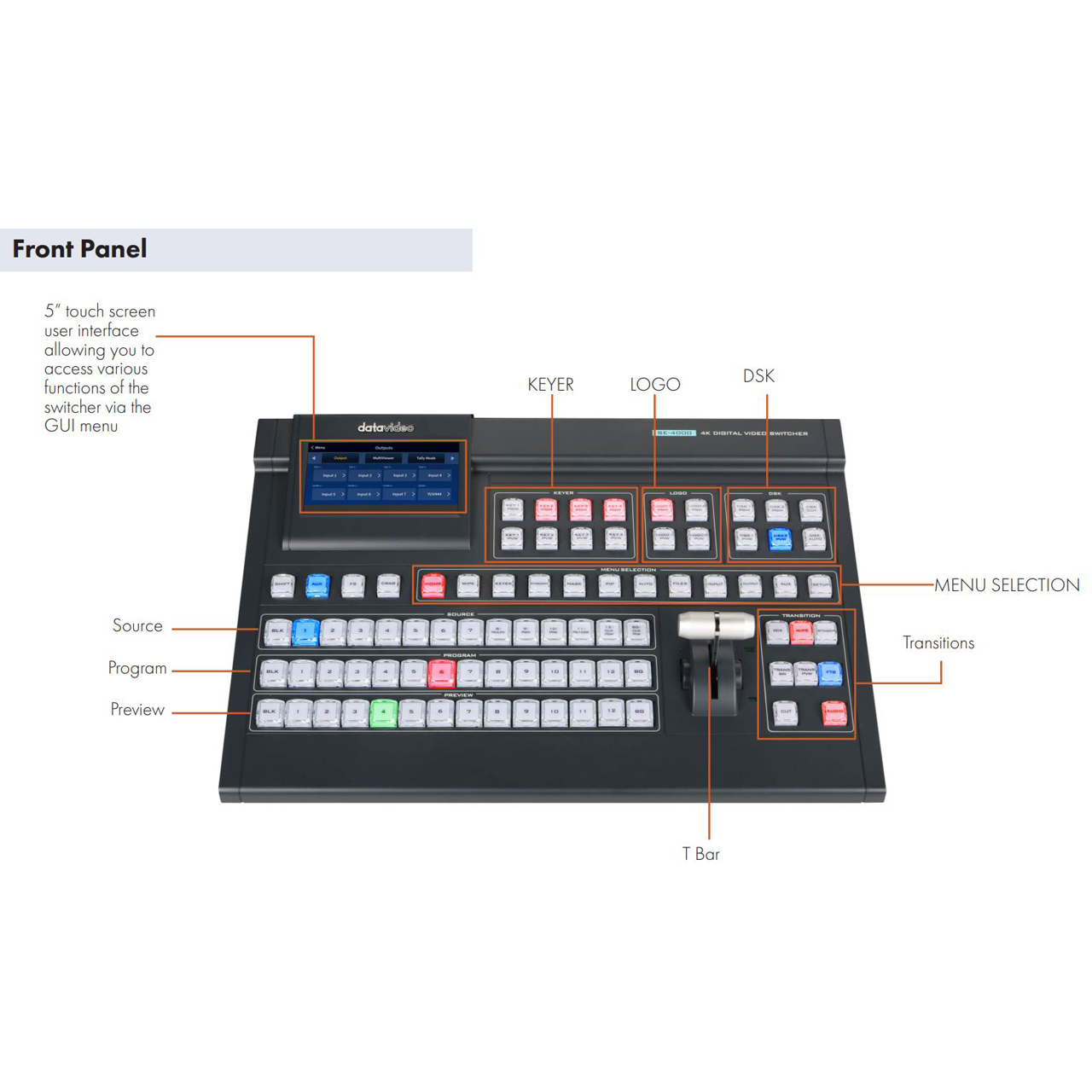

The touch panel screen and the physical control panel form the most convenient and efficient user interface.
True 12G 4K 50/60 Video Production Switcher
Support UHD 4K60/50p signals on inputs and outputs. It also has built-in input scaler, for up conversion on each available input.
Designed for Easy Installation and Integration
SE-4000's main unit can be easily mounted into a standard 19" rack. The power button on the front panel makes it easy to turn on and off the switcher. Moreover, SE-4000 has DVIP remote control interface, Datavideo DVIP provides an easy integration of Datavideo's full range of devices.
A 12-Channel Application Built upon an 8 Video Switching Design
Responsive and seamless interface switching between 12G SDI and HDMI 2.0 on four shared channels. By upgrading from 8 channels to a 12 channel machine, it adds greater versatility to your hardware connections and more possibilities to live program production.

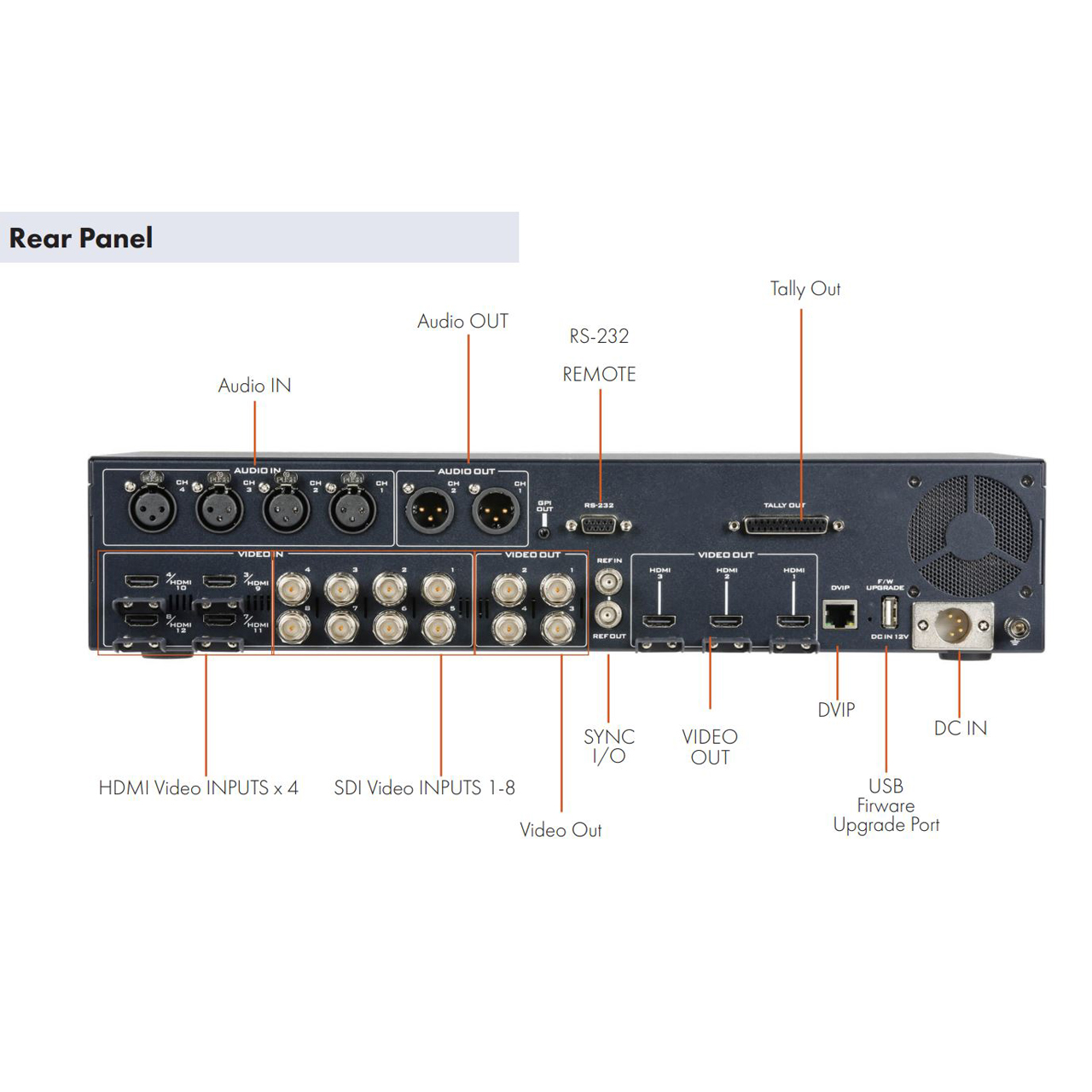

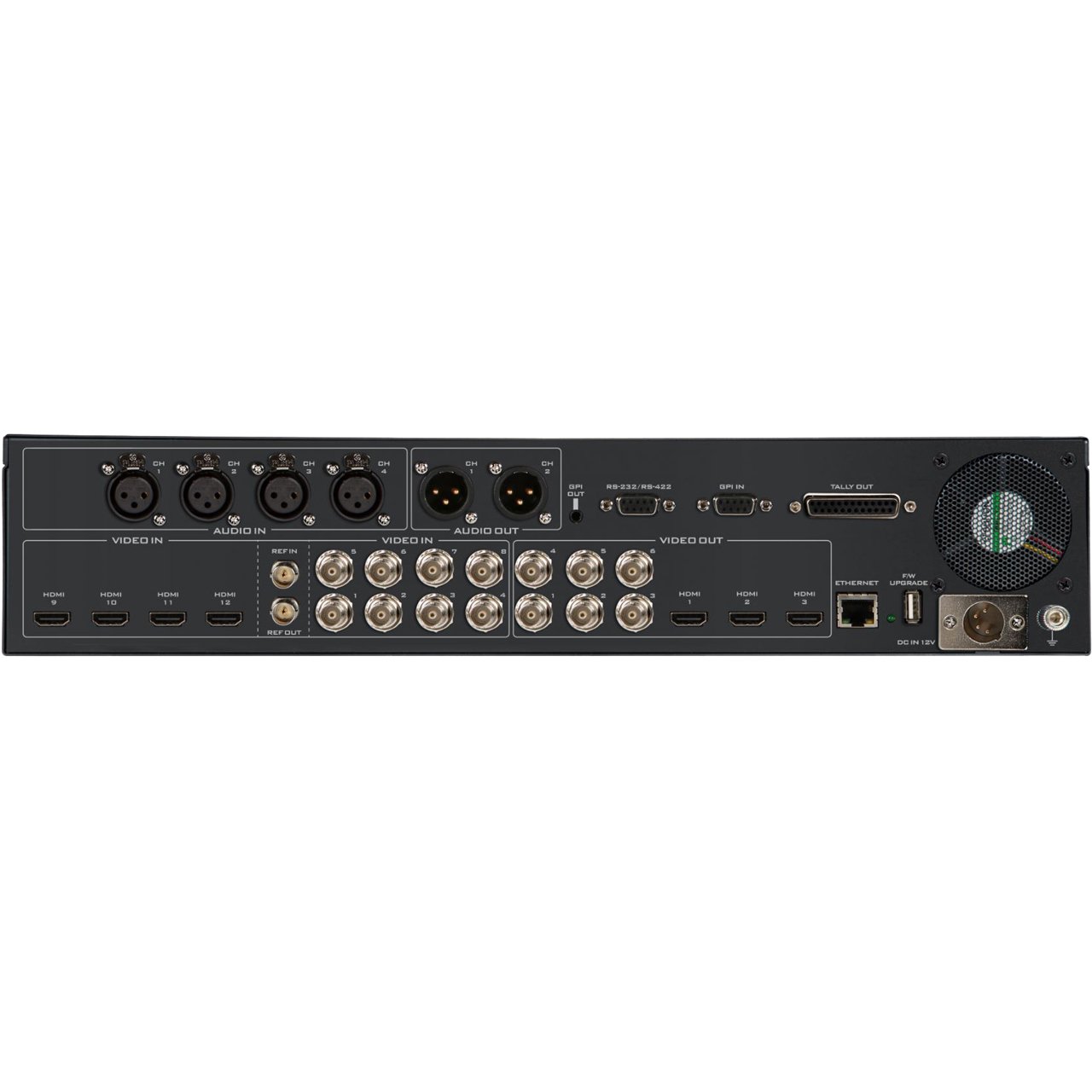

Multiple Interfaces for All Video Types
Fully equipped with various I/O's that accept UHD 4K 50/60p videos from sources such as PCs with an HDMI 2.0 output port, multimedia players, and 12G-SDI ENG style cameras. Upon connection, the 10-bit broadcast quality video will be displayed instantaneously at no expense of resolution, speed and frame rate.
Applications:
Live Event Meetings
Tradeshows
Townhall Meetings
Government Events
Worship Services
Musical Performances
Lectures
